Manwal tal-Utent tad-Dawl tar-Roti LED Cyclami BR-2000

Introduzzjoni

Thank you for choosing the Cyclami BR-2000 LED Bicycle Light. This high-performance bicycle headlight is designed to provide superior illumination and visibility for your cycling adventures. With its durable aluminum alloy construction, powerful 2000 lumen output, and long-lasting battery, the BR-2000 ensures you can see clearly and be seen by others, enhancing your safety on the road or trail.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Cyclami BR-2000 bicycle light. Please read it thoroughly before first use to ensure optimal performance and longevity of your device.

Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma preżenti fil-pakkett tiegħek:

• Cyclami BR-2000 LED Bicycle Headlight
• Handlebar Mounting Strap
• Adapter GoPro
• Cable tal-Iċċarġjar tal-USB-C
• Manwal ta 'Istruzzjoni (dan id-dokument)

Prodott Overview

Familiarize yourself with the components of your Cyclami BR-2000 bicycle light.

Figura 1: Quddiem view of the Cyclami BR-2000 LED Bicycle Light, showing the main light unit and the attached handlebar mounting bracket.

Figura 2: Fuq view of the light, highlighting the power button (left) and mode selection button (right), along with the Cyclami branding.

Figura 3: Qiegħ view of the light, illustrating the secure mounting interface for attaching to the handlebar strap or GoPro adapter.

Figura 4: Tmiem view of the light, showing the protective cover for the USB-C charging port and approximate dimensions.

Setup

1. Iċċarġjar tal-batterija

Before first use, fully charge the Cyclami BR-2000. The light features an efficient, USB-C rechargeable battery.

1. Locate the USB-C charging port cover on the end of the light (refer to Figure 4).
2. Gently open the rubber cover to expose the USB-C port.
3. Connect the provided USB-C cable to the light and the other end to a USB power source (e.g., computer, wall adapter).
4. The power indicator light will show charging status. Refer to the "Smart Power Indicator" section for details.
5. Once fully charged, disconnect the cable and securely close the rubber cover to maintain water resistance.

Figura 5: Smart Power Indicator. Green indicates 100%-61% charge, Red indicates 61%-21% charge, and Flashing Red indicates 21%-1% charge, signaling a need for recharging.

2. Immuntar tad-Dawl

The Cyclami BR-2000 can be mounted using the included handlebar strap or a GoPro adapter.

Immuntar tal-manubriju:

1. Attach the handlebar mounting strap to the bottom of the light by sliding it into the mounting groove until it clicks securely.
2. Position the light on your bicycle handlebar.
3. Wrap the strap around the handlebar and secure it tightly. Ensure the light is stable and does not rotate freely.
4. Adjust the angle of the light to illuminate the path ahead effectively.

GoPro Adapter Mounting:

The light supports GoPro hanging for alternative mounting options (e.g., helmet mount, out-front mount).

1. Attach the GoPro adapter to the bottom of the light, ensuring it is securely fastened.
2. Connect the GoPro adapter to your desired GoPro-compatible mount.
3. Ensure all connections are tight and secure before riding.

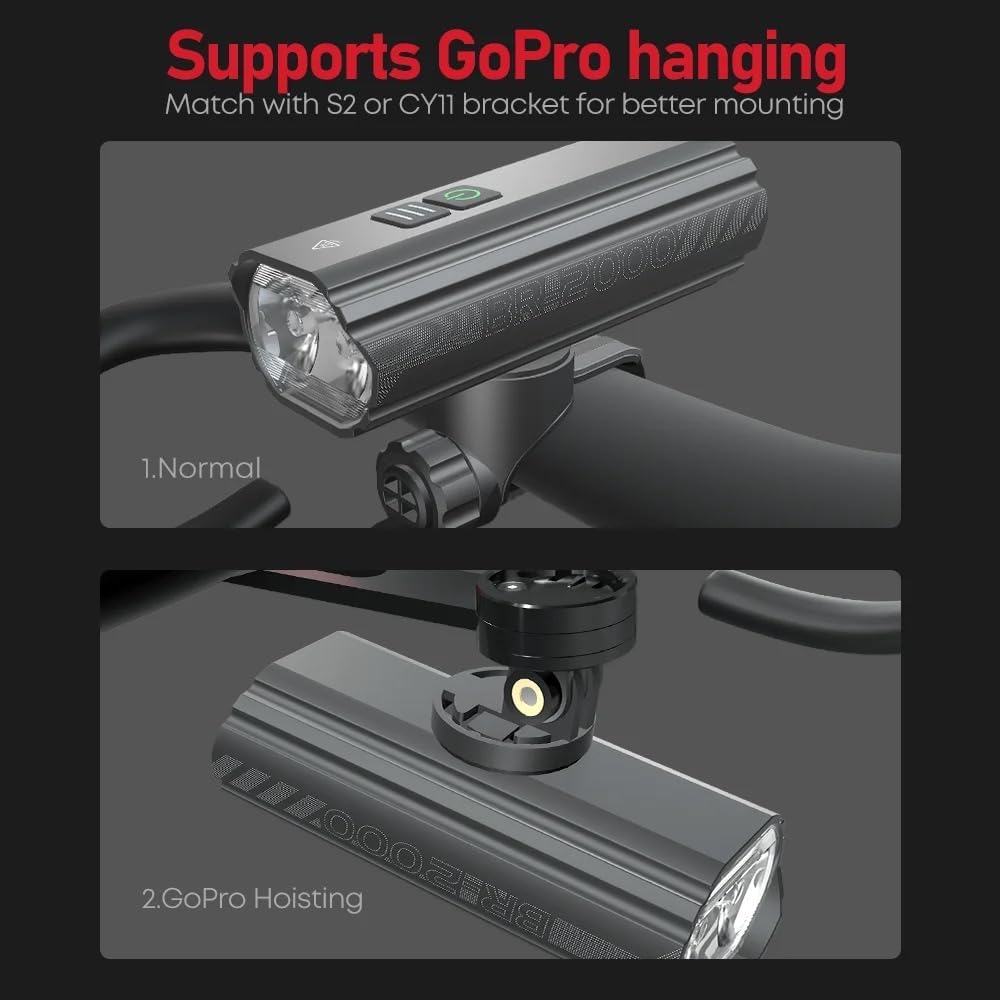

Figura 6: Illustration of the Cyclami BR-2000 mounted in a normal handlebar position (top) and inverted using a GoPro adapter for hanging (bottom).

Istruzzjonijiet Operattivi

Tixgħel/Jitfi

• To turn the light ON: Press and hold the Power button (ⓘ) for approximately 1 second. The light will turn on in the last used mode.
• To turn the light OFF: Press and hold the Power button (ⓘ) for approximately 1 second.

Modi li jinbidlu

The Cyclami BR-2000 features 5 distinct lighting modes. Once the light is on, short press the Mode button (Ⅲ) to cycle through the modes:

1. Modalità Għolja: 2000 lumens, ~650 foot effective range. (Approx. 6 hours battery life)
2. Modalità Nofsani: 1200 lumens, ~500 foot effective range. (Approx. 12 hours battery life)
3. Modalità Baxxa: 600 lumens, ~325 foot effective range. (Approx. 29 hours battery life)
4. Flash 1 Mode (8Hz): 2000 lumens. (High visibility flashing)
5. Flash 2 Mode (SOS): 1200 lumens. (Emergency signal)

The light has a 120-degree beam spread to ensure wide visibility.

Indikatur tal-Enerġija Intelliġenti

The power indicator provides real-time battery status:

• Dawl aħdar: Battery charge is between 100% and 61%.
• Dawl aħmar: Battery charge is between 61% and 21%.
• Dawl aħmar li jteptep: Battery charge is between 21% and 1%. Recharge the light as soon as possible.

Manutenzjoni

• Tindif: Imsaħ il-korp tad-dawl b'ċarruta ratba, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or lens. Keep the lens clean for optimal light output.
• Reżistenza għall-Ilma: The Cyclami BR-2000 has an IP6X water resistance rating, meaning it is protected against dust ingress and strong jets of water. Ensure the USB-C port cover is securely closed at all times when not charging to maintain water resistance. Do not submerge the light in water.
• Ħażna: If storing the light for an extended period, charge the battery to approximately 50-70% before storage. Recharge every 3-6 months to prevent battery degradation. Store in a cool, dry place away from direct sunlight.
• Temperatura: While the BR-2000 is designed to manage heat effectively, avoid operating it in extremely high ambient temperatures for prolonged periods.

Issolvi l-problemi

Speċifikazzjonijiet

Figura 7: Ġenb view of the Cyclami BR-2000, illustrating its approximate length (4 7/16 inches) and width (1 3/4 inches).

Garanzija u Appoġġ

For warranty information, technical support, or any inquiries regarding your Cyclami BR-2000 LED Bicycle Light, please refer to the seller or manufacturer's official website or contact their customer service directly. Details are typically provided on the product packaging or purchase receipt.

Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
