Vixic LM1600 Label Maker Machine User Manual

1. Introduzzjoni

Thank you for choosing the Vixic LM1600 Label Maker Machine. This portable and versatile label maker is designed for efficient organization in various environments, from home to office. It features both a QWERTY keyboard for direct input and Bluetooth connectivity for smartphone integration, offering flexibility in label creation. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

Image: The Vixic LM1600 Label Maker shown alongside various colored label tapes, highlighting the product and its consumables.

2. Informazzjoni dwar is-Sigurtà

Please read and understand all safety instructions before using the Vixic LM1600 Label Maker. Failure to follow these instructions may result in injury or damage to the device.

• Tesponix l-apparat għall-ilma jew għal umdità eċċessiva.
• Evita li twaqqa’ jew tissuġġetta l-apparat għal impatti qawwija.
• Use only Vixic-approved label tapes and accessories.
• Żomm l-apparat 'il bogħod mix-xemx diretta u sorsi tas-sħana.
• Tippruvax iżarma jew isewwi l-apparat lilek innifsek. Ikkuntattja l-appoġġ tal-klijent għall-assistenza.
• Żomm fejn ma jintlaħaqx mit-tfal.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• Vixic LM1600 Label Maker (Gray) x 1
• White on Black 1/2 inch (12mm) x 23 feet (7m) Label Tape (3D35) x 4
• Black on White 1/2 inch (12mm) x 23 feet (7m) Label Tape (3D21) x 1
• Kejbil tal-Iċċarġjar tat-Tip C x 1
• Manwal tal-Utent (dan id-dokument) x 1

4. Setup

4.1 Iċċarġjar tal-Apparat

The LM1600 label maker features a built-in 1200 mAh rechargeable lithium battery. Before first use, fully charge the device.

1. Connect the provided Type-C charging cable to the charging port on the side of the label maker.
2. Qabbad it-tarf l-ieħor tal-kejbil ma' adapter tal-enerġija USB standard (mhux inkluż) jew port USB tal-kompjuter.
3. Id-dawl indikatur tal-iċċarġjar se jixgħel. Iċċarġjar sħiħ tipikament jieħu madwar sagħtejn.
4. Once fully charged, the device can continuously print up to 50 meters of tape.

Image: The Vixic LM1600 Label Maker being charged via its Type-C port, illustrating the rechargeable feature.

4.2 Installazzjoni tat-Tejp tat-Tikketti

Proper installation of the label tape is crucial for clear printing and to prevent jamming.

1. Kun żgur li l-magna tat-tikketti tkun mitfija.
2. Locate the tape compartment cover on the top of the device.
3. Gently push the release latch and lift the cover to open the compartment.
4. Insert the Vixic DZ series label tape cassette into the compartment, ensuring the tape feeds through the guide slot. The tape should click into place.
5. Agħlaq l-għatu tal-kompartiment tat-tejp sew sakemm jissakkar.
6. The device features an auto-shrink ribbon function to reduce jamming.

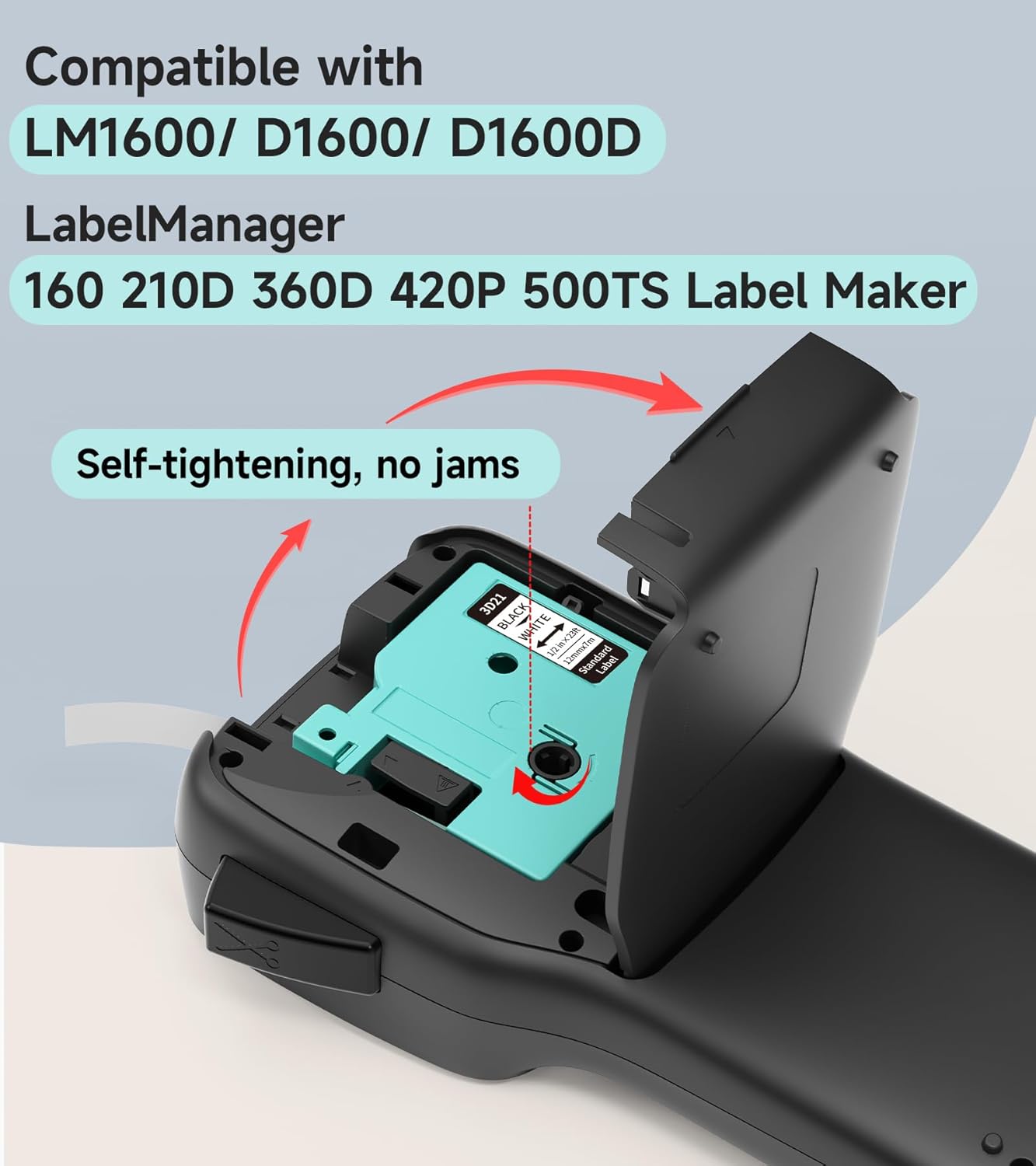

Immaġni: Sploda view of the Vixic LM1600 Label Maker's tape compartment, demonstrating the correct way to insert a label tape cassette.

4.3 Tixgħel/Jitfi

• To power on: Press and hold the power button (usually marked with a power symbol) until the LCD screen illuminates.
• To power off: Press and hold the power button again until the LCD screen turns off. The device also features an auto-off function after 5 minutes of inactivity to conserve battery.

5. Istruzzjonijiet Operattivi

5.1 Basic Label Creation (QWERTY Keyboard)

The LM1600 features a full QWERTY keyboard for direct text input, ideal for quick labeling without a smartphone.

1. Ixgħel l-apparat.
2. Use the QWERTY keyboard to type your desired text. The text will appear on the backlighting LCD screen.
3. Use the navigation keys (Menu, OK, Esc, directional arrows) to adjust text formatting, such as font size, bold, italic, and alignment.
4. Press the "Print" button to print the label. The built-in cutter will automatically cut the label.

Image: A user operating the Vixic LM1600 Label Maker, demonstrating the QWERTY keyboard and the visibility of the backlighting LCD screen in different lighting conditions.

5.2 Using the Mobile App (Bluetooth Connectivity)

For advanced features and design flexibility, connect your LM1600 to your smartphone via Bluetooth.

1. Download the official Vixic label printing app from your smartphone's app store (compatible with Android & iOS).
2. Ensure Bluetooth is enabled on your smartphone and the LM1600 label maker.
3. Open the Vixic app and follow the on-screen instructions to pair with your LM1600 device.
4. Once connected, you can access multiple pre-templates, fonts, icons, borders, and languages within the app to design your labels.
5. Send your design to the label maker for printing via Bluetooth.

Image: The Vixic LM1600 Label Maker shown with a smartphone displaying its companion app, illustrating the Bluetooth connectivity and mobile editing capabilities.

Image: The Vixic LM1600 Label Maker displaying its high-resolution printing capability (203 DPI) with examples of diverse label designs, including QR codes and multi-language text.

6. Label Tape Features

The Vixic DZ series label tapes are designed for durability and versatility, compatible with LM1600, D1600, D1600D, and Dymo LabelManager 160, 280, 210D label makers.

6.1 Waterproof and Durable Labels

Vixic label tapes are engineered to withstand various conditions, making them suitable for a wide range of applications.

• Li ma jgħaddix ilma minnha: Labels maintain integrity even when exposed to water.
• Smudge and Scratch-Resistant: Printed content remains clear and legible.
• Strongly Self-Adhesive: Ensures labels stick firmly to surfaces.
• Reżistenti għat-tgħib: Utilizes thermal transfer technology for long-lasting print, even in high/low temperatures or sunlight.

Image: A label applied to a mug being held under running water, illustrating the waterproof characteristic of the Vixic label tapes.

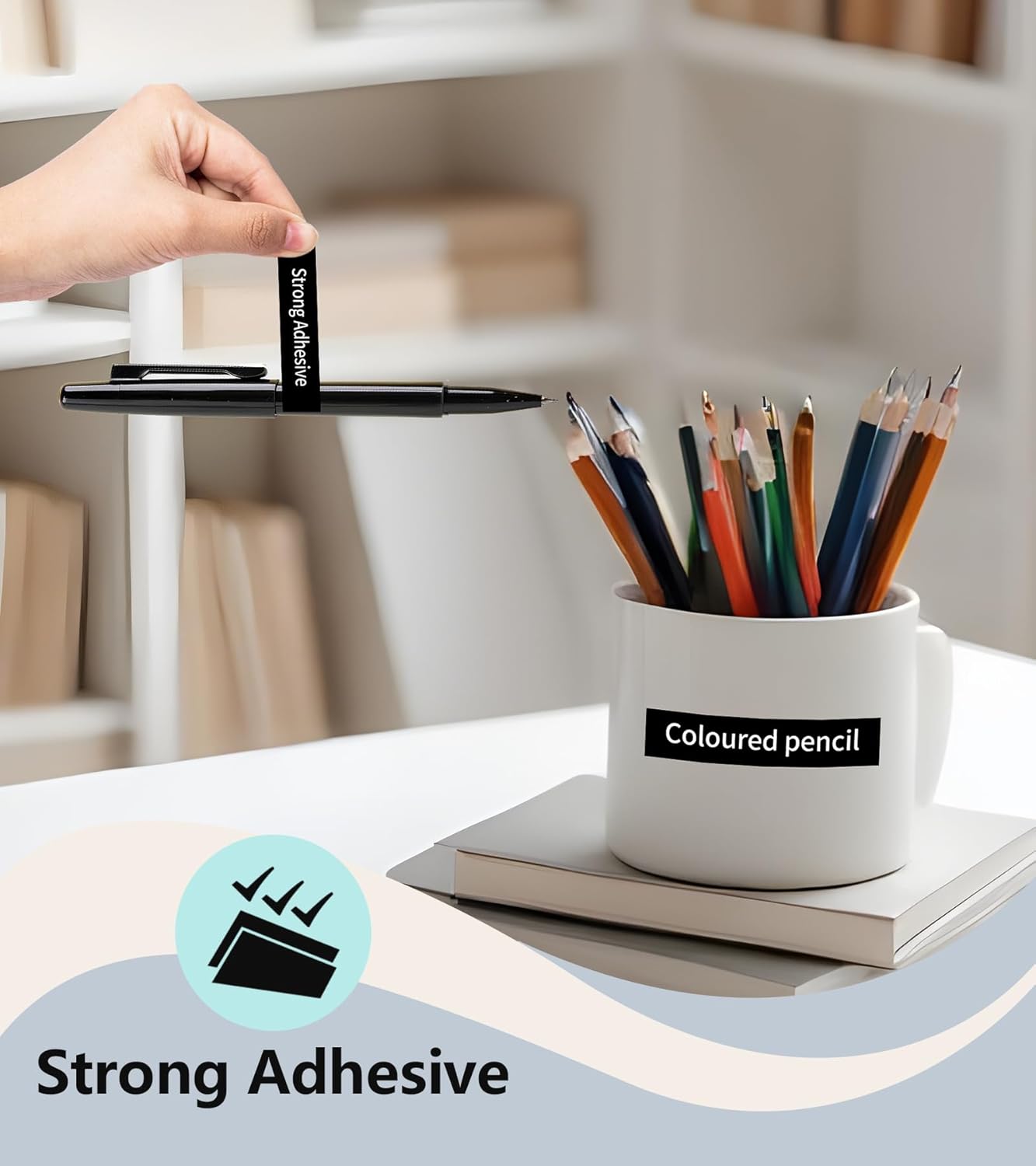

Image: A label adhered to a mug, showcasing the strong adhesive property of the Vixic label tapes.

6.2 Easy Peeling

Vixic label tapes feature a split-back design for effortless peeling, making application quick and convenient.

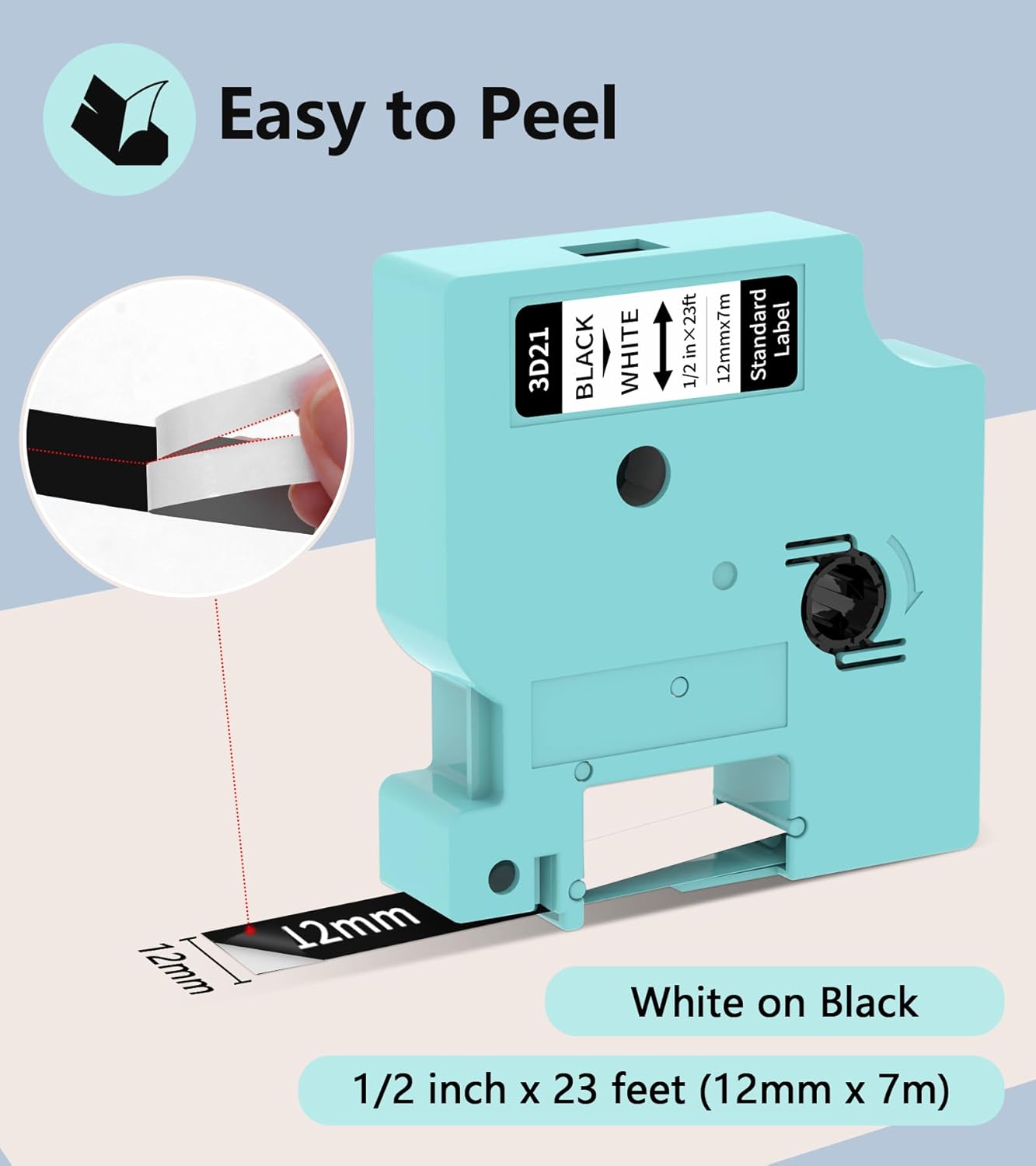

Immaġni: Close-up view of a Vixic label tape demonstrating its split-back design, which facilitates easy peeling and application.

7. Manutenzjoni

7.1 Tindif tal-Apparat

Regular cleaning helps maintain the performance and longevity of your label maker.

• Kun żgur li l-apparat ikun mitfi u splaggjat qabel it-tindif.
• Use a soft, dry, lint-free cloth to wipe the exterior of the label maker.
• To clean the print head, gently wipe it with a cotton swab lightly dampImxarrab bl-alkoħol isopropiliku. Ħallih jinxef kompletament qabel l-użu.
• Tużax tindif jew solventi li joborxu.

7.2 Storing Label Tapes

Store unused label tape cassettes in a cool, dry place away from direct sunlight and extreme temperatures to preserve their adhesive and print quality.

8 Issolvi l-problemi

If you encounter issues with your Vixic LM1600, refer to the following common problems and solutions:

9. Speċifikazzjonijiet

10. Informazzjoni dwar Garanzija

The Vixic LM1600 Label Maker comes with a garanzija limitata. Please refer to the warranty card included in your package or contact Vixic customer support for specific terms and conditions regarding warranty coverage and claims.

11. Appoġġ għall-Klijent

For any questions, technical assistance, or warranty inquiries, please contact Vixic customer support. You can typically find contact information on the Vixic official webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn xtrajt il-prodott.

We are committed to providing excellent service and support for your Vixic LM1600 Label Maker.
