Manwal tal-Utent tal-Kamera MAXHUB UC P30 SC802A 12X VHD

1. Introduzzjoni

The MAXHUB UC P30 SC802A 12X VHD Camera is a high-definition video capture device designed for professional use. Featuring 12x optical zoom and 1080p video resolution, it is ideal for various applications including video conferencing, live streaming, and educational environments. This manual provides detailed instructions to help you set up, operate, and maintain your camera for optimal performance.

2. X'hemm fil-Kaxxa

Jekk jogħġbok ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• 1 x MAXHUB UC P30 SC802A 12X VHD Camera
• (Additional accessories such as power adapter, USB cable, remote control, etc., would typically be listed here if provided in the product data. Based on "Included Components: 1 product", only the camera is explicitly mentioned.)

3. Prodott Aktarview

Familiarize yourself with the key components and features of your MAXHUB UC P30 SC802A camera.

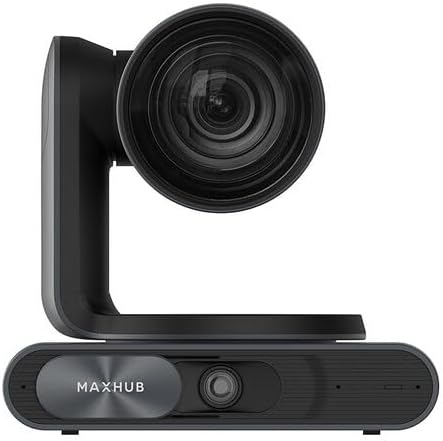

Figura 3.1: Quddiem view of the MAXHUB UC P30 SC802A camera, showing the main lens and the MAXHUB branding on the base.

Figura 3.2: Angolat view of the MAXHUB UC P30 SC802A camera, highlighting its compact design and the rotating camera head.

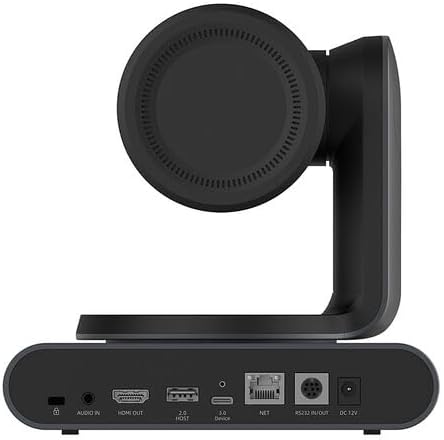

Figura 3.3: Wara view of the MAXHUB UC P30 SC802A camera, displaying various connectivity ports including Audio In, HDMI Out, USB 2.0 Host, USB 3.0 Device, NET (Ethernet), RS232 In/Out, and DC 12V power input.

4. Setup

Follow these steps to set up your MAXHUB UC P30 SC802A camera:

1. Pjazzament: Place the camera on a stable, flat surface or mount it securely using compatible mounting hardware (not included, unless specified). Ensure it has a clear line of sight to the area you wish to capture.
2. Konnessjoni tal-Enerġija: Connect the provided power adapter to the DC 12V input port on the rear of the camera (refer to Figure 3.3) and plug the adapter into a power outlet.
3. Konnessjoni USB: Connect the camera to your computer using a USB cable (USB 3.0 Device port, refer to Figure 3.3). The camera is designed for plug-and-play operation with most operating systems.
4. Output tal-Vidjo (Mhux obbligatorju): For direct video monitoring, connect an HDMI cable from the HDMI Out port on the camera to an HDMI input on a display device (refer to Figure 3.3).
5. Input tal-Awdjo (Mhux obbligatorju): If using an external microphone, connect it to the Audio In port on the camera (refer to Figure 3.3).
6. Konnessjoni man-Netwerk (Mhux obbligatorja): For network control or streaming, connect an Ethernet cable to the NET port (refer to Figure 3.3).
7. Installazzjoni tas-sewwieq: In most cases, the camera will be recognized automatically by your operating system. If prompted, allow the system to install necessary drivers. For advanced features or specific software, refer to the manufacturer's websit għat-tniżżil tas-sewwieqa.

5. Istruzzjonijiet Operattivi

Once the camera is set up, you can begin operation:

1. Qawwa Mixgħul: The camera will power on automatically once connected to power. An indicator light (if present) will illuminate.
2. Rikonoxximent tas-Softwer: Open your preferred video conferencing, streaming, or recording software on your computer. Select the MAXHUB UC P30 camera as your video input device.
3. Pan, Tilt, Zoom (PTZ) Control:
   • Kontroll manwali: The camera head can be manually adjusted for initial positioning.
   • Kontroll tas-Softwer: Utilize the PTZ controls within your video software or a dedicated MAXHUB control application (if available) to remotely adjust pan, tilt, and zoom.
   • Kontroll mill-bogħod (jekk applikabbli): If a remote control was included, use it to precisely adjust the camera's position and zoom level.
4. Aġġustament tal-Focus: The camera typically features auto-focus. If manual focus is required, it can usually be adjusted via software controls.
5. Settings tal-Vidjo: Adjust video settings such as resolution (up to 1080p), frame rate, brightness, contrast, and white balance through your software's camera settings.
6. Itfi: Disconnect the power adapter from the camera or the power outlet to turn off the device.

6. Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your camera:

• Tindif tal-Lenti: Use a soft, lint-free cloth specifically designed for optical lenses to gently wipe the camera lens. Avoid abrasive materials or harsh chemicals.
• Tindif tal-ġisem: Imsaħ il-korp tal-kamera b'ċarruta ratba u niexfa. Għal ħmieġ iebes, imsaħ ftit.amp cloth can be used, but ensure no moisture enters the ports or internal components.
• Ħażna: When not in use for extended periods, store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. Use the original packaging or a protective case if available.
• Evita l-Ostruzzjonijiet: Ensure the camera's ventilation openings (if any) are not blocked to prevent overheating.

7 Issolvi l-problemi

Irreferi għal din it-taqsima għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom:

8. Speċifikazzjonijiet

Key technical specifications for the MAXHUB UC P30 SC802A 12X VHD Camera:

9. Informazzjoni dwar Garanzija

MAXHUB products are typically covered by a manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official MAXHUB websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

10. Appoġġ

If you encounter any issues not covered in this manual or require further assistance, please contact MAXHUB customer support. You can usually find contact information on the official MAXHUB webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn xtrajt il-prodott.
