3M Ultimate FX Full Facepiece Reusable Respirator

Prodott Overview

The 3M Ultimate FX Full Facepiece Reusable Respirator is designed to provide comfortable and durable respiratory protection for industrial and occupational use. This respirator is NIOSH-approved when used with compatible 3M cartridges, filters, or supplied air systems, helping to reduce inhalation of various airborne contaminants.

Immaġni: Quddiem view of the 3M Ultimate FX Full Facepiece Reusable Respirator.

Karatteristiċi Ewlenin

Approvazzjoni tan-NIOSH

This respirator is NIOSH-approved, meaning it has been tested and approved by the National Institute for Occupational Safety and Health (a USA federal government regulatory agency) with 3M cartridges, filters, or supplied air systems to help reduce inhaling certain airborne contaminants. It meets the requirements for various industrial applications.

Image: Text indicating NIOSH-Approved status and details about 3M cartridges and filters.

Image: NIOSH Certified Equipment List (CEL) logo.

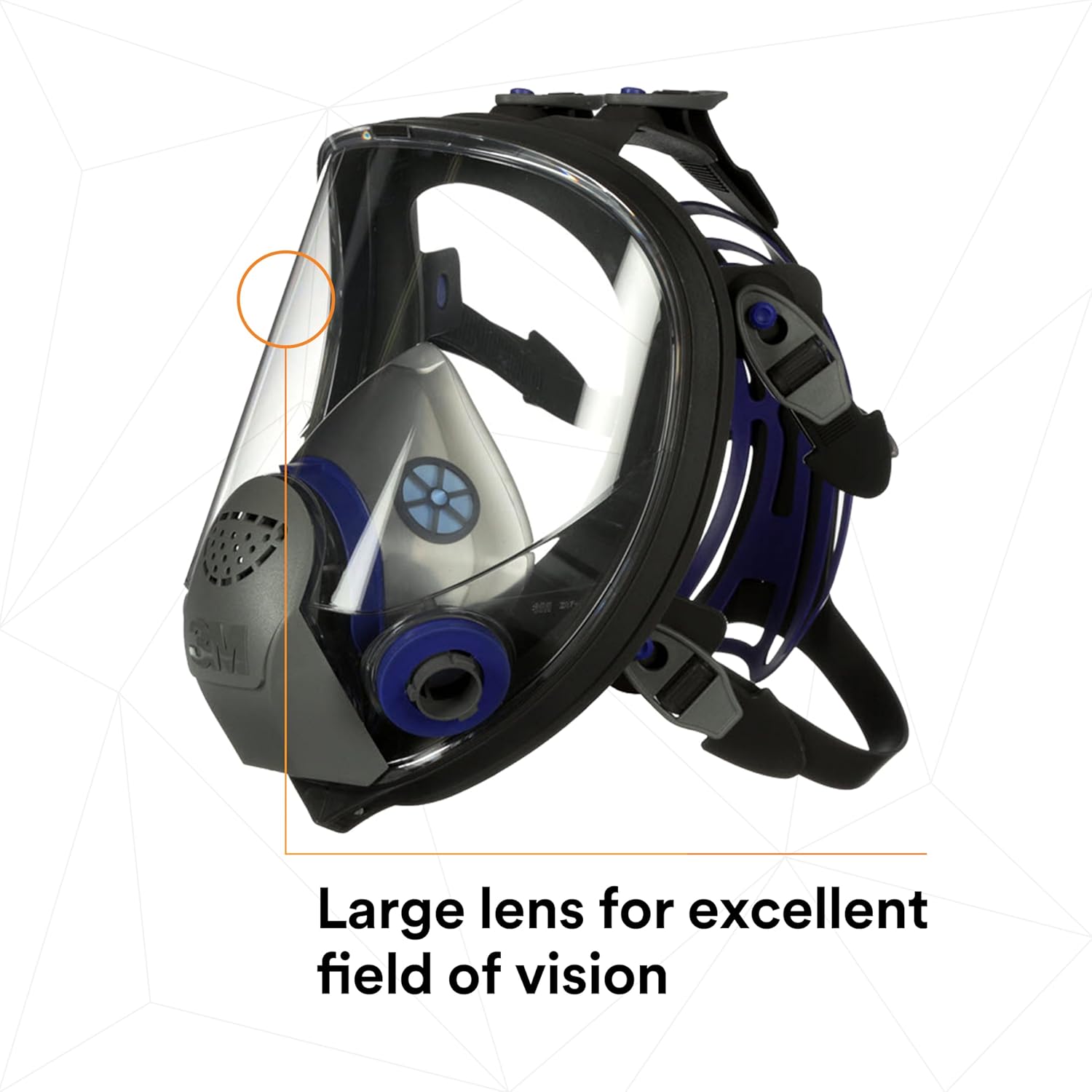

Enhanced Field of Vision with Scotchgard Lens Coating

The respirator features a large lens for an enhanced field of vision, meeting the requirements of the ANSI Z87.1-2003 standard for eye and face protection. The integrated Scotchgard lens coating helps liquids bead up on the lens, making it easier to clean and maintain clear visibility.

Image: Close-up of the large lens highlighting the excellent field of vision.

Image: Illustration showing how Scotchgard Protector helps liquids bead up on the lens for easier removal.

Comfortable and Durable Silicone Faceseal

The silicone faceseal is designed for comfort and durability, and it is easy to clean. A soft silicone nose cup and faceseal cushion heavy contact areas, ensuring a comfortable fit during extended use.

Image: Close-up of the silicone face seal, emphasizing comfort and durability.

Image: Detail of the soft silicone nose cup and faceseal designed to cushion heavy contact areas.

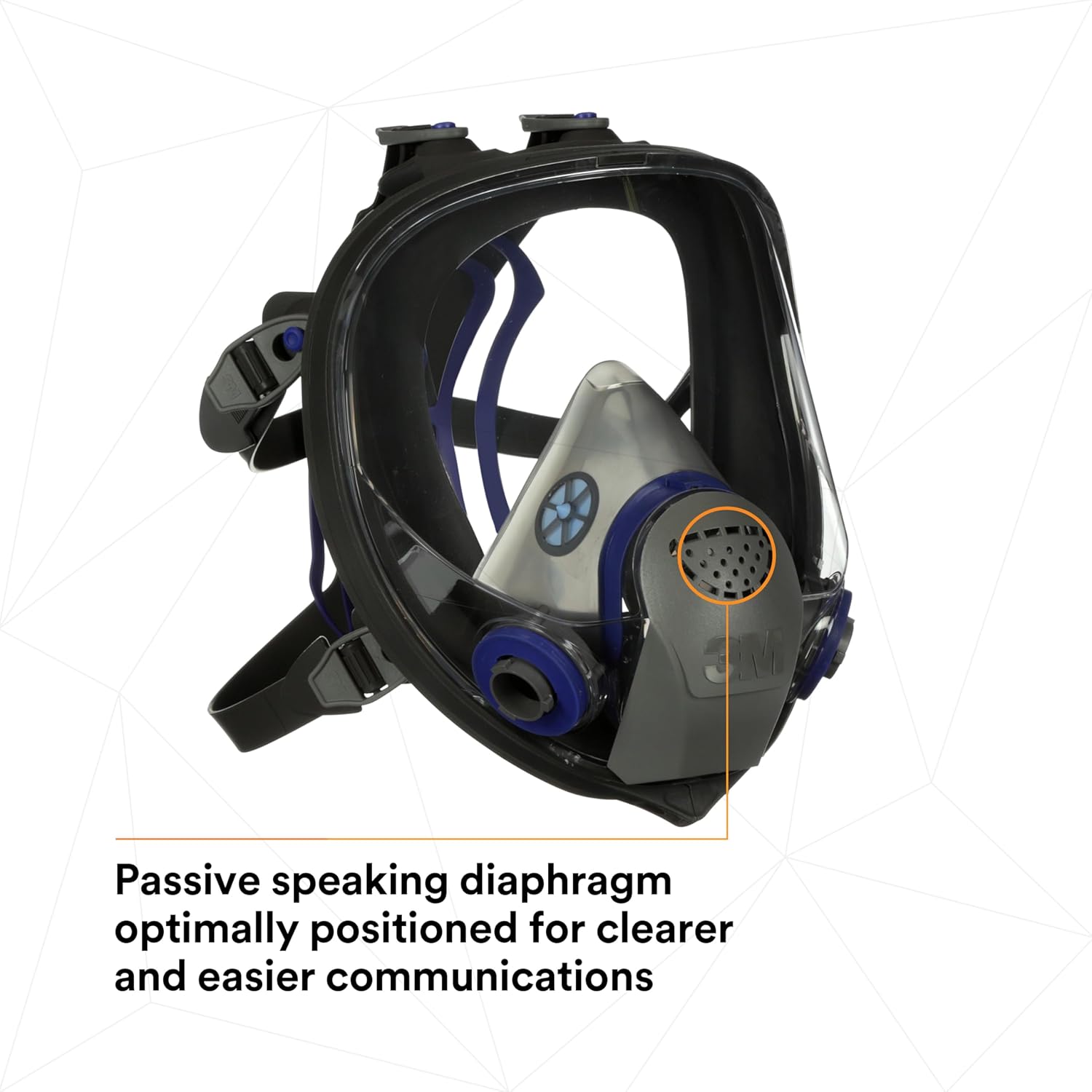

Passive Speaking Diaphragm

The respirator includes a passive speaking diaphragm optimally positioned for clearer and easier communications, even in noisy environments.

Image: Highlighted passive speaking diaphragm for improved communication.

3M Cool Flow Exhalation Valve

The integrated 3M Cool Flow Exhalation Valve helps reduce heat and moisture build-up inside the facepiece, enhancing user comfort during prolonged use.

Image: Highlighted 3M Cool Flow Exhalation Valve on the respirator.

Head Cradle and Six-Strap Harness

The head cradle helps reduce pressure points and hair pulling, contributing to overall comfort. The six-strap harness provides a secure and comfortable fit, ensuring the respirator stays in place during activity.

Image: User adjusting the head cradle to reduce pressure points.

Image: Detail of the six-strap harness providing a secure and comfortable fit.

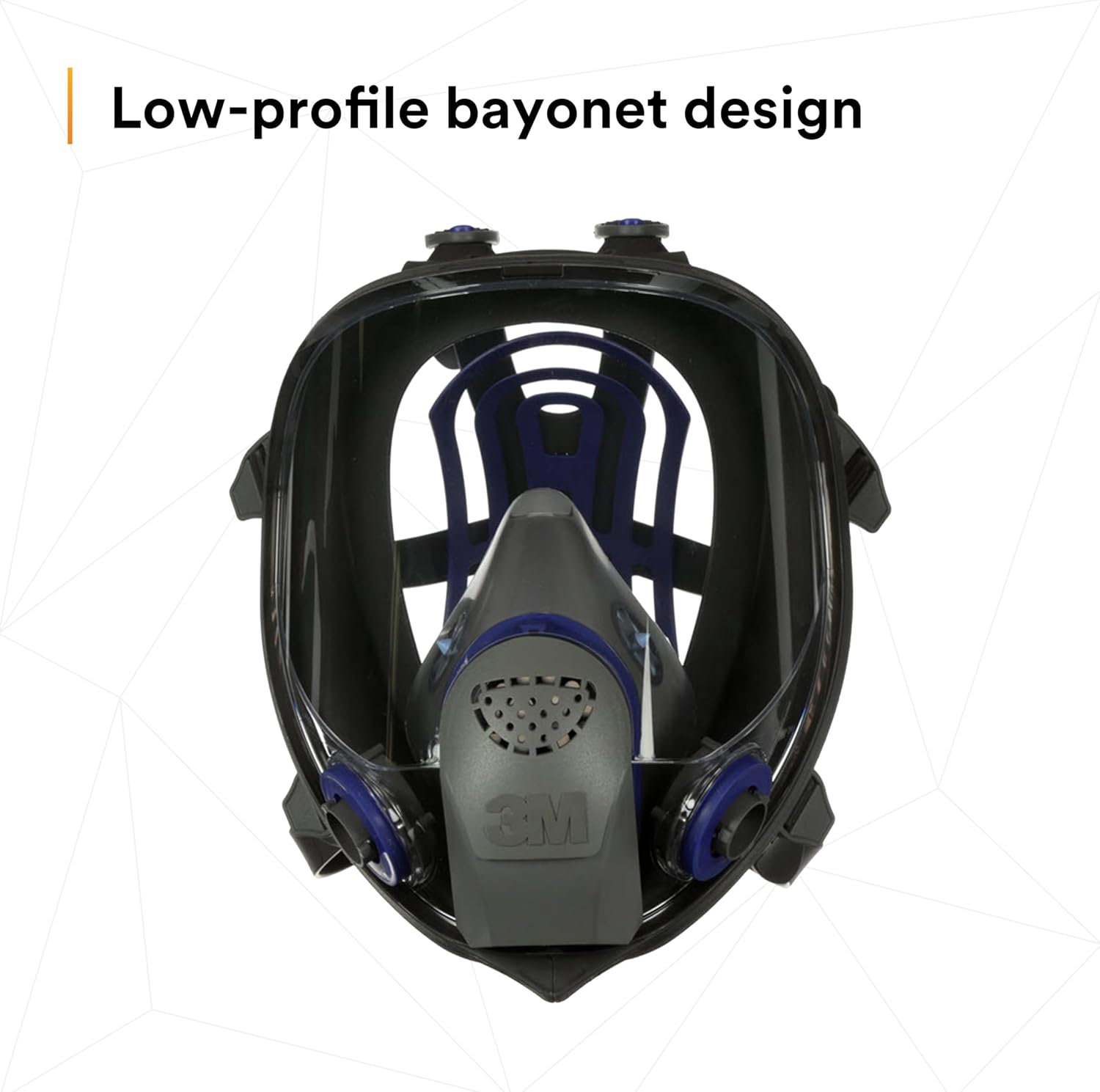

Baxx-Profile Bayonet Design

Il-low-profile bayonet design allows for easy attachment of 3M filters and cartridges (sold separately), ensuring compatibility and ease of use.

Immaġni: Quddiem view of the respirator highlighting the low-profile bayonet design.

Setup

Before initial use, inspect all components of the respirator for any signs of damage or wear. Ensure the silicone faceseal is clean and free of debris. Attach the appropriate 3M cartridges or filters by aligning the bayonet fittings and twisting until secure. Perform a positive and negative pressure user seal check as per the instructions provided with your cartridges/filters to ensure a proper seal.

Istruzzjonijiet Operattivi

Always ensure the respirator is properly fitted and sealed before entering a contaminated area. Breathe normally through the respirator. The passive speaking diaphragm allows for clearer communication. If you detect any odor, taste, or irritation from contaminants, or if breathing becomes difficult, immediately leave the contaminated area and check your respirator for proper fit or replace cartridges/filters.

Manutenzjoni

After each use, clean the respirator by wiping the lens with a soft cloth and mild soap and water. The silicone faceseal can be detached for thorough cleaning. Ensure all components are dry before reassembly and storage. Store the respirator in a clean, dry place away from contaminants and direct sunlight. Replace cartridges and filters according to their service life indicators or when breakthrough occurs.

Issolvi l-problemi

If you experience discomfort, difficulty breathing, or detect contaminants while wearing the respirator, immediately exit the contaminated area. Re-check the fit of the respirator and ensure cartridges/filters are correctly installed and not expired. If issues persist, consult a safety professional or refer to the detailed user manual.

Speċifikazzjonijiet

Applikazzjonijiet Rakkomandati

This respirator is suitable for a wide range of industrial and occupational applications, including:

• Assemblea
• Chemical clean-up and handling
• Chemical splash protection
• Chipping and chiseling
• Tindif
• Furnace operations
• Tħin
• Laboratorji
• Makkinar
• Ġebel
• Pittura
• Pouring/Casting
• Xkatlar
• Serrar
• Iwweldjar

Nota: For industrial/occupational use only. Not for consumer sale or use.

Image: A worker wearing a 3M respirator in an industrial welding environment, demonstrating typical use.

Informazzjoni Importanti dwar is-Sigurtà

Il-prodotti industrijali u okkupazzjonali ta' 3M huma maħsuba, ittikkettjati, u ppakkjati għall-bejgħ lil klijenti industrijali u okkupazzjonali mħarrġa għall-użu fuq il-post tax-xogħol. Sakemm ma jkunx iddikjarat speċifikament mod ieħor fuq l-imballaġġ jew il-letteratura tal-prodott applikabbli, dawn il-prodotti mhumiex maħsuba, ittikkettjati, jew ippakkjati għall-bejgħ lil jew għall-użu mill-konsumaturi (eż., għad-dar, personali, skola primarja jew sekondarja, rikreazzjoni/sport, jew użi oħra mhux deskritti fl-imballaġġ jew fil-letteratura tal-prodott applikabbli), u għandhom jintgħażlu u jintużaw f'konformità mar-regolamenti u l-istandards tas-saħħa u s-sigurtà applikabbli (eż., US OSHA, ANSI), kif ukoll il-letteratura kollha tal-prodott, l-istruzzjonijiet għall-utent, it-twissijiet, u limitazzjonijiet oħra, u l-utent għandu jieħu kwalunkwe azzjoni meħtieġa taħt kwalunkwe sejħa lura, azzjoni fuq il-post, jew avviż ieħor dwar l-użu tal-prodott. L-użu ħażin tal-prodotti industrijali u okkupazzjonali ta' 3M jista' jirriżulta fi korriment, mard, mewt, jew ħsara lill-proprjetà. Għal għajnuna bl-għażla u l-użu tal-prodott, ikkonsulta l-professjonist tas-sigurtà fuq il-post tiegħek, l-iġjenista industrijali, jew espert ieħor fis-suġġett. Għal aktar informazzjoni dwar il-prodott, żur www.3M.com.

Garanzija u Appoġġ

For specific warranty information and technical support, please refer to the official 3M website or contact 3M customer service. Always ensure you are using genuine 3M replacement parts and accessories to maintain product performance and validity of certifications.
