Dawl bil-lejl Bluetooth Speaker Alarm Clock

Introduzzjoni

This manual provides comprehensive instructions for the setup, operation, and maintenance of your AFEXOA Multi-functional Night Light Bluetooth Speaker Alarm Clock. This device integrates a Bluetooth speaker, sound machine, touch-controlled LED lamp, and digital alarm clock, designed to enhance your daily routine and sleep environment.

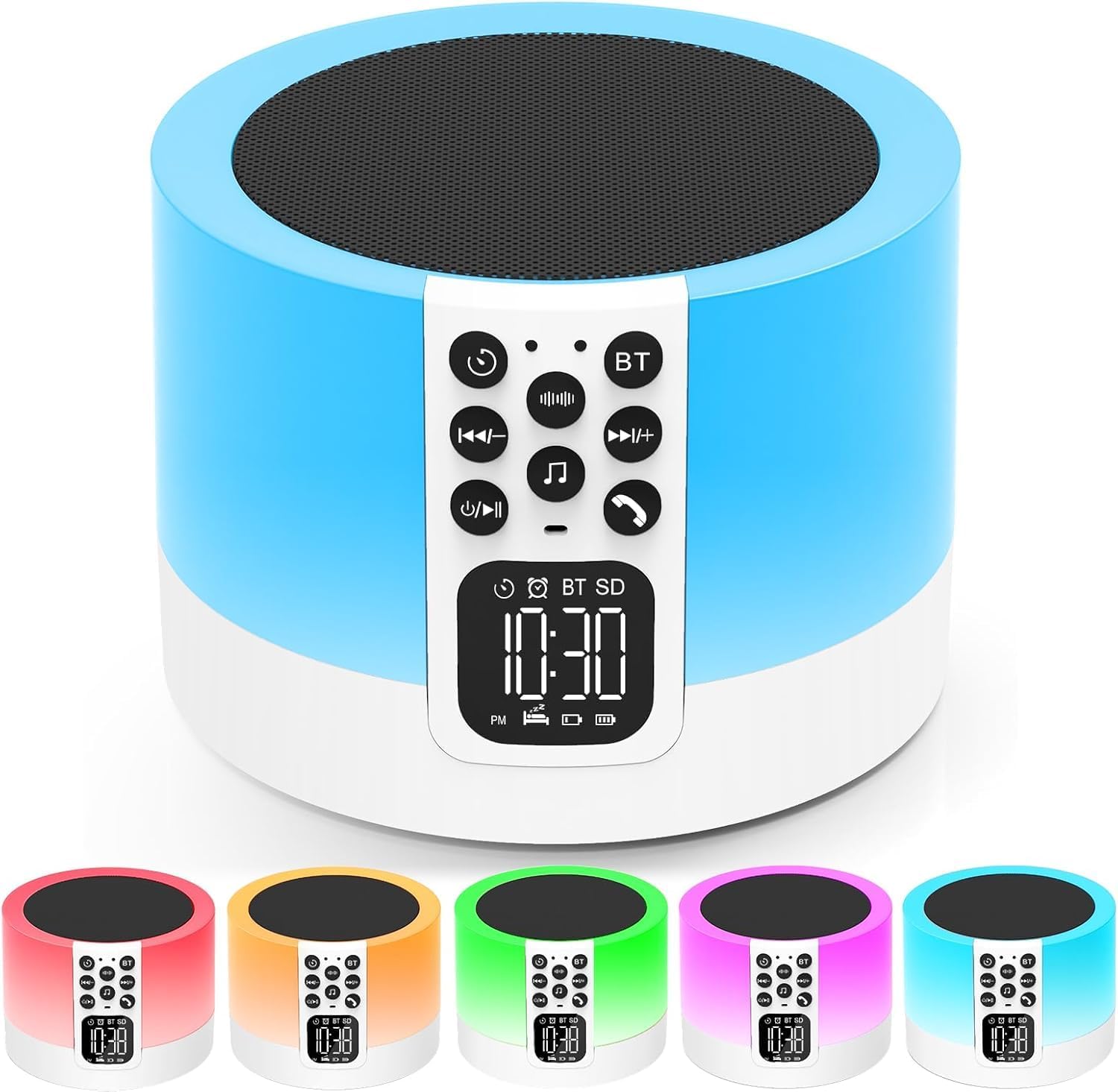

Figura 1: The AFEXOA Night Light Bluetooth Speaker Alarm Clock, showcasing its compact cylindrical design and integrated control panel with a digital display. The device is shown in a white and blue color scheme, highlighting its speaker grille on top and various light color options at the bottom.

Figura 2: An illustrative diagram highlighting the five primary functions of the device: Sound Machine (with 10 white noises and 20 natural sounds), MP3 Player (supporting USB Flash Drive and Micro SD Card), Night Light (with 7 monochromatic light options), Alarm Clock (customizable alarm tones), and Bluetooth Speaker (high fidelity stereo sound).

Informazzjoni dwar is-Sigurtà

• Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-użu u żommhom għal referenza futura.
• Tesponix l-apparat għall-ilma, umdità, jew temperaturi estremi.
• Evita li twaqqa’ jew tissuġġetta l-apparat għal impatti qawwija.
• Do not attempt to disassemble, repair, or modify the device yourself. Contact qualified personnel for service.
• Żomm l-apparat 'il bogħod minn sorsi ta' sħana bħal radjaturi, reġistri tas-sħana, stufi, jew apparat ieħor (inkluż amplifiers) li jipproduċu sħana.
• Uża biss il-kejbil tal-iċċarġjar ipprovdut u adapter tal-enerġija kompatibbli.
• Kun żgur li jkun hemm ventilazzjoni xierqa madwar l-apparat waqt it-tħaddim.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

• AFEXOA Night Light Bluetooth Speaker Alarm Clock
• Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ
• Manwal għall-Utent (dan id-dokument)

Prodott Overview

Familiarize yourself with the device's controls and ports:

Figura 3: Detailed diagram of the device's control panel (front) and rear ports. The front panel includes buttons for White Noise Sound, Timer, Volume Down/Previous Track, Power On/Off/Pause, Natural Sound & Lullaby, Bluetooth On/Off, Volume Up/Next Track, and Hands-free Calls. The rear panel features a Micro SD/TF card slot, Power On/Off switch, 12/24h time setup button, alarm setup button, Type-C USB power port, and USB HOST port (for USB drive, not for charging other devices).

Pannell tal-Kontroll (Quddiem)

• White Noise Sound Button: Cycles through white noise sounds.
• Buttuna tat-Tajmer: Sets sleep timer (15/30/60/90 minutes).
• Volum Niżel / Track Preċedenti: Press to decrease volume; Press and hold for previous track.
• Power On/Off / Pause: Press to pause/play; Press and hold to turn off/on sound and light.
• Natural Sound & Lullaby Button: Cycles through natural sounds and lullabies.
• Buttuna Mixgħul/Mitfi tal-Bluetooth: Activates/deactivates Bluetooth pairing mode.
• Volum 'il fuq / Track Li jmiss: Press to increase volume; Press and hold for next track.
• Hands-free Calls Button: Answers/ends phone calls when connected via Bluetooth.
• Wirja Diġitali: Shows time, alarm status, battery, and mode indicators.

Rear Ports and Switches

• Micro SD/TF Card Slot: For playing music from a Micro SD/TF card.
• Swiċċ mixgħul/mitfi: Main power switch for the device.
• 12/24h Button: Toggles between 12-hour and 24-hour time display.
• Time Setup Button: Użat biex jiġi ssettjat il-ħin.
• Alarm Setup Button: Used for setting alarms.
• Type-C USB Power Port: Għall-iċċarġjar tal-apparat.
• USB HOST Port: Għad-daqq tal-mużika minn flash drive USB. Note: This port cannot charge other devices.

Setup

1. Iċċarġjar tal-Apparat

Before first use, fully charge the device. Connect the provided Type-C USB charging cable to the Type-C USB Power Port on the rear of the device and the other end to a compatible USB power adapter (not included) or a computer's USB port.

Figura 4: The device can be powered by an AC adapter (wall outlet) or a USB port from a computer or power bank using the provided Type-C cable.

The battery indicator on the digital display will show charging status. Once fully charged, the indicator will change or turn off depending on the model's specific behavior.

2. Power On/Off

Locate the main Power On/Off switch on the rear of the device and slide it to the "ON" position. The digital display will light up. To turn off the device completely, slide the switch to the "OFF" position.

Istruzzjonijiet Operattivi

1. Issettjar tal-Ħin u l-Allarm

1. Ħin tal-issettjar:
   • Agħfas il- Time Setup Button on the rear. The hour digits will flash.
   • Uża l- Volume Up / Track li Jmiss u Volume Down / Track Preċedenti buttons on the front panel to adjust the hour.
   • Agħfas il- Time Setup Button again to move to minute adjustment. Adjust minutes using the volume buttons.
   • Agħfas il- Time Setup Button one more time to confirm and exit time setting.
   • To switch between 12-hour and 24-hour mode, press the 12/24h Button fuq wara.
2. Issettjar ta' Allarm:
   • Agħfas il- Alarm Setup Button on the rear. The alarm hour digits will flash.
   • Uża l- Volume Up / Track li Jmiss u Volume Down / Track Preċedenti buttuni biex taġġusta s-siegħa tal-allarm.
   • Agħfas il- Alarm Setup Button again to move to alarm minute adjustment. Adjust minutes using the volume buttons.
   • Agħfas il- Alarm Setup Button one more time to confirm and activate the alarm. An alarm icon will appear on the display.
   • Biex tiddiżattiva l-allarm, agħfas il-buttuna Alarm Setup Button sakemm l-ikona tal-allarm tisparixxi.
   • When the alarm sounds, tap the top mesh of the device to activate the snooze function (9 minutes). To stop the alarm, press any button on the front panel.
   • You can set your favorite music from a USB Flash Drive or Micro SD Card as your alarm ringtone. Refer to the MP3 Player section for media playback.

Figura 5: The digital alarm clock feature ensures you wake up with customizable tones, including your favorite music from a Micro SD card or USB disk.

2. Night Light Functions

The device features a sensitive touch top mesh for light control.

1. Dawl abjad sħun:
   • Slightly tap the top mesh to cycle through 3 levels of warm white brightness (30%, 60%, 100%).
   • Continue tapping to turn off the warm white light.
2. RGB Color Changing Light:
   • After cycling through the warm white light levels, tap the top mesh again to enter the multi-color cycle mode. The light will smoothly transition through various RGB colors.
   • To fix a specific color, long press the top mesh and then release when your desired color appears. The light will remain on that color.
   • To return to warm white light or turn off the light, tap the top mesh again.

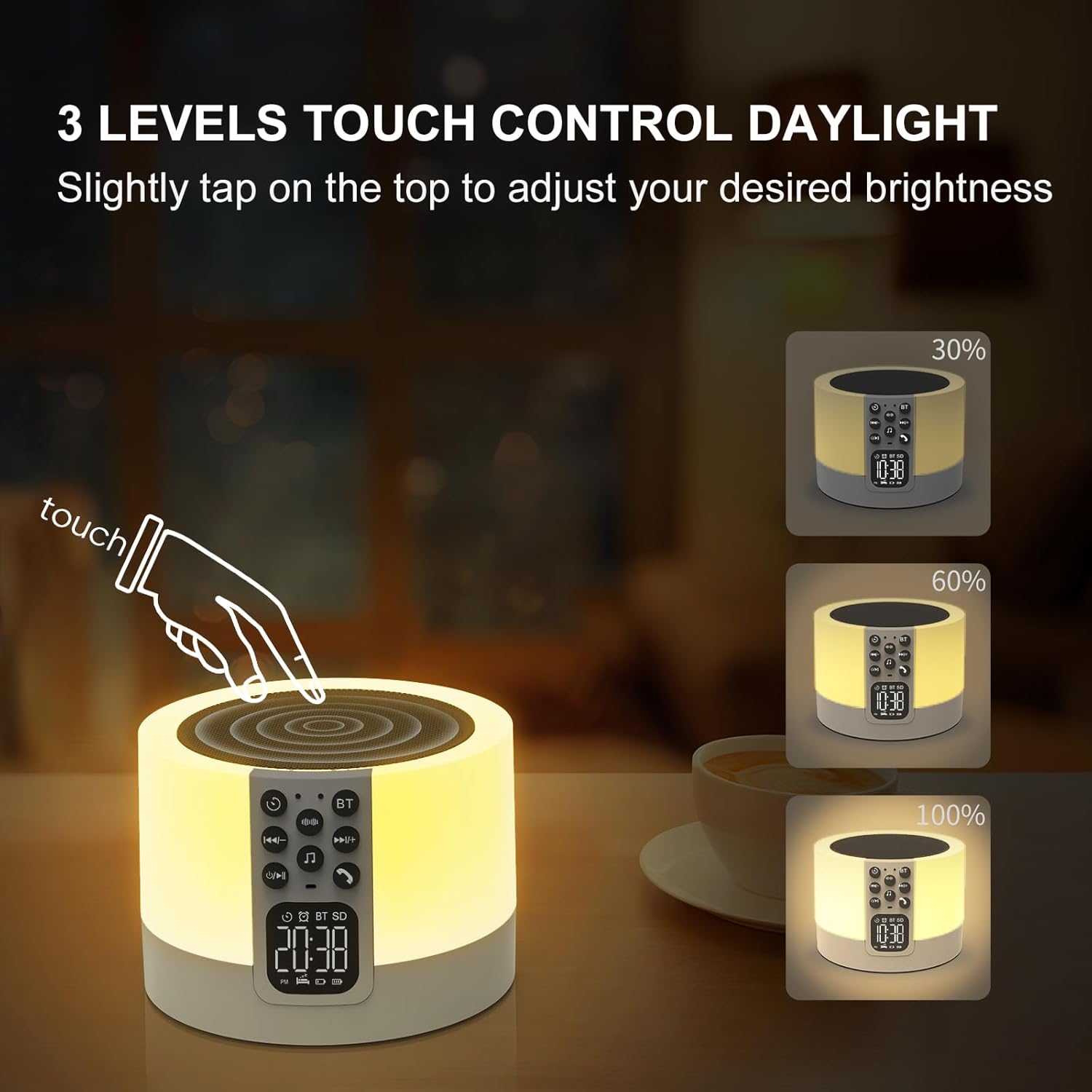

Figura 6: Adjusting the warm white light brightness by tapping the top mesh. Three levels of brightness are available: 30%, 60%, and 100%.

Figura 7: The device offers a breathing light mode with automatic color cycling. A long press on the top mesh allows you to select and fix a specific ambient light color from a range of options.

3. Tqabbil tal-Ispeaker Bluetooth

The device functions as a Hi-Fi stereo Bluetooth speaker.

1. Kun żgur li l-apparat ikun mixgħul.
2. Agħfas il- Button On/Off tal-Bluetooth on the front panel. The display will show "BT" and a blinking Bluetooth icon, indicating it's in pairing mode.
3. On your smartphone or other Bluetooth-enabled device, search for "DY29Z-01" or "AFEXOA Speaker" in the Bluetooth settings.
4. Select the device to pair. Once successfully paired, you will hear a confirmation sound, and the Bluetooth icon on the display will stop blinking.
5. You can now play audio from your connected device through the speaker.
6. To disconnect, turn off Bluetooth on your connected device or press the Button On/Off tal-Bluetooth on the speaker again.

Figura 8: The device in Bluetooth mode, connected to a smartphone for audio playback. The rear ports for Micro SD/TF card and USB HOST are also visible, enabling MP3 player functionality.

4. Sound Machine (White Noise & Natural Sounds)

The device offers 30 built-in soothing sounds for relaxation and sleep.

• Agħfas il- Buttuna tal-Ħoss tal-Ħoss abjad to cycle through various white noise, fan noise, and pink noise options.
• Agħfas il- Natural Sound & Lullaby Button to cycle through natural sounds (e.g., insect, flowing water, bonfire, bird singing, wind, waves, raining) and lullabies.
• Aġġusta l-volum billi tuża Volume Up / Track li Jmiss u Volume Down / Track Preċedenti buttuni.

Sleep Timer Funzjoni

To set a sleep timer for the sound machine:

• Agħfas il- Buttuna tat-Tajmer repeatedly to select a duration: 15, 30, 60, or 90 minutes.
• The device will automatically turn off the sound and light after the selected time expires.
• Biex tikkanċella l-arloġġ tal-irqad, agħfas il-buttuna Buttuna tat-Tajmer until no timer duration is displayed.

Figura 9: The device provides 30 soothing sounds, including white noise, fan sounds, and various natural sounds and lullabies, with a sleep timer function for 15, 30, 60, or 90 minutes.

5. MP3 Player (USB Flash Drive & Micro SD/TF Card)

The device can play MP3 audio files directly from a USB flash drive or Micro SD/TF card.

1. Daħħal USB flash drive fil- USB HOST Port or a Micro SD/TF card into the Slot tal-Kard Mikro SD/TF fuq wara tal-apparat.
2. The device should automatically detect the media and begin playing audio. If not, press the Power On/Off / Pause button to initiate playback.
3. Uża l- Volume Up / Track li Jmiss u Volume Down / Track Preċedenti buttons to navigate between tracks and adjust volume.

Figura 10: The device supports playing music from USB Flash Drives and TF/Micro SD Cards, offering 30 levels of volume control for personalized listening.

6. Sejħiet Hands-Free

When connected to a smartphone via Bluetooth, you can use the device for hands-free calls.

• When an incoming call is received, the device will ring.
• Agħfas il- Hands-free Calls Button on the front panel to answer the call.
• Agħfas il- Hands-free Calls Button għal darb’oħra biex ittemm is-sejħa.

Figura 11: The device supports hands-free calling when paired with a Bluetooth-enabled smartphone, allowing users to answer and end calls directly from the speaker.

Manutenzjoni

• Tindif: Use a soft, dry cloth to wipe the surface of the device. Do not use abrasive cleaners, waxes, or solvents.
• Ħażna: Meta ma tkunx qed tużah għal perjodi twal, aħżen l-apparat f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Kura tal-batterija: Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja kompletament il-batterija ta' spiss. Iċċarġja l-apparat regolarment, anke jekk ma jkunx qed jintuża b'mod attiv.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, technical support, or any inquiries regarding your AFEXOA Night Light Bluetooth Speaker Alarm Clock, please contact the manufacturer directly through their official channels or the retailer from whom you purchased the product. Please retain your proof of purchase for warranty claims.
