1. Introduzzjoni
This manual provides essential information for the assembly, operation, and maintenance of your YESHOMY Fireplace TV Stand. Please read these instructions thoroughly before beginning assembly or operation to ensure safe and correct usage. Keep this manual for future reference.
2. Informazzjoni dwar is-Sigurtà
Your safety and the safety of others are very important. Please follow all safety instructions carefully.
- Dejjem segwi l-istruzzjonijiet tal-assemblaġġ bir-reqqa.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tal-assemblaġġ.
- Do not operate the fireplace without proper assembly and ventilation.
- Do not place heavy objects on the top of the TV stand to prevent tipping.
- Ensure the power cord is not pinched or routed under the unit.
- Do not use the fireplace near water or in damp postijiet.
- Unplug the fireplace from the power outlet before cleaning or maintenance.
3. Kontenut tal-Pakkett
The YESHOMY Fireplace TV Stand is delivered in two separate packages. Please ensure you have received both packages and all components are present before starting assembly. Refer to the included parts list in your packaging for detailed component identification.
Komponenti tipiċi jinkludu:
- Wooden panels for the TV stand structure
- Kit tal-ħardwer (viti, kavilji, serraturi tal-cam, eċċ.)
- Sliding barn door hardware and doors
- Inserzjoni ta' fuklar elettriku
- Kontroll remot għan-nar
- Manwal ta' struzzjonijiet (dan id-dokument)
4. Istruzzjonijiet tal-Assemblea
Assembly requires careful attention to detail. It is recommended that two adults assemble this unit. Please follow the step-by-step instructions provided in the separate assembly guide included in your package. Ensure all parts are correctly oriented before tightening fasteners.
Karatteristiċi Ewlenin tal-Assemblea:
- Detachable Fireplace: The electric fireplace can be installed or removed. A wooden board is provided to cover the opening if the fireplace is not used.
- Xkafef aġġustabbli: The internal shelves are adjustable to accommodate various media devices or decorative items.
- Ġestjoni tal-Kejbil: Integrated cable holes are present on the back panel for organized wiring.
- Bibien tal-Barn li jiżżerżqu: The doors operate on a smooth slide track for easy access to storage compartments.
Figure 4.1: Detachable fireplace feature, allowing for versatile use of the TV stand.
Figure 4.2: Key design features including adjustable shelving, sliding door mechanism, and cable management.
5. Operating the Electric Fireplace
The integrated electric fireplace provides both aesthetic flame effects and supplemental heating. It can be operated via the control panel on the unit or the included remote control.
Fireplace Features:
- Tisħin: Provides warmth with adjustable temperature settings (65°F-100°F).
- Kontroll tat-Tajmer: Set the fireplace to operate for a specific duration (1-8 hours).
- Effett tal-Fjammi: Simulated 3D flame effect can be used independently of the heating function.
- Sigurtà: CSA/UL Listed for safety. The front glass remains cool to the touch.
Operazzjoni Bażika:
- Ensure the fireplace is properly installed and plugged into a grounded 120V AC outlet.
- Press the 'Power' button on the control panel or remote to turn the unit on/off.
- Use the 'Heater' button to activate the heating function and adjust temperature.
- Use the 'Flame' button to cycle through different flame brightness settings or turn off the flame effect.
- Use the 'Timer' button to set the desired operating duration.
Figure 5.1: Electric fireplace features and remote control functions.
6. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your TV stand and fireplace.
- Tindif tal-Stand: Wipe the wooden surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Tindif tan-Nar: Ensure the fireplace is unplugged and cool before cleaning. Use a dry cloth to wipe the exterior. Do not spray water or cleaning solutions directly onto the unit.
- Tneħħija tat-Trab: Periodically dust the air intake/output vents of the fireplace to maintain proper airflow.
- Iċċekkja tal-Hardware: Occasionally check all assembly hardware to ensure it remains tight. Retighten if necessary.
7 Issolvi l-problemi
If you encounter issues with your YESHOMY Fireplace TV Stand, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-nar ma jixgħelx | No power supply; Unit is off; Remote battery low | Check power cord connection and wall outlet; Press power button on unit or remote; Replace remote batteries. |
| Ebda output tas-sħana | Heater function not activated; Temperature setting too low | Activate heater function; Increase temperature setting. |
| L-effett tal-fjamma ma jaħdimx | Effett tal-fjamma mitfi | Press the 'Flame' button to activate or adjust. |
| Unit is wobbly after assembly | Loose hardware; Uneven floor | Retighten all screws and fasteners; Place shims under the stand if the floor is uneven. |
| Sliding doors stick or are difficult to move | Track obstruction; Misalignment | Check for debris in the track; Ensure doors are correctly seated on the track. |
Jekk il-problemi jippersistu, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
8. Speċifikazzjonijiet

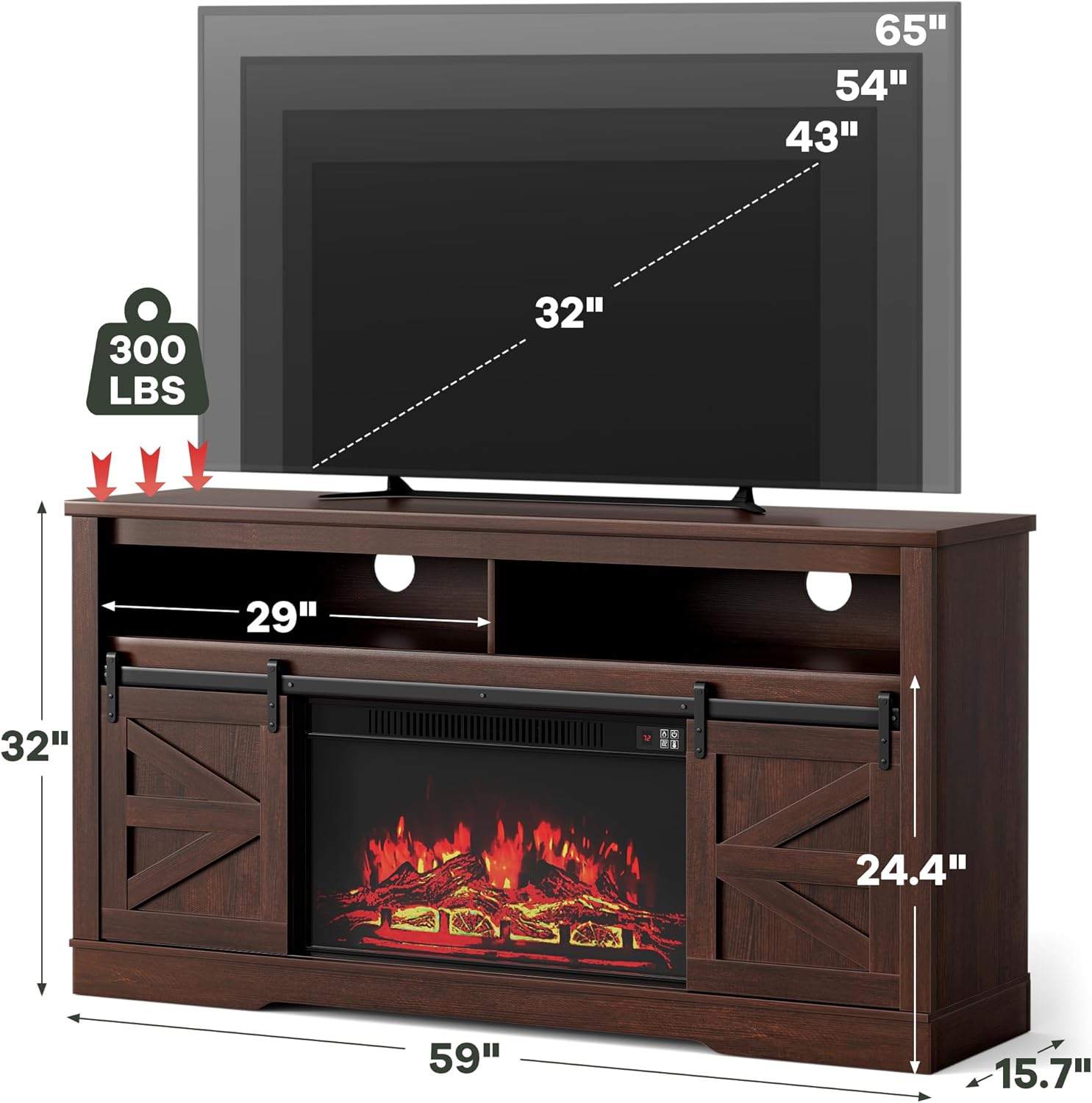

Figure 8.1: Product dimensions and TV size compatibility.
| Karatteristika | Dettall |
|---|---|
| Brand | YESHOMY |
| Numru tal-Mudell | YH-TS23-213-8NEW |
| Dimensjonijiet tal-Prodott | 59 x 15.74 x 32 pulzieri (L x W x H) |
| Piż tal-oġġett | 107 liri |
| Materjal | Injam |
| Kulur | Kannella Skur |
| Kompatibilità tad-Daqs tat-TV | Up to 65+ inches |
| Fireplace Heating Range | 65°F - 100°F |
| Timer tan-Nar | 1-8 sigħat |
| Ċertifikazzjonijiet | CSA/UL Listed (Fireplace) |
| Istruzzjonijiet għall-Kura tal-Prodott | Imsaħ b'Ċarruta Niexfa |
| UPC | 774816297342 |
9. Garanzija u Appoġġ
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official YESHOMY website. Please have your model number (YH-TS23-213-8NEW) and purchase date available when contacting support.
