1. Introduzzjoni
Thank you for choosing the MOUNTUP EconoMe Full Motion TV Wall Mount. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new TV wall mount. Designed for most 32-65 inch flat screen, LED, and 4K TVs, this mount offers swivel, tilt, and extension capabilities to optimize your viewing experience. It supports VESA patterns from 100x100mm to 400x400mm and can hold TVs up to 99 lbs.
Please read this manual thoroughly before installation and keep it for future reference. If you have any questions or require assistance, please contact our customer service.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Improper installation may result in serious personal injury or damage to your TV and property. If you do not understand these instructions or have doubts about the safety of the installation, please consult a qualified professional.
- Kapaċità tal-piż: Teċċedix il-kapaċità massima tal-piż ta' 99 lbs (45 kg).
- Daqs tat-TV: Dan il-muntatura huwa ddisinjat għal televiżjonijiet bejn 32 u 65 pulzier.
- Kompatibbiltà VESA: Ensure your TV's VESA pattern (mounting hole spacing) is within the supported range of 100x100mm to 400x400mm.
- Tip ta' Ħajt: This mount is intended for installation on wood studs (max 16" spacing), concrete walls, or brick walls. Tinstallax ġo drywall waħdu. Always use a stud finder to confirm wood stud locations.
- Ankri: Concrete and brick wall installations require appropriate anchors. Concrete anchors (Φ10×61mm) can be provided upon request.
- Għodod: Use appropriate tools and wear safety gear during installation.
- Superviżjoni: Żomm it-tfal u l-annimali domestiċi 'l bogħod waqt l-installazzjoni.
3. Kontenut tal-Pakkett
Before beginning installation, verify that all parts are present and undamaged. If any parts are missing or defective, contact customer service immediately.

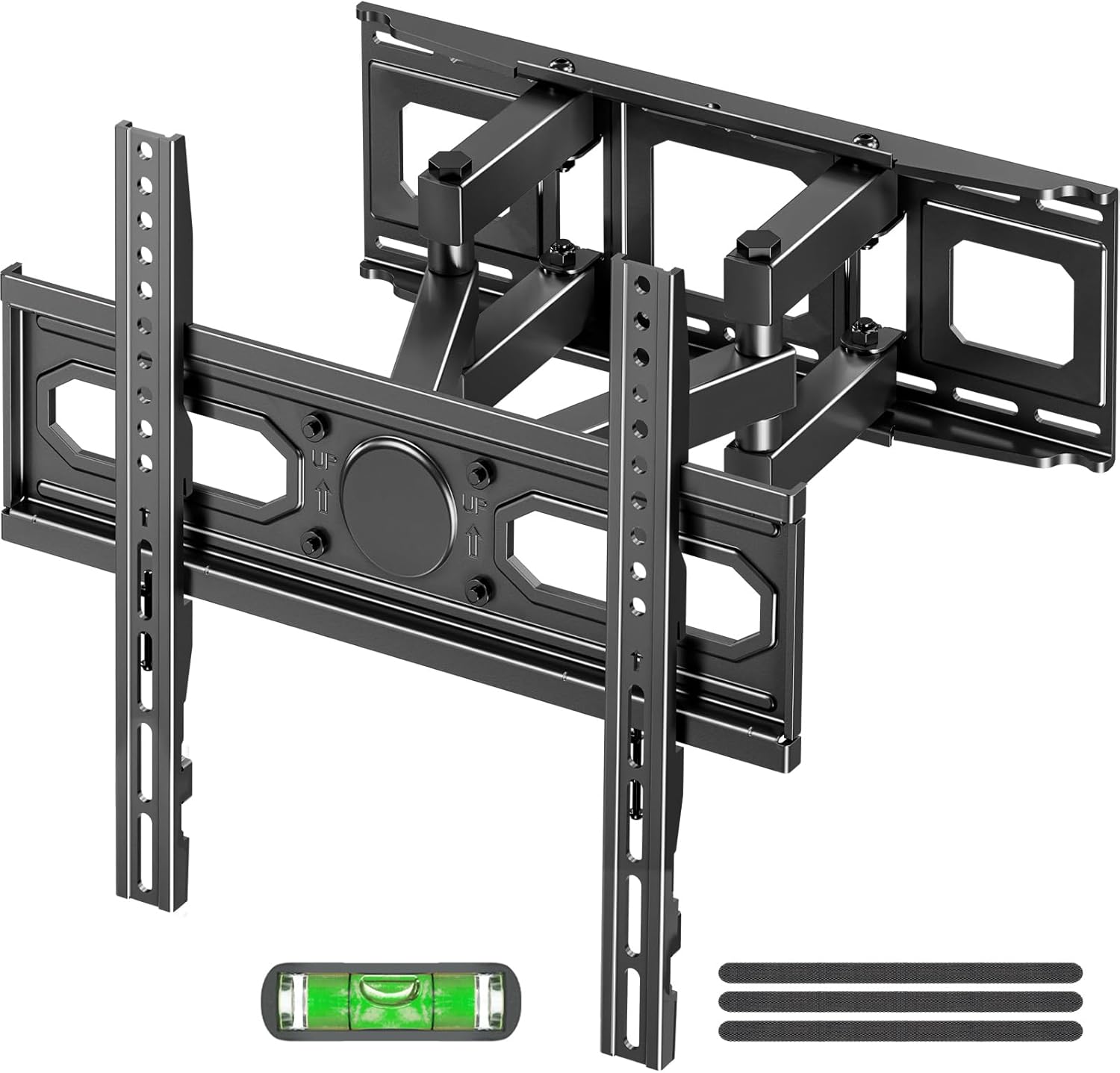

Immaġni: Fuqview of the MOUNTUP EconoMe Full Motion TV Wall Mount and included accessories.
- Assemblea tal-Pjanċa tal-Ħajt
- Parentesi tat-TV (2)
- Hardware Kit (various screws, washers, spacers, anchors)
- Għodda tal-Livell tal-Bużżieqa
- Mudell tal-Immuntar tal-Karta
- Irbit tal-kejbil
4. Setup u Installazzjoni
The installation process involves three main steps. For detailed visual instructions, please refer to the official installation manual PDF available on the product page or contact customer support.
Image: Simplified three-step installation process for the TV wall mount.
- Pass 1: Waħħal il-parentesi mat-TV
Carefully place your TV face down on a soft, clean surface. Identify the VESA mounting holes on the back of your TV. Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV's VESA pattern. Attach the two vertical TV brackets to the back of your TV, ensuring they are securely fastened and evenly aligned.
Image: Guide to available VESA patterns and suitable sizes for TV compatibility.
- Pass 2: Waħħal Pjanċa tal-Ħajt mal-Ħajt
Determine the desired height for your TV. Use a stud finder to locate wood studs if installing on a stud wall. Mark the drilling locations using the provided paper mounting template and the integrated level tool. For concrete or brick walls, use a hammer drill to create pilot holes and insert the appropriate anchors. Secure the wall plate assembly to the wall using the provided lag bolts. Ensure the wall plate is level and firmly attached.

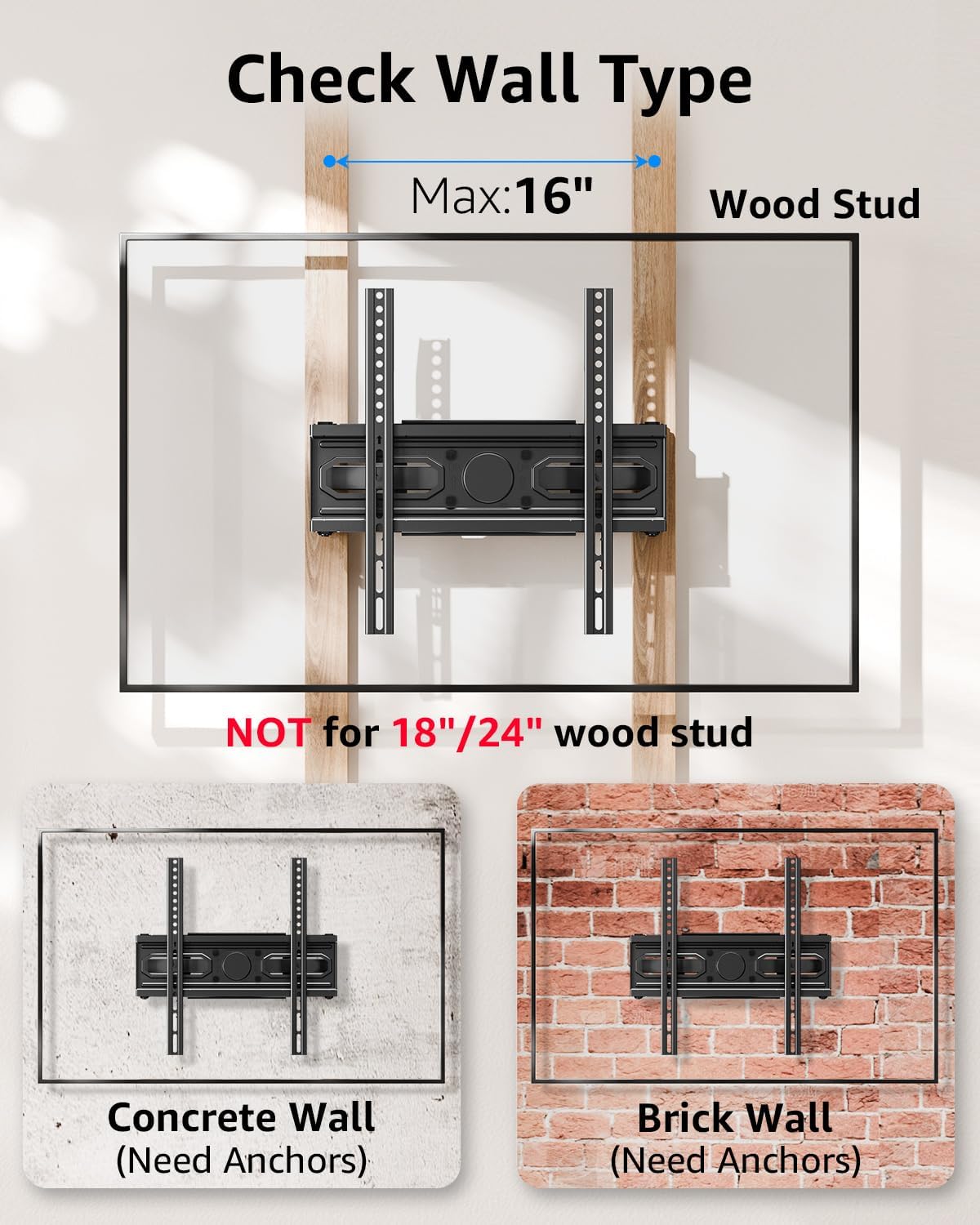

Image: Important information on checking wall type and stud spacing before installation.
- Pass 3: Iddendel u Waħħal it-TV mal-Pjattaforma tal-Ħajt
With assistance, carefully lift the TV (with brackets attached) and hook the TV brackets onto the wall plate. Ensure the TV is securely seated on the wall plate. Tighten any safety screws or locking mechanisms on the TV brackets to prevent accidental dislodgement. Double-check all connections for security before releasinit-TV.
5. Tħaddim u Aġġustamenti
Your MOUNTUP EconoMe TV wall mount offers a range of adjustments to achieve optimal viewing angles and flexibility.
5.1. Aġġustament tal-Mejjel
The mount allows for vertical tilt adjustment to reduce glare and improve viewing comfort. You can tilt the TV up by +5° and down by -10°.
Image: Illustration of the tilting capability for anti-glare viewing.
5.2. Aġġustament tad-dawrien
The articulating arms allow you to swivel your TV left or right by up to ±45°, providing flexible viewing options from different areas of the room. The maximum swivel angle may vary depending on your TV's size.
5.3. Aġġustament tal-Leveling
After installation, you can fine-tune the horizontal level of your TV by ±3° to ensure it is perfectly straight.
Image: Demonstrates premium adaptability with leveling and swivel adjustments.
5.4. Estensjoni u Irtirar
The dual articulating arms allow the TV to extend up to 14.5 inches (36.8 cm) from the wall and retract back to a slim 2.7 inches (6.8 cm) profile, tiffranka l-ispazju meta ma tkunx qed tintuża.
Image: Illustrates the ultimate flexibility of extension and retraction.
5.5. Height Options
The design allows for two height options for mounting the TV brackets on the wall plate, providing flexibility to achieve eye-level comfort.
Image: Demonstrates two height options for optimal eye-level viewing.
6. Manutenzjoni
To ensure the longevity and safe operation of your TV wall mount, follow these simple maintenance guidelines:
- Tindif: Neħħi t-trab mill-muntatura regolarment b'ċarruta ratba u niexfa. Għal marki iebsa, uża ċarruta kemxejn ratba.amp cloth and mild detergent, then wipe dry. Avoid abrasive cleaners or solvents.
- Kontrolli perjodiċi: Every few months, inspect all screws and connections to ensure they remain tight and secure. Re-tighten any loose fasteners.
- Moviment: If the articulating arms become stiff, a small amount of silicone-based lubricant can be applied to the pivot points, avoiding contact with the TV or wall.
7 Issolvi l-problemi
If you encounter any issues with your MOUNTUP EconoMe TV Wall Mount, please refer to the common problems and solutions below. If the issue persists, contact our customer service.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| It-TV mhux livellat wara l-installazzjoni. | Wall plate not perfectly level; minor adjustments needed. | Use the leveling adjustment feature (±3°) to fine-tune the TV's horizontal position. |
| Difficulty moving or adjusting the TV. | Screws at pivot points are too tight; lack of lubrication. | Slightly loosen the screws at the articulating joints. Apply a small amount of silicone-based lubricant if necessary. |
| Il-muntatura tħossha maħlula mal-ħajt. | Lag bolts not fully tightened; incorrect wall anchors used. | Ensure all lag bolts securing the wall plate are fully tightened. Verify that the correct anchors were used for your wall type. If unsure, consult a professional. |
| It-TV ma joqgħodx mal-muntatura. | Incorrect VESA pattern or TV size/weight. | Double-check your TV's VESA pattern and weight against the mount's specifications. This mount supports VESA from 100x100mm to 400x400mm and up to 99 lbs. |
8. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | UE0092A |
| Kompatibilità tad-Daqs tat-TV | 32 - 65 pulzieri |
| Kapaċità tal-piż | Sa 99 lbs (45 kg) |
| Kompatibilità VESA | 100x100mm, 150x150mm, 200x200mm, 200x300mm, 300x300mm, 400x400mm, etc. (Min 100x100mm, Max 400x400mm) |
| Angolu Mejjel | +5° / -10° |
| Angolu li jdur | ±45° (Max angle depends on TV size) |
| Aġġustament tal-Livell | ± 3° |
| Estensjoni mill-Ħajt | 2.7 pulzieri (6.8 ċm) sa 14.5 pulzieri (36.8 ċm) |
| Materjal | Azzar Liga |
| Kulur | Iswed |
| Piż tal-oġġett | 8.14 liri |
| Dimensjonijiet tal-Pakkett | 17.56 x 6.65 x 2.83 pulzieri |
Image: Demonstrates the durability and stability of the mount, supporting up to 99 lbs.
9. Garanzija u Appoġġ
MOUNTUP is committed to providing quality products and excellent customer service. For any inquiries, concerns, or assistance with installation or parts, please do not hesitate to contact our support team. We are available to help you with any issues you may encounter.
For the most up-to-date warranty information and detailed support resources, please refer to the official MOUNTUP website or the product's Amazon page. You can also find a downloadable PDF version of the installation manual hawn.
