PEXMOR 14" Folding Commuter City Electric Bicycle User Manual

Introduzzjoni

Thank you for choosing the PEXMOR 14" Folding Commuter City Electric Bicycle. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bike. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your bicycle.

For your safety, always wear a helmet and appropriate protective gear when riding. Adhere to all local traffic laws and regulations.

Linji Gwida dwar is-Sigurtà

• Always wear a certified helmet and appropriate safety gear, including knee and elbow pads, when riding.
• Perform a pre-ride inspection before each use, checking tire pressure, brake function, and battery level.
• Do not ride in adverse weather conditions, such as heavy rain, snow, or strong winds.
• Avoid riding on slippery surfaces, loose gravel, or uneven terrain that could cause loss of control.
• Żomm distanza sigura minn vetturi oħra u persuni mexjin.
• Do not exceed the maximum load capacity of 265 LBS (120 KG).
• Ensure all folding mechanisms are securely locked before riding.
• Familiarize yourself with local laws regarding electric bicycle use.
• Keep hands and feet away from moving parts, especially the chain and wheels.
• Do not modify the electric bike in any way, as this may compromise safety and void the warranty.

Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra meta tiftaħ il-pakkett:

• PEXMOR 14" Folding Electric Bicycle (main unit)
• Ċarġer tal-batterija
• Manwal għall-Utent
• Necessary Assembly Tools (if applicable)

Setup u Assemblea

The PEXMOR electric bike requires minimal assembly. Follow these steps to prepare your bike for its first ride.

Tiżvolġi l-Bike

Carefully unfold the main frame of the bicycle. Ensure the folding hinge is fully extended and the safety latch is engaged. Raise the handlebar stem and secure it in the upright position. Unfold the pedals if they are in the folded position.

Image: The PEXMOR electric bike shown in its compact folded state and fully unfolded, ready for use. This illustrates the bike's portability and ease of storage.

Handlebar and Seat Adjustment

Adjust the handlebar height to a comfortable riding position. The seat post can be adjusted to accommodate riders between 4.95 and 5.9 feet (150-180 cm) in height. Loosen the quick-release lever on the seat post, adjust the seat to your desired height, and then firmly close the lever to secure it.

Image: A visual guide demonstrating the adjustable height range for the seat and handlebars, ensuring a comfortable fit for various rider heights. The image also provides the bike's dimensions when unfolded and folded.

Istruzzjonijiet Operattivi

Iċċarġjar tal-batterija

Before your first ride, fully charge the 36V 6AH lithium battery. Connect the charger to the bike's charging port and then to a standard power outlet. The charging indicator on the charger will change when the battery is fully charged. A full charge typically takes 4-5 hours. The battery features BMS technology for enhanced safety.

Image: This image focuses on the integrated 36V 6AH lithium battery, emphasizing its BMS (Battery Management System) for safety and its fast-charging capability. It also visually represents the three riding modes.

Modi ta' Riding

Your PEXMOR electric bike offers three distinct riding modes:

• Modalità Ordinarja tar-Roti: Ride the bike like a traditional bicycle, using pedal power only.
• Modalità PAS (Sistema ta' Assistenza bil-Pedali): The motor provides assistance as you pedal, making riding easier, especially on inclines. This mode offers a range of 20-30 KM per charge.
• Modalità Elettrika: The bike is powered solely by the motor, requiring no pedaling. This mode provides a range of 20±3 KM per charge.

Wiri u Kontrolli

The digital LED display on the handlebar shows important ride metrics such as battery level, current speed, and riding mode. Use the controls on the handlebar to switch between riding modes and manage other functions.

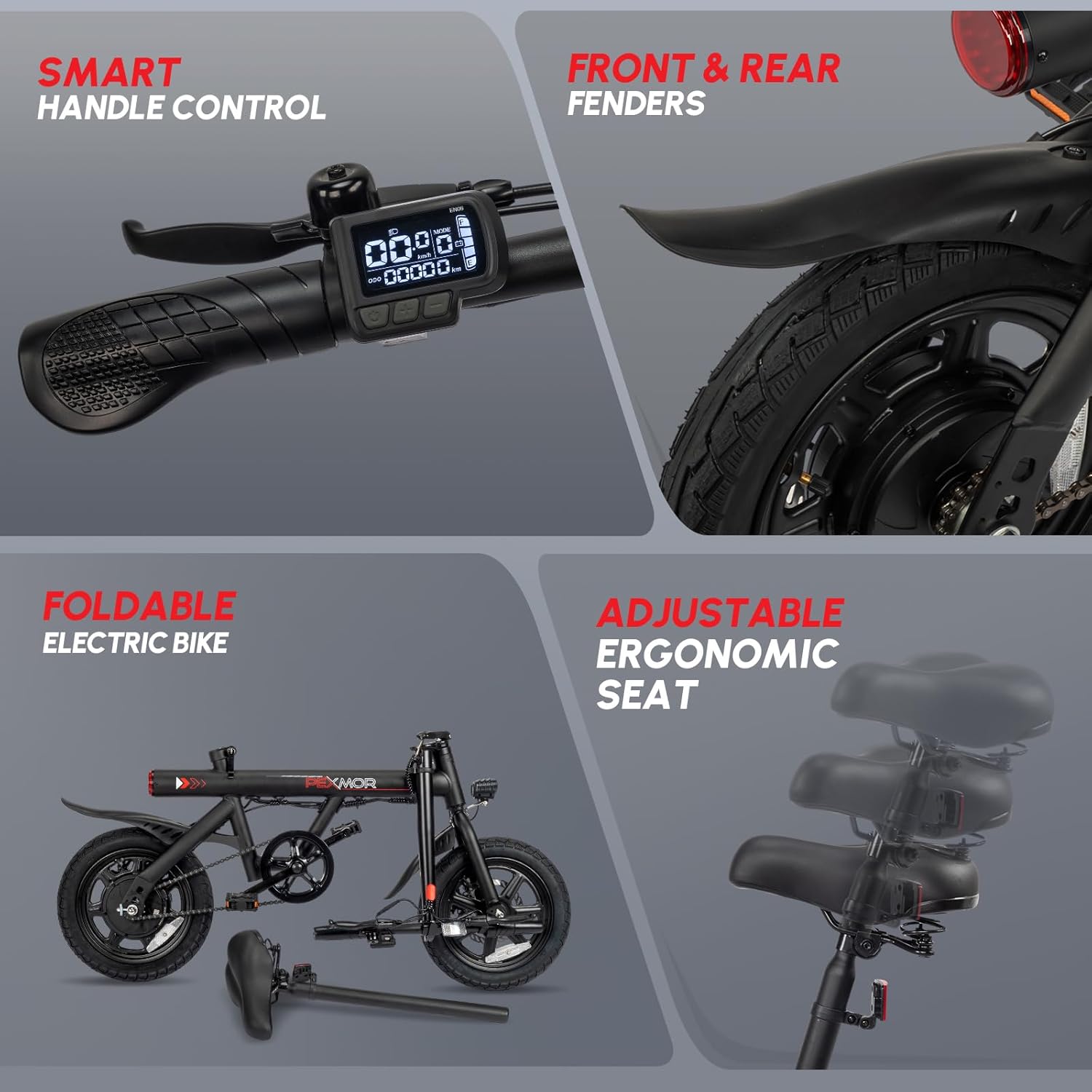

Image: This composite image highlights the smart handle control with its digital LED display, providing real-time information to the rider. It also shows the front and rear fenders, the bike's foldable design, and the adjustable ergonomic seat.

Sistema tal-Ibbrejkjar

The PEXMOR electric bike is equipped with front and rear dual disc brakes for precise control and reliable stopping power. Always apply both brakes simultaneously for effective and safe braking.

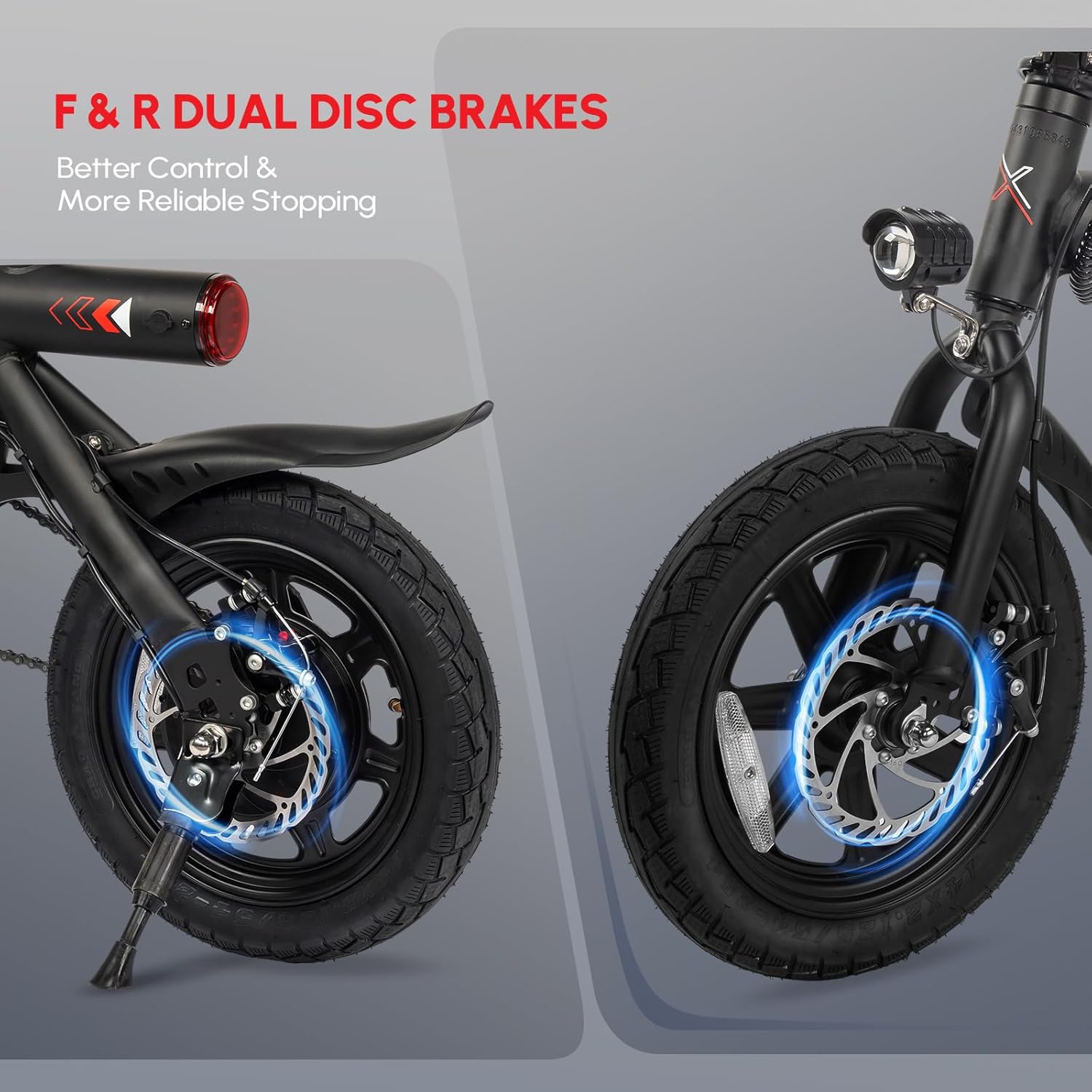

Immaġni: Close-up view of the front and rear wheels, showcasing the dual disc brake system. This highlights the bike's enhanced braking capabilities for improved safety and control.

Sistema tad-Dawl

The bike features a bright headlight to illuminate the road ahead and a brake-activated tail light to enhance visibility and safety, especially during night rides.

Image: This image focuses on the bike's integrated lighting system, featuring a bright headlight for forward visibility and a brake-activated tail light for increased safety from the rear, particularly important for night riding.

Manutenzjoni

Regular maintenance is crucial for the longevity and safe operation of your PEXMOR electric bike.

Kura tat-Tajers

The bike is equipped with durable rubber tires designed for various terrains. Regularly check tire pressure and inspect for any signs of wear, punctures, or damage. Maintain proper tire pressure as indicated on the tire sidewall for optimal performance and safety.

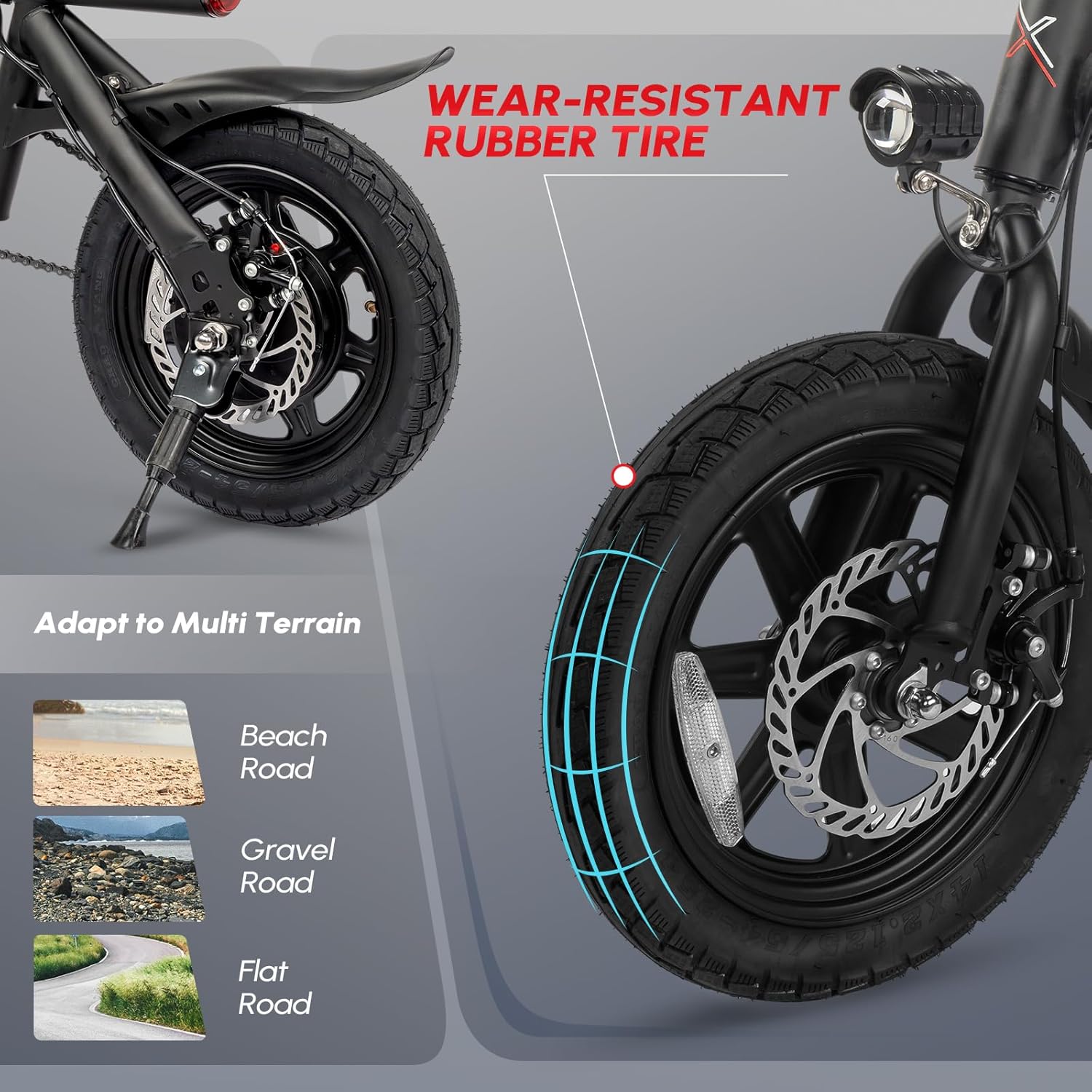

Immaġni: Dettaljata view of the bike's wear-resistant rubber tire, highlighting its robust construction. The image also illustrates the tire's adaptability to various terrains, including beach roads, gravel roads, and flat roads.

Kura tal-batterija

To prolong battery life, avoid fully discharging the battery frequently. Store the bike and battery in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for an extended period, charge the battery to approximately 50-70% and recharge every 1-2 months.

Manutenzjoni Ġenerali

• Keep the bike clean and dry. Wipe down the frame with a damp drapp.
• Regularly check and tighten all bolts and fasteners.
• Llubrika l-katina perjodikament biex tiżgura tħaddim bla xkiel.
• Spezzjona l-pads tal-brejkijiet għal xedd u ibdelhom meta jkun meħtieġ.

Issolvi l-problemi

Din it-taqsima tindirizza kwistjonijiet komuni li tista' tiltaqa' magħhom bir-rota elettrika tiegħek.

If the issue persists after attempting these solutions, please contact PEXMOR customer support for further assistance.

Speċifikazzjonijiet Tekniċi

Image: This image provides a detailed look at the 350W (Peak 500W) high-speed brushless motor, illustrating its power, climbing capacity, maximum speed, and the bike's overall load capacity.

Garanzija u Appoġġ

PEXMOR products are designed for quality and durability. For specific warranty information regarding your electric bike, please refer to the warranty card included in your package or visit the official PEXMOR websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba ta' garanzija.

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact PEXMOR customer support. You can typically find contact information on the PEXMOR websit jew permezz tal-bejjiegħ bl-imnut tiegħek.

Għal aktar riżorsi u informazzjoni dwar il-prodott, żur il- PEXMOR Store on Amazon.
