Manwal tal-Istruzzjonijiet tat-Telefon Flip GSM Qubo NEONW għal Anzjani

1. Introduzzjoni

This manual provides comprehensive instructions for the Qubo NEONW GSM Flip Phone, designed specifically for seniors. It covers setup, operation, maintenance, and troubleshooting to ensure a user-friendly experience. Please read this manual carefully before using your new phone.

2. X'hemm fil-Kaxxa

• Qubo NEONW Flip Phone
• Ċarġer tal-USB-C
• Manwal tal-Prodott (dan id-dokument)
• Batterija tal-jone tal-litju (installata minn qabel jew separata)

Image: The Qubo NEONW Flip Phone with its included USB-C charger and manual.

3. Prodott Aktarview

The Qubo NEONW is a user-friendly flip phone featuring a 2.4-inch display, large buttons, and a loud ringer, making it ideal for seniors. Key features include an SOS emergency call function, picture contacts, and a built-in FM radio and camera.

Image: The Qubo NEONW flip phone in an open position, displaying its large, easy-to-read buttons and a simple multimedia menu on the screen.

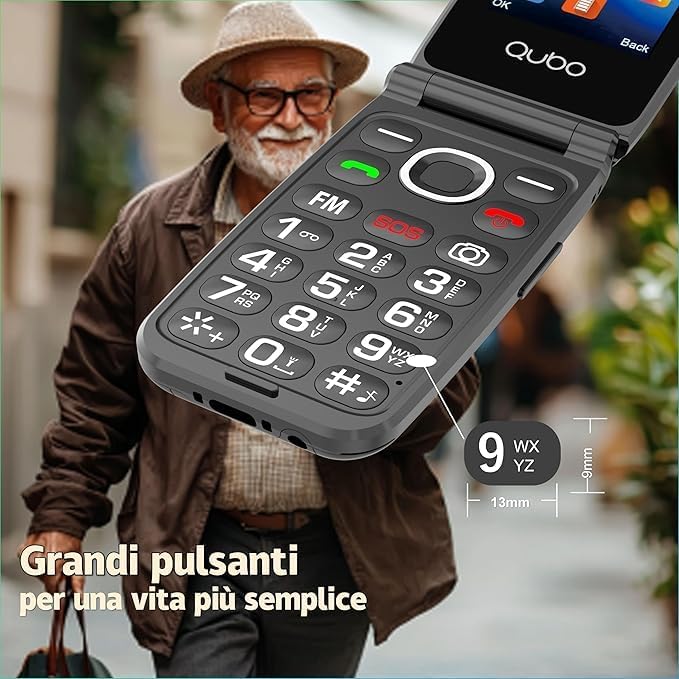

Image: A close-up of the Qubo NEONW phone's large, well-spaced physical buttons, designed for easy dialing and navigation.

4. Setup

4.1. Daħħal is-SIM Card u l-Batterija

1. Iftaħ it-Telefon: Gently open the back cover of the phone.
2. Daħħal il-Karta(i) tas-SIM: Locate the SIM card slot(s). Insert your GSM SIM card(s) into the designated slot(s) with the gold contacts facing down. Ensure it clicks into place.
3. Daħħal il-batterija: Place the battery into the battery compartment, aligning the contacts.
4. Close the Phone: Replace the back cover until it securely snaps into place.

4.2. L-Ewwel Tixgħel u l-Iċċarġjar

1. Qawwa Mixgħul: Press and hold the red power button (usually the end call button) until the screen lights up.
2. Iċċarġja Batterija: Connect the USB-C charger to the phone's charging port and plug it into a power outlet. Charge the phone fully before first use. The battery indicator on the screen will show charging status.

5. Istruzzjonijiet Operattivi

5.1. Tagħmel u Riċeviment Sejħiet

• Biex Tagħmel Sejħa: Dial the number using the keypad and press the green call button.
• Biex Tirċievi Sejħa: Open the flip to answer, or press the green call button if the phone is already open.
• Biex Intemm Sejħa: Close the flip or press the red end call button.

5.2. SOS Emergency Call Function

The phone features a dedicated SOS button for emergencies. You can program up to 5 emergency contacts.

1. Issettjar tan-Numri SOS: Navigate to the SOS settings in the phone's menu. Add up to 5 emergency contact numbers.
2. Using SOS: In an emergency, press and hold the red SOS button on the back of the phone. The phone will automatically call the pre-set numbers in sequence until one is answered.

Image: The Qubo NEONW flip phone showing the prominent SOS button and a visual representation of how it connects to five pre-programmed emergency contacts.

Vidjo: Prodott fuqview demonstrating features like camera, lighting, loud ringtone, large buttons, SOS emergency calls, and font switching on the Qubo NEONW flip phone.

5.3. Speed Dial (Picture Contacts)

Assign frequently called numbers to speed dial keys or picture contacts for quick access.

• Setting Speed Dial: In the contacts menu, select a number key (2-9) and assign a contact. Long-press the assigned key to dial.
• Picture Contacts: The phone supports assigning images to contacts, making it easier to identify callers. Navigate to a contact, select "Edit," and choose "Add Picture."

Image: The Qubo NEONW flip phone screen showing an incoming call with a contact picture, demonstrating the picture contact feature.

5.4. L-Użu tar-Radju FM

The phone includes a built-in FM radio. No headphones are required for operation.

• Accessing FM Radio: From the main menu, select "FM Radio."
• Scanning Channels: Use the navigation keys to scan for available radio stations.
• Aġġusta tal-Volum: Use the side volume buttons or navigation keys to adjust the radio volume.

5.5. Camera and Flashlight

• Kamera: Access the camera from the main menu to take photos.
• Flashlight: The phone features a built-in flashlight. Typically, this can be activated by a dedicated button or a long-press of a specific key (refer to on-screen prompts if unsure).

Immaġni: A view of the Qubo NEONW flip phone's rear, highlighting the camera lens and the powerful 100dB loudspeaker, along with the ultrabright flashlight.

5.6. Aġġustament tal-Volum u t-Telefonati

• Volum tas-Sejħa: Use the side volume buttons during a call to adjust the earpiece volume.
• Volum tat-Telefon: Navigate to "Settings" > "Profiles" or "Sound Settings" to adjust the ringtone volume and select a preferred ringtone. The phone is designed with a loud ringer for easy audibility.

6. Manutenzjoni

• Kura tal-batterija: To prolong battery life, avoid extreme temperatures. Charge the phone regularly, but avoid overcharging for extended periods.
• Tindif: Uża drapp artab u niexef biex tnaddaf l-iskrin u l-qafas tat-telefon. Evita li tuża kimiċi ħarxa jew materjali li joborxu.
• Ħażna: Aħżen it-telefon f'post frisk u niexef meta ma jkunx qed jintuża għal perjodi twal.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Qubo website. Our customer support team is available to assist with any questions or issues you may encounter.

For any problems, our customer support responds to emails within 24 hours.
