1. Introduzzjoni
Thank you for choosing the CYCLAMI A2S Mini Electric Bicycle Air Pump. This compact and powerful inflator is designed for convenient and efficient tire inflation for various bicycles, motorcycles, and sports equipment. Featuring a digital display, auto-stop function, and compatibility with both Presta and Schrader valves, the A2S pump ensures precise and hassle-free operation. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Image 1.1: The compact CYCLAMI A2S Mini Electric Bicycle Air Pump.
2. Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek. Jekk xi oġġetti huma neqsin jew bil-ħsara, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
- CYCLAMI A2S Mini Electric Bicycle Air Pump
- Silicone Protective Cover
- Adapter tal-Valv Schrader (SV)
- FV (Presta Valve) Adapter
- Labra tal-ballun
- Inflatable Hose (with SV connection)
- Cable tal-Iċċarġjar tal-USB tat-Tip-C

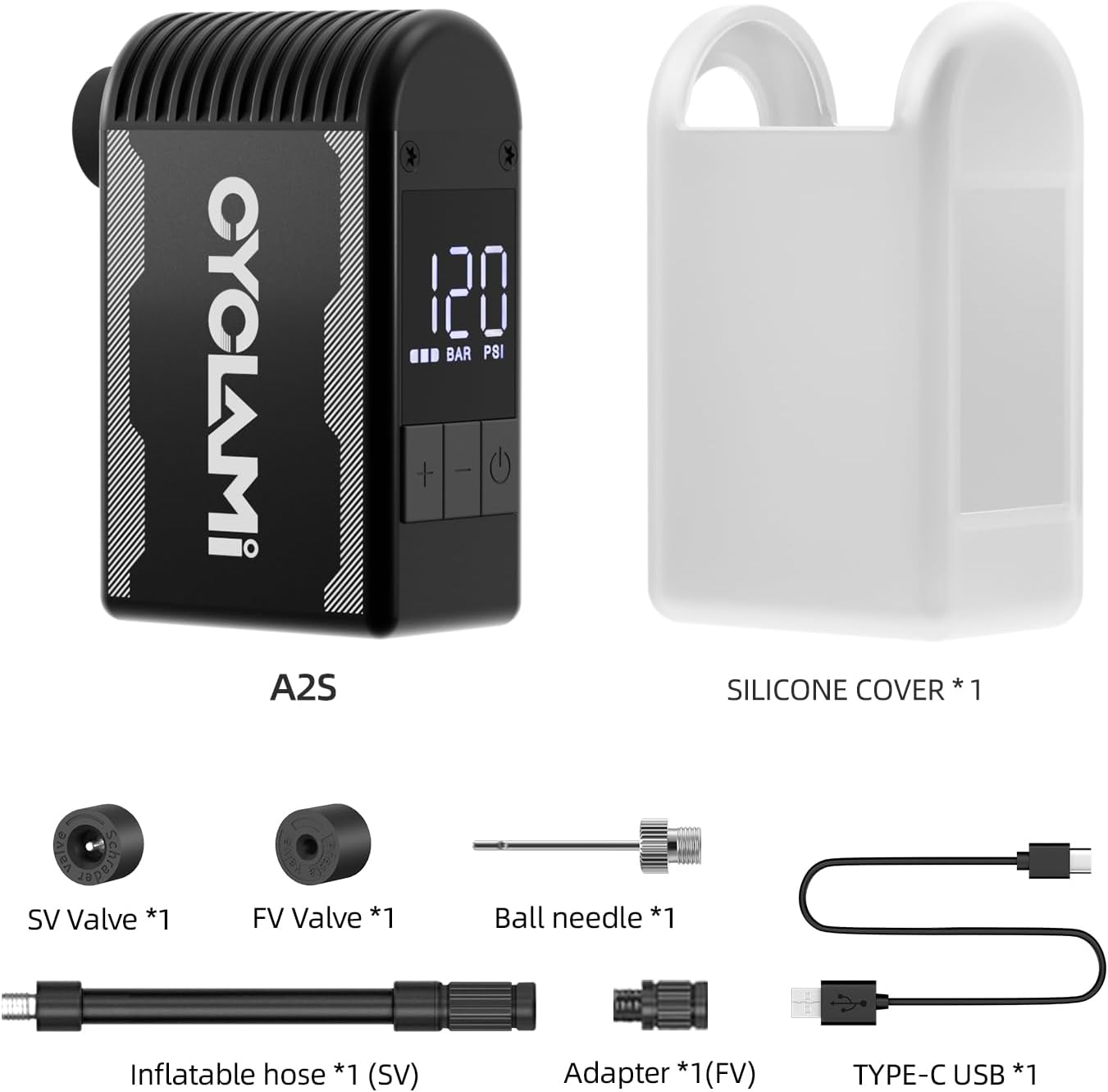

Image 2.1: All included accessories with the CYCLAMI A2S pump.
3. Karatteristiċi tal-prodott
- High Inflation Speed: Delivers up to 120 PSI, inflating a 700C road bike tire from 0 to 120 PSI in under 100 seconds.
- Disinn kompatt u ħafif: Measures approximately 2.87 x 1.7 x 1.1 inches and weighs only 4.8 ounces (136 grams), making it highly portable.
- Kostruzzjoni Durabbli: Features a hard and lightweight aluminum alloy casing with an additional silicone protective case for drop-proof and heat-resistant properties.
- Universal Valve Compatibility: Supports both Presta and Schrader valves, suitable for road bikes, mountain bikes, motorcycles, and e-riders. Also inflates basketballs, volleyballs, and soccer balls.
- Accurate Digital Display: Equipped with an LED digital display for real-time tire pressure readings and precise preset pressure settings.
- Batterija fit-tul: Built-in 2*500mAh battery capacity (total 1000mAh) provides multiple inflations on a single charge.
- Iċċarġjar veloċi: Fully recharges via Type-C USB in approximately 45 minutes.
4. Setup
4.1 Charging the Pump
- Locate the Type-C charging port on the side of the pump.
- Connect the provided Type-C USB cable to the pump and a compatible USB power adapter (not included).
- The LED display will indicate charging status. A full charge takes approximately 45 minutes.
Image 4.1: Charging the pump via its Type-C USB port.
4.2 Attaching the Valve Adapter
The pump comes with an inflatable hose and various adapters for different valve types.
- Identify the valve type on your tire (Presta or Schrader).
- Screw the appropriate adapter (SV for Schrader, FV for Presta) onto the end of the inflatable hose.
- Screw the other end of the inflatable hose onto the pump's inflation port.
- For Schrader valves, you can directly screw the hose onto the tire valve. For Presta valves, you may need to use the FV adapter first.
5. Istruzzjonijiet Operattivi
5.1 Powering On/Off and Display Overview
- Qawwa Mixgħul: Long-press the power button (⏻) to turn on the digital display.
- Itfi: Long-press the power button (⏻) again to turn off the unit. The pump will also automatically power down after approximately 60 seconds of inactivity to conserve battery.
- The display shows the current pressure, unit of pressure (PSI/BAR), and battery level.
Image 5.1: Digital display and button functions.
5.2 Setting Desired Pressure
- After powering on, the display will show the current pressure (or 0 if not connected).
- Use the '+' and '-' buttons to adjust the desired target pressure. Long-press for quick adjustment.
- To switch between PSI and BAR units, press the '+' and '-' buttons simultaneously.
5.3 Proċess ta' Inflazzjoni
- Connect the assembled inflatable hose to your tire valve. Ensure a secure connection to prevent air leakage.
- Id-displej se juri l-pressjoni attwali tat-tajers.
- Set your desired target pressure using the '+' and '-' buttons.
- Short-press the power button (⏻) to start inflation. The pump will begin to inflate the tire.
- The pump will automatically stop once the preset pressure is reached.
- To stop inflation manually, short-press the power button (⏻) għal darb'oħra.
- Carefully disconnect the hose from the tire valve.
Image 5.2: Inflating a tire with preset pressure and auto-stop.
Nota Importanti:
- Avoid continuous operation for more than 3 minutes to prevent overheating. If the unit overheats, it may display 'HOT' and shut down automatically. Allow it to cool before resuming use.
- It is recommended to have the unit running (pushing air) when connecting to a tire that already has some air pressure. This helps prevent air from escaping while securing the connection.
6. Manutenzjoni
- Tindif: Wipe the pump with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Ħażna: Aħżen il-pompa u l-aċċessorji tagħha f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
- Kura tal-batterija: For optimal battery life, charge the pump fully every 3-6 months if not in regular use.
- Qoxra tas-silikonju: Keep the silicone protective cover on during use to protect against drops and manage heat dissipation.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-pompa ma tixgħelx | Low battery; Unit is off | Charge the pump fully; Long-press the power button to turn on. |
| Pump does not inflate / Error E3 displayed | Hose not securely connected; Valve blocked; Internal malfunction | Ensure hose is tightly screwed onto both pump and tire valve. Check for obstructions in the valve. If error persists, contact customer support. |
| Pump stops during inflation / 'HOT' displayed | Is-sħana żejda minħabba użu fit-tul | Allow the pump to cool down for several minutes before resuming operation. Avoid continuous use for more than 3 minutes. |
| Qari mhux preċiż tal-pressjoni | Loose connection; Sensor calibration variance | Ensure a tight connection to the tire valve. Note that a 1-2 PSI variance is normal for compact digital gauges. |
| Tnixxijiet ta' arja waqt l-inflazzjoni | Loose connection; Damaged valve adapter/hose | Tighten all connections. Inspect hose and adapters for damage and replace if necessary. |
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | A2S-US |
| Brand | CYCLAMI |
| Kulur | Iswed |
| Materjal | Aluminju |
| Piż tal-oġġett | 136 Gram (4.8 uqija) |
| Dimensjonijiet tal-Prodott (LxWxH) | 1" x 1.1" x 2.8" (73.6 x 45 x 28.6mm) |
| Sors tal-Enerġija | Battery Powered (2*500mAh, 7.4V) |
| Pressjoni massima | 120 PSI (8.3 BAR) |
| Mod ta' Operazzjoni | Automatic (with auto-stop) |
| Port tal-Iċċarġjar | USB tat-tip C |
| Ħin tal-Ħlas | Appross. 45 minuti |
| Komponenti Inklużi | Bike pump, silicone cover, SV valve, FV valve, ball needle, inflatable hose, Type-C USB cable |
Image 8.1: Battery capacity details for the A2S model.
9. Garanzija u Appoġġ
9.1 Informazzjoni dwar Garanzija
The CYCLAMI A2S Mini Electric Bicycle Air Pump comes with a garanzija ta 'sena from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
9.2 Appoġġ għall-Klijent
For technical assistance, warranty claims, or any questions regarding your CYCLAMI A2S pump, please contact our customer support team. Refer to your purchase documentation or the retailer's webis-sit għal dettalji ta' kuntatt speċifiċi.
Meta tikkuntattja l-appoġġ, jekk jogħġbok żomm l-informazzjoni li ġejja lesta:
- Product Model: A2S-US
- Data tax-Xiri
- Post tax-Xiri
- Deskrizzjoni dettaljata tal-kwistjoni
