1. Introduzzjoni
Thank you for choosing the Talkpod SLT1 Low Power Transceiver. This compact and lightweight two-way radio set is designed for reliable and easy communication in various environments, from outdoor adventures to indoor professional use. It operates without requiring a license or special qualifications, making it accessible for everyone.
Figure 1: The Talkpod SLT1 Transceiver set, featuring one red and one blue unit, along with the included USB charging cables.
2. Kontenut tal-Pakkett
Jekk jogħġbok iċċekkja l-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:
- Talkpod SLT1 Transceiver Unit (x2)
- Kejbil għall-Iċċarġjar USB-C (x1)
- Clip taċ-ċinturin (x2)
- Ċinga tal-idejn (x2)
- Manwal għall-Utent (x1)
Figura 2: Aktarview of all items included in the Talkpod SLT1 package.
3. Setup u Iċċarġjar
3.1. Charging the Transceiver
The Talkpod SLT1 has a built-in lithium-ion battery. Before first use, fully charge the device. Use the provided USB-C charging cable to connect the transceiver to a USB power source (e.g., wall adapter, computer USB port, power bank).
Figure 3: Connect the USB-C cable to the transceiver and a USB power source for charging. A full charge provides approximately 48 hours of use.
3.2. Twaħħil tal-Klipp taċ-Ċinturin
To attach the belt clip, slide it onto the designated slot on the back of the transceiver until it clicks into place. To remove, gently push up and then push in the clip to release it from the slot.
Figure 4: Steps for attaching the belt clip to the transceiver.
4. Operazzjoni
4.1. It-Tqassim u l-Kontrolli tal-Apparat
Familiarize yourself with the buttons and display of your Talkpod SLT1 transceiver:

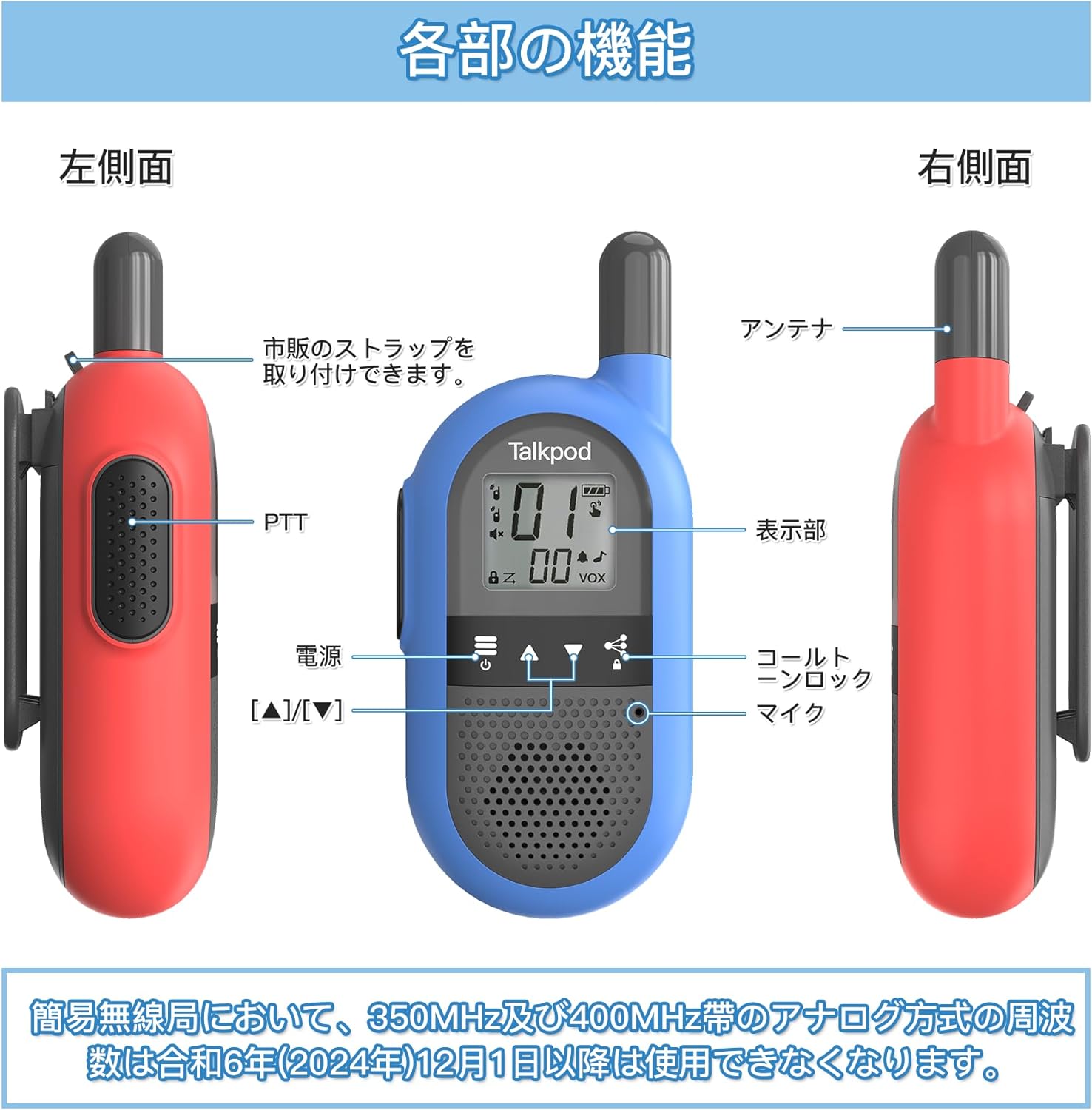

Figure 5: Detailed diagram of the transceiver's components and controls.
- Buttuna PTT (Push-to-Talk): Located on the left side. Press and hold to transmit, release to listen.
- Buttuna tal-Qawwa: Agħfas u żomm biex tixgħel jew titfi l-apparat.
- Wiri: Shows channel number, battery status, VOX indicator, and other settings.
- Mikrofonu: Located at the bottom front.
- Antenna: Jinsab fil-quċċata.
- Channel Up/Down Buttons (▲/▼): Used to change channels.
- Call Tone/Lock Button: Press to send a call tone or to lock/unlock the keypad.
4.2. Basic Communication
- Qawwa Mixgħul: Agħfas u żomm il-buttuna tal-qawwa sakemm id-displej jixgħel.
- Agħżel il-Kanal: Use the ▲ and ▼ buttons to select a channel. Ensure all transceivers you wish to communicate with are on the same channel. The Talkpod SLT1 supports 27 channels.
- Trasmetti: Press and hold the PTT button. Speak clearly into the microphone. Release the PTT button to finish transmitting.
- Irċievi: When not transmitting, the transceiver is in receive mode. You will hear incoming transmissions.
4.3. VOX (Voice Operated Exchange) Function
The VOX function allows for hands-free operation. When activated, the transceiver will automatically transmit when it detects your voice, without needing to press the PTT button. Refer to the full user manual for instructions on how to activate and adjust VOX sensitivity.
4.4. Communication Range
The effective communication range of the Talkpod SLT1 varies significantly based on the environment. Obstacles such as buildings, hills, and dense foliage can reduce the range. Below are general guidelines:
- Open Line of Sight: Madwar 2 km
- Suburban/Rural Areas: Approximately 1-2 km
- Expressways: Madwar 500 m
- Urban Areas (with buildings): Approximately 100-200 m
Figure 6: Communication range varies by environment.
5. Manutenzjoni
To ensure the longevity and optimal performance of your Talkpod SLT1 transceivers, follow these maintenance guidelines:
- Tindif: Imsaħ l-apparat b'artab, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
- Ħażna: Store the transceivers in a cool, dry place away from direct sunlight and extreme temperatures.
- Kura tal-batterija: Avoid fully discharging the battery frequently. If storing for a long period, charge the battery to about 50% capacity.
- Espożizzjoni għall-Ilma: The device is not waterproof. Avoid exposing it to rain or submerging it in water.
6 Issolvi l-problemi
If you encounter issues with your Talkpod SLT1, try the following solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda qawwa | Il-batterija hija eżawrita | Charge the transceiver fully. |
| Cannot communicate | Kanali differenti magħżula | Ensure both transceivers are on the same channel. |
| Kwalità tal-ħoss fqira | Barra mill-firxa jew interferenza | Move closer to the other transceiver or to an area with fewer obstacles. |
| Buttuni ma jirrispondux | It-tastiera hija msakkra | Press the Call Tone/Lock button to unlock the keypad. |
Jekk il-problema tippersisti, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | SLT1 |
| Brand | Talkpod |
| Kulur | Aħmar + Blu |
| Dimensjonijiet (L x W x H) | 3.8 x 5.6 x 12.5 ċm (1.5 x 2.2 x 4.9 pulzieri) |
| Piż | 96 g (0.21 lbs) |
| Tip ta 'batterija | Lithium-Ion (built-in) |
| Kanali | 27 |
| Medda ta' Frekwenzi | 422.050 ~ 422.300MHz |
| Max Communication Distance | 2 km (żona miftuħa) |
| Teknoloġija Tuner | UHF |
| Karatteristiċi Speċjali | Rechargeable, VOX Hands-Free, Auto Power Saving, Auto Scan |
8. Garanzija u Appoġġ
Talkpod offers the following support for your product:
- Return/Exchange Policy: 30-day return or exchange period from the date of purchase.
- Garanzija tal-Manifattur: 1-year manufacturer warranty from the date of purchase.
For any questions, concerns, or support inquiries regarding your Talkpod SLT1 transceiver, please contact our customer service. We aim to provide a satisfactory response within 24 hours.
Contact information for support is typically found on the product packaging or the official brand websit.
