Moni Kids Trio i-Size Car Seat (40-87 cm) Instruction Manual

1. Introduzzjoni

This instruction manual provides essential information for the correct installation, use, and maintenance of your Moni Kids Trio i-Size Car Seat. This car seat is designed for infants with a body height between 40 and 87 cm and a maximum weight of 13 kg. Please read this manual thoroughly before using the car seat to ensure the safety and comfort of your child.

2. Informazzjoni dwar is-Sigurtà

• Always install the car seat in a rear-facing direction. This is the safest way for infants to travel.
• Ensure the car seat is securely fastened using the vehicle's 3-point safety belt as described in the installation section.
• The child must be secured in the car seat using the integrated 3-point safety harness. Ensure the harness straps are snug against the child's body and not twisted.
• Qatt tħalli lit-tifel/tifla tiegħek waħdu fis-siġġu tal-karozza.
• Tużax is-siġġu tal-karozza jekk ikun ġie involut f'inċident, anke jekk ma jkunx hemm ħsara viżibbli. Ħsara interna tista' tikkomprometti s-sigurtà tiegħu.
• Iċċekkja regolarment il-komponenti kollha għal xedd u kedd. Ibdel il-partijiet bil-ħsara immedjatament.
• This car seat is suitable for children from birth up to 13 kg and 40-87 cm in height. Do not use for children outside these specifications.

3. Komponenti tal-Prodott

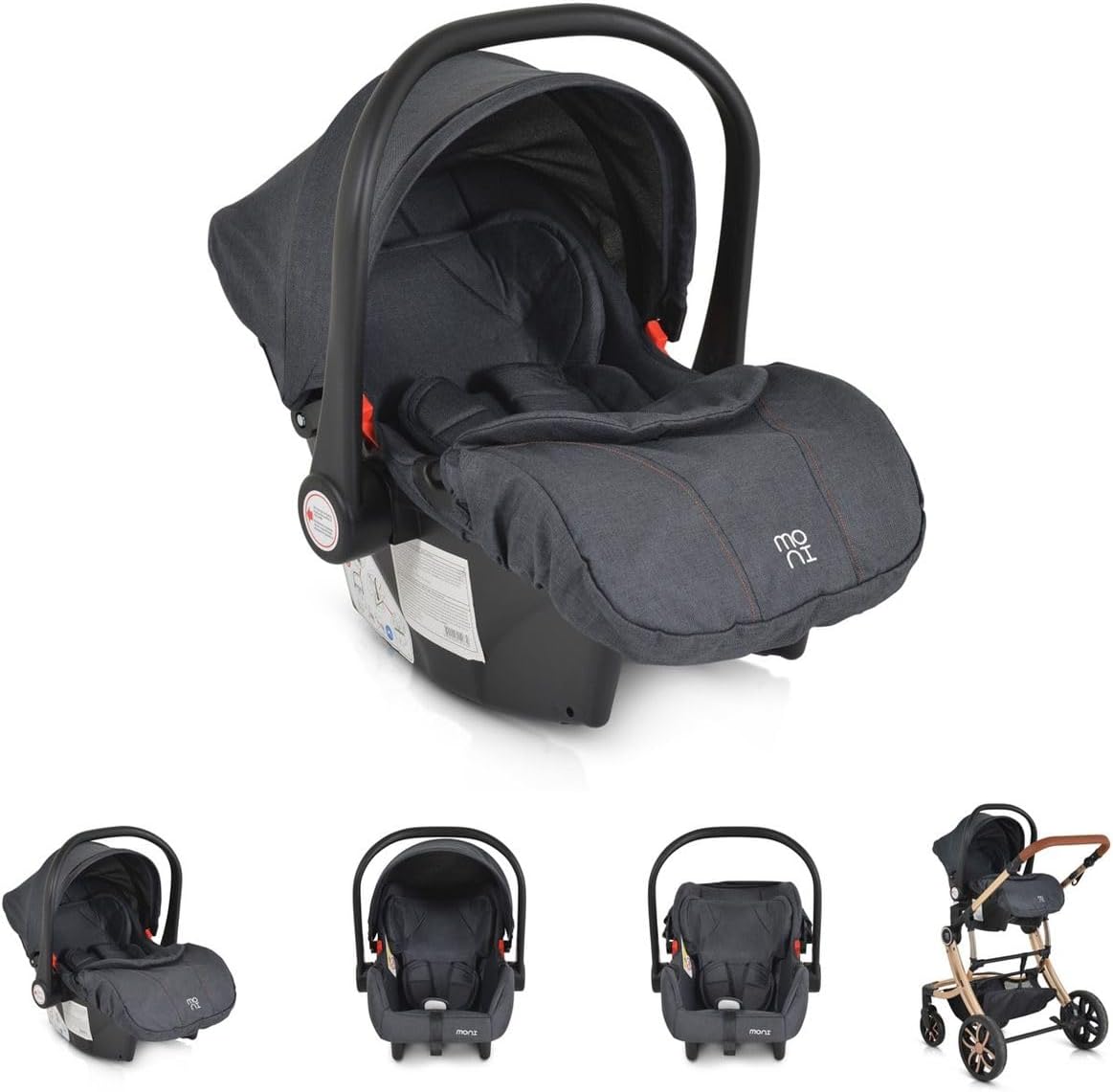

The Moni Kids Trio i-Size Car Seat includes the following main components:

• Car Seat Shell with integrated 3-point safety harness
• Headrest aġġustabbli
• Kanupew aġġustabbli
• Ergonomic and Adjustable Carry Handle
• Soft Full-Body Support Cushion
• Comfortable Footmuff
• Shoulder Pads and Lower Buckle Pads
• Car Seat Adapters (for compatibility with Polly and Florence strollers, sold separately)

4. Setup u Installazzjoni

4.1. Car Seat Installation in Vehicle

The Moni Kids Trio i-Size Car Seat is installed using the vehicle's 3-point safety belt. Always install the car seat in a rear-facing position.

1. Place the car seat on the vehicle seat in a rear-facing orientation. Ensure the car seat base is flat against the vehicle seat.
2. Route the lap portion of the vehicle's 3-point safety belt through the designated blue belt guides on the car seat base.
3. Buckle the vehicle's safety belt.
4. Pull the shoulder portion of the vehicle's safety belt firmly to remove any slack. Route the shoulder belt through the blue belt guide at the back of the car seat.
5. Press down firmly on the car seat while tightening the vehicle's safety belt to ensure a secure fit. The car seat should not move more than 2.5 cm (1 inch) from side to side or front to back at the belt path.
6. Ensure the carry handle is in the upright or designated anti-rebound position as per the vehicle's manual or car seat instructions.

4.2. Attaching to Stroller (with Adapters)

The Moni Kids Trio i-Size Car Seat is compatible with Polly and Florence strollers (sold separately) using the included car seat adapters.

1. Attach the car seat adapters to the stroller frame according to the stroller's instruction manual.
2. Align the car seat with the adapters on the stroller frame.
3. Lower the car seat onto the adapters until it clicks securely into place. Verify that the car seat is firmly attached by gently pulling upwards.
4. To remove, press the release buttons on the car seat (or adapters, depending on the stroller model) and lift the car seat from the stroller frame.

5. Istruzzjonijiet Operattivi

5.1. Is-Sigurtà ta' Wliedek

1. Place your child in the car seat. Ensure their back is flat against the backrest.
2. Ġib iż-żewġ ilsna tal-bokkla flimkien u daħħalhom fil-bokkla sakemm tisma' klikk.
3. Pull the harness adjustment strap located at the front of the car seat to tighten the harness. Ensure the harness is snug against your child's body, and you cannot pinch any slack at the shoulder.
4. Position the shoulder pads over your child's shoulders for comfort and to prevent strap irritation.

5.2. Adjusting the Headrest and Harness

The headrest is adjustable in 5 positions to accommodate your child's growth. The 3-point safety harness length adjusts simultaneously with the headrest.

1. Locate the headrest adjustment lever, typically at the back or top of the headrest.
2. Squeeze the lever and slide the headrest up or down to the desired position. The shoulder straps should be at or just below your child's shoulders when rear-facing.
3. Release the lever to lock the headrest in place.

5.3. Aġġustament tal-Kanupew

The wide and adjustable canopy provides protection from sun and wind.

• To extend the canopy, pull it forward from the handle.
• To retract, push it back towards the handle.

5.4. Using the Footmuff and Support Cushion

The soft full-body support cushion and comfortable footmuff are designed for infant comfort, especially in cooler weather.

• The full-body support cushion provides additional padding and support for newborns and smaller infants. It can be removed as your child grows.
• The footmuff attaches to the car seat to keep your child's legs warm. Ensure it does not interfere with the harness system.

6. Manutenzjoni

6.1. Cleaning the Cover

The car seat cover is removable and washable.

• To remove the cover, unfasten all straps and clips securing it to the car seat shell.
• Wash the cover by hand or machine wash at 30°C on a gentle cycle. Do not bleach, tumble dry, or iron.
• Allow the cover to air dry completely before reattaching it to the car seat.
• Ensure all parts are correctly reassembled before using the car seat.

6.2. Cleaning the Harness and Plastic Parts

• Imsaħ partijiet tal-plastik bl-adamp drapp u sapun ħafif.
• Naddaf iċ-ċineg tal-arness b'adamp cloth and mild soap. Do not immerse the buckle in water or use harsh detergents, as this can affect its performance.
• Allow all parts to air dry completely.

7 Issolvi l-problemi

• Car seat feels loose after installation: Re-check the vehicle belt routing and ensure the belt is pulled tightly to remove all slack. Press down firmly on the car seat while tightening the vehicle belt.
• Iċ-ċineg tal-arness huma diffiċli biex jiġu aġġustati: Ensure the harness release button (if present) is fully pressed, or check for any twists in the harness straps.
• Buckle is difficult to engage: Ensure both buckle tongues are fully inserted until a clear click is heard. Check for any debris in the buckle mechanism.
• Child seems uncomfortable: Verify that the headrest and harness are adjusted to the correct height for your child. Ensure the full-body support cushion is used for smaller infants and removed when they outgrow it.

If you encounter issues not covered here, please contact Moni customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or any questions regarding your Moni Kids Trio i-Size Car Seat, please contact Moni customer service through their official webis-sit jew id-dettalji ta' kuntatt ipprovduti mal-prodott tiegħek.
