Maidesite EL2 Pro Art Electric Standing Desk Instruction Manual

1. Prodott Aktarview

The Maidesite EL2 Pro Art Electric Standing Desk is designed to enhance your workspace with its innovative features and ergonomic benefits. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your desk.

Karatteristiċi ewlenin:

• Innovative Elliptical Design: The EL2 Pro Art features a unique elliptical leg design with smooth, curved lines, offering a refined aesthetic that complements modern office and home environments. This design also enhances safety by reducing impact from accidental bumps, making it ideal for households with children or pets.
• Powerful Dual Motor System: Constructed from high-quality steel, the desk boasts a robust dual-motor system with an impressive load capacity of 180KG, ensuring stability even with heavy equipment.
• Operazzjoni Veloċi u Kwieta: Enjoy a lifting speed of 35mm/s for quick and smooth transitions between sitting and standing positions. The dual motors operate quietly at less than 45dB, ensuring a comfortable and undisturbed environment.
• Panel tal-Kontroll Touch Intuwittiv: The easy-to-use touch panel includes four programmable memory presets for automatic height adjustment, an integrated anti-collision sensor for safety, a child lock function, and a convenient USB charging port.
• Sedentary Alarm & Cable Management: The exclusive Maidesite "sedentary alarm" reminds you to change your posture regularly. A cable management tray and side hooks help keep your workspace tidy and organized.

2. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra u ifhem l-istruzzjonijiet kollha tas-sigurtà qabel l-assemblaġġ u l-użu. Jekk ma ssegwix dawn l-istruzzjonijiet, il-prodott jista' jikkawża korriment jew ħsara.

• Kun żgur li l-viti u l-boltijiet kollha jkunu ssikkati sew qabel l-użu.
• Do not overload the desk beyond its maximum weight capacity of 180KG.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-iskrivanija waqt it-tħaddim biex tevita inċidenti.
• The anti-collision sensor is designed to prevent damage, but always be aware of your surroundings when adjusting the desk height.
• Tpoġġix likwidi direttament fuq il-pannell tal-kontroll jew ħdejn komponenti elettriċi.
• Before using the desk, always perform a reset operation as described in the operating instructions.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel tibda l-assemblaġġ. Jekk xi partijiet huma neqsin jew imħassra, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Figura 3.1: Aktarview tal-komponenti tal-iskrivanija għall-assemblaġġ.

The package typically includes the desk frame components, control panel, power adapter, and necessary hardware for assembly. Please refer to the detailed parts list in your physical instruction manual for specific quantities and identifiers.

4. Setup u Assemblea

Follow these steps to assemble your Maidesite EL2 Pro Art Electric Standing Desk. It is recommended to have two people for assembly, especially when handling the desktop.

4.1 Gwida bil-Vidjo tal-Assemblaġġ

For a visual guide, please refer to the following assembly videos. While not all videos may be specific to the EL2 Pro Art model, they demonstrate general standing desk assembly principles.

4.2 Desktop Compatibility

Figure 4.1: Compatible desktop sizes for the EL2 Pro Art frame.

The EL2 Pro Art frame is compatible with desktop sizes ranging from 100-220cm in length, 60-100cm in width, and over 2cm in thickness.

5. Istruzzjonijiet Operattivi

Your Maidesite EL2 Pro Art desk is equipped with an intuitive control panel for easy height adjustment and smart features.

5.1 Initial Setup (Reset Operation)

Before first use or after a power interruption, a reset operation is required:

1. Press and hold the "Down" arrow button until the desk reaches its lowest position and then slightly rises.
2. Itlaq il-buttuna. L-iskrivanija issa hija rrisettjata u lesta għall-użu.

5.2 Aġġustament tal-Għoli

• Use the "Up" and "Down" arrow buttons on the control panel to manually adjust the desk height.
• The current height is displayed on the LCD screen.

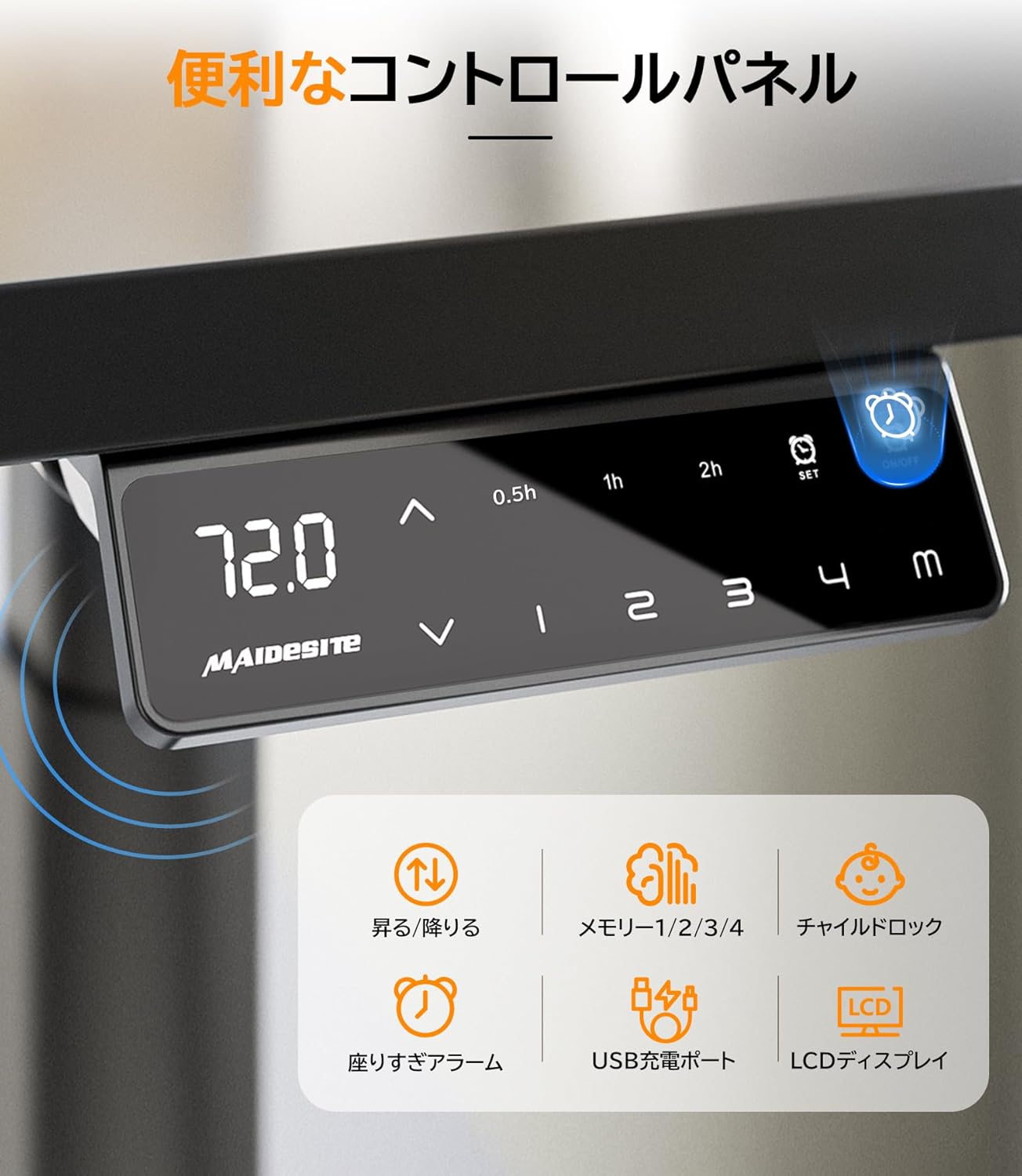

Figure 5.1: Control panel with various functions.

5.3 Presets tal-Memorja

The control panel allows you to save up to four preferred height settings:

1. Aġġusta l-iskrivanija għall-għoli mixtieq tiegħek.
2. Press the "M" button, then press one of the numbered buttons (1, 2, 3, or 4) to save the current height to that preset.
3. To recall a saved height, simply press the corresponding numbered button. The desk will automatically move to that position.

Figure 5.2: Setting and recalling memory presets.

5.4 Sistema Kontra l-Ħabtiet

The desk is equipped with an anti-collision sensor. If an obstacle is detected during height adjustment, the desk will automatically stop and retract slightly to prevent damage.

Figure 5.3: Anti-collision feature in action.

5.5 Lock tat-Tfal

Activate the child lock feature to prevent accidental height adjustments, especially in households with young children. Refer to your physical manual for specific instructions on activating and deactivating the child lock.

Figura 5.4: Karatteristika tas-serratura tat-tfal għal sigurtà mtejba.

5.6 Sedentary Alarm

The sedentary alarm can be set to remind you to change your posture at regular intervals (e.g., every 0.5, 1, or 2 hours). This promotes movement and helps maintain a healthy work routine.

Figure 5.5: Sedentary alarm setting on the control panel.

5.7 Port tal-Iċċarġjar tal-USB

A convenient USB charging port is integrated into the control panel, allowing you to easily charge your devices while working.

6. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your Maidesite EL2 Pro Art desk.

• Tindif: Imsaħ il-wiċċ tal-iskrivanija u l-qafas b'ċarruta ratba u damp drapp. Evita prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.
• Spezzjonijiet: Iċċekkja l-viti u l-konnessjonijiet kollha perjodikament biex tiżgura li huma ssikkati. Erġa' ssikka jekk meħtieġ.
• Ġestjoni tal-Kejbil: Ensure cables are neatly organized using the provided cable management tray and hooks to prevent tangles and damage.
• Distribuzzjoni tal-piż: Distribute weight evenly on the desktop to maintain stability and prevent strain on the motors.

Figure 6.1: Organized cables using the cable management tray.

7 Issolvi l-problemi

If you encounter any issues with your desk, please refer to the following common troubleshooting steps:

• L-iskrivanija ma tiċċaqlaqx: Check all cable connections, including the power cord, motor cables, and control panel cable. Ensure the desk is plugged into a working power outlet. Perform a reset operation (see Section 5.1).
• Moviment irregolari: Ensure the desk is on a level surface. Check for any obstructions under the desk. Perform a reset operation.
• Kodiċijiet ta' żball fuq il-wiri: Refer to your physical instruction manual for a list of error codes and their corresponding solutions. Often, a reset operation can resolve minor errors.
• Anti-collision sensor too sensitive/not working: Check for any debris or obstructions around the sensor area. If the issue persists, contact customer support.

Jekk dawn il-passi ma jsolvux il-problema, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti għal aktar assistenza.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Maidesite prioritizes customer satisfaction and offers a comprehensive warranty and support for your product.

9.1 5-Year Free Warranty

Your Maidesite EL2 Pro Art Electric Standing Desk comes with a 5-year free warranty. This warranty covers manufacturing defects and ensures peace of mind regarding the quality and durability of your product.

9.2 Appoġġ għall-Klijent

For any missing parts, product issues, or technical assistance, please do not hesitate to contact our customer support team.

• Email: amzservicejp1@maidesite.com

Please provide your purchase details and a clear description of the issue when contacting support to facilitate a quicker resolution.
