PHOINIKAS H1C-G2B Gaming Headset User Manual

1. Introduzzjoni

This manual provides comprehensive instructions for the setup, operation, and maintenance of your PHOINIKAS H1C-G2B Gaming Headset. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

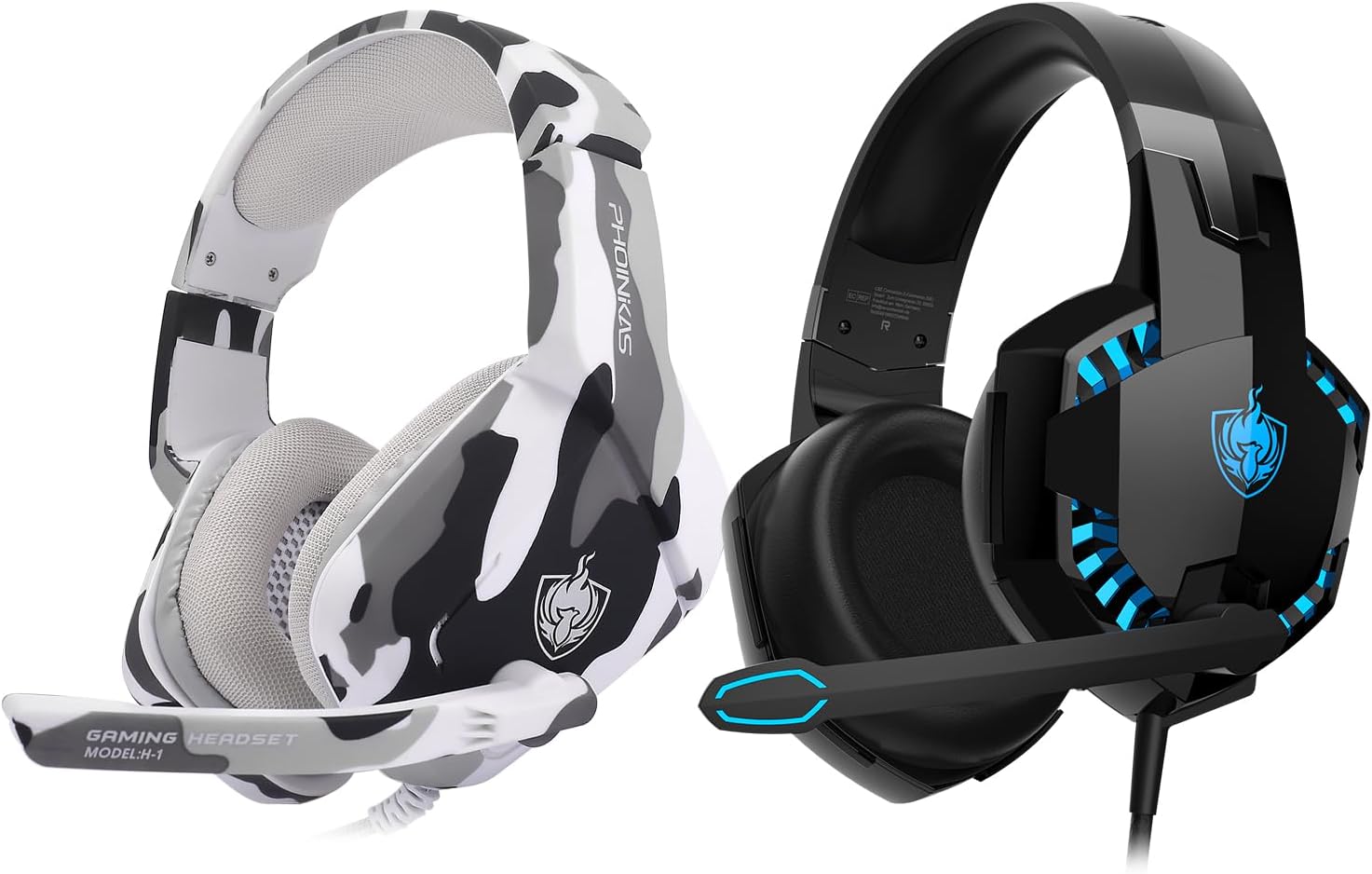

This image displays two PHOINIKAS H1C-G2B Gaming Headsets. One is in a black and blue color scheme, and the other features a white and grey camouflage pattern. Both headsets are over-ear style with integrated microphones.

2. Kontenut tal-Pakkett

• PHOINIKAS H1C-G2B Gaming Headset
• Cable Awdjo 3.5mm
• 3.5mm Y Splitter Cable (for PC use)
• Manwal għall-Utent

This image features the camouflage version of the PHOINIKAS H1C-G2B Gaming Headset, along with its retail box and a user manual, providing a view of the complete product package.

3. Prodott Aktarview

3.1. Karatteristiċi ewlenin

• Kompatibilità Multi-Pjattaforma: Supports PC, PS4, PS5, Xbox Series X/S, Nintendo Switch, laptops, and other devices with a 3.5mm jack.
• Ħoss Immersiv: Features 50mm audio drivers for surround sound and deep bass, enhancing acoustic positioning.
• Disinn Ergonomiku: Constructed with soft, breathable materials to reduce pressure on the head and ears, with an adjustable headband for extended comfort.
• Mikrofonu li Jħassar l-Istorbju: Omnidirectional microphone with advanced noise-cancelling technology for clear communication.
• Dawl RGB: USB-powered RGB lighting for an enhanced gaming aesthetic.

3.2. Kontrolli

The headset features inline controls for convenient adjustments during gameplay:

• Rota tal-Volum: Jaġġusta l-livell tal-ħruġ tal-awdjo.
• Mute b'Ċavetta Waħda: Quickly mutes or unmutes the microphone.

This image details the comfort and microphone features of the PHOINIKAS H1C-G2B Gaming Headset. It shows breathable earmuffs, an adjustable headband, and a soft, durable frame for ergonomic comfort. The headset also features cool LED lights and an omnidirectional noise-cancelling microphone with a flexible design.

4. Konfigurazzjoni u Konnettività

The PHOINIKAS H1C-G2B Gaming Headset offers versatile connectivity options. Follow the instructions below for your specific device:

4.1. PC & Laptop Connection

1. Connect the headset's 3.5mm audio cable to the included 3.5mm Y splitter.
2. Plug the green jack of the Y splitter into your PC/laptop's audio output port.
3. Plug the pink jack of the Y splitter into your PC/laptop's microphone input port.
4. For RGB lighting, connect the headset's USB cable to an available USB port on your PC/laptop.

4.2. PS4 / PS5 / Nintendo Switch / Phone / Tablet Connection

1. Connect the headset's 3.5mm audio cable directly into the 3.5mm jack on your controller (PS4/PS5), console (Switch), or mobile device.
2. The USB connection is not required for audio/microphone functionality on these devices, but can be used for RGB lighting if a USB port is available (e.g., on the console).

4.3. Xbox One / Xbox Series X/S Connection

1. For Xbox Series X/S controllers, connect the headset's 3.5mm audio cable directly into the 3.5mm jack on the controller.
2. For older Xbox One controllers without a 3.5mm jack, a Microsoft adapter (not included) is required. Connect the headset to the adapter, then plug the adapter into the controller.
3. The USB connection is for RGB lighting only.

This diagram shows how the PHOINIKAS H1C-G2B Gaming Headset connects to various devices. It highlights the use of a 3.5mm audio cable for most devices, a 3.5mm Y splitter for PC/laptop, and an optional Microsoft adapter for older Xbox One controllers. The USB interface is shown for LED lights.

The PHOINIKAS H1C-G2B Gaming Headset is shown in a gaming setup, connected to a desktop PC, a Nintendo Switch, and an Xbox Series X console, illustrating its broad compatibility across different gaming platforms.

5. Istruzzjonijiet Operattivi

5.1. Aġġustament tal-Awdjo

Use the inline volume wheel to increase or decrease the audio volume to your preferred level. Ensure your device's volume is also appropriately set.

5.2. Użu tal-mikrofonu

The flexible, omnidirectional microphone can be adjusted to your desired position. Use the inline one-key mute switch to toggle the microphone on or off as needed for communication.

5.3. Dawl RGB

The RGB lighting is powered via the USB connection. Plug the USB connector into an available USB port on your device to activate the lights. The lighting is purely aesthetic and does not affect audio or microphone functionality.

6. Manutenzjoni

• Żomm il-headset nadif billi timsaħha b'ċarruta ratba u niexfa.
• Evita li tesponi l-headset għal temperaturi estremi, umdità, jew dawl tax-xemx dirett.
• Tippruvax tiżżarma jew timmodifika l-headset, għax dan jannulla l-garanzija.
• Store the headset in a safe place to prevent damage when not in use.

7 Issolvi l-problemi

7.1. Ebda Ħoss jew Volum Baxx

• Ensure the 3.5mm audio cable is fully plugged into both the headset and your device.
• Check the inline volume wheel and adjust it to an audible level.
• Ivverifika s-settings tal-awdjo u l-livelli tal-volum tat-tagħmir tiegħek.
• If using with a PC, ensure the 3.5mm Y splitter is correctly connected to both audio and microphone ports.

7.2. Il-Mikrofonu Mhux Jaħdem

• Confirm the inline one-key mute switch is in the 'unmuted' position.
• Check your device's microphone input settings to ensure the headset is selected as the default input device.
• If using with a PC, ensure the pink jack of the 3.5mm Y splitter is correctly connected to the microphone input port.
• For Xbox One (older controllers), ensure the Microsoft adapter is correctly connected.

7.3. Id-Dwal RGB Ma Jaħdmux

• Ensure the USB connector is securely plugged into a powered USB port.
• Note that the USB connection is solely for lighting and does not affect audio or microphone functionality.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

PHOINIKAS products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official PHOINIKAS websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
