Manwal tal-Utent tat-Telefon Robust Ulefone Armor 27T Pro 5G

1. Introduzzjoni

The Ulefone Armor 27T Pro is a robust 5G rugged smartphone designed for demanding environments, featuring advanced thermal imaging, a high-resolution camera system, and a durable build. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and longevity.

Figura 1: Quddiem u wara view of the Ulefone Armor 27T Pro 5G Rugged Phone, highlighting its robust design and camera module.

2. Setup

2.1. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• Ulefone Armor 27T Pro 5G Rugged Phone
• AC power charger (33W)
• Type-C to Type-C Data cable (100cm)
• Protettur tal-iskrin
• SIM Trej Ejector
• Lanyard

Figure 2: Illustration of the Ulefone Armor 27T Pro's package contents and physical dimensions.

2.2. SIM and SD Card Installation

To install your SIM cards and an optional microSD card:

1. Sib it-trej tas-SIM fuq il-ġenb tat-telefon.
2. Daħħal l-għodda tal-ejecter tat-trej tas-SIM fit-toqba ż-żgħira ħdejn it-trej u agħfas sew sakemm it-trej joħroġ 'il barra.
3. Poġġi l-kards Nano-SIM u/jew il-kard microSD tiegħek fl-islottijiet apposta fuq it-trej. Kun żgur li l-kuntatti tad-deheb iħarsu 'l isfel.
4. Erġa' daħħal it-trej fit-telefon bir-reqqa sakemm tikklikkja f'postu.

2.3. L-Ewwel Tixgħel u l-Iċċarġjar

Press and hold the Power button until the Ulefone logo appears. Follow the on-screen instructions to complete the initial setup. For optimal battery life, fully charge the device before first use using the provided 33W AC power charger and Type-C cable.

3. Istruzzjonijiet Operattivi

3.1. Wiri u Interfaċċja tal-Utent

The Ulefone Armor 27T Pro features a 6.78-inch FHD+ display with a 120Hz refresh rate, providing a smooth visual experience. The display is protected by Corning Gorilla Glass Victus, offering enhanced scratch and drop resistance.

Figure 3: Details of the 6.78-inch FHD+ 120Hz display, emphasizing its visual quality and responsiveness.

Figure 4: Illustration of the Corning Gorilla Glass Victus protection, highlighting its durability against scratches and drops.

3.2. Sistema tal-Kamera

L-apparat huwa mgħammar b'sistema ta' kamera versatili:

• Kamera tal-Immaġini Termali: Built-in FLIR Lepton thermal micro-camera for detecting infrared light and heat. Features MSX and VividlR image processing.
• Kamera tal-Viżjoni bil-Lejl ta' 64MP: OMNVISION'S OV64B sensor with two infrared LEDs and Ulefone NightElf Ultra 3.0 algorithm for clear images in low-light conditions.
• Kamera Prinċipali ta' 50MP: Samsung ISOCELL GN1 sensor with 1/1.31" ultra-large size and F/1.65 aperture for high-quality photos.
• Kamera tas-Selfies ta' 32MP: Samsung GD1 Sensor with 5P lens and 80.4° field of view for clear self-portraits.

Figura 5: Aktarview of the Ulefone Armor 27T Pro's camera system, detailing the 50MP main, 64MP night vision, and 32MP front cameras.

Figura 6: Dettaljat view of the thermal imaging capabilities, including pixel resolution, temperature measurement range, and spectral range.

Figure 7: Demonstration of the 64MP Night Vision Camera capturing an image in low-light conditions.

3.3. Batterija u Iċċarġjar

The Armor 27T Pro is equipped with a 10600mAh battery, supporting extended usage. It features:

• Ċarġ tal-Flash ta' 33W: Rapid wired charging for quick power replenishment.
• Iċċarġjar bla fili 30W: Convenient wireless charging capability.
• Wireless Reverse Charging: Allows the phone to charge other compatible devices wirelessly.

Figure 8: Visual representation of the 10600mAh battery capacity and various charging methods, including 33W fast charging, 30W wireless charging, and wireless reverse charging.

3.4. Prestazzjoni

Powered by the MediaTek Dimensity 6300 5G processor, the phone offers robust performance. It includes 12GB of physical RAM, expandable up to an additional 12GB of virtual RAM, and 256GB of internal storage, expandable up to 2TB via TF card.

Figure 9: Diagram illustrating the MediaTek Dimensity 6300 5G processor and memory configurations (RAM, virtual RAM, ROM, and expansion).

3.5. Robustezza u Durabilità

The Armor 27T Pro is built to withstand harsh conditions, certified with IP68/IP69K and MIL-STD-810H standards. This ensures protection against water, dust, and accidental drops, and reliable operation in extreme temperatures (-30°C to 55°C).

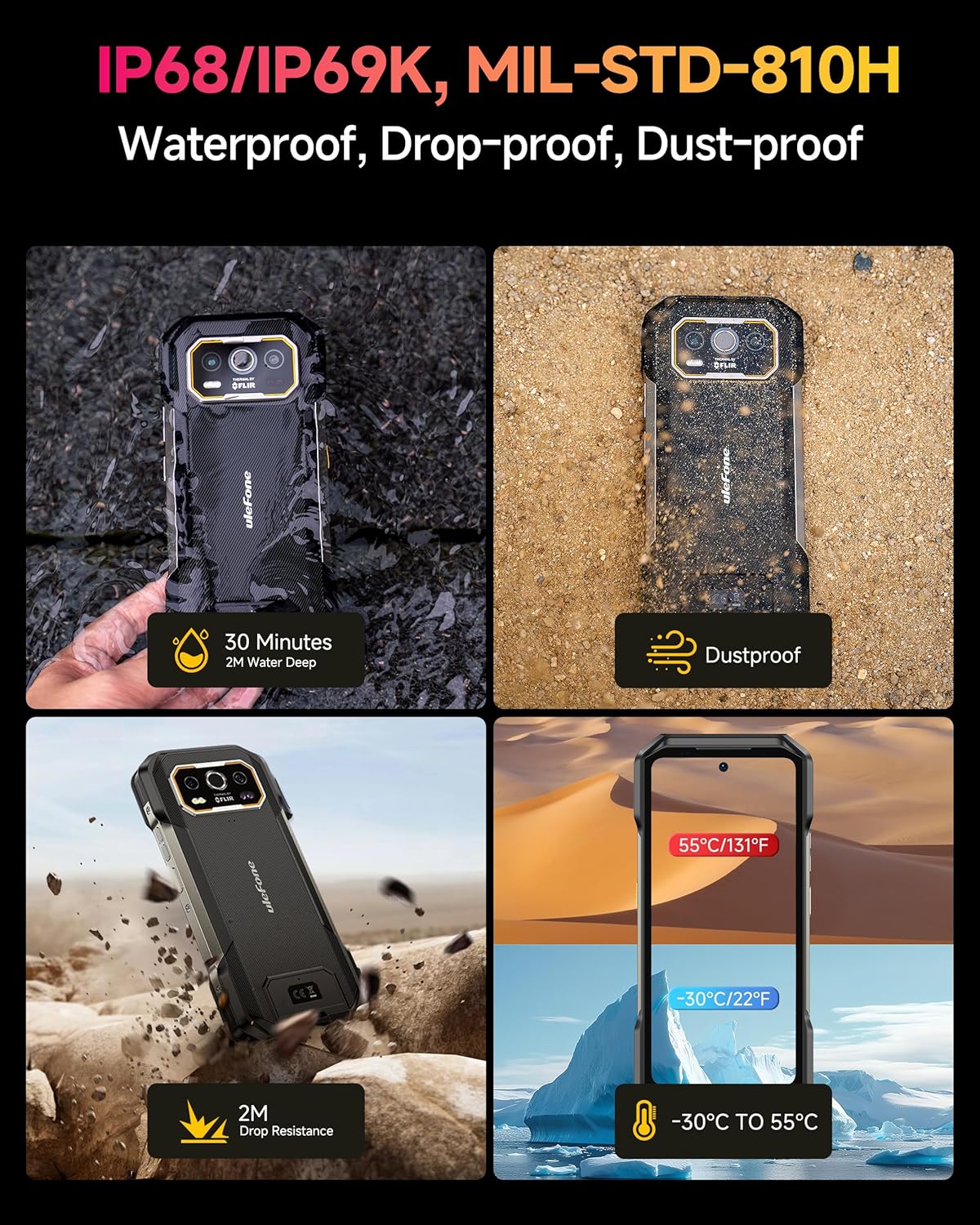

Figure 10: Visual representation of the phone's IP68/IP69K and MIL-STD-810H certifications, demonstrating its water, dust, and drop resistance, as well as temperature tolerance.

3.6. Konnettività u Karatteristiċi

The phone supports global 5G networks with dual SIM dual standby. Other features include:

• NFC: Għal ħlasijiet mingħajr kuntatt u trasferiment tad-dejta.
• Ċavetta tad-dwana: Programmable button for quick access to functions.
• Fingerprint Unlock & Face Unlock: Biometric security options.
• GPS + GLONASS + Beidou + Galileo: Comprehensive navigation support.
• IR Blaster: Allows the phone to act as a universal remote control.
• Radju FM mingħajr Headset: Isma' r-radju FM mingħajr ma jkollok bżonn headphones bħala antenna.
• uSmart 2.0 Expansion Connector: For connecting professional accessories like endoscopes or microscopes (sold separately).

Figure 11: Display of various additional features including NFC, custom key, fingerprint unlock, GPS, IR Blaster, and headset-free FM radio.

Figure 12: Illustration of the uSmart Expansion Connector and examples of compatible professional accessories like endoscopes.

3.7. Sistema Operattiva

The Ulefone Armor 27T Pro runs on Android 14, offering an updated and personalized user experience with enhanced security and accessibility features.

Figure 13: Screenshots of the Android 14 operating system interface on the Ulefone Armor 27T Pro, showing various app icons and settings menus.

4. Manutenzjoni

To ensure the longevity and optimal performance of your Ulefone Armor 27T Pro, follow these maintenance guidelines:

• Tindif: Imsaħ it-telefon b'ċarruta ratba, damp cloth. Avoid using harsh chemicals or abrasive materials. For the screen, use a microfiber cloth.
• Espożizzjoni għall-Ilma: While waterproof, ensure all ports and covers are securely closed before exposing the phone to water. After water exposure, dry the phone thoroughly, especially the charging port, before charging.
• Temperatura: Avoid prolonged exposure to extreme temperatures outside the operating range (-30°C to 55°C).
• Ħażna: Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża għal perjodi twal.
• Aġġornamenti tas-Software: Regularly check for and install system updates to ensure the latest features, security patches, and performance improvements.

5 Issolvi l-problemi

This section addresses common issues you might encounter with your Ulefone Armor 27T Pro.

6. Speċifikazzjonijiet

Detailed technical specifications for the Ulefone Armor 27T Pro:

7. Garanzija u Appoġġ

Ulefone provides a 12-month manufacturer warranty service in the US for the Armor 27T Pro. For any questions or support needs regarding your product, please contact Ulefone customer service. You can find more information and contact details on the official Ulefone website or through the 'Ulefone Exclusive Service Center' application on your device.

Figure 14: Screenshot of the Ulefone Exclusive Service Center application, showing options for customer service and support.
