1. Introduzzjoni
Thank you for choosing the Mc HAUS Artic-460 WHITE Portable Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before use and keep it for future reference.
Prekawzjonijiet tas-Sigurtà
- Always ensure the appliance is placed on a flat, stable surface.
- Do not block the air inlets or outlets. Maintain adequate clearance around the unit.
- Tħaddimx l-unità b'korda jew plagg bil-ħsara.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-apparat waqt it-tħaddim.
- Skonnettja l-unità qabel ma tnaddafha jew tagħmel xi manutenzjoni.
- Dan l-apparat huwa għall-użu fuq ġewwa biss.
2. Prodott Aktarview
The Mc HAUS Artic-460 WHITE is a versatile portable air conditioner designed to provide cooling, heating, dehumidification, and fan functions for your living space. It features a compact design with integrated handles and 360-degree wheels for easy mobility.
Figura 2.1: Aktarview of the Mc HAUS Artic-460 WHITE portable air conditioner, showing the main unit, remote control, and a smartphone for app control.
Figure 2.2: Key features of the Artic-460, including Energy Efficiency Class A, 12000 BTU cooling, 400m³/h airflow, 15-31°C temperature range, 3 fan speeds, 7 functions, 24-hour timer, 18m²-23m² surface area coverage, 65dB sound pressure, and 5m remote control range.
Komponenti
- Main Air Conditioner Unit
- Kontroll mill-bogħod
- Manka tal-egżost
- Window Sealing Kit (adjustable window slider, hose adapter, flat nozzle)
- Drainage Hose (for continuous drainage in dehumidifier mode)
3. Setup u Installazzjoni
Installazzjoni xierqa hija kruċjali għat-tħaddim effiċjenti tal-arja kondizzjonata portabbli tiegħek. Segwi dawn il-passi bir-reqqa.
Pjazzament
- Place the unit on a firm, level surface in the desired room.
- Kun żgur li hemm mill-inqas 30 ċm (12-il pulzier) ta' spazju madwar l-unità għal fluss tal-arja xieraq.
- Poġġi l-unità ħdejn tieqa jew bieb għall-installazzjoni tal-pajp tal-egżost.
Assemblaġġ tal-Kit tat-Tieqa
The included window kit is designed for vertical and horizontal sliding windows.
Figure 3.1: Components of the easy-to-install window kit for vertical and horizontal sliding windows, including the adjustable window slider, hose adapter, and flat nozzle.
- Waħħal l-adapter tal-pajp ma' tarf wieħed tal-pajp tal-egżost.
- Connect the other end of the exhaust hose to the exhaust port on the back of the air conditioner unit.
- Aġġusta l-kit tas-slajder tat-tieqa biex jaqbel mal-ftuħ tat-tieqa tiegħek.
- Insert the flat nozzle of the exhaust hose into the opening of the window slider kit.
- Seal any gaps around the window kit to prevent air leakage, which can reduce efficiency.
4. Operazzjoni
Your Mc HAUS Artic-460 WHITE can be operated using the control panel on the unit or the included remote control. It also supports Wi-Fi connectivity for smart control via an app.
Panel tal-Kontroll

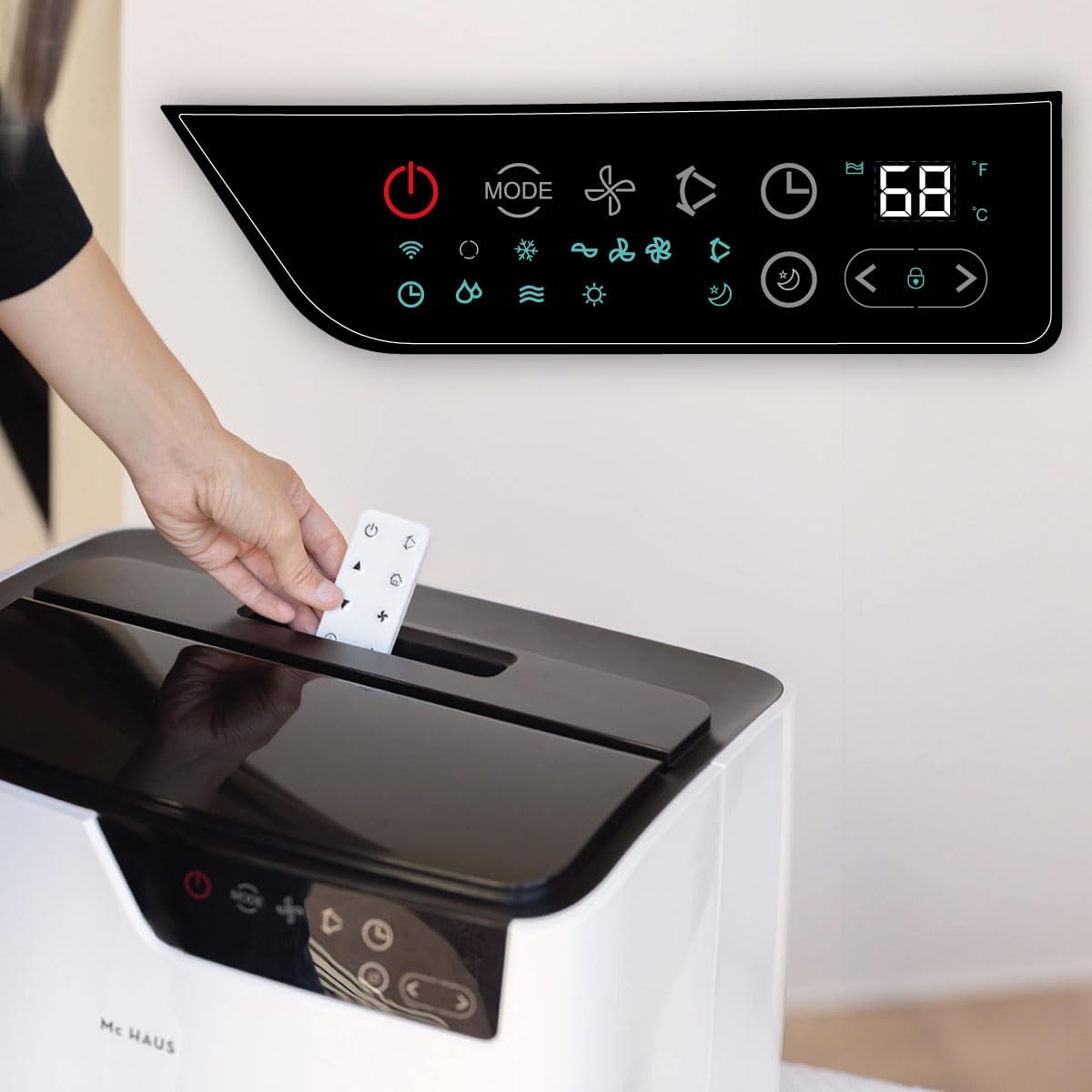

Figure 4.1: The control panel on top of the unit, showing various function icons and a digital display for temperature. A hand is shown placing the remote control into its storage slot on the unit.
The control panel features touch-sensitive buttons and a digital display for easy operation.
Kontroll mill-bogħod
Figura 4.2: Dettaljat view of the remote control with labeled buttons for power, automatic oscillation, temperature/timer settings, mode selection, fan speed, and night mode activation/deactivation.
The remote control allows you to operate the unit from a distance of up to 5 meters.
Modi Operattivi
- Modalità tat-tkessiħ: Għat-tkessiħ tal-kamra. Issettja t-temperatura mixtieqa tiegħek billi tuża l-buttuni tal-aġġustament tat-temperatura.
- Modalità tat-Tisħin: Għat-tisħin tal-kamra. Issettja t-temperatura mixtieqa tiegħek.
- Modalità Dehumidifier: Removes excess moisture from the air. Consider connecting a drainage hose for continuous operation.
- Modalità Fan: Circulates air without cooling or heating. Select from multiple fan speeds.
Funzjonijiet Addizzjonali
- Timer: Set the unit to turn on or off automatically after a specified period (up to 24 hours).
- Oxxillazzjoni Awtomatika: Activates the automatic oscillation system for wider air distribution.
- Modalità bil-lejl: Adjusts operation for quieter performance during sleep.
- Konnettività Wi-Fi: Control your unit remotely via a smartphone app (e.g., Tuya Smart, Alexa, Google Home compatible).
Figure 4.3: Screenshots demonstrating the smartphone app's capabilities, including connection from multiple devices, convenient remote control, simple and instant connection, and easy sharing with family members.
5. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-arja kondizzjonata tiegħek.
Tindif tal-Filtru tal-Arja
Il-filtru tal-arja għandu jitnaddaf kull ġimagħtejn jew aktar ta' spiss skont l-użu u l-kwalità tal-arja.
- Aqla 'l-unità mill-iżbokk tad-dawl.
- Locate and remove the air filter from the back or side of the unit.
- Aħsel il-filtru taħt ilma ġieri jew uża vacuum cleaner biex tneħħi t-trab.
- Ħalli l-filtru jinxef kompletament qabel ma jerġa' daħħalh fl-unità.
Ixxotta l-Ilma
The unit has an internal water tank that collects condensed water. When the tank is full, the unit will stop operating and display an indicator. You will need to drain the water manually.
- Spluggja l-unità.
- Poġġi taġen jew trej baxx taħt il-port tad-drenaġġ fil-qiegħ ta' wara tal-unità.
- Neħħi t-tapp tad-drenaġġ biex tħalli l-ilma joħroġ.
- Ladarba jkun imsaffi, erġa' poġġi t-tapp tad-drenaġġ sew.
For continuous drainage in dehumidifier mode, connect the provided drainage hose to the continuous drainage port.
Ħażna
Jekk l-unità mhux se tintuża għal perjodu estiż:
- Ixxotta l-ilma kollu mill-unità.
- Naddaf il-filtru tal-arja.
- Aqla’ l-korda tal-enerġija u dawwarha pulit.
- Aħżen l-unità f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
6 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel | Ebda provvista ta 'enerġija Tank tal-ilma mimli | Iċċekkja l-korda tad-dawl u l-iżbokk Ixxotta t-tank tal-ilma |
| Unit not cooling/heating effectively | Filtru tal-arja maħmuġ Il-pajp tal-egżost mhux installat sew Kamra kbira wisq Twieqi/bibien miftuħa | Naddaf il-filtru tal-arja Ensure hose is securely connected and sealed Check recommended room size (18m²-23m²) Agħlaq it-twieqi u l-bibien kollha |
| L-unità hija storbjuża | L-unità mhix fuq wiċċ livellat Obstruction in fan/air outlet | Poġġi fuq wiċċ ċatt u stabbli Iċċekkja għal u neħħi kwalunkwe ostakolu |
| Il-kontroll mill-bogħod ma jaħdimx | Batteries dead/incorrectly inserted Ostruzzjoni bejn il-kontroll remot u l-unità | Ibdel il-batteriji, iċċekkja l-polarità Żgura linja tal-vista ċara |
7. Speċifikazzjonijiet
Technical data for the Mc HAUS Artic-460 WHITE Portable Air Conditioner.
Figure 7.1: Dimensions of the unit (71 cm height, 33.5 cm depth, 44 cm width) and features for easy movement, including side handles and 360° wheels.
Figure 7.2: Detailed technical specifications table for the Artic-460, including cooling/heating capacity, dehumidification, airflow, noise levels, energy efficiency, and recommended room sizes (18m²-23m²).
| Speċifikazzjoni | Valur |
|---|---|
| Mudell | ARTIC-460 WHITE |
| Kapaċità tat-tkessiħ | 12000 BTU/h (3.5 kW) |
| Kapaċità tat-tisħin | 9000 BTU/h (2.7 kW) |
| Kapaċità ta 'Deumidifikazzjoni | 1.02 L/h |
| Volum tal-fluss tal-arja | 400 m³/h |
| Livell ta' Storbju | 65 dB |
| Klassi tal-Effiċjenza tal-Enerġija | A |
| Refriġerant | R290 / 200g |
| Voltage | 220-240V / 50Hz |
| Konsum tal-Enerġija (Tkessiħ) | 1300W / 6.0A |
| Konsum tal-Enerġija (Tisħin) | 1100W / 4.8A |
| Dimensjonijiet (W x D x H) | 44 x 33 x 71 ċm |
| Piż | 29 kg |
| Daqs tal-Kamra Rakkomandat | 18m² - 23m² |
8. Garanzija u Appoġġ
Your Mc HAUS Artic-460 WHITE Portable Air Conditioner comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical support, spare parts, or service inquiries, please contact Mc Haus customer service through their official website or the retailer where you purchased the product. When contacting support, please have your model number (ARTIC-460 WHITE) and purchase date ready.
