EUHOMY Commercial Ice Maker Machine (Model CIM011-0731) - Instruction Manual

Introduzzjoni

Thank you for choosing the EUHOMY Commercial Ice Maker Machine, Model CIM011-0731. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ice maker. Please read it thoroughly before use and retain it for future reference.

Istruzzjonijiet Importanti dwar is-Sigurtà

• Ensure the ice maker is kept upright for at least 24 hours before initial use.
• Always ensure the drain pipe is positioned below the machine's drain outlet to prevent water accumulation.
• This appliance is designed for commercial use and should be installed by qualified personnel if plumbing connections are required.
• Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
• Do not allow children to operate or play with the ice maker.
• Skonnettja mill-provvista tal-elettriku qabel ma tnaddaf jew tagħmel manutenzjoni.

Setup u Installazzjoni

Proper setup is crucial for optimal performance. Follow these steps for installation:

1. Spakkjar: Neħħi l-magna tas-silġ mill-imballaġġ tagħha bir-reqqa. Spezzjona għal kwalunkwe ħsara waqt it-tbaħħir.
2. Pjazzament: Place the ice maker on a stable, level surface. Ensure adequate ventilation around the unit.
3. Pożizzjoni Wieqfa: Keep the ice maker in an upright position for a minimum of 24 hours before plugging it in. This allows the refrigerant to settle.
4. Konnessjoni tal-Provvista tal-Ilma: This ice maker requires a water supply and a drain. Connect the water filter to your faucet and then to the ice maker's water inlet.

Image: Diagram illustrating the connection of the water filter to a faucet and the ice maker, along with the drain hose connection. This shows the simple installation process.
5. Konnessjoni tal-Manka tad-Drain: Connect the drain hose to the machine's drain outlet. Important: Ensure the drain pipe is always positioned below the machine's drain outlet for gravity drainage.
6. Konnessjoni tal-Enerġija: Ipplaggja l-magna tas-silġ f'sokit elettriku ertjat.

Video: Commercial Ice Maker (Water Supply Options)

Istruzzjonijiet Operattivi

The EUHOMY Commercial Ice Maker features an intuitive control panel for easy operation.

Control Panel Matulview

Immaġni: Dettaljata view of the ice maker's smart LCD control panel, showing buttons for Power, Reservation, Clean, Light, Time Up, and Time Down, along with indicators for Ice Making, Ice Full, and Ice Shedding.

• Buttuna tal-Qawwa: Ixgħel jew jitfi l-unità.
• Reservation/Timer: Sets a 24-hour timer for scheduled ice production.
• Buttuna Naddaf: Jibda ċ-ċiklu awtomatiku tat-tindif.
• Time Up/Down Buttons: Adjusts the ice-making time, which in turn controls the ice cube thickness.
• Buttuna tad-Dawl: Controls the interior blue light.
• Indikaturi: Displays status such as "Ice Making," "Ice Full," and "Ice Shedding."

Produzzjoni tas-Silġ

The machine produces 36 clear ice cubes in approximately 8-12 minutes, with a daily production capacity of 80 lbs. The ice storage capacity is 12 lbs.

Image: The ice maker actively producing ice, highlighting its compact size and massive ice production capability of 80 lbs per day, with a cycle time of 13-20 minutes.

Adjusting Ice Cube Thickness

You can adjust the thickness of the ice cubes by modifying the ice-making time using the "Time Up" and "Time Down" buttons on the control panel. Longer ice-making times result in thicker ice cubes.

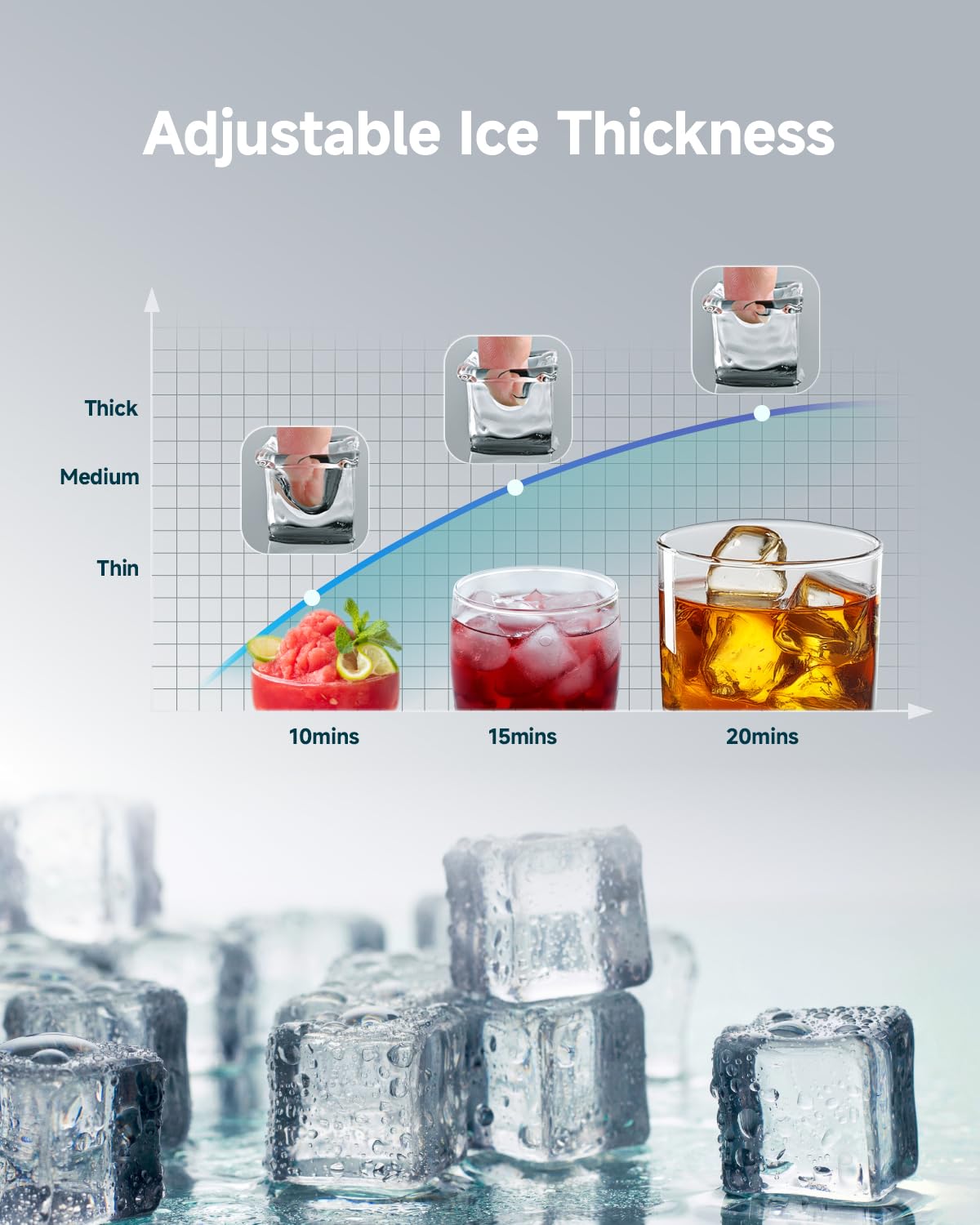

Image: A visual guide demonstrating how ice thickness can be adjusted. It shows thin ice cubes after 10 minutes, medium after 15 minutes, and thick after 20 minutes, illustrating the customizable ice production.

L-Użu tat-Tajmer ta' 24 Siegħa

The 24-hour timer function allows you to schedule when the ice maker starts or stops operating. Press the "Reservation" button and use the "Time Up/Down" buttons to set your desired time.

Video: EUHOMY 100lbs/day Ice Machine (Overview)

Video: 100lbs Commercial Ice Maker (Features Highlight)

Manutenzjoni u Tindif

Regular cleaning and maintenance ensure the longevity and hygienic operation of your ice maker.

1. Tindif Awtomatiku: The ice maker features an automatic cleaning function. Press the "Clean" button for more than 5 seconds to activate the "Cleaning Program." It is recommended to clean the machine twice before making the first batch of ice and regularly thereafter based on usage.

Image: The ice maker in self-cleaning mode, showing water circulating to clean the internal components. The display indicates the cleaning process, which takes approximately 5 minutes.
2. Drenaġġ ta' Kuljum: Biex jipprevjenu l-ilma stagnation and maintain ice quality, drain water once a day by pulling out the small hose located on the right side of the water tank.
3. Filtru tal-Ilma: The ice maker is equipped with an upgraded water filter to remove impurities. Replace the filter periodically as needed to ensure crystal-clear and safe ice.
4. Tindif ta' barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Evita cleaners li joborxu.

Issolvi l-problemi

Din it-taqsima tipprovdi soluzzjonijiet għal kwistjonijiet komuni li tista’ tiltaqa’ magħhom.

• L-ebda Produzzjoni tas-Silġ:
  • Iċċekkja jekk il-korda tad-dawl huwiex imwaħħal sew.
  • Kun żgur li l-provvista tal-ilma hija konnessa u mixgħula.
  • Verify that the water tank has sufficient water.
  • Confirm that the ambient temperature is within the recommended operating range.
• Ice Cubes are Too Thin/Thick:
  • Adjust the ice-making time using the "Time Up" or "Time Down" buttons on the control panel.
• "Ice Full" Indicator On, But Bin Not Full:
  • Check if the ice sensor is obstructed or dirty. Clean if necessary.
• Tnixxija tal-Ilma:
  • Ensure all water connections (supply and drain) are tight and properly sealed.
  • Verify the drain hose is correctly positioned for gravity drainage and not kinked.

Jekk tiltaqa' ma' problemi li mhumiex elenkati hawn jew jekk il-problemi jippersistu, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official EUHOMY websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
