Sunshower M0900 Medium Recessed Housing User Manual

1. Introduzzjoni

This user manual provides comprehensive instructions for the installation, operation, and maintenance of the Sunshower M0900 Medium Recessed Housing. This product is designed to integrate seamlessly into your shower environment, providing the necessary enclosure for your Sunshower system. Please read this manual carefully before installation and retain it for future reference.

2. Informazzjoni dwar is-Sigurtà

Importanti: Installation of this product involves electrical and plumbing work. It is strongly recommended that installation be performed by a qualified professional to ensure safety and compliance with local building codes.

• Dejjem skonnettja l-enerġija qabel ma twettaq kwalunkwe installazzjoni jew manutenzjoni.
• Ensure all electrical connections are properly insulated and grounded.
• Verify that all plumbing connections are watertight to prevent leaks.
• Do not modify the product in any way. Use only original Sunshower parts and accessories.
• Żomm lit-tfal u lill-persunal mhux awtorizzat 'il bogħod miż-żona tal-installazzjoni.

3. Kontenut tal-Pakkett

Meta tiftaħ il-pakkett, jekk jogħġbok ivverifika li l-komponenti kollha huma preżenti u mhux imħassra:

• Sunshower M0900 Medium Recessed Housing Unit
• Manwal għall-Utent (dan id-dokument)

Jekk xi oġġetti huma nieqsa jew bil-ħsara, jekk jogħġbok ikkuntattja lill-bejjiegħ tiegħek immedjatament.

4. Setup u Installazzjoni

The Sunshower M0900 Recessed Housing is designed for flush mounting within a wall structure. Precise measurements and careful execution are essential for proper installation.

4.1. Ippjanar u Preparazzjoni

1. Għażla tal-Post: Choose a suitable location within your shower wall that can accommodate the housing dimensions and allows for necessary electrical and plumbing connections.
2. Wall Opening: Create an opening in the wall according to the dimensions provided in the technical drawing. Ensure the opening is square and plumb.
3. Power and Water Supply: Ensure that appropriate electrical wiring and water supply lines are routed to the installation location, ready for connection to the main Sunshower unit (not included).

4.2. Dimensional Overview

Refer to the technical drawing below for precise dimensions required for installation. Note the two configurations: "zonder kimband" (without sealing tape) and "met kimband" (with sealing tape), which affect the overall height and width.

Figure 4.2.1: Technical drawing illustrating the dimensions for the Sunshower M0900 Medium Recessed Housing. The drawing shows two configurations: one without sealing tape (left) and one with sealing tape (right), detailing height (1), width (2), and depth (3) measurements.

• Without Sealing Tape:
• 1: 1420 mm (Height)
• 2: 365 mm (Width)
• 3: 100 mm (Depth)
• With Sealing Tape:
• 1: 1527 mm (Height)
• 2: 470 mm (Width)
• 3: 100 mm (Depth)

4.3. Housing Installation

1. Carefully insert the recessed housing into the prepared wall opening.
2. Secure the housing firmly to the wall structure using appropriate fasteners (not included), ensuring it is level and plumb.
3. Seal any gaps around the housing with waterproof sealant to prevent moisture ingress.
4. Once the housing is securely installed, the main Sunshower unit can be integrated according to its specific installation instructions.

5. Istruzzjonijiet Operattivi

The Sunshower M0900 Medium Recessed Housing is a passive component designed to house the active Sunshower unit. It does not have independent operational controls. The operation of your Sunshower system will be governed by the controls and instructions provided with the main Sunshower unit itself.

6. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your recessed housing.

• Tindif: Periodically clean the visible surfaces of the housing with a soft, damp drapp u tindif ħafif u mhux abrażiv. Evita kimiċi ħarxa jew materjali abrażivi li jistgħu jagħmlu ħsara lill-finitura.
• Spezzjoni: Annually inspect the housing and surrounding sealant for any signs of wear, damage, or leaks. Address any issues promptly to prevent water damage.
• Kontroll Professjonali: It is advisable to have a qualified professional inspect the entire Sunshower installation, including the housing, every few years.

7 Issolvi l-problemi

As the M0900 is a passive housing, most operational issues will relate to the main Sunshower unit. However, if you suspect an issue with the housing itself, consider the following:

• Tnixxijiet tal-Ilma: If you observe water leaks around the housing, immediately turn off the water supply to the shower. Inspect the sealant and plumbing connections. Contact a professional plumber if the issue persists.
• Ħsara Strutturali: If the housing appears damaged or loose, contact a qualified installer for assessment and repair.

For issues related to the Sunshower unit's functionality (e.g., light, heat), refer to the specific manual for your Sunshower system.

8. Speċifikazzjonijiet

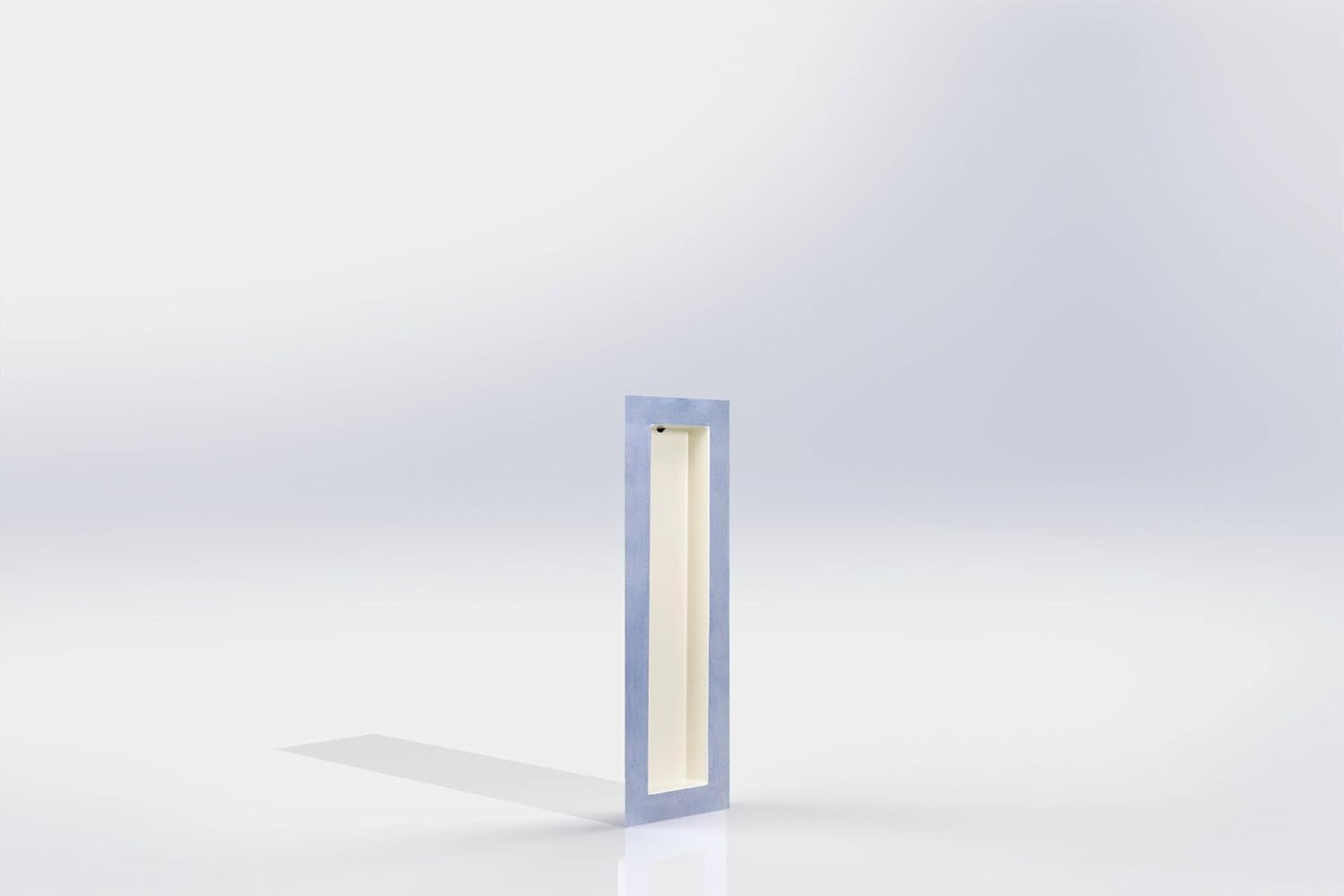

Figure 8.1.1: The Sunshower M0900 Medium Recessed Housing unit.

Note: Actual installation dimensions are detailed in Section 4.2.

9. Garanzija u Appoġġ

For specific warranty terms and conditions, please refer to the documentation provided by your retailer or visit the official Sunshower website. Warranty coverage typically applies to manufacturing defects and does not cover damage resulting from improper installation, misuse, or unauthorized modifications.

If you require technical assistance or have questions regarding your Sunshower M0900 Recessed Housing, please contact your point of purchase or the official Sunshower customer support:

• Websit: www.sunshower.nl
• Email: info@sunshower.nl
• Telefon: +31 (0)20 4621460
