1. Introduzzjoni
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Mcilpoog M3 Super Automatic Coffee Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Mcilpoog M3 is designed to deliver a variety of coffee beverages with ease, featuring a 15-bar pressure system and a user-friendly interface. It offers eight drink options, accessible via a 5-inch touchscreen, and includes a 7-gear adjustable grinder for optimal flavor extraction.
2. Istruzzjonijiet tas-Sigurtà
Dejjem osserva l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, u korriment lil persuni.
- Tiżgura l-voltagIl-volum speċifikat fuq l-apparat jaqbel mal-vultaġġ tal-mejns lokali tiegħektage qabel il-konnessjoni.
- Tgħaddix l-apparat, il-korda tad-dawl, jew il-plagg fl-ilma jew kwalunkwe likwidu ieħor.
- Keep hands and cords away from hot surfaces. The brewing unit and steam wand can become very hot during operation.
- Skonnettja l-magna mill-plagg meta ma tkunx qed tużaha u qabel ma tnaddafha.
- Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
- Uża biss aċċessorji rakkomandati mill-manifattur.
- Dan l-apparat huwa għall-użu fid-dar biss.
3. Prodott Aktarview
The Mcilpoog M3 features an intuitive design for convenient coffee preparation and maintenance. Familiarize yourself with the main components of your machine.
Figura 3.1: Quddiem view of the Mcilpoog M3 Super Automatic Coffee Machine, showing the touchscreen display, coffee spout, and external milk container connected via a tube.
Figura 3.2: Key components of the Mcilpoog M3, including the removable drip tray, a 2-in-1 coffee warehouse for beans and ground coffee, a 250g bean storage bin, and a detachable water tank.
Karatteristiċi ewlenin:
- Wiri tat-Touchscreen ta' 5 pulzieri: For easy selection of 8 different drink options.
- Grinder Integrat: Adjustable with 7 gears for various coffee bean types and desired fineness.
- Sistema ta' Pressjoni ta' 15-Bar: Ensures optimal extraction for rich espresso.
- Adjustable Spout Height: Accommodates various cup sizes for different beverages.
- 5-Hole Outlet: Separate channels for coffee, milk, and hot water to prevent flavor contamination.
- Automatic Self-Cleaning Milk System: Simplifies maintenance of milk-related components.
- Removable Drip Tray and Detachable Water Tank: Għal tindif u mili mill-ġdid faċli.
4. Setup
4.1 Żpakkjar u Tindif Inizjali
- Neħħi bir-reqqa l-materjali kollha tal-ippakkjar.
- Wash the water tank, milk container, and drip tray with warm soapy water, then rinse thoroughly.
- Imsaħ il-barra tal-magna bl-adamp drapp.
4.2 Mili tat-Tank tal-Ilma
- Remove the detachable water tank from the side of the machine.
- Imla t-tank b'ilma tax-xorb frisk u kiesaħ sal-indikatur tal-livell MAX.
- Erġa' daħħal it-tank tal-ilma fil-magna b'mod sikur.
4.3 Loading Coffee Beans or Ground Coffee
- Iftaħ l-għatu tal-kontenitur tal-fażola li jinsab fuq nett tal-magna.
- Pour fresh coffee beans into the hopper. The net format bean bin is designed to prevent beans from getting stuck.
- If using pre-ground coffee, open the ground coffee chute (usually next to the bean hopper) and add one scoop of ground coffee per serving. Do not add ground coffee to the bean hopper.
4.4 Konnessjoni tal-Enerġija
- Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
- Agħfas il-buttuna tal-qawwa biex tixgħel il-magna. Il-magna se twettaq ċiklu inizjali ta' tlaħliħ.
5. Istruzzjonijiet Operattivi
The Mcilpoog M3 offers a variety of beverages with one-touch convenience.
Figura 5.1: Close-up of the 5-inch touchscreen display, illustrating the various drink options available for selection.
5.1 L-Għażla ta' Xarba
- Ensure the water tank is filled and coffee beans are in the hopper (or ground coffee in the chute).
- Place a cup under the coffee spout. Adjust the spout height if necessary.
- On the 5-inch touchscreen, select your desired beverage (e.g., Espresso, Coffee, Americano, Latte, Macchiato, Cappuccino, Milk Froth, Hot Water).
- The machine will automatically grind the beans (if selected), brew, and dispense the drink.

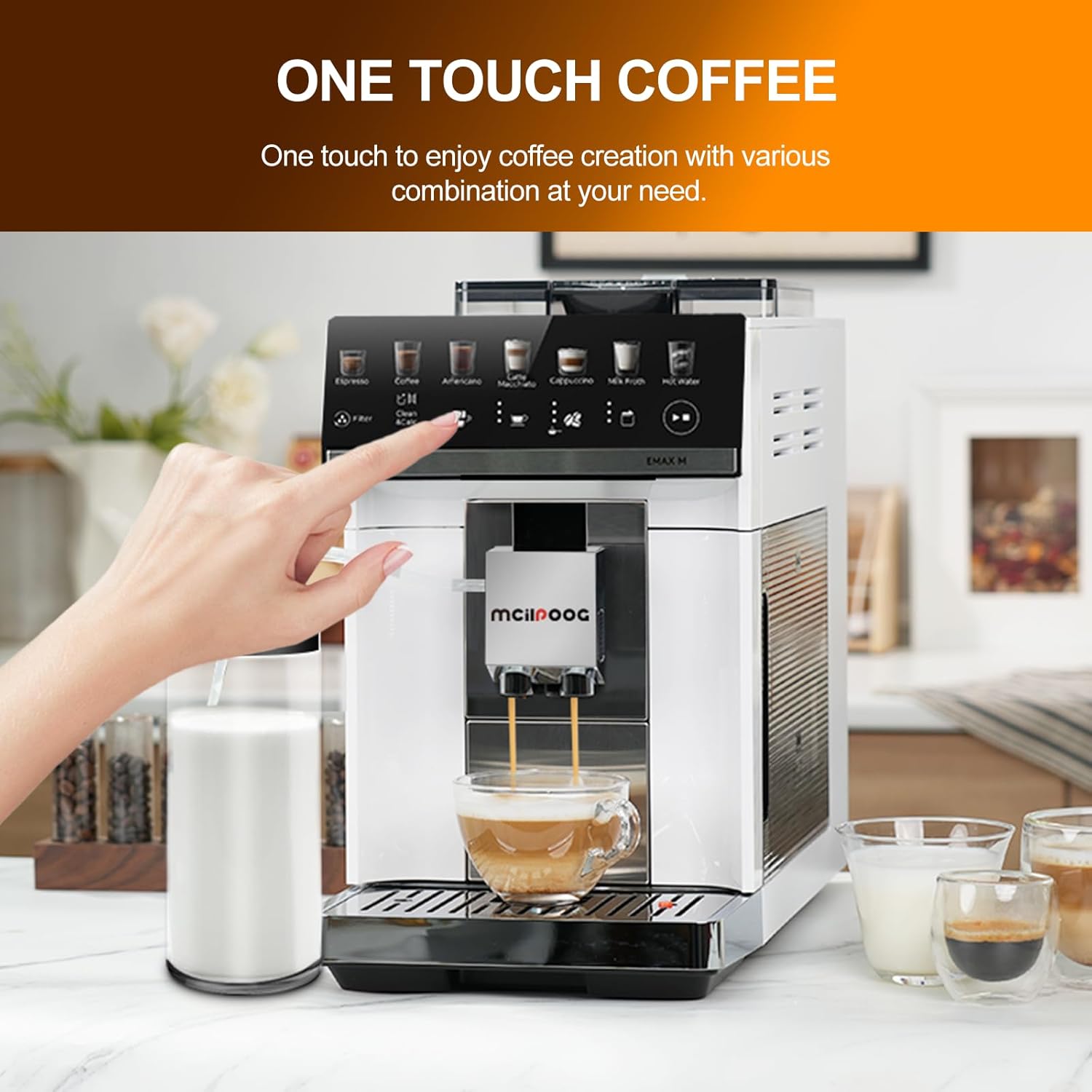

Figura 5.2: A hand interacting with the touchscreen for one-touch coffee creation, demonstrating the ease of use.
5.2 Aġġustament tas-Settings tat-Tħin
The integrated grinder has 7 adjustable settings to suit your preference for coffee strength and flavor.

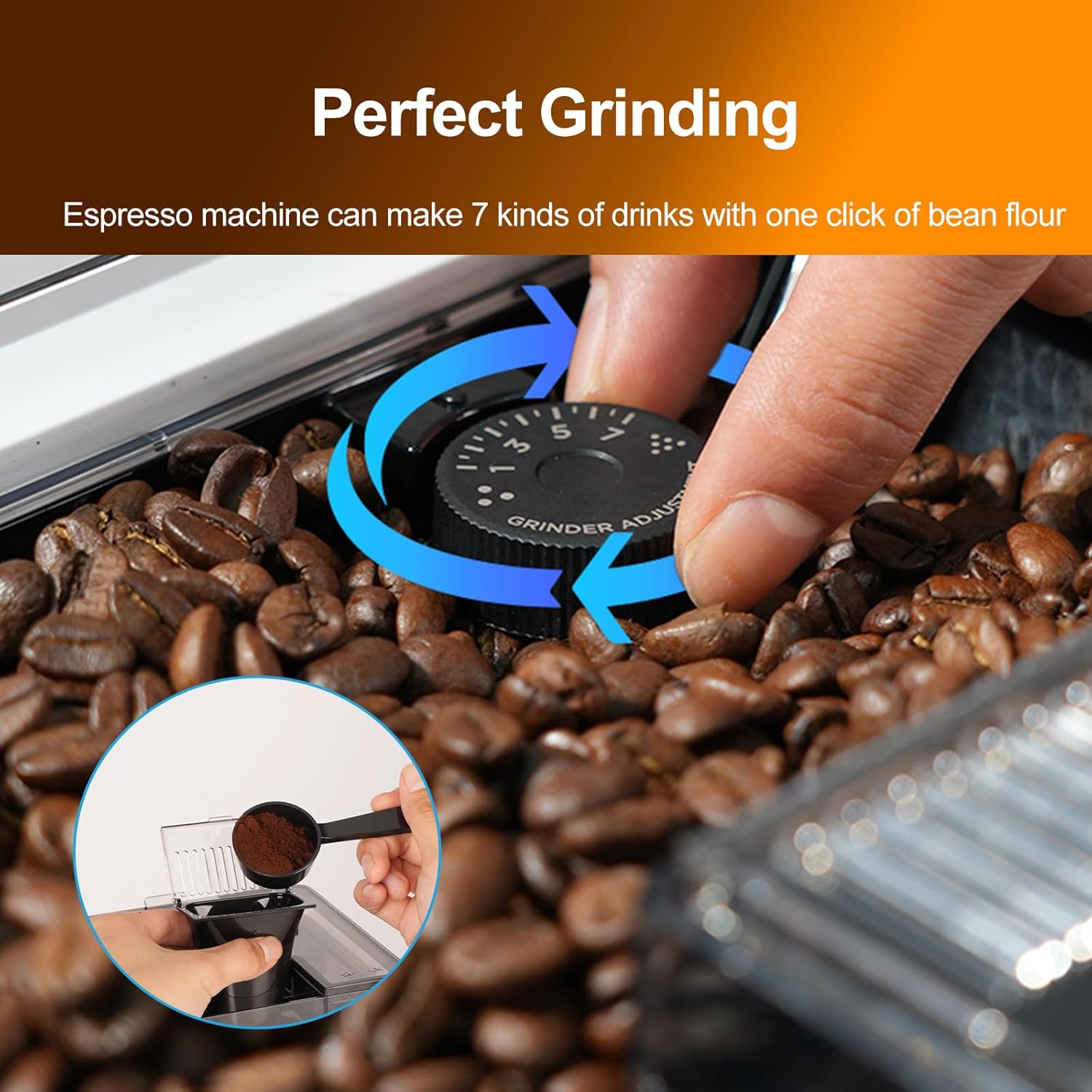

Figura 5.3: Dettaljati view of the grinder adjustment dial, showing settings from 1 to 7 for fine-tuning coffee grind size.
- To adjust the grind fineness, locate the grinder adjustment dial inside the bean hopper.
- Turn the dial to your desired setting. A finer grind (lower number) results in a stronger espresso, while a coarser grind (higher number) is suitable for lighter coffee.
- It is recommended to adjust the grind setting only when the grinder is operating to prevent damage.
5.3 Pre-Soaking Function
The machine utilizes a low-pressure pre-soaking function to balance sweet, sour, and bitter flavors, enhancing the overall taste profile tal-kafè tiegħek.
Figura 5.4: A visual comparison demonstrating the benefits of low-pressure pre-soaking for balanced flavor extraction versus extraction without pre-soaking.
6. Manutenzjoni
Regular cleaning and maintenance ensure the longevity and optimal performance of your Mcilpoog M3 coffee machine.
6.1 Automatic Self-Cleaning Milk System
The machine features an automatic self-cleaning program for the milk system.
Figura 6.1: The machine's milk system undergoing an automatic self-cleaning cycle, using hot water and steam to sanitize components.
- After preparing milk-based drinks, the machine may prompt you to clean the milk system.
- Follow the on-screen instructions to activate the automatic cleaning program.
- The machine will use hot water and steam to clean all parts in contact with milk.
6.2 Tindif ta 'Kuljum
- Trej tat-taqtir: Vojta u laħlaħ it-trej tat-taqtir li jista' jitneħħa kuljum.
- Tank tal-Ilma: Laħlaħ it-tank tal-ilma kuljum u imlih mill-ġdid b'ilma frisk.
- Kontenitur tal-Kafè: Empty the coffee grounds container when prompted or regularly to prevent mold growth.
- Barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp.
6.3 Tneħħija tal-Ġebla
The machine will indicate when descaling is required. Descaling removes mineral buildup from the internal components, ensuring optimal performance and taste.
- Purchase a suitable descaling solution for coffee machines.
- Follow the instructions on the descaling solution packaging and the machine's display for the descaling process.
- Typically, this involves adding the solution to the water tank and running a descaling program.
- Wara t-tneħħija tal-ġir, wettaq diversi ċikli ta' tlaħliħ b'ilma frisk biex tneħħi kwalunkwe residwu tat-tneħħija tal-ġir.
7 Issolvi l-problemi
This section addresses common issues you might encounter with your Mcilpoog M3 coffee machine.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx | Ebda provvista ta 'enerġija | Iċċekkja jekk il-korda tal-enerġija hijiex imdaħħla sew fis-sokit u fil-magna. |
| Coffee is not dispensing | Water tank empty; Coffee beans/grounds empty; Brewing unit clogged | Fill water tank; Refill coffee; Clean the brewing unit according to maintenance instructions. |
| Il-ħalib mhux qed jagħmel ragħwa kif suppost | Milk system clogged; Insufficient milk; Incorrect milk type | Run the automatic milk system cleaning cycle; Ensure sufficient cold milk is used; Try different milk types (e.g., whole milk). |
| Messaġġ ta' żball fuq il-wiri | Specific machine issue | Refer to the specific error code on the display and consult the machine's digital manual or contact customer support. |
8. Speċifikazzjonijiet
Technical details of the Mcilpoog M3 Super Automatic Coffee Machine.

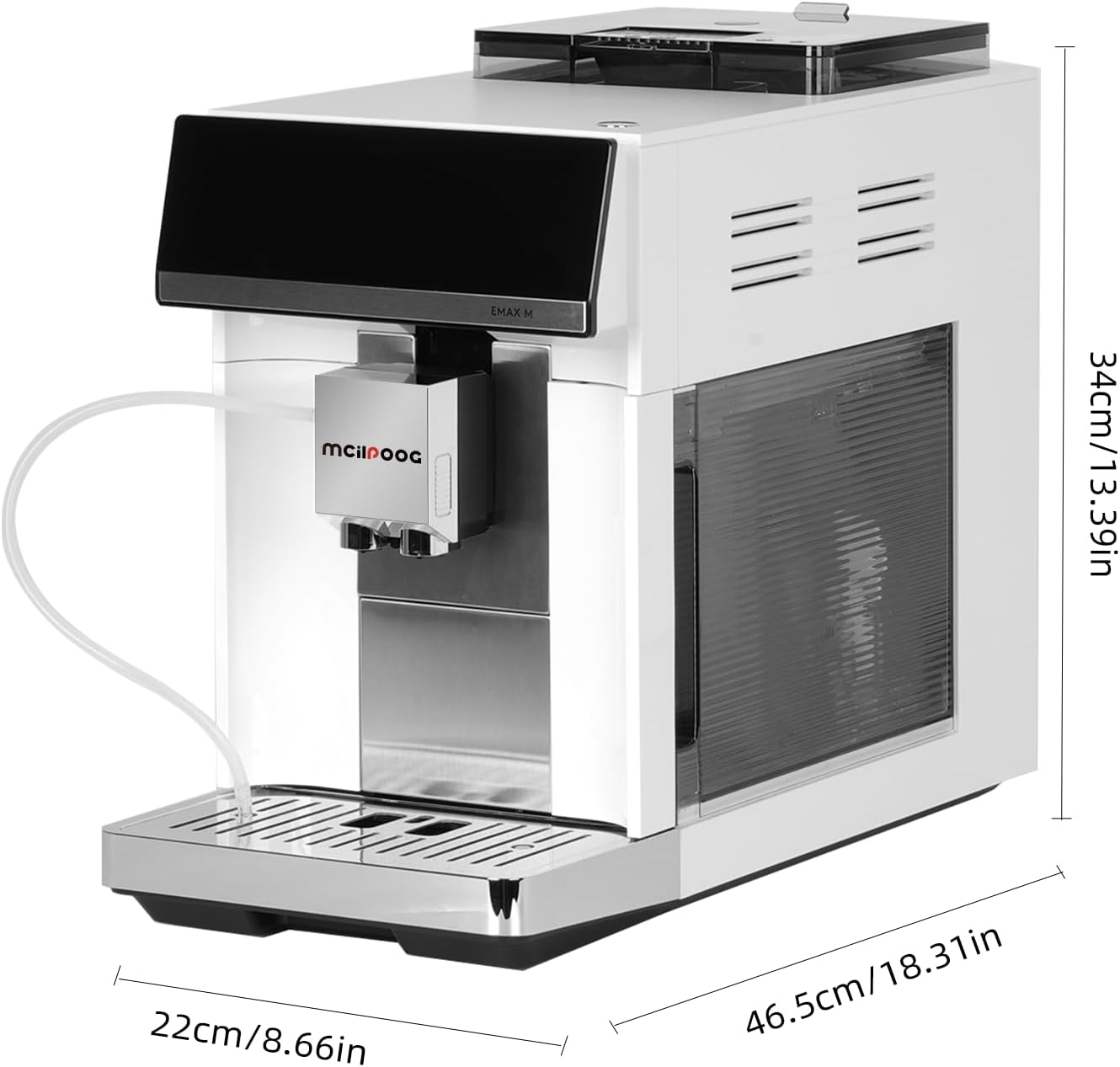

Figura 8.1: Dimensions of the Mcilpoog M3 Coffee Machine, indicating a depth of 18.1 inches (46.5 cm), width of 8.7 inches (22 cm), and height of 13.4 inches (34 cm).
- Ditta: Mcilpoog
- Isem tal-Mudell: M3
- Dimensjonijiet tal-Prodott: 18.1"D x 8.7"W x 13.4"Għ (46.5cm D x 22cm W x 34cmGħ)
- Piż tal-oġġett: 20.3 liri
- Tip ta' Kafè: Magni Espresso
- Modalità ta' Operazzjoni: Kompletament Awtomatiku
- Voltage: 220 Volts
- Input tal-Interface tal-Bniedem: Touchscreen
- Tip ta' Input tal-Kafè: Bean Flour (Whole Beans or Ground Coffee)
- Karatteristika Speċjali: Funzjoni Auto Clean
- Komponenti Inklużi: Frother tal-Ħalib
- UPC: 025128281285
9. Garanzija u Appoġġ
Specific warranty information for the Mcilpoog M3 Super Automatic Coffee Machine is not provided in the product details. For warranty claims, technical support, or service inquiries, please contact Mcilpoog customer support directly through their official websit jew il-bejjiegħ bl-imnut minn fejn inxtara l-prodott.
Dejjem żomm il-prova tax-xiri tiegħek għal skopijiet ta' garanzija.
