1. Introduzzjoni
This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your NIMO Mini PC N100. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize its lifespan. The NIMO Mini PC N100 is a compact and powerful desktop computer designed for various applications, from home entertainment to office productivity.
Image: The NIMO Mini PC N100, a compact computing solution for various environments.
2. Prodott Aktarview
The NIMO Mini PC N100 is engineered for efficiency and versatility. It features a compact design with a comprehensive array of ports for seamless connectivity.
2.1. Physical Features and Ports

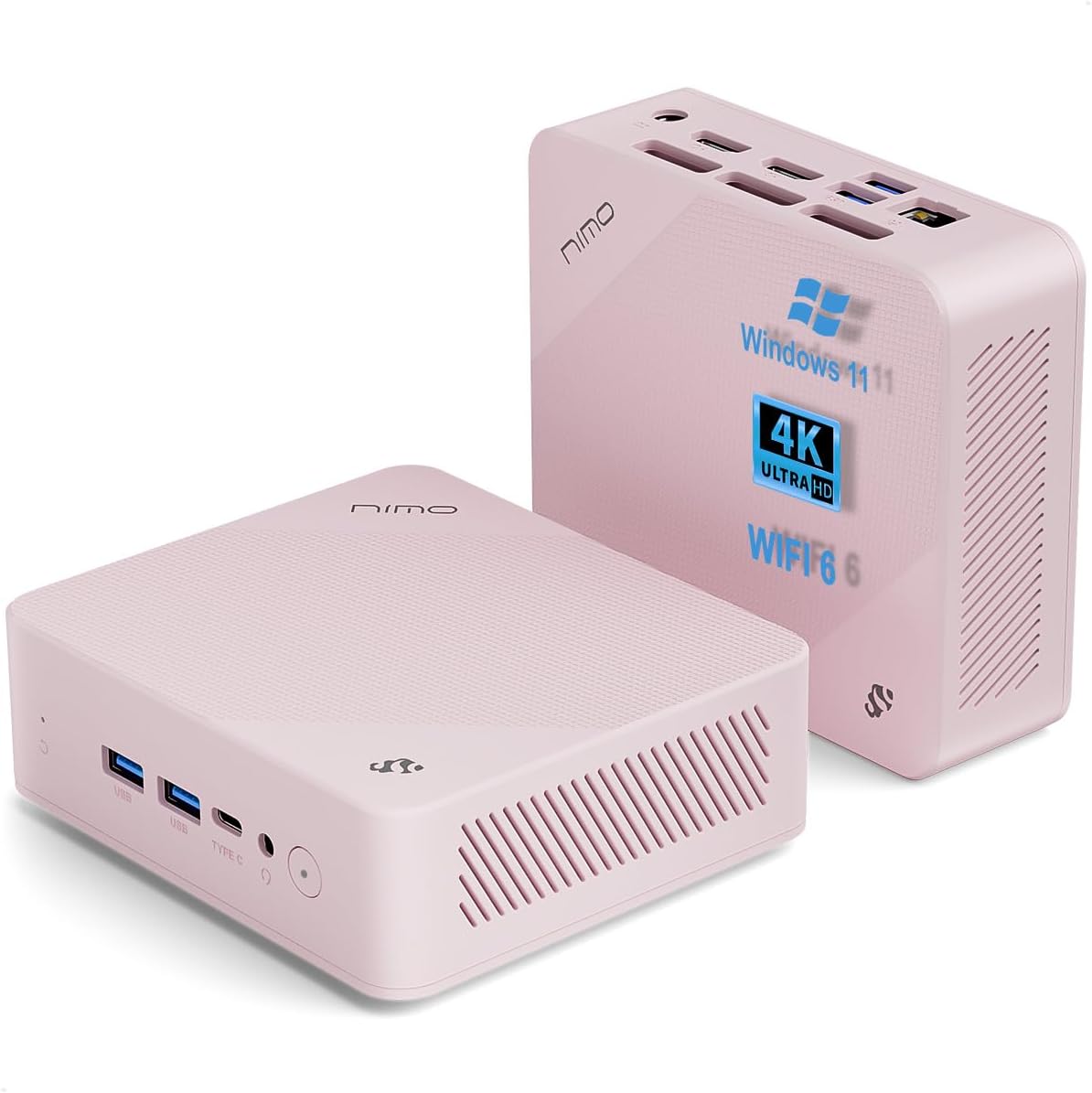

Immaġni: Quddiem u wara views of the NIMO Mini PC N100, showcasing its compact form factor and port layout.
Image: A detailed diagram illustrating the various ports available on the NIMO Mini PC N100, including USB, HDMI, LAN, and Type-C.
- Panel ta' quddiem: Power Button, 2x USB Type-A Ports, 1x Type-C Port (multifunction), 1x Audio Port, 1x Reset Button.
- Panel ta 'wara: 1x Giga LAN Port, 2x HDMI 2.0 Ports, 2x USB Type-A Ports, 1x DC-IN Port, Security Slot, SD Card Reader.
2.2. Karatteristiċi ewlenin
Image: A visual summary of the NIMO Mini PC N100's core features, such as Windows 11, WiFi 6, and 4K display support.
- Sistema Operattiva: Windows 11 Home
- Proċessur: 12th Gen Intel N100 Processor
- Memorja: 8GB DDR4 RAM
- Ħażna: 1TB PCIe SSD
- Konnettività: WiFi 6, Bluetooth 5.2, Gigabit LAN
- Output tal-Wiri: Dual HDMI 2.0 and Type-C for up to 4K triple-monitor display
- Tkessiħ: 15W Efficient Cooling System
Image: The NIMO Mini PC N100 in a desktop setup, emphasizing its Intel N100 processor, WiFi 6, Bluetooth 5.2, and efficient cooling capabilities.
3. Setup
Follow these steps to set up your NIMO Mini PC N100.
3.1. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
Image: The NIMO Mini PC N100 package contents, including the Mini PC unit, mounting bracket, power adapter, and instruction manual.
- 1x NIMO Mini PC N100 Unit
- 1x Bracket tal-Immuntar
- 1x Adapter tal-Enerġija
- 1x Manwal ta 'Istruzzjoni
3.2. Konnessjoni Inizjali
- Qabbad id-Displej: Connect your monitor(s) to the HDMI 2.0 ports or the Type-C port on the Mini PC using appropriate cables.
- Ikkonnettja l-Periferali: Plug in your keyboard, mouse, and any other USB devices into the available USB Type-A ports.
- Qabbad l-Enerġija: Insert the power adapter into the DC-IN port on the Mini PC, then plug the adapter into a power outlet.
- Konnessjoni tan-Netwerk: For a wired connection, connect an Ethernet cable to the Giga LAN port. For wireless, ensure your WiFi network is available.
3.3. Għażliet ta' Tqegħid
The NIMO Mini PC N100 offers flexible placement options:
Image: A visual comparison of VESA mounting and traditional desktop placement for the NIMO Mini PC N100.
- Poġġiment fuq id-Desktop: Place the Mini PC on a flat, stable surface with adequate ventilation.
- Installazzjoni VESA: Use the included mounting bracket to attach the Mini PC to the back of a VESA-compatible monitor or TV. This helps create a clutter-free workspace.
Image: The NIMO Mini PC N100 discreetly mounted behind a monitor, illustrating its space-saving VESA capability.
4. Istruzzjonijiet Operattivi
Learn how to operate your NIMO Mini PC N100 effectively.
4.1. Tixgħil / Mitfi
- Qawwa Mixgħul: Press the Power Button on the front panel. The power indicator light will illuminate.
- Itfi: In Windows, click the Start button, then select Power > Shut down. Alternatively, you can press and hold the Power Button for a few seconds to force a shutdown (not recommended for regular use).
- Ibda mill-ġdid: In Windows, click the Start button, then select Power > Restart.
4.2. Konfigurazzjoni tad-Displej
The NIMO Mini PC N100 supports up to three displays simultaneously.
Image: The NIMO Mini PC N100 demonstrating its capability to support a triple display setup for enhanced multitasking.
- Konnessjoni ta' Monitors Multipli: Use the two HDMI 2.0 ports and the Type-C port to connect up to three 4K displays.
- Windows Display Settings: Right-click on the desktop and select 'Display settings' to configure display resolution, orientation, and arrangement (extend, duplicate, or show only on one display).
4.3. Expanding Storage
The Mini PC includes an SD card reader for additional storage expansion.
Image: The NIMO Mini PC N100 featuring an SD card slot, allowing for easy storage expansion up to 512GB.
- Insert an SD card into the dedicated slot on the rear panel to expand storage capacity for files u applikazzjonijiet.
4.4. Xenarji ta' Użu
Image: The NIMO Mini PC N100 being used in different environments: home entertainment, office work, and classroom learning.
- Divertiment fid-dar: Connect to a TV for streaming, media playback, or light gaming.
- Xogħol fl-Uffiċċju: Ideal for productivity tasks, document editing, and video conferencing.
- Classroom Learning: Suitable for educational applications and online courses.
5. Manutenzjoni
Proper maintenance ensures the longevity and optimal performance of your NIMO Mini PC N100.
- Tindif: Regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to clear dust from ventilation grilles. Do not use liquid cleaners directly on the device.
- Ventilazzjoni: Ensure the Mini PC is placed in a well-ventilated area. Do not block the air vents.
- Aġġornamenti tas-Software: Keep your Windows 11 operating system and drivers updated to ensure security and performance.
- Backup tad-Data: Agħmel backup tad-dejta importanti regolarment fuq drajv estern jew ħażna fil-cloud biex tevita t-telf tad-dejta.
- Evita Kundizzjonijiet Estremi: Do not expose the Mini PC to extreme temperatures, humidity, or direct sunlight.
6 Issolvi l-problemi
This section addresses common issues you might encounter with your NIMO Mini PC N100.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda qawwa | L-adapter tal-enerġija mhux imqabbad; problema fis-sokit tal-enerġija; adapter difettuż. | Check power cable connection; try a different outlet; ensure adapter is working. |
| L-ebda wiri fuq il-monitor | Monitor off or incorrect input; display cable loose or faulty. | Ensure monitor is on and set to correct input (HDMI/Type-C); check display cable connections; try a different cable or monitor. |
| L-ebda konnessjoni tal-internet (Wi-Fi) | Wi-Fi diżattivat; password mhux korretta; problema bir-router. | Ensure Wi-Fi is enabled in Windows settings; verify Wi-Fi password; restart router. |
| No internet connection (LAN) | Ethernet cable loose or faulty; router issue. | Check Ethernet cable connection; try a different cable; restart router. |
| Il-periferali (tastiera/maws) mhux qed jaħdmu | Konnessjoni USB maħlula; problema bis-sewwieq. | Reconnect USB device; try a different USB port; check device manager for driver issues. |
| System slow or unresponsive | Wisq applikazzjonijiet jaħdmu; spazju baxx fuq id-diska; malware. | Close unnecessary applications; free up disk space; run antivirus scan; restart the PC. |
7. Speċifikazzjonijiet
Detailed technical specifications for the NIMO Mini PC N100.
Image: Diagram highlighting the Intel 12th Gen N100 Processor, the core of the NIMO Mini PC N100's performance.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | N100 |
| Sistema Operattiva | Windows 11 Home |
| Proċessur | Intel 12th Gen N100 (3.4 GHz Intel_Mobile_CPU, 4 Cores) |
| RAM | 8 GB DDR4 SDRAM |
| Ħażna | 1 TB Solid State Drive (PCIe SSD) |
| Riżoluzzjoni Massima tal-Iskrin | 3840 x 2160 pixels (4K) |
| Grafika | Grafika Intel UHD (Integrata) |
| Konnettività | WiFi 6, Bluetooth 5.2, Gigabit LAN |
| Portijiet | 2x HDMI 2.0, 4x USB Type-A (USB3.2), 1x Type-C (multifunction), 1x Giga LAN, 1x DC-IN, 1x Audio, 1x SD Card Reader, 1x Security Slot |
| Dimensjonijiet (LxWxH) | 4.8 x 4.4 x 1.53 pulzieri |
| Pjattaforma tal-Ħardwer | PC |
| L-Ewwel Data Disponibbli | 1 ta’ Novembru, 2024 |
8. Garanzija u Appoġġ
NIMO is committed to providing excellent after-sales service and support for your Mini PC N100.
Immaġni: Aktar minnview of NIMO's commitment to after-sales excellence, including support, returns, and customer service.
8.1. Informazzjoni dwar Garanzija
- Perjodu ta' Garanzija: The NIMO Mini PC N100 is covered by a garanzija ta' sentejn mid-data tax-xiri.
- Politika ta' Ritorn: Tista' tirritorna kwalunkwe prodott NIMO għal kwalunkwe raġuni fi żmien 90-il jum tax-xiri.
8.2. Appoġġ għall-Klijent
NIMO provides professional and high-quality customer service. If you have any product-related questions or require assistance, please contact us:
- Email: service@nimopc.com
- Online: Żur in-NIMO uffiċjali website or product page for contact options and support resources.
Our team of professional technicians is ready to help resolve any issues you may encounter. We aim to reply to all inquiries promptly.
