Motorola Solutions PMLN8342 IMPRES 2-Wire Surveillance Kit User Manual

1. Introduzzjoni

The Motorola Solutions PMLN8342 IMPRES 2-Wire Surveillance Kit is designed for discreet and clear communication in various environments. This accessory integrates advanced IMPRES audio technology, ensuring optimal sound performance and enhanced audio gain when connected to compatible Motorola radios.

This kit features a two-wire design: one wire for receiving audio transmissions through the earpiece, and a second wire incorporating a combined microphone, a programmable button, and a Push-to-Talk (PTT) button. The translucent acoustic tube earpiece is designed for comfort and discretion.

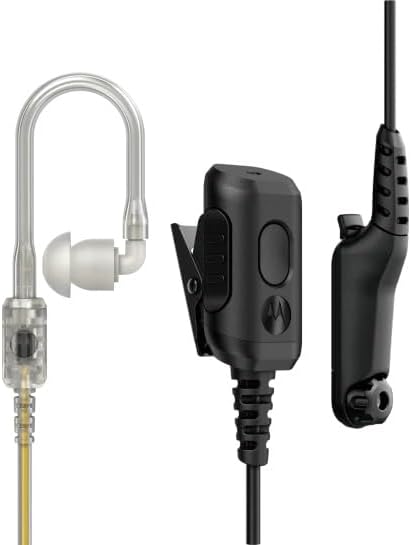

Figure 1: Motorola Solutions PMLN8342 IMPRES 2-Wire Surveillance Kit components.

2. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• Motorola Solutions PMLN8342 IMPRES 2-Wire Surveillance Kit (Headset)

3. Setup

1. Kontroll tal-Kompatibbiltà: Ensure your radio is compatible with the PMLN8342 kit. This kit is compatible with APX N70, APX N50, and APX N30 series radios.
2. Connect to Radio: Locate the audio accessory port on your compatible radio. Insert the 3.5 mm jack of the surveillance kit firmly into the radio's accessory port.
3. Position Earpiece: Gently place the translucent acoustic tube earpiece into your ear. Adjust for a comfortable and secure fit. The earpiece is designed for in-ear placement.
4. Secure Microphone/PTT: Clip the combined microphone and Push-to-Talk (PTT) unit to your clothing in a convenient location, such as a collar or lapel. Ensure the microphone is positioned to capture your voice clearly.

4. Istruzzjonijiet Operattivi

The PMLN8342 kit facilitates two-way communication with your radio.

• Receiving Transmissions: Audio from your radio will be transmitted directly to your ear through the translucent acoustic tube earpiece.
• Transmitting Messages (Push-to-Talk - PTT):
  1. Press and hold the PTT button located on the combined microphone unit.
  2. Kellem ċar fil-mikrofonu.
  3. Itlaq il-buttuna PTT biex twaqqaf it-trażmissjoni u terġa' lura għall-modalità ta' riċeviment.
• Buttuna programmabbli: The combined microphone unit also includes a programmable button. Refer to your radio's user manual for instructions on how to assign specific functions to this button.
• IMPRES Audio Technology: This kit utilizes IMPRES technology for enhanced audio performance. Ensure your radio is also IMPRES-compatible to fully benefit from features like optimal audio gain and clear communication.

5. Manutenzjoni

• Tindif: Regularly wipe the earpiece and cables with a soft, damp drapp. Evita li tuża kimiċi ħarxa jew tindif li joborxu.
• Translucent Tube Replacement: The translucent acoustic tube is replaceable. If the tube becomes discolored, damaged, or loses its acoustic clarity, it can be replaced with a genuine Motorola Solutions replacement part. Consult your dealer for replacement procedures and parts.
• Ħażna: Store the surveillance kit in a clean, dry place away from extreme temperatures and direct sunlight when not in use.

6 Issolvi l-problemi

• No Audio from Earpiece:
  • Ensure the 3.5 mm jack is fully inserted into the radio's accessory port.
  • Iċċekkja l-livell tal-volum tar-radju.
  • Verify the earpiece tube is not kinked or blocked.
  • Test the kit with another compatible radio if available.
• Microphone Not Transmitting Clearly:
  • Ensure the microphone is positioned correctly and not obstructed.
  • Kellem direttament fil-mikrofonu.
  • Dewmien tat-Trażmissjoni: If there is a delay between pressing PTT and transmission, ensure you pause briefly after pressing the PTT button before speaking. This allows the radio system to activate the transmission path.
• Earpiece Discomfort:
  • Adjust the earpiece position for a better fit.
  • Consider if an alternative earpiece tip size might be more comfortable (if available from Motorola Solutions).

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For information regarding warranty coverage, technical support, or to purchase replacement parts, please contact Motorola Solutions directly or visit their official websit.

Tista' wkoll iżżur il- Motorola Solutions Store on Amazon għal aktar informazzjoni dwar il-prodott u riżorsi ta' appoġġ.
