Introduzzjoni
This manual provides comprehensive instructions for the installation, operation, and maintenance of your CLY Outdoor LED Floodlight with Motion Detector (Model FLB035). Please read this manual thoroughly before installation and use to ensure proper function and safety.
Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korrimenti jew ħsara:
- Kun żgur li l-provvista tal-enerġija hija skonnettjata qabel l-installazzjoni, il-manutenzjoni, jew it-tindif.
- L-installazzjoni għandha titwettaq minn elettriċista kwalifikat skont il-kodiċijiet elettriċi lokali.
- Tħarisx direttament fis-sors tad-dawl LED meta jkun mixgħul, għax dan jista' jikkawża għeja jew ħsara lill-għajnejn.
- Timmodifikax il-prodott bl-ebda mod. Modifiki mhux awtorizzati jistgħu jannullaw il-garanzija u joħolqu riskji għas-sigurtà.
- Żomm il-prodott 'il bogħod minn materjali li jaqbdu.
- Kun żgur li l-wiċċ tal-immuntar ikun stabbli u jista' jsostni l-piż tal-floodlight.
- This product is rated IP66 for outdoor use, meaning it is protected against dust ingress and powerful water jets. However, avoid submerging the unit.
Kontenut tal-Pakkett
Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:
- 1 x CLY Outdoor LED Floodlight with Motion Detector
- 1 x Remote Control (2 AAA batteries included)
- Viti tal-Immuntar u Plugs tal-Ħajt
- Manwal għall-Utent (dan id-dokument)
Image: The CLY Outdoor LED Floodlight, showing the main light unit, integrated motion sensor, remote control, and included mounting screws and wall plugs. The power cable is also visible.
Prodott Overview u Karatteristiċi
The CLY Outdoor LED Floodlight is designed for efficient and intelligent outdoor illumination. Key features include:
- Luminożità Għolja: 35W power with 42 high-quality LEDs, delivering up to 3290 lumens of 6500K cool white light.
- Effiċjenti fl-Enerġija: Replaces traditional 350W incandescent lamps, saving over 90% on electricity costs.
- Kopertura Wiesgħa: 120° beam angle for illumination and 180° detection angle for the motion sensor.
- Modi Intelliġenti: Features 4 intelligent lighting modes: Constant Light, PIR Motion Sensor (Day/Night), and Timer (1H/2H/3H).
- Settings aġġustabbli: Customizable detection distance (6M/9M/12M) and lighting duration (45S/90S/120S/5MIN/10MIN).
- Aġġustament tal-luminożità ta' 10 livelli: Fine-tune the light intensity in all modes.
- 360° Remote Control: Conveniently adjust all settings from a distance, eliminating the need to climb ladders.
- Durabbli u Reżistenti għat-Temp: IP66 rated, resistant to heat, frost, and extreme weather conditions. Constructed from die-cast aluminum for excellent heat dissipation and corrosion resistance.
- Ħajja twila: Designed for a lifespan of up to 50,000 hours.
- Installazzjoni faċli: Features a 180° adjustable mounting bracket and a 1-meter power cable for flexible installation on walls, ceilings, or ground.
Image: An infographic illustrating the key features of the floodlight, including its brightness (3290 lumens), color temperature (6500K cool white), sensor angle (180°), beam angle (120°), adjustable sensing distance, and lighting duration. It also highlights the 10-level brightness adjustment.
Image: A visual representation of the floodlight's robust design, emphasizing its excellent heat dissipation, impact-resistant construction, high-sensitivity and rotatable motion sensor, and the convenience of remote control settings.
Gwida għall-Installazzjoni
Follow these steps for safe and effective installation:
- Agħżel Post: Select a suitable outdoor location for the floodlight, such as a wall, ceiling, or ground, ensuring it covers the desired area. The ideal mounting height is between 3.5 to 5 meters (11.5 to 16.4 feet).
- Skonnettja l-Enerġija: Before starting any electrical work, ensure the main power supply to the installation area is turned off at the circuit breaker.
- Immonta l-Bracket: Use the included mounting screws and wall plugs to securely attach the adjustable bracket to the chosen surface. The bracket allows for 180° adjustment.
- Konnessjoni tal-Wajer: Connect the floodlight's power cable to your electrical system. The cable has three wires:
- Brown (Live Wire): Connect to the Live (L) terminal.
- Blue (Neutral Wire): Connect to the Neutral (N) terminal.
- Yellow/Green (Earth Wire): Connect to the Earth (E) terminal.
- Waħħal il-Floodlight: Secure the floodlight unit to the mounted bracket.
- Aġġusta Angolu: Adjust the floodlight and the motion sensor to the desired angles. The sensor can be rotated 180° for optimal detection coverage.
- Irrestawra l-Enerġija: Ladarba l-installazzjoni tkun tlestiet u l-konnessjonijiet kollha jkunu siguri, erġa' daħħal l-enerġija fiċ-ċirkwit.
Image: A detailed diagram illustrating the physical dimensions of the floodlight, the color-coded wiring connections (Neutral, Live, Earth), and the versatility of the 180° adjustable stand for mounting on walls, ground, or ceilings.
Istruzzjonijiet Operattivi
Your CLY floodlight comes with a remote control for easy operation and mode selection. The remote control requires 2 AAA batteries (included).
Funzjonijiet tal-Kontroll mill-bogħod:
Image: The remote control for the floodlight, displaying its various buttons for mode selection (24H sensing, night sensing, constant light, timing), adjustment of sensor lighting time and distance, brightness levels, and memory function.
- ON/OFF: Power on or off the floodlight.
- Aġġustament tal-luminożità: Buttons to increase or decrease brightness (10 levels available).
- Sensor Lighting Time: Select duration for light to stay on after motion detection: 45S, 90S, 120S, 5MIN, 10MIN.
- Distanza ta' Sensing: Adjust motion detection range: 6M (19.69FT), 9M (29.53FT), 12M (39.37FT).
- 24H Sensing Mode (Day and Night): Light activates upon motion detection regardless of ambient light.
- Night Sensing Mode: Light activates upon motion detection only when it's dark.
- Constant Light Mode (Always ON): Light stays on continuously until manually turned off.
- Mod tal-Ħin: Set the light to stay on for a fixed duration: 1H, 2H, or 3H.
- Funzjoni tal-memorja: The floodlight remembers the last selected mode and settings when powered off and on.
Understanding the 4 Working Modes:

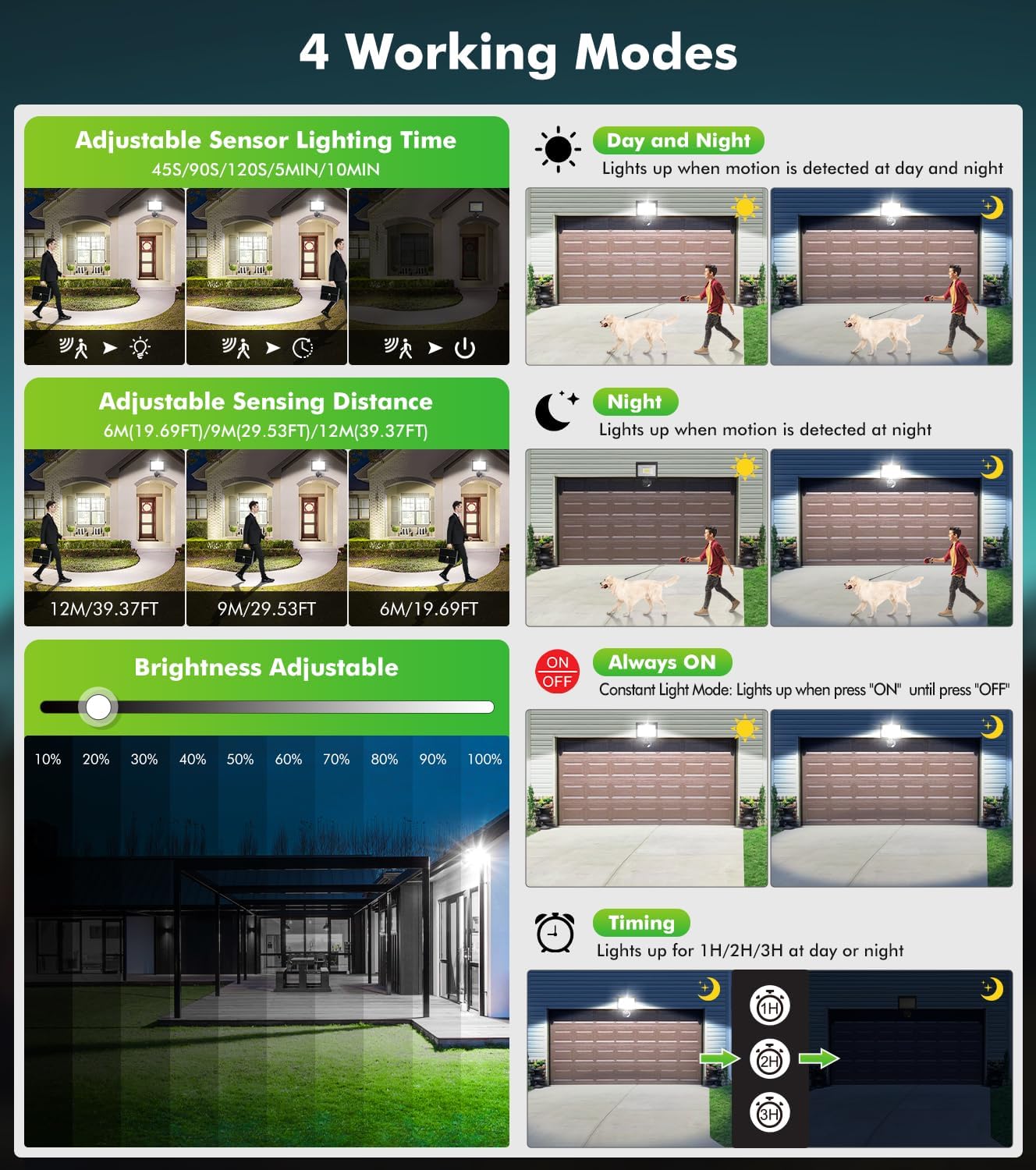

Image: An infographic detailing the four operational modes of the floodlight: Day and Night motion sensing, Night-only motion sensing, Always On (constant light), and Timer mode. It also illustrates the adjustable sensing distance and lighting duration settings.
- Day and Night Sensing Mode: The light will turn on when motion is detected, regardless of whether it is day or night. You can adjust the lighting duration (45S/90S/120S/5MIN/10MIN) and detection distance (6M/9M/12M).
Image: A visual explanation of the Day and Night Detection Mode, showing the light activating upon motion detection during both daytime and nighttime scenarios, with adjustable lighting duration and detection angle.
- Night Sensing Mode: The light will only turn on when motion is detected during nighttime or in dark conditions. Adjust lighting duration and detection distance as needed.
- Modalità tad-Dawl Kostanti: The light will remain continuously on until you manually turn it off using the remote control. This mode is ideal for continuous illumination.
Image: A diagram illustrating the Constant Light Mode, where the floodlight provides continuous illumination until it is manually switched off, suitable for prolonged lighting needs.
- Mod tal-Ħin: The light will stay on for a preset duration of 1 hour, 2 hours, or 3 hours, after which it will automatically turn off. This can be used day or night.
Image: A visual guide to the Timer Mode, demonstrating how the floodlight can be set to operate for specific durations of 1, 2, or 3 hours, providing timed illumination for various activities.
Image: A comparison highlighting the convenience and safety of the wireless remote control for adjusting settings from a distance, contrasting it with older models that require manual button adjustments, often necessitating climbing a ladder.
Manutenzjoni
To ensure the longevity and optimal performance of your CLY LED Floodlight, follow these maintenance guidelines:
- Tindif: Naddaf perjodikament il-wiċċ tal-floodlight u l-lenti tas-sensorju tal-moviment b'ċarruta ratba u damp drapp. Tużax prodotti tat-tindif jew solventi li joborxu. Kun żgur li l-elettriku jkun mitfi qabel ma tnaddaf.
- Spezzjoni: Regularly inspect the power cable and connections for any signs of damage or wear. If damage is found, disconnect power immediately and have it repaired by a qualified technician.
- Ostruzzjoni tas-Sensor: Ensure the motion sensor is free from obstructions like dirt, leaves, or spiderwebs, which can affect its detection capability.
- Sostituzzjoni tal-batterija: Replace the remote control batteries (2 AAA) when the remote's range or responsiveness decreases.
Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-floodlight tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx. | No power supply; loose wiring; faulty sensor; remote control battery low. | Check power connection and circuit breaker. Ensure wiring is secure. Test remote control batteries. If sensor is suspected, try Constant Light Mode. |
| Light stays on continuously in sensor mode. | Sensor constantly detecting motion; sensor sensitivity too high; light sensor malfunction. | Check for continuous motion in the detection area (e.g., tree branches, pets). Reduce sensor sensitivity. Ensure the light sensor is not obstructed. |
| Light turns on during the day in sensor mode. | Incorrect mode selected (24H Sensing Mode); light sensor malfunction. | Ensure "Night Sensing Mode" is selected if you only want activation at night. |
| Il-kontroll mill-bogħod ma jaħdimx. | Low or dead batteries; remote out of range; obstruction between remote and floodlight. | Replace AAA batteries. Ensure you are within the 12M (39FT) range. Remove any obstructions. |
| Il-firxa ta' skoperta hija qasira/twila wisq. | Incorrect sensing distance setting; sensor obstructed. | Adjust the sensing distance using the remote control. Clear any obstructions from the sensor's view. |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | CLY |
| Numru tal-Mudell | FLB035 |
| Qawwa | 35 Watts |
| Fluss Luminuż | 3290 lm |
| Temperatura tal-Kulur | 6500 Kelvin (abjad kiesaħ) |
| Ekwivalenti Inkandexxenti | 350 Watts |
| Voltage | 230 Volts |
| Klassifikazzjoni tal-IP | IP66 (Li ma jgħaddix ilma) |
| Materjal | Aluminju |
| It-tul tal-ħajja | 50,000 Sigħat |
| Angolu tar-raġġ | 120° |
| Angolu ta 'Sejbien tas-Sensor | 180° |
| Firxa ta 'Kontroll mill-bogħod | Up to 12M (39FT) |
| Tul tal-Cable | 1 Meter |
| Dimensjonijiet (L x W x H) | 160 x 175 x 35 mm (6.3 x 6.9 x 1.4 pulzieri) |
| Piż | 630 g |
| Komponenti Inklużi | Floodlight, Remote Control, Mounting Hardware |
| Batteriji | 2 AAA (inklużi) |
Garanzija u Appoġġ
CLY provides a 2-year replacement service for this product. If you encounter any issues or require assistance, please contact us through Amazon or via the service email provided in the original product packaging. Our support team will respond within 24 hours.
For further information or to explore other CLY products, please visit the official CLY brand store on Amazon.
