Mellif Cordless Paddle Board Pump MFPBPO2-JY Instruction Manual

1. Introduzzjoni

Thank you for choosing the Mellif Cordless Paddle Board Pump MFPBPO2-JY. This portable electric air pump is designed for efficient inflation and deflation of various inflatable items, including stand-up paddle boards, kayaks, boats, and air mattresses. It offers versatile power options, including compatibility with Milwaukee 18V batteries (not included) and a 12V DC car connector. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your pump.

2. Informazzjoni dwar is-Sigurtà

• Always keep the pump away from water and moisture. This device is not waterproof.
• Do not operate the pump near flammable liquids or gases.
• Tiżgura ventilazzjoni xierqa waqt it-tħaddim biex tevita sħana żejda.
• Timblokkax id-dħul jew il-ħruġ tal-arja waqt l-użu.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-pompa waqt it-tħaddim.
• Disconnect the power source when the pump is not in use or before performing any maintenance.
• Do not exceed the recommended pressure for your inflatable item. The pump features an auto shut-off function, but always monitor the inflation process.
• The pump is designed for intermittent use. Allow it to cool down after prolonged operation to prevent damage.
• Only use the provided accessories and nozzles.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• 1 x Mellif Paddle Board Pump
• 1 x 12V DC Car Power Cord (9.5ft)
• 1 x Adapter Connector
• 1 x Inflation Hose
• 6 x Inflation Nozzles (various types for different inflatables)

4. Karatteristiċi tal-prodott

4.1. Dual Power Supply

The pump offers two power options for convenience:

• Milwaukee 18V Battery Compatibility: Use your existing Milwaukee 18V batteries (battery not included). Features low voltage protection, automatically shutting off below 14.4V to prevent over-discharge and protect battery life.
• 12V DC Car Connector: Utilize the included 9.5ft 12V DC car power cord for power directly from your vehicle.

Image: The pump showcasing its dual power options: a 12V car connector and a slot for a Milwaukee 18V battery.

4.2. High Performance Inflation

Inflates paddle boards up to 20 PSI in approximately 8 minutes. Delivers a maximum pressure of 20 PSI with an air flow speed of 13 CFM.

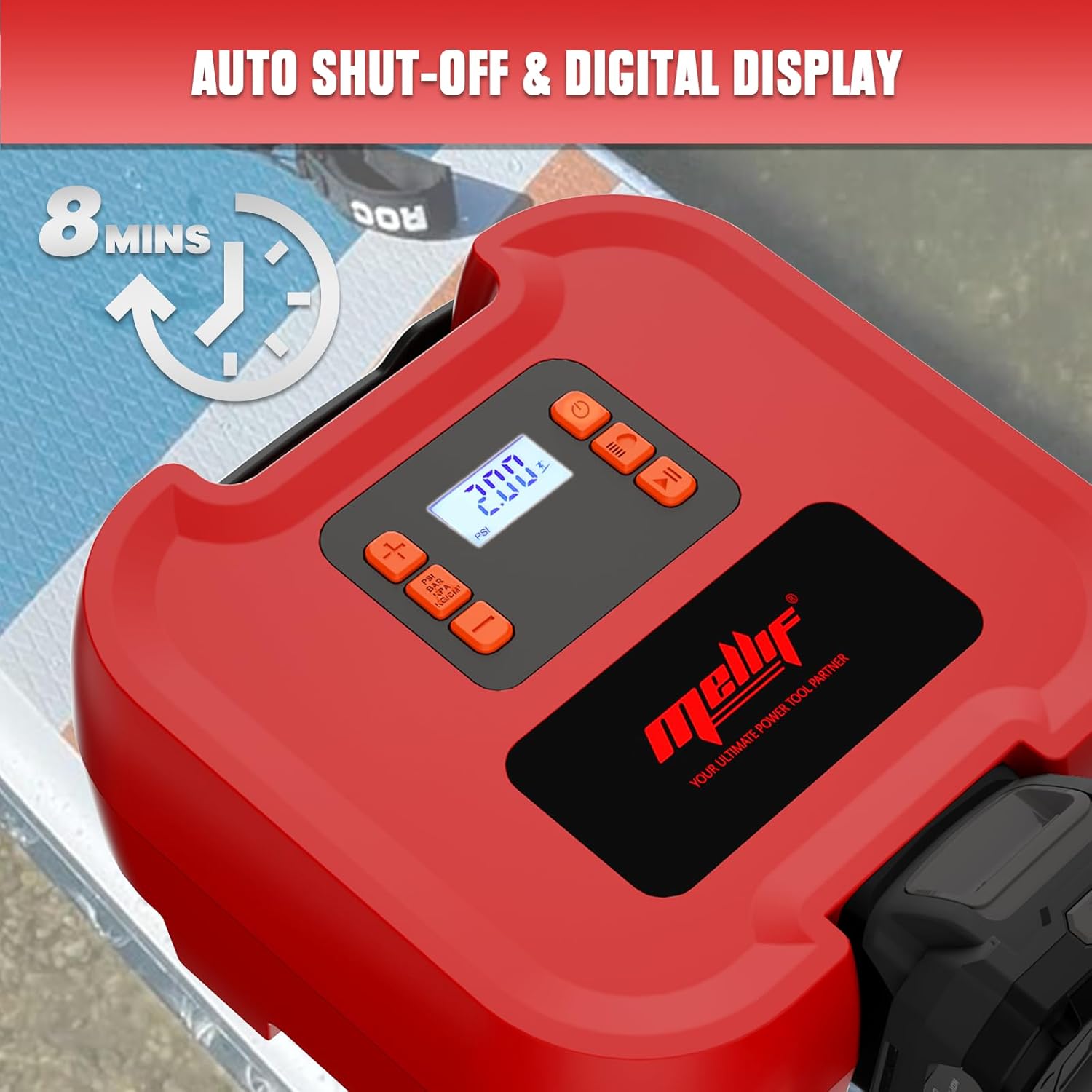

Image: Close-up of the pump's digital display indicating 20 PSI and an 8-minute inflation time.

4.3. Auto Shut-Off & Digital Display

The backlit LCD screen allows you to set the desired pressure (PSI, KPa, BAR, KG/CM²) using the "+" and "-" buttons. The screen displays the set pressure and monitors real-time pressure, automatically shutting off once the target pressure is reached.

4.4. Dawl tax-Xogħol LED

A built-in LED light provides illumination for nighttime inflation or use in low-light conditions.

4.5. Dual State Inflation

The pump operates in two stages:

• Fast Inflation Mode: Below 1 PSI, the pump operates at a higher volume for rapid initial inflation.
• High-Pressure Mode: Above 1 PSI, the pump switches to a high-pressure mode to reach the desired PSI, which may involve increased noise.

Image: Illustration of the pump in fast inflation mode for an air mattress and high-pressure mode for a paddle board.

4.6. Wide Application with 6 Nozzles

Includes 6 different nozzles to accommodate most high-pressure inflatable devices, such as stand-up paddle boards, air mattresses, kayaks, boats, arches, pools, and tents.

Image: The pump's integrated storage box displaying the six included inflation nozzles.

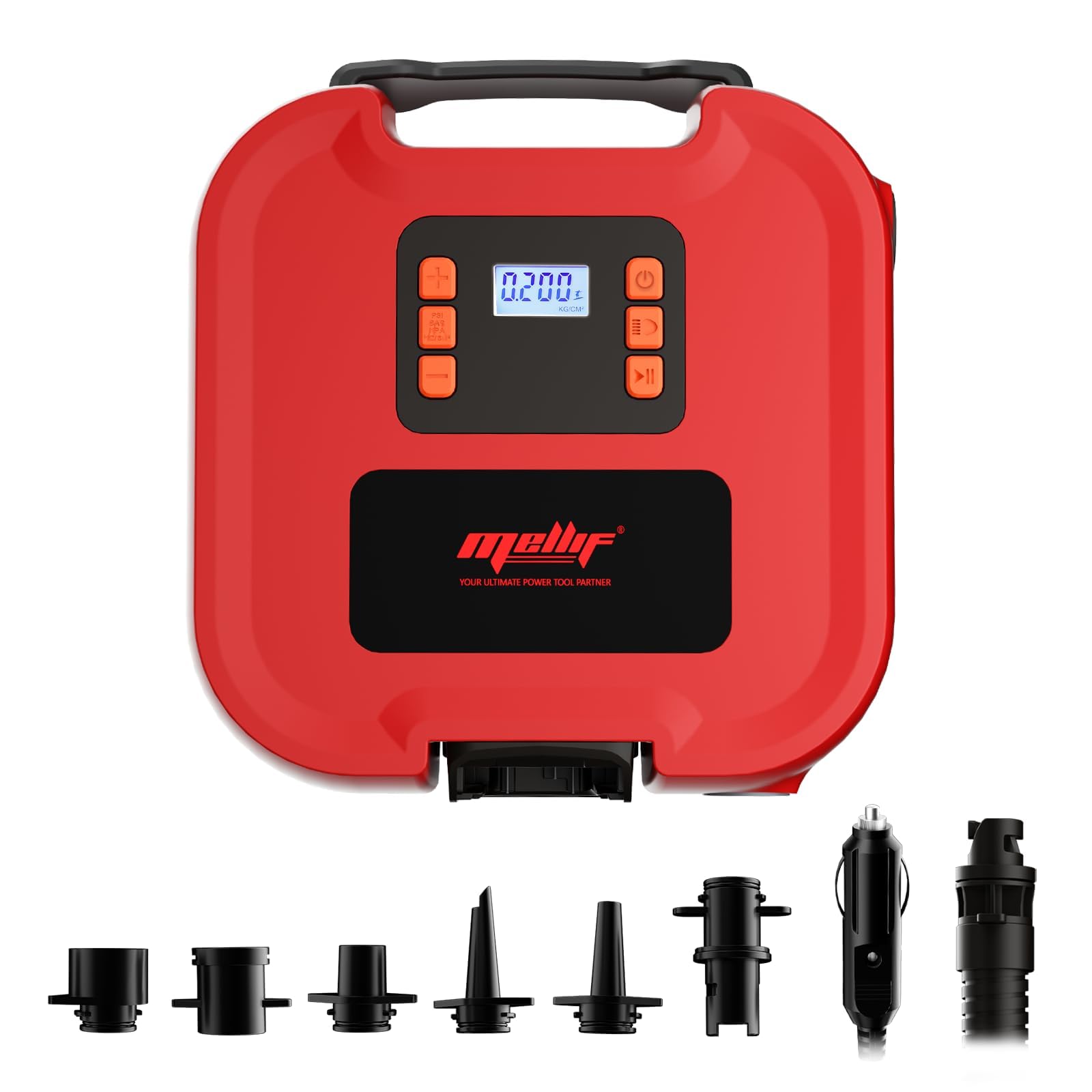

Image: The Mellif Cordless Paddle Board Pump, highlighting its portable design, inflation port, and deflation port.

5. Setup

5.1. L-Ixgħel tal-Pompa

1. Using a Milwaukee 18V Battery (Not Included):
   • Kun żgur li l-batterija hija kompletament iċċarġjata.
   • Align the battery with the battery slot on the pump and slide it in until it clicks securely into place.
   • Biex tneħħiha, agħfas il-buttuna tar-rilaxx tal-batterija u żżerżaq il-batterija 'l barra.
2. Using the 12V DC Car Connector:
   • Plug the 12V DC car power cord into the designated port on the pump.
   • Insert the other end of the car power cord into your vehicle's 12V accessory socket (cigarette lighter socket).

5.2. Attaching the Hose and Nozzle

1. Identify the correct nozzle for your inflatable item from the 6 included options.
2. Attach the chosen nozzle to the end of the inflation hose. Ensure it is securely fastened.
3. For inflation, connect the other end of the hose to the Port tal-inflazzjoni on the pump (typically marked with an arrow pointing outwards or "INFLATE").
4. For deflation, connect the hose to the Port tad-Deflazzjoni on the pump (typically marked with an arrow pointing inwards or "DEFLATE").

Image: A visual guide demonstrating how to connect the various nozzles to the pump's hose.

6. Istruzzjonijiet Operattivi

6.1. Inflazzjoni

1. Ensure the pump is powered and the hose with the correct nozzle is connected to the Port tal-inflazzjoni.
2. Connect the nozzle securely to the valve of your inflatable item.
3. Agħfas il-buttuna tal-enerġija (⏻) to turn on the pump. The LCD screen will illuminate.
4. Use the "UNIT" button to select your desired pressure unit (PSI, KPa, BAR, KG/CM²).
5. Uża l-"+" u "-" buttons to set the target pressure. Refer to your inflatable item's manufacturer recommendations for the correct pressure.
6. Press the "START/STOP" button (▶/■) to begin inflation.
7. The pump will operate in fast inflation mode initially, then switch to high-pressure mode. The LCD screen will display the real-time pressure.
8. Il-pompa tintefa awtomatikament ladarba tintlaħaq il-pressjoni stabbilita minn qabel.
9. Disconnect the nozzle from the inflatable item and turn off the pump.

6.2. Deflazzjoni

1. Ensure the pump is powered and the hose with the correct nozzle is connected to the Port tad-Deflazzjoni.
2. Connect the nozzle securely to the valve of your inflatable item.
3. Agħfas il-buttuna tal-enerġija (⏻) to turn on the pump.
4. Press the "DEFLATE" button (often indicated by an arrow pointing inwards or a specific deflate icon) to begin deflation.
5. Allow the pump to run until the inflatable item is sufficiently deflated.
6. Disconnect the nozzle and turn off the pump.

6.3. L-użu tad-Dawl tax-Xogħol LED

Press the dedicated light button (often indicated by a light bulb icon) to turn the LED work light on or off. This is useful for operating the pump in low-light conditions.

7. Manutenzjoni

• Tindif: Wipe the pump exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the pump.
• Ħażna: Store the pump in a cool, dry place away from direct sunlight and extreme temperatures. Keep all nozzles and the hose stored neatly in the integrated storage box to prevent loss or damage.
• Kura tal-batterija: If using a Milwaukee 18V battery, remove it from the pump when not in use for extended periods. Store batteries in a cool, dry place and charge them periodically if not used regularly.
• Manka u Żennuni: Inspect the hose and nozzles regularly for any signs of wear, cracks, or damage. Replace if necessary to ensure optimal performance and prevent air leaks.

Immaġni: Interna view of the pump highlighting its efficient heat dissipation design with airflow indicators.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

Garanzija: This Mellif product comes with a 5-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

Appoġġ għall-Klijent: For technical assistance, troubleshooting, or warranty inquiries, please contact Mellif customer support:

• Email: info@mellif-tools.com
• Please visit the official Mellif webis-sit għal aktar riżorsi ta' appoġġ u informazzjoni dwar il-prodott.

11. Applikazzjoni Wiesgħa Examples

The Mellif Cordless Paddle Board Pump is versatile and can be used for a variety of inflatable items. Here are some common applications:
