1. Introduzzjoni
Thank you for choosing the Mesqool Vibrating Alarm Clock. This device is designed to provide a reliable and customizable wake-up experience, particularly beneficial for heavy sleepers, individuals with hearing impairments, or those who prefer a silent alarm. Featuring a powerful vibration, dual alarm settings, and a long-lasting rechargeable battery, this cordless alarm clock is suitable for both home and travel use.
2. Kontenut tal-Pakkett
- Mesqool Vibrating Alarm Clock (Purple)
- Cable tal-Iċċarġjar tal-USB-C
- Ċinga tal-polz
- Manwal għall-Utent
Image: Contents of the Mesqool Vibrating Alarm Clock package, showing the purple alarm clock, a USB-C charging cable, a purple wrist strap, and the user manual.
3. Prodott Aktarview
Immaġni: Quddiem view of the Mesqool Vibrating Alarm Clock, showcasing its digital display with time, AM indicator, battery level, and alarm icons.
Karatteristiċi ewlenin:
- Operazzjoni mingħajr Fili: Enjoy freedom of placement without being tethered by cables.
- Batterija rikarikabbli: Equipped with a 3000mAh high-capacity battery, providing up to six months of use on a single charge.
- Vibrazzjoni aġġustabbli: Three vibration levels (Low, Medium, High) to suit individual preferences.
- Allarmi Doppju: Set two independent alarms for different schedules, with options for weekday, weekend, or all 7 days.
- Modi ta' Allarm Multipli: Choose between Vibration Only, Alarm Only (audible), or both Vibration and Alarm.
- Volum ta' Allarm Aġġustabbli: Audible alarm volume ranges from 56db to 105db.
- Kompatt u portabbli: Mini size (3.35"W x 3.35"H x 1.06"D) makes it ideal for travel.
- Snooze ta' 9 minuti: Allows for a brief delay before the alarm reactivates.
- Għażliet tal-Format tal-Ħin: Ibdel bejn il-wiri tal-ħin ta' 12-il siegħa u ta' 24 siegħa.
- Funzjoni DST: Aġġustament tal-Ħin tas-Sajf.
- Funzjoni Lock: Prevents accidental button presses during sleep or travel.
4. Setup
4.1 Iċċarġjar inizjali
Before first use, fully charge the alarm clock. Connect the provided USB-C cable to the charging port on the side of the device and plug the other end into a standard USB power adapter (not included) or a computer USB port. The battery indicator on the display will show charging status and full charge.
Image: The Mesqool alarm clock being charged via its USB-C port, with the charging cable connected to a power source.
Image: A close-up diagram highlighting the battery indicator on the display and the Type-C charging port on the side of the alarm clock.
4.2 Twaħħil taċ-Ċinga tal-Polz
Thread the provided wrist strap through the small loop hole on the side of the alarm clock. This can help prevent losing the clock, especially when used under a pillow.
5. Istruzzjonijiet Operattivi
5.1 Funzjonijiet tal-buttuni
Familiarize yourself with the buttons located on the top and side of the alarm clock:
- TIME/SNOOZE Button: Press to enter time setting mode; press during alarm to activate snooze.
- Buttuna tal-ALLARM 1: Press to set Alarm 1.
- Buttuna tal-ALLARM 2: Press to set Alarm 2.
- Buttuna '+': Increase value during setting; adjust volume/vibration level.
- Buttuna '-': Decrease value during setting; adjust volume/vibration level.
- Swiċċ LOCK: Slide to lock/unlock buttons.
- VIBRATION/ALARM Mode Switch: Select alarm mode (Vibration Only, Alarm Only, Both).
- 12/24H & DST Switch: Toggle between 12-hour and 24-hour time format, and activate/deactivate DST.
Immaġni: Dettaljata view of the top control panel of the alarm clock, indicating the functions of the TIME/SNOOZE, ALARM 1, ALARM 2, '+' and '-' buttons.
Immaġni: Naħa waħda view of the alarm clock, illustrating the position and function of the lock switch, vibration/alarm mode switch, and 12/24H & DST switch.
5.2 Issettjar tal-Ħin
- Ensure the LOCK switch is in the unlocked position.
- Agħfas u żomm il- TIME/SNOOZE Agħfas il-buttuna għal 3 sekondi. Iċ-ċifri tas-sigħat jibdew jteptep.
- Uża l- '+' or '-' buttuni biex taġġusta s-siegħa.
- Agħfas il- TIME/SNOOZE Agħfas il-buttuna mill-ġdid biex tikkonferma s-siegħa u tmur għall-issettjar tal-minuti. Iċ-ċifri tal-minuti jibdew jteptep.
- Uża l- '+' or '-' buttuni biex taġġusta l-minuta.
- Agħfas il- TIME/SNOOZE button again to confirm the minute and move to day setting. The day indicator will flash.
- Uża l- '+' or '-' buttons to select the current day (MON, TUE, WED, THU, FRI, SAT, SUN).
- Agħfas il- TIME/SNOOZE button one last time to save all settings and exit time setting mode.
5.3 Issettjar tal-Allarmi (Allarm 1 & Allarm 2)
The clock supports two independent alarms. The setting process is identical for both.
- Ensure the LOCK switch is in the unlocked position.
- Agħfas u żomm il- ALLARM 1 or ALLARM 2 Agħfas il-buttuna għal 3 sekondi. Iċ-ċifri tas-siegħa tal-allarm jibdew jteptep.
- Uża l- '+' or '-' buttuni biex taġġusta s-siegħa tal-allarm.
- Agħfas il-korrispondenti ALLARM Agħfas il-buttuna mill-ġdid biex tikkonferma s-siegħa u tmur għall-issettjar tal-minuti. Iċ-ċifri tal-minuti tal-allarm se jteptpu.
- Uża l- '+' or '-' buttuni biex taġġusta l-minuta tal-allarm.
- Agħfas il-korrispondenti ALLARM button again to confirm the minute and move to alarm frequency setting. The day indicators will flash.
- Uża l- '+' or '-' buttons to select the alarm frequency:
- MIT-TNEJN SAL-ĠIMGĦA: Weekday alarm.
- SAT-SUN: Allarm tal-weekend.
- MON-SUN: Everyday alarm.
- Agħfas il-korrispondenti ALLARM button one last time to save all settings and exit alarm setting mode.

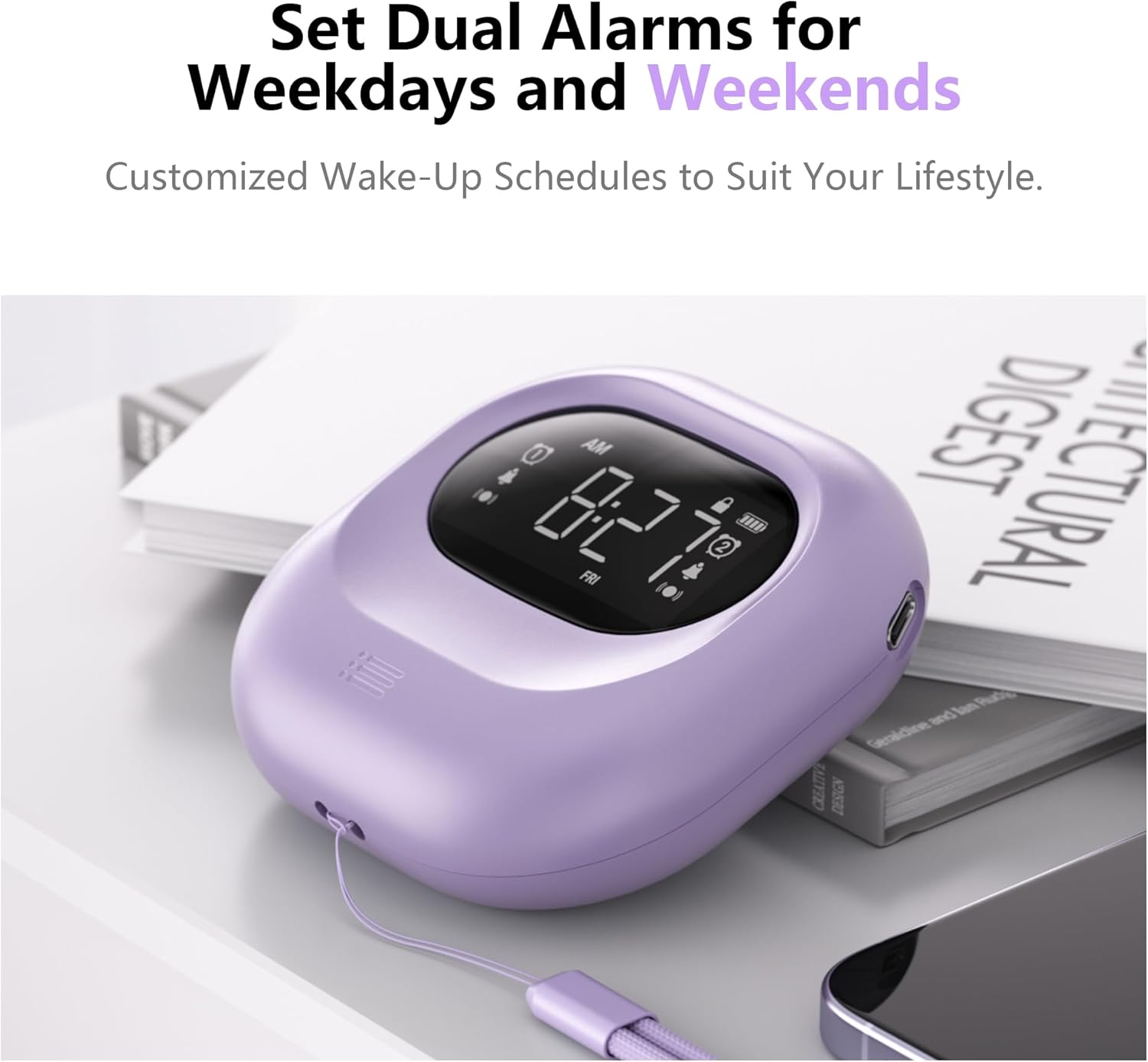

Image: The alarm clock positioned on a bedside table, showing the digital display with two alarm icons activated, indicating the dual alarm functionality.
Image: A visual representation of the dual alarm feature, demonstrating how to set alarms for weekdays, weekends, or all seven days.
5.4 Adjusting Vibration Levels
The alarm clock offers three vibration intensity levels: Low, Medium, and High. To adjust:
- Sib il- VIBRATION/ALARM Mode Switch fuq il-ġenb tal-apparat.
- Slide the switch to the desired vibration level (L, M, H).
Image: A person sleeping with the alarm clock placed under their pillow, demonstrating its use for silent, vibrating wake-up. The image also shows icons for Low, Middle, and High vibration settings.
Image: A graphic representation of the three adjustable vibration levels: Low, Middle, and High, indicating increasinintensità g.
5.5 Adjusting Alarm Volume and Mode
The audible alarm volume can be adjusted, and you can select the alarm mode.
- To adjust volume: While the alarm is sounding, press the '+' or '-' buttons to increase or decrease the volume (56db to 105db).
- To select alarm mode: Use the VIBRATION/ALARM Mode Switch on the side of the device to choose between:
- VIB: Vibrazzjoni Biss
- BUZZ: Audible Alarm Only
- VIB+BUZZ: Both Vibration and Audible Alarm
Image: A child sleeping peacefully with the alarm clock placed near their head, illustrating the various alarm modes available: Vibration Only, Vibration with Buzzer, and Buzzer Only.
Image: A graphic illustrating the three alarm modes (Vibration, Vibration + Buzzer, Buzzer) and the adjustable volume range for the audible alarm, from 56db to 105db.
5.6 Funzjoni Snooze
Meta tinstema' allarm, agħfas il-buttuna TIME/SNOOZE button to activate the 9-minute snooze function. The alarm will temporarily stop and sound again after 9 minutes. To cancel snooze and turn off the alarm, press any other button.
5.7 12/24H Time Format and DST
Uża l- 12/24H & DST Switch on the side of the device to toggle between 12-hour (with AM/PM indicator) and 24-hour time formats. This switch also allows you to activate or deactivate Daylight Saving Time (DST) if needed.
5.8 Funzjoni Lock
To prevent accidental changes to settings or unintended alarm deactivation, slide the LOCK switch on the side of the device to the locked position. This will disable all buttons except for the snooze function (if an alarm is active). Slide it back to the unlocked position to adjust settings.
Image: A close-up of the side of the alarm clock, highlighting the lock switch and its function to prevent accidental operations.
6. Iċċarġjar u Batterija
The Mesqool Vibrating Alarm Clock is equipped with a 3000mAh rechargeable battery. A full charge can provide up to six months of operation, depending on usage frequency and vibration intensity. When the battery is low, a battery indicator will appear on the display. Connect the USB-C cable to recharge the device.
7. Manutenzjoni
- Naddaf l-apparat b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Avoid exposing the alarm clock to extreme temperatures, direct sunlight, or moisture.
- Tippruvax tiżżarma l-apparat, għax dan jannulla l-garanzija.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-allarm mhux qed idoqq/jivvibra. | Alarm is not set, alarm mode is incorrect, or battery is low. | Ensure alarm is set correctly (Section 5.3). Check the VIBRATION/ALARM Mode Switch (Section 5.5). Charge the device (Section 6). |
| Il-buttuni ma jirrispondux. | LOCK switch is engaged. | Slide the LOCK switch to the unlocked position (Section 5.8). |
| Id-displej huwa mudlam jew vojt. | Il-batterija hija baxxa jew eżawrita. | Charge the device (Section 6). |
| Ħin muri ħażin. | Time was not set correctly or DST is active/inactive incorrectly. | Reset the time (Section 5.2). Check the DST setting (Section 5.7). |
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Mesqool |
| Numru tal-Mudell | CR1027 |
| Kulur | Vjola |
| Tip ta 'Wiri | Diġitali |
| Dimensjonijiet tal-Prodott | 3.35"W x 3.35"Għ x 1.06"F |
| Piż tal-oġġett | 6.7 uqija |
| Sors tal-Enerġija | Li jaħdem bil-batterija (rikarikabbli) |
| Kapaċità tal-batterija | 3000mAh |
| Materjal | Akrilonitril Butadiene Styrene (Plastik ABS) |
| Alarm Volume Range | 56db - 105db |
| Karatteristiċi Speċjali | Adjustable Vibration, Battery Indicator, Cordless, Dual Alarms, Snooze, 12/24H, DST, Lock Function |
10. Garanzija u Appoġġ
10.1 Informazzjoni dwar Garanzija
This Mesqool Vibrating Alarm Clock comes with an extended warranty. Please refer to the warranty card included in your package or contact Mesqool customer support for specific details regarding warranty coverage and duration.
10.2 Appoġġ għall-Klijent
For any questions, technical assistance, or support needs, please contact Mesqool customer service. Contact information can typically be found on the product packaging, the official Mesqool webis-sit, jew il-karta tal-garanzija.
