Manwal ta' Istruzzjonijiet għall-Vanity tal-Kamra tal-Banju ARIEL Kelly 72 fid-Disinn Slim Shaker

1. Introduzzjoni

This manual provides essential information for the safe and proper installation, operation, and maintenance of your new ARIEL Kelly 72 in Slim Shaker Design Bathroom Vanity. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The ARIEL Kelly vanity features a modern, minimalist Slim Shaker style with a clean, contemporary look. It includes a Carrara White Quartz countertop with a 1.5-inch thick mitered edge and 4-inch backsplash, along with a porcelain UPC-certified sink. Designed for optimal organization, it offers three levels of drawer sizes, inner pull-out drawers, soft-closing doors and drawers, and an interior adjustable shelf. Constructed from solid wood and plywood with durable Sherwin Williams PU paint, it ensures a sturdy and long-lasting structure.

Figura 1.1: Quddiem view of the ARIEL Kelly 72-inch Slim Shaker Design Bathroom Vanity.

2. Informazzjoni dwar is-Sigurtà

Always prioritize safety during installation and use. Failure to follow these guidelines may result in injury or damage to the product.

• Oġġett Tqil: The vanity is heavy. Always use proper lifting techniques and seek assistance when moving or lifting the unit to prevent injury.
• Truf li jaqtgħu: Be cautious of sharp edges on the countertop or cabinet during handling. Wear appropriate protective gloves.
• Plumbing: Ensure all water supply lines are turned off before disconnecting or connecting plumbing fixtures. Consult a qualified plumber if you are unsure about any plumbing connections.
• Elettriku: If installing lighting or electrical outlets, ensure power is disconnected at the circuit breaker. Consult a qualified electrician for any electrical work.
• Installazzjoni Sikura: The vanity must be securely anchored to wall studs to prevent tipping. Use appropriate fasteners for your wall type.
• Ventilazzjoni: Ensure adequate ventilation in the bathroom to prevent moisture buildup, which can damage the vanity over time.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel tibda l-assemblaġġ. Jekk xi partijiet huma neqsin jew imħassra, ikkuntattja l-appoġġ għall-klijenti immedjatament.

• Pre-assembled Vanity Cabinet
• Carrara White Quartz Countertop with integrated sink(s)
• Backsplash
• Hardware (handles, adjustable shelf pins, leveling feet)

Note: Faucets, drains, and P-traps are not included and must be purchased separately.

4. Għodod Meħtieġa

L-għodda li ġejjin huma tipikament meħtieġa għall-installazzjoni:

• Tejp tal-Kejl
• Lapes
• Livell
• Finder Stud
• Drill bi drill bits xierqa
• Tornavit (Phillips u Flathead)
• Wrench aġġustabbli
• Caulk Gun and Silicone Sealant (mildew-resistant)
• Nuċċalijiet u Ingwanti tas-Sigurtà

5. Installazzjoni u Setup

Follow these steps for proper installation of your vanity. It is recommended to have two people for installation due to the weight and size of the unit.

5.1 Kontrolli ta' qabel l-installazzjoni

1. Żona Spezzjonata: Ensure the installation area is clean, dry, and free of obstructions. Verify that plumbing rough-ins are correctly positioned for the vanity.
2. Level Floor: Check if the floor where the vanity will sit is level. Use the adjustable leveling feet on the vanity to compensate for minor unevenness.
3. Sib Studs: Use a stud finder to locate wall studs behind the installation area. Mark their positions, as the vanity should be secured to these for stability.

5.2 Placing and Securing the Vanity

1. Vanità tal-Pożizzjoni: Carefully move the vanity cabinet into its desired position. Ensure it is centered and aligned with your plumbing.
2. Level Vanity: Adjust the hidden leveling feet at the base of the vanity until the cabinet is perfectly level from front to back and side to side.
3. Waħħal mal-Ħajt: Drill pilot holes through the vanity's back support rail into the wall studs. Secure the vanity to the wall using appropriate screws (not included) to prevent tipping.

Figure 5.1: Vanity Dimensions for planning.

5.3 Countertop and Sink Installation

1. Applika siġillant: Apply a continuous bead of silicone sealant along the top edges of the vanity cabinet where the countertop will rest.
2. Place Countertop: Carefully lower the quartz countertop onto the vanity cabinet, aligning it precisely. Press down firmly to ensure good adhesion with the sealant.
3. Installa l-Backsplash: Apply a bead of silicone sealant to the back edge of the countertop and the wall where the backsplash will be placed. Press the backsplash firmly into position.
4. Qabbad Plumbing: Install your chosen faucets and drains according to their manufacturer's instructions. Connect the water supply lines and P-traps. Ensure all connections are tight to prevent leaks.

Figure 5.2: Detail of the Carrara White Quartz Countertop and Porcelain Sink.

5.4 Adjusting Doors and Drawers

The vanity features soft-closing doors and dovetail drawers. Minor adjustments may be needed after installation to ensure perfect alignment and smooth operation.

• Aġġustament tal-Bieb: Most soft-closing hinges have screws for horizontal, vertical, and depth adjustments. Refer to the hinge manufacturer's instructions for precise adjustments.
• Drawer Adjustment: Full-extension drawer slides can typically be adjusted for alignment. Consult the slide manufacturer's guide if drawers are not closing smoothly or are misaligned.
• Xkafef aġġustabbli: The interior shelves can be adjusted to three different levels to customize storage space. Simply move the shelf pins to the desired height.

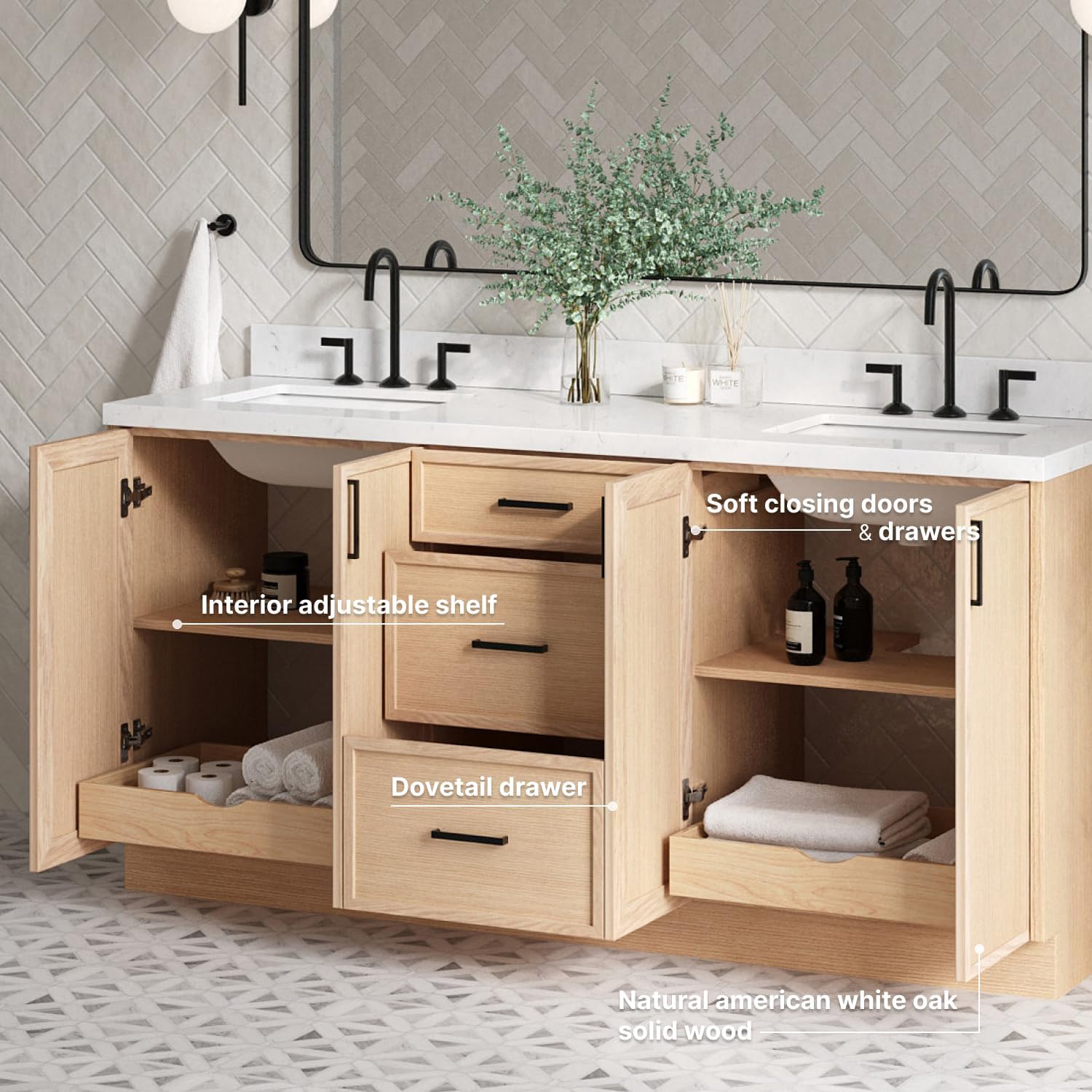

Figure 5.3: Interior storage features including adjustable shelves and dovetail drawers.

Figure 5.4: Adjustable interior shelving.

6. Operazzjoni

Your ARIEL Kelly vanity is designed for daily use in a bathroom environment. Its features are intuitive and require minimal special operation.

• Doors and Drawers: The soft-closing mechanisms ensure quiet and gentle closure. Avoid forcing them shut; allow the mechanism to engage naturally.
• Sinks: Use the integrated porcelain sinks for typical bathroom activities. Ensure proper drainage and avoid pouring harsh chemicals down the drain that could damage plumbing.
• Ħażna: Utilize the various drawer sizes and adjustable shelves for organized storage of bathroom essentials. The inner pull-out drawers maximize hidden space.

7. Manutenzjoni

Regular cleaning and proper care will help maintain the beauty and longevity of your vanity.

7.1 Cabinet Care (Wood Finish)

• Tindif: Wipe down the cabinet surfaces with a soft, damp cloth. For stubborn spots, use a mild, non-abrasive cleaner specifically designed for wood finishes. Always wipe dry immediately to prevent water spots or damage.
• Evita kimiċi ħorox: Do not use abrasive cleaners, ammonia-based products, or silicone-based polishes, as these can damage the Sherwin Williams PU paint finish.
• Umdità: Promptly wipe up any spills or splashes to prevent water from penetrating the wood. Ensure good ventilation in the bathroom to minimize humidity.

7.2 Countertop Care (Carrara White Quartz)

• Tindif ta 'Kuljum: Clean daily with a soft cloth and warm water, or a mild, pH-neutral cleaner.
• Tbajja: For tougher stains, use a non-abrasive household cleaner. Avoid highly acidic or alkaline cleaners, as well as abrasive scrubbing pads, which can dull the surface.
• Sħana: While quartz is heat-resistant, it is recommended to use trivets or hot pads under hot items to prevent potential damage from extreme temperature changes.
• Issiġillar: Quartz countertops are non-porous and do not require sealing.

7.3 Sink Care (Porcelain)

• Tindif: Clean the porcelain sink with a soft cloth and a mild, non-abrasive bathroom cleaner. Rinse thoroughly after cleaning.
• Evita l-Abrasivi: Do not use abrasive powders, scouring pads, or steel wool, as these can scratch the porcelain surface.

7.4 Hardware and Mechanisms

• Mankijiet: Clean matte black handles with a soft, damp cloth. Avoid harsh chemicals that could strip the finish.
• Soft-Closing Mechanisms: These are designed for durability. Avoid slamming doors or drawers, as this can prematurely wear out the mechanisms. No lubrication is typically required.

8 Issolvi l-problemi

Din it-taqsima tindirizza kwistjonijiet komuni li tista' tiltaqa' magħhom bil-vanity tiegħek.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

Your ARIEL Kelly Bathroom Vanity comes with a Garanzija limitata ta 'senaDin il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali.

For warranty claims, technical assistance, or any questions regarding your product, please contact ARIEL customer support. They are available 24/7 to provide reliable service and peace of mind.

Informazzjoni ta' Kuntatt: Please refer to the contact details provided on your purchase receipt or the ARIEL official webis-sit għall-aktar informazzjoni ta' appoġġ aġġornata.

The product is shipped on custom pallets to prevent damage during transit, ensuring it arrives in optimal condition.
