Radxa Camera 8M 219 Instruction Manual

Prodott Overview

The Radxa Camera 8M 219 is a compact camera module designed for integration with Radxa Single Board Computers (SBCs). It features an 8-megapixel IMX219 sensor and connects via a MIPI CSI interface, providing high-quality imaging capabilities for various embedded applications.

Quddiem view of the Radxa Camera 8M 219, showing the lens and the Radxa logo on the green PCB.

Lura view of the Radxa Camera 8M 219, displaying the "Radxa Camera 8M" text and the MIPI CSI connector.

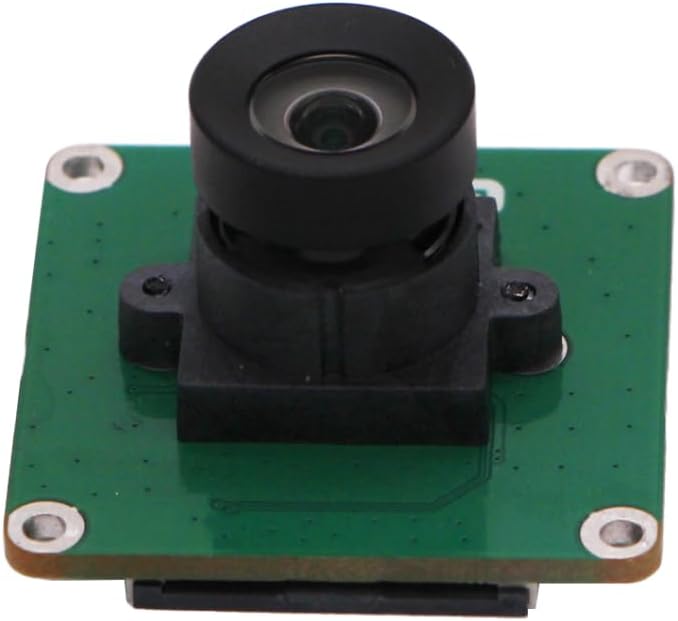

Side profile of the Radxa Camera 8M 219, highlighting the compact form factor and lens assembly.

Karatteristiċi Ewlenin

IMX219 Sensor: Equipped with an 8-megapixel Sony IMX219 sensor for high-resolution image capture.
MIPI CSI Interface: Utilizes the MIPI CSI (Camera Serial Interface) for efficient data transfer to compatible host devices.
Radxa SBC Compatibility: Designed to seamlessly integrate with various Radxa Single Board Computers.

Close-up view of the Sony IMX219 sensor, highlighting its 8-megapixel capability.

Gwida ta' Setup

1. Spakkjar

Carefully remove the Radxa Camera 8M 219 from its packaging. Ensure all components listed in the "What's in the Box" section are present.

Board Body

2. Connecting to a Radxa SBC

The camera connects to your Radxa Single Board Computer via the MIPI CSI interface. Locate the MIPI CSI connector on both the camera module and your SBC.

Identify the MIPI CSI connector on your Radxa SBC. This is typically a small, multi-pin flat flexible cable (FFC) connector.
Gently lift the locking tab on the SBC's MIPI CSI connector.
Insert the ribbon cable from the Radxa Camera 8M 219 into the connector, ensuring the contacts are facing the correct direction (usually blue side up or contacts facing the PCB).
Press down the locking tab to secure the ribbon cable in place.

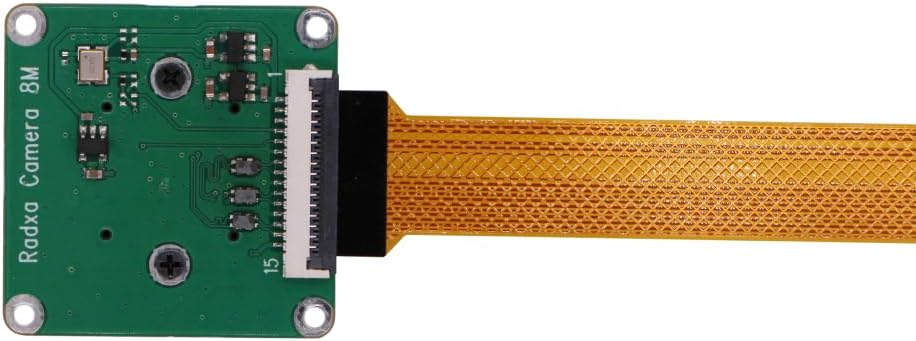

The Radxa Camera 8M 219 with its attached ribbon cable, ready for connection.

Diagram illustrating the connection of the camera's MIPI CSI interface to a compatible SBC.

The Radxa Camera 8M 219 fully connected to a Radxa Single Board Computer.

For specific instructions on your Radxa SBC model, refer to its official documentation.

Istruzzjonijiet Operattivi

Once the camera is physically connected to your Radxa SBC, you will need to configure the software to enable and utilize the camera. This typically involves installing necessary drivers and camera software.

1. Konfigurazzjoni tas-Software

Sistema Operattiva: Ensure your Radxa SBC is running a compatible Linux distribution.
Installazzjoni tas-sewwieq: Install the appropriate camera drivers for the IMX219 sensor. Refer to the official Radxa documentation or community forums for detailed instructions specific to your SBC model and operating system.
Camera Software: Utilize standard Linux camera tools (e.g., libcamera, fswebcam, gstreamer) or specific Radxa-provided utilities to access and control the camera.

2. Basic Camera Usage (Example)

After successful driver installation, you can test the camera. For example, bl-użu libcamera-still (jekk libcamera is installed and configured):

libcamera-still -o test.jpg

This command will capture an image and save it as test.jpg fid-direttorju attwali.

For video streaming, you might use libcamera-vid or gstreamer commands. Consult the documentation for your chosen software for advanced usage.

Manutenzjoni

The Radxa Camera 8M 219 is a low-maintenance device. Follow these guidelines to ensure its longevity and optimal performance:

Tindif tal-Lenti: If the lens becomes dirty, gently clean it with a soft, lint-free cloth specifically designed for optical surfaces. Avoid abrasive materials or harsh chemicals.
Protezzjoni mit-Trab: Keep the camera in a clean, dust-free environment when not in use or when integrated into a system.
Immaniġġjar Fiżiku: Handle the camera module by its edges to avoid touching the lens or the sensitive electronic components on the PCB.
Temperatura u Umdità: Operate and store the camera within recommended environmental conditions to prevent damage. Avoid extreme temperatures and high humidity.

Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
Camera not detected by SBC.	Loose or incorrect ribbon cable connection. Missing or incorrect camera drivers. SBC not configured for MIPI CSI.	Ensure the ribbon cable is fully inserted and the locking tab is secured. Check cable orientation. Verify driver installation and kernel module loading. Check your SBC's boot configuration (e.g., `config.txt` for Raspberry Pi compatible systems) to ensure the camera interface is enabled.
No image or black screen.	Dawl insuffiċjenti. Incorrect camera software settings. Camera module fault.	Ensure adequate lighting in the scene. Check camera software settings (e.g., exposure, gain). Test with another known-good camera module if available.
Image is distorted or blurry.	Lenti maħmuġa. Physical damage to the lens or sensor. Incorrect focus (if adjustable).	Clean the lens gently with an optical cleaning cloth. Inspect the camera for any visible damage. Some camera modules have adjustable focus; refer to advanced documentation if applicable.

Speċifikazzjonijiet

Karatteristika	Dettall
Sensor	Sony IMX219
Riżoluzzjoni	8 Megapixels
Interface	MIPI CSI
Kompatibilità	Radxa Single Board Computers (SBCs)
Piż tal-oġġett	0.48 uqija (madwar 13.6 gramma)
Dimensjonijiet tal-Pakkett	0.3 x 0.3 x 0.2 pulzieri (madwar 7.6 x 7.6 x 5.1 mm)
Manifattur	Radxa
Pajjiż ta' Oriġini	Iċ-Ċina

Garanzija u Appoġġ

Informazzjoni dwar Garanzija

This product is typically covered by a standard manufacturer's warranty. Please refer to the specific warranty terms provided by Radxa or your point of purchase for details regarding coverage period and conditions. Keep your proof of purchase for warranty claims.

Appoġġ Tekniku

For technical assistance, driver downloads, and detailed documentation, please visit the official Radxa website or their community forums. These resources provide comprehensive guides, software updates, and peer support for Radxa products.

Official Radxa Websit: www.radxa.com

For direct support inquiries, contact the seller or manufacturer through the platform where the product was purchased.
