Manwal tal-Utent tal-Multimetru Diġitali MGL MASTECH MAS830L

1. Introduzzjoni

This user manual provides comprehensive instructions for the safe and effective operation of the MGL MASTECH MAS830L Digital Multimeter. This device is designed for measuring various electrical parameters, offering reliability and precision for both domestic and electronics applications.

Figura 1: Quddiem view of the MGL MASTECH MAS830L Digital Multimeter, displaying its clear LCD screen and rotary dial.

2. Informazzjoni dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment personali jew ħsara lill-multimetru:

• Do not exceed the maximum input limits for any measurement range.
• Oqgħod attent ħafna meta taħdem bil-voltag'il fuq minn 30V AC RMS, 42V peak, jew 60V DC. Dawn il-volumitages joħolqu periklu ta' xokk.
• Qabel ma tibdel il-funzjonijiet, skonnettja ċ-ċomb tat-test miċ-ċirkwit li qed jiġi ttestjat.
• Do not operate the multimeter if it appears damaged or if the test leads are damaged.
• Kun żgur li l-għatu tal-batterija jkun magħluq sew qabel l-operazzjoni.
• Ibdel il-batterija meta jidher l-indikatur ta' batterija baxxa biex tiżgura qari preċiż.
• Osserva l-kodiċijiet tas-sigurtà lokali u nazzjonali kollha.

Warning: Incorrect use of this meter can cause damage, shock, or injury.

3. Karatteristiċi tal-prodott

The MGL MASTECH MAS830L Digital Multimeter offers a range of features for versatile electrical measurements:

• Wiri: 2000 għadd għal qari preċiż.
• Test tad-Diode: Miftuħ Voltage 3.0V.
• Żamma tad-Data: Jiffriża l-qari muri għal konvenjenza.
• Low Battery Display: Indicates when battery replacement is needed.
• Buzzer tal-Kontinwità: Audible alert for continuity testing (less than 70 ±30Ω).
• Dawl ta' wara tal-wiri: For improved visibility in low-light conditions.
• Konformità: CE, RoHS, UL certified.

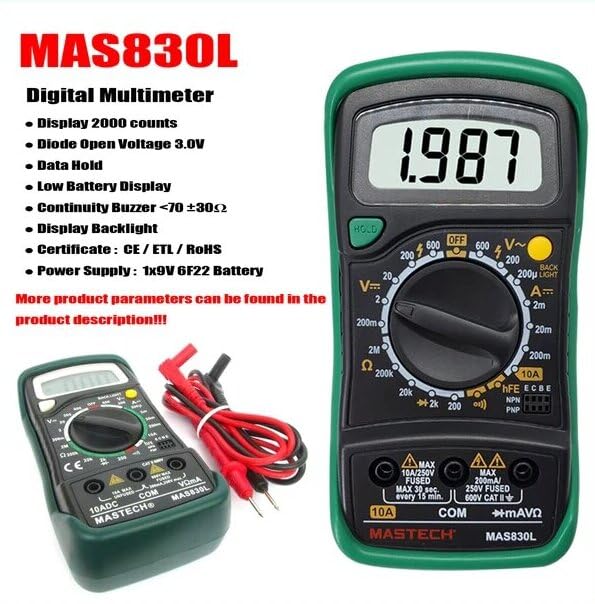

Figure 2: The MAS830L Multimeter highlighting its key features and included test leads.

Figura 3: Dettaljat view of the multimeter's high-definition LCD screen, designed for clear and easy data reading.

4. Setup

4.1. Spakkjar u Spezzjoni

Carefully unpack the multimeter and check for any signs of damage. Verify that all components listed below are present:

• MGL MASTECH MAS830L Digital Multimeter
• Wavel tat-Test (Aħmar u Iswed)
• 1x 9V 6F22 Battery (pre-installed or included)
• Calibration Certificate (if included)
• Gwida ta' Bidu Mgħaġġel (jekk inkluża)

Figure 4: Illustration of the MAS830L package contents and typical applications.

4.2. Installazzjoni/Sostituzzjoni tal-batterija

The MAS830L uses one 9V 6F22 battery. If the low battery indicator appears on the display, or if the unit does not power on, replace the battery:

1. Kun żgur li l-multimetru jkun MITFI u skonnettja l-wajers tat-test kollha.
2. Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-unità.
3. Ħoll il-vit(i) taż-żamma u neħħi l-għatu.
4. Carefully remove the old battery (if present) and disconnect it from the battery clip.
5. Connect the new 9V 6F22 battery to the battery clip, observing correct polarity.
6. Place the new battery into the compartment and replace the cover, securing it with the screw(s).

5. Istruzzjonijiet Operattivi

5.1. Operazzjoni Ġenerali

1. Connect the black test lead to the "COM" input jack.
2. Connect the red test lead to the appropriate input jack for the desired measurement:
   • "VΩmA" for voltage, reżistenza, u kejl ta' kurrent żgħir.
   • "10A" for high current measurements (up to 10A).
3. Turn the rotary switch to the desired function and range.
4. Connect the test leads to the circuit or component under test.
5. Read the measurement value on the LCD display.

5.2. Funzjonijiet tal-Kejl

DC Voltage Measurement (V–):

• Issettja s-swiċċ rotatorju għall-Volum DC mixtieqtagfirxa e (eż., 200mV, 2V, 20V, 200V, 600V).
• Connect the red lead to the positive side and the black lead to the negative side of the DC source.

AC Voltage Measurement (V∼):

• Issettja s-swiċċ rotatorju għall-Volum AC mixtieqtagfirxa e (eż., 200V, 600V).
• Connect the test leads across the AC source.

DC Current Measurement (A–):

• Set the rotary switch to the desired DC Current range (e.g., 2mA, 20mA, 200mA, 10A).
• Importanti: For 10A measurements, move the red lead to the "10A" input jack.
• Qabbad il-multimetru f'serje maċ-ċirkwit.

Resistance Measurement (Ω):

• Set the rotary switch to the desired Resistance range (e.g., 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ).
• Kun żgur li ċ-ċirkwit ma jkollux l-enerġija qabel ma tkejjel ir-reżistenza.
• Qabbad il-wajers tat-test mal-komponent.

Diode Test (▶):

• Issettja s-swiċċ rotatorju għall-pożizzjoni tat-Test tad-Diode.
• Qabbad il-wajer aħmar mal-anodu u l-wajer iswed mal-katodu tad-dijodu. Id-displej se juri l-volum 'il quddiem.tagwaqgħa e. Dawwar il-wajers biex tiċċekkja għal ċirkwit miftuħ.

Continuity Test (♫):

• Issettja s-swiċċ rotatorju għall-pożizzjoni tat-Test tal-Kontinwità.
• Connect the test leads across the circuit or component. An audible buzzer will sound if continuity exists (resistance less than 70 ±30Ω).

Żamma tad-Data:

• Agħfas il-buttuna "HOLD" biex tiffriża l-qari attwali fuq id-displej. Agħfas mill-ġdid biex tirrilaxxa.

6. Manutenzjoni

6.1. Tindif

To clean the multimeter, use a soft, damp cloth and a mild detergent. Do not use abrasives or solvents. Ensure the unit is completely dry before use.

6.2. Sostituzzjoni tal-fjus

The MAS830L is equipped with internal fuses to protect against overcurrent. If the current measurement function fails, the fuse may need replacement. Refer to the specifications for fuse ratings.

1. Kun żgur li l-multimetru jkun MITFI u skonnettja l-wajers tat-test kollha.
2. Open the battery compartment cover as described in Section 4.2.
3. Sib il-fjus(ijiet) ġewwa l-kompartiment.
4. Carefully remove the blown fuse and replace it with a fuse of the identical type and rating.
5. Ibdel l-għatu tal-kompartiment tal-batterija u waħħalha.

Caution: Always use fuses with the specified voltage and current ratings to prevent fire or damage to the meter.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

The following table outlines the general and electrical specifications for the MGL MASTECH MAS830L Digital Multimeter:

Figure 5: Comparative specifications for various Mastech digital multimeters, including the MAS830L.

9. Garanzija u Appoġġ

The MGL MASTECH MAS830L Digital Multimeter comes with a standard warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

• Disponibbiltà ta' Spare Parts: 1 Year (as per manufacturer information).
• For technical support or warranty claims, please contact your retailer or the official Mastech customer service.
