WARN ProVantagManwal tal-Istruzzjonijiet tax-Xafra tal-Moħriet e II ta' 72 pulzier

1. Introduzzjoni

This manual provides essential instructions for the proper setup, operation, and maintenance of your WARN ProVantage II 72-inch Plow Blade. Designed for efficient snow and dirt removal, this plow system features a durable design, a winch hook attachment method to reduce rope wear, and a trip mechanism to protect the blade from obstacles. The re-designed blade-pivot mechanism ensures smooth operation, and the entire system is sandblasted and powder-coated for maximum corrosion resistance.

Please read this manual thoroughly before installation and use to ensure safe and effective operation.

Figure 1: WARN ProVantage II 72-inch Plow Blade, front view. This image shows the full width of the black plow blade with its curved design and the lower wear bar.

2. Informazzjoni dwar is-Sigurtà

Always prioritize safety when operating any equipment. Failure to follow safety instructions can result in serious injury or property damage.

• Aqra l-Istruzzjonijiet Kollha: Before assembly, installation, or operation, read and understand all instructions in this manual and any accompanying documentation for your vehicle and plow system.
• Ilbes Tagħmir Protettiv: Dejjem ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet tas-sigurtà, ingwanti, u xedd is-saqajn b'saħħtu.
• Kompatibbiltà tal-Vettura: Ensure the plow system is compatible with your vehicle and that your vehicle's capacity can handle the weight and stress of plowing.
• Żona tax-Xogħol Ċara: Keep bystanders, children, and pets away from the work area during operation.
• Spezzjona qabel l-użu: Before each use, inspect the plow blade, wear bar, skid shoes, and all mounting hardware for damage, wear, or loose fasteners. Replace or tighten as necessary.
• Veloċità tat-Tħaddim: Operate at a safe and controlled speed. Avoid sudden stops or turns.
• Ostakli: Be aware of obstacles. The plow features a trip mechanism, but excessive force can still cause damage.
• Propożizzjoni 65 Twissija: Dan il-prodott jista' jkun fih kimiċi magħrufa mill-Istat ta' Kalifornja li jikkawżaw kanċer, difetti fit-twelid, jew ħsara riproduttiva oħra. Aħsel idejk wara l-immaniġġjar.

3. Komponenti tal-Prodott

The WARN ProVantage II 72-inch Plow Blade includes the following main components:

• 72-inch Plow Blade (steel construction with reinforcing ribs and boxed cross-member)
• Reversible Wear Bar (pre-installed)
• Rotating Skid Shoes (pre-installed)
• Mounting Hardware (specific to blade attachment)

Note: Push tubes and vehicle-specific plow mounts are sold separately and are required for a complete plow system.

Figura 2: Close-up view of the WARN ProVantage II Plow Blade showing the upper mounting holes and the lower wear bar attachment points.

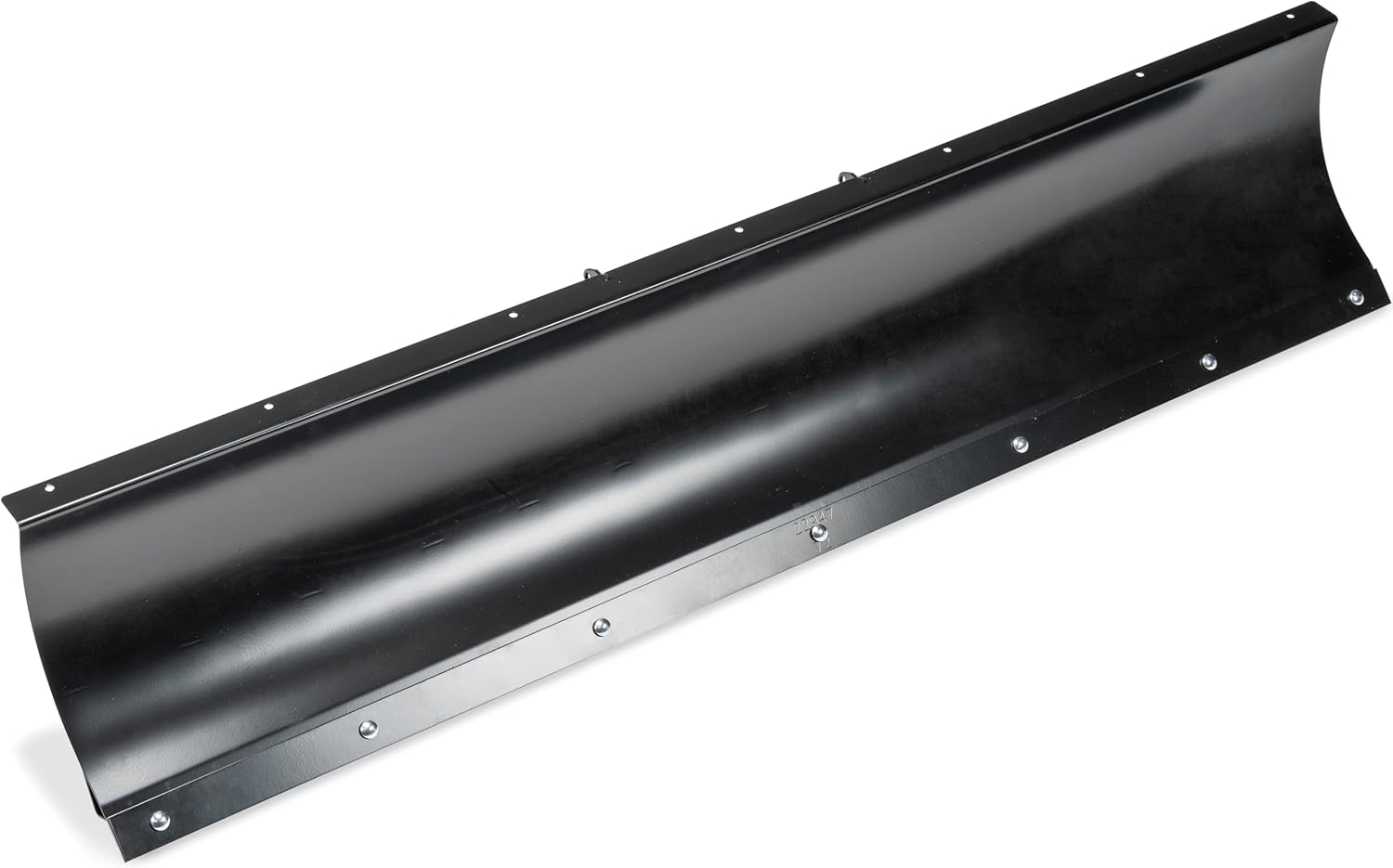

Figura 3: Angolat view of the WARN ProVantage II Plow Blade, highlighting its curvature and the robust construction of the steel blade and wear bar.

4. Setup u Installazzjoni

The WARN ProVantage II plow blade features pre-assembled components to simplify installation. This blade is compatible with all existing WARN plow mounts and ProVantage II push tubes.

4.1 Għodod Meħtieġa (Mhux Inklużi)

• Wrenches (appropriate sizes for mounting hardware)
• Torque Wrench
• Nuċċalijiet u Ingwanti tas-Sigurtà

4.2 Passi ta' Installazzjoni

1. Ipprepara Vettura: Park your vehicle on a level surface, engage the parking brake, and turn off the engine.
2. Install Plow Mount: If not already installed, attach the vehicle-specific WARN plow mount according to its separate instructions.
3. Attach Push Tubes: Connect the ProVantage II push tubes to the plow mount as per their instructions.
4. Connect Plow Blade: Align the plow blade with the push tubes. Secure the blade to the push tubes using the provided hardware. Ensure all bolts are tightened to the manufacturer's specified torque settings.
5. Winch Hook Attachment: Attach your winch hook to the designated attachment point on the plow system. The new design reduces winch rope wear.
6. Spezzjoni Finali: Double-check all connections and fasteners to ensure they are secure before operating the plow.

5. Istruzzjonijiet Operattivi

Proper operation ensures efficiency and extends the life of your plow blade.

5.1 Lista ta' Kontroll ta' Qabel l-Operazzjoni

• Verify all mounting hardware is tight.
• Check the condition of the wear bar and skid shoes.
• Ensure the winch and rope are in good working order.
• Clear the area of any hidden obstacles that could damage the plow or vehicle.

5.2 Plowing Techniques

• Angolu tax-xafra: Adjust the blade angle as needed for the material being moved. The blade-pivot mechanism allows for smooth adjustments.
• Għoli tax-xafra: The plow blade offers 6 easily adjusted height positions. Adjust the skid shoes to control the plowing depth and prevent digging into the surface.
• Trip Mechanism: The integrated trip mechanism allows the blade to trip forward when encountering an obstacle, protecting the plow from damage. After tripping, the blade will return to its operating position.
• Consistent Speed: Maintain a consistent, moderate speed for effective plowing. Avoid high speeds, especially when turning or encountering uneven terrain.
• Passijiet li Jikkonvertu: Overlap each plowing pass slightly to ensure complete coverage.

6. Manutenzjoni

Regular maintenance will ensure the longevity and optimal performance of your WARN ProVantage II Plow Blade.

• Naddaf Wara l-Użu: After each use, clean the plow blade to remove dirt, snow, salt, or other debris. This helps prevent corrosion.
• Inspect Wear Bar: The wear bar is reversible. When one side shows significant wear, unbolt it, flip it, and reattach it to utilize the second edge. Replace the wear bar when both sides are worn.
• Check Skid Shoes: Inspect the rotating skid shoes for wear. Replace them if they are excessively worn to maintain proper plowing depth and protect the blade.
• Lubrikazzjoni: Periodically lubricate pivot points and moving parts as recommended by WARN (refer to specific push tube or mount manuals if applicable).
• Iċċekkja tal-Qafliet: Regularly check all bolts, nuts, and fasteners for tightness. Tighten to specified torque values as needed.
• Protezzjoni mill-korrużjoni: The blade is sandblasted and powder-coated for corrosion resistance. Touch up any deep scratches or chips in the coating to prevent rust.
• Ħażna: When not in use, store the plow blade in a dry, protected area to prevent exposure to elements.

7 Issolvi l-problemi

This section addresses common issues you might encounter with your plow blade.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For specific warranty information regarding your WARN ProVantage II Plow Blade, please refer to the official warranty documentation provided with your purchase or visit the official WARN Industries website. WARN Industries is committed to providing high-quality powersports accessories.

For technical support, replacement parts, or further assistance, please contact WARN customer service directly. Contact information can typically be found on the WARN webis-sit jew fl-imballaġġ tal-prodott tiegħek.

WARN Industries Websit: www.warn.com
