1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of the Fablestoryem 15000W Wind and Solar Hybrid Controller. This controller is specifically designed to optimize energy management in wind and solar hybrid street lighting systems, and with minor adjustments, it can also be integrated into home energy systems. It features advanced MPPT boost charging for wind turbines and PWM discharge for solar panels, ensuring efficient and stable power generation.
2. Karatteristiċi tal-prodott
- MPPT Boost Charging: Utilizes Maximum Power Point Tracking technology for wind turbines, ensuring efficient charging even at low wind speeds.
- Vol. Awtomatikutage Identifikazzjoni: Automatically identifies 12V, 24V, and 48V system voltages.
- Kompatibilità Wiesgħa: Compatible with various battery types including lithium, lead-acid, and gel batteries.
- PWM Discharge Function: Features PWM overcurrent limit function for solar panel charging, using MOS tubes in series.
- Display LCD: Real-time display of parameters such as wind turbine power, photovoltaic power, battery status, load status, and cumulative power generation.
- Multiple Load Modes: Supports various working modes for load output, including pure light control, light control + time control (for street lights), and 24-hour operation (for monitoring).
- Comprehensive Safety Protection: Includes solar anti-reverse charging, battery reverse connection protection, open circuit protection, over-voltage protection, over-current load overload protection, and external unloading resistor for fan braking.
- Disinn Durabbli: Features aluminum profile heat dissipation, self-cooling, dust-proof, anti-static internal circuit board, and TVS lightning protection diodes.
3. Prodott Aktarview & Komponenti
The Fablestoryem Wind and Solar Hybrid Controller is designed for robust performance and ease of use. Below are images illustrating the product and its key components.
Figure 3.1: Fablestoryem 15000W Wind and Solar Hybrid Controller with a dump load resistor, set against a backdrop of solar panels and a house.
Figura 3.2: Diversi views of the controller, highlighting its compact design and terminal layout.
Figure 3.3: Physical dimensions of the controller for installation planning.
Figure 3.4: Labeled components of the controller and included accessories.
4. Speċifikazzjonijiet Tekniċi
| Parametru | Valur |
|---|---|
| Sistema Rated Voltage | Automatically identifies 12V/24V/48V |
| Kurrent bla tagħbija | <0.05A |
| Controller Power Source | Batteries or Photovoltaic Panels |
| Modalità ta' Kontroll | Fan MPPT boost charging, PWM discharge, PWM overcurrent limit |
| Modalità Wiri | LCD |
| Metodu ta 'Dissipazzjoni tas-Sħana | Pro tal-aluminjufile heat dissipation and self-cooling |
| Temperatura operattiva u Umdità | 20 ~ +55°C / 35 ~ 85% RH (non-condensing) |
| Piż Nett | 2.35kg (5.18 lbs) |
| Piż Gross | 2.85kg (6.28 lbs) |
| Daqs tal-Prodott (L*W*H) | 167mm * 145.5mm * 61.8mm (6.6 pulzieri * 5.7 pulzieri * 2.5 pulzieri) |
| Maximum Fan Input Voltage | 80V |
| Materjal | Pro tal-aluminjufile |
| Dimensjonijiet tal-Pakkett | 14.17 x 9.84 x 4.72 pulzieri |
| Piż tal-oġġett | 6.16 liri |
| Pajjiż ta' Oriġini | Iċ-Ċina |
5. Gwida għall-Installazzjoni
Proper installation is crucial for the safe and efficient operation of the hybrid controller. Please follow the wiring diagram and instructions carefully.
5.1 Dijagramma tal-Wiring
Figure 5.1: System wiring diagram. Ensure all connections are secure and correct polarity is observed.
5.2 Passi ta' Konnessjoni
- Connect the Dump Load: First, connect the provided dump load resistor to the controller's designated terminals. This is critical for safely dissipating excess energy.
- Qabbad il-batterija: Connect the battery bank to the controller's battery terminals (D+ and B-). Ensure correct polarity (positive to positive, negative to negative). The controller will automatically detect the battery voltage (12V / 24V / 48V).
- Qabbad il-Pannelli Solari: Connect the solar panel array to the controller's solar input terminals (S+ and S-). Observe correct polarity.
- Connect the Wind Turbine: Connect the wind turbine to the controller's wind input terminals (U, V, W).
- Qabbad it-Tagħbija: Connect your DC or AC load (via an inverter if AC) to the controller's load output terminals (L+ and L-).
- Ivverifika l-Konnessjonijiet: Double-check all connections for tightness and correct polarity before powering on the system.
Important: Always connect the dump load and battery first before connecting solar panels or wind turbine to prevent damage to the controller. Do not short circuit any terminals.
6. Istruzzjonijiet Operattivi
The controller features an intuitive LCD display for monitoring system status and adjusting settings.
Figure 6.1: LCD Display and Load Mode Settings.
6.1 LCD Display Overview
The widescreen LCD displays real-time information about your wind and solar hybrid system, including:
- Wind turbine power (Pw)
- Photovoltaic power (Ps)
- Batterija voltage (V) and charge status
- Load status (LOAD)
- Cumulative power generation (kWh)
- System temperature (TEMP)
- Day/Night indication
6.2 Navigazzjoni fil-Menù
- Uża l- Up/toggle key u Scroll down/toggle key to navigate through different display screens and adjust parameter values.
- Agħfas il- Confirm/Save button (OK) to enter a setting menu or confirm a selection.
- Agħfas il- Escape key (Esc) to exit a menu or cancel an operation.
6.3 Setting Load Modes
The controller supports various load modes to suit different applications:
- Mode 1: Pure Light Control (Suitable for street lights) - The load will turn on automatically at dusk and turn off at dawn.
- Mode 2: 24-Hour Operation (Suitable for monitoring systems) - The load remains continuously on.
- Mode 3: Light Control + Time Control (Suitable for street lights) - The load turns on at dusk and stays on for a set duration (e.g., 6 hours), then turns off.
To change the load mode, navigate to the load mode setting on the LCD and use the toggle keys to select the desired mode, then confirm with the OK button.
7. Safety Precautions & Protection
The controller is equipped with multiple safety features to protect the system and ensure reliable operation.
- Solar Anti-Reverse Charging: Prevents current from flowing back from the battery to the solar panels at night.
- Battery Reverse Connection Protection: Protects the controller and battery from damage if the battery is connected with incorrect polarity.
- Open Circuit Protection: Safeguards the system against damage from open circuits.
- Over-Voltage Protezzjoni: Jipprevjeni l-ħsara minn volum eċċessivtage livelli.
- Over-Current Load Overload Protection: Shuts down the load if current exceeds safe limits.
- External Unloading Resistor: When the battery is full or the wind turbine is generating excess power, the controller diverts excess energy to the external unloading resistor, effectively braking the wind turbine and protecting the battery.
- Dust-proof and Anti-static Design: The internal circuit board is designed to resist dust and static electricity, enhancing durability.
- TVS Lightning Protection Diodes: Integrated diodes protect components from impact due to lightning strikes or power surges.
Figure 7.1: Design features for safety and durability, including heat dissipation and internal protection.
8. Manutenzjoni
To ensure the longevity and optimal performance of your Fablestoryem hybrid controller, regular maintenance is recommended:
- Spezzjona Konnessjonijiet: Iċċekkja perjodikament il-konnessjonijiet tal-wajers kollha għal issikkar u korrużjoni. Konnessjonijiet laxki jistgħu jwasslu għal telf ta' enerġija jew sħana żejda.
- Naddaf il-Kontrollur: Keep the controller's exterior clean and free of dust. Ensure the heat dissipation fins are not obstructed to allow for proper cooling. Use a dry, soft cloth for cleaning.
- Monitora l-Prestazzjoni: Regularly check the LCD display for normal operation and parameter readings. Note any unusual readings or error messages.
- Saħħa tal-batterija: Ensure your batteries are well-maintained according to their manufacturer's guidelines. Battery health directly impacts system performance.
- Kundizzjonijiet Ambjentali: Ensure the controller is installed in a location that adheres to the specified operating temperature and humidity ranges. Avoid direct exposure to water or extreme temperatures.
9 Issolvi l-problemi
This section provides guidance for common issues you might encounter. For problems not listed here, please contact customer support.
- L-ebda Wiri/Kontrollur Mhux Mixgħul:
- Check battery connections and ensure the battery has sufficient charge. The controller can be powered by either the battery or solar panels.
- Ivverifika li l-batterija voltage is within the controller's operating range (12V/24V/48V).
- No Charging from Solar Panels:
- Iċċekkja l-konnessjonijiet u l-polarità tal-pannelli solari.
- Ensure there is sufficient sunlight and the panels are clean and unobstructed.
- Ivverifika l-volum tal-pannell solaritage is within the controller's input range.
- No Charging from Wind Turbine:
- Check wind turbine connections (U, V, W) and ensure they are secure.
- Verify there is adequate wind speed for the turbine to generate power.
- Ensure the maximum fan input voltage (80V) is not exceeded.
- It-Tagħbija Mhux Taħdem:
- Check load connections and ensure they are secure.
- Verify the load mode setting on the LCD display is appropriate for your application (e.g., 24-hour mode for continuous operation).
- Check for over-current or short-circuit protection activation. Reduce load if necessary.
- Żgura vol tal-batterijatage is not too low, as the controller may cut off load output to protect the battery.
- Tisħin żejjed tal-Kontrollur:
- Ensure the controller is installed in a well-ventilated area.
- Check that the heat dissipation fins are not blocked by dust or debris.
- Verify the dump load resistor is correctly connected and functioning, as it dissipates excess energy.
10. Applikazzjonijiet
The Fablestoryem Wind and Solar Hybrid Controller is versatile and can be used in various applications requiring efficient hybrid power management.

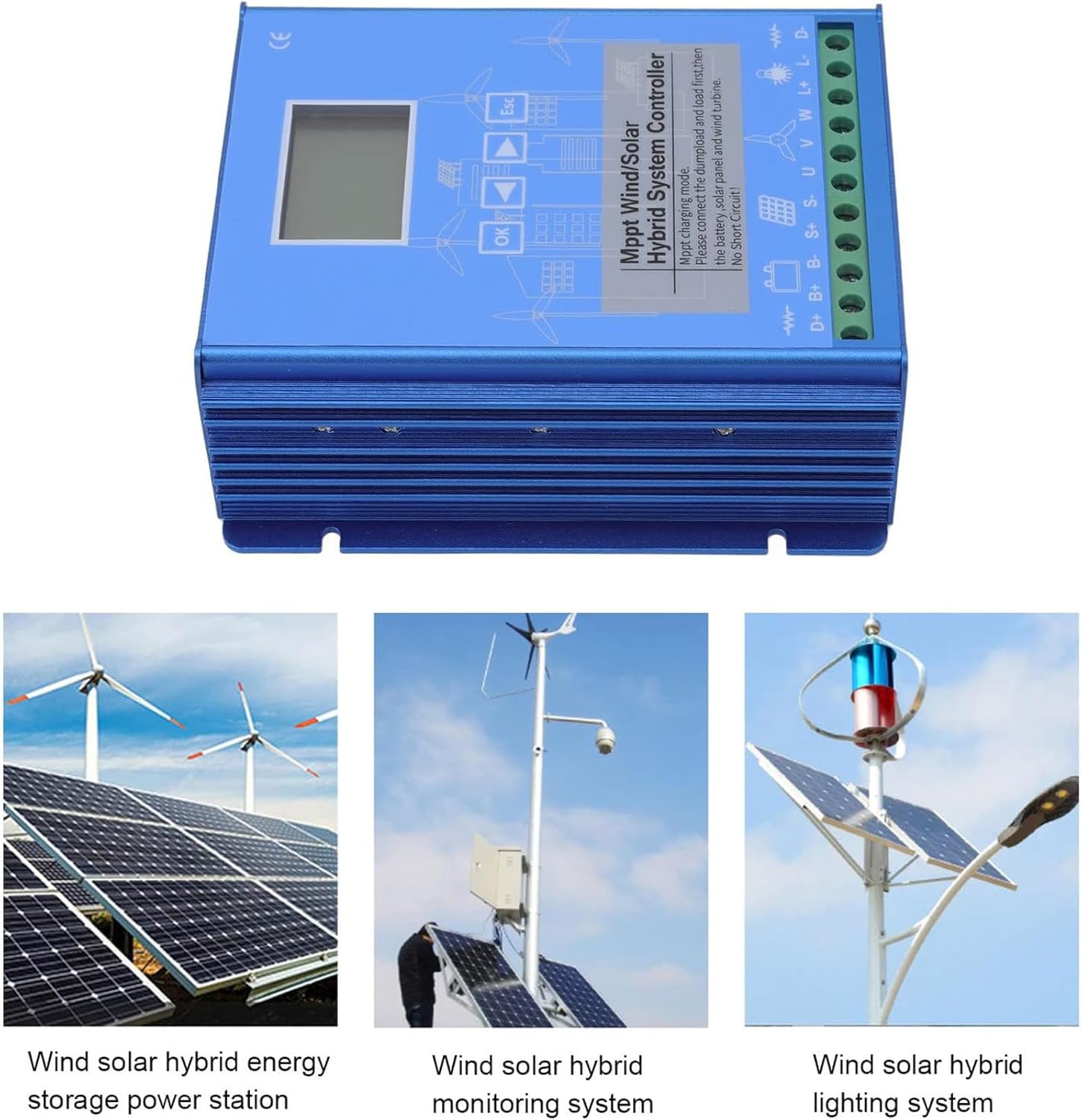

Figura 10.1: Eżamples of system applications.
- Wind Solar Hybrid Energy Storage Power Station: Ideal for off-grid power solutions, combining wind and solar energy for battery charging and power supply.
- Wind Solar Hybrid Monitoring System: Provides reliable power for remote surveillance cameras and other monitoring equipment.
- Wind Solar Hybrid Lighting System: Perfect for street lights, garden lights, and other outdoor lighting applications, ensuring continuous operation.
- Home Systems: Can be adapted for residential use to supplement grid power or provide off-grid energy.
- Boats and RVs: Suitable for mobile applications where a reliable, independent power source is needed.
11. Kontenut tal-Pakkett
Upon opening the package, please verify that all items listed below are present and in good condition.
Figura 11.1: Kontenut tal-pakkett tal-prodott.
- 1 x Fablestoryem Wind and Solar Hybrid Controller
- 1 x Discharge Resistor (Dump Load)
- 1 x Manwal tal-Istruzzjonijiet (dan id-dokument)
- 1 x Unloading Line (connecting wire for dump load)
12. Garanzija u Appoġġ
Fablestoryem is committed to providing high-quality products and customer satisfaction. This product comes with a standard manufacturer's warranty against defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact our customer service team. Please have your purchase details and product model number ready when contacting support.
Appoġġ għall-Klijent: If you have any questions, you can send us an email and we will reply to you within 24 hours.
