1. Informazzjoni dwar is-Sigurtà
Please read all safety instructions carefully before using the Salange K2 Portable Projector. Keep this manual for future reference.
- Tħarisx direttament fil-lenti tal-proġettazzjoni meta tkun qed taħdem.amp is on, as the strong light can cause eye damage.
- Do not block the ventilation openings. Proper ventilation is essential to prevent overheating.
- Evita li tpoġġi l-proġettur fid-dawl tax-xemx dirett, ħdejn sorsi ta’ sħana, jew f’ambjenti b’umdità għolja jew trab.
- Uża biss l-adapter tal-enerġija pprovdut mal-proġettazzjoni.
- Tippruvax tiżżarma jew issewwi l-proġettur int stess. Irreferi għal kull manutenzjoni f'idejn persunal kwalifikat.
- Żomm il-proġettazzjoni 'l bogħod mill-ilma jew likwidi oħra.
2. Kontenut tal-Pakkett
Kun żgur li l-oġġetti kollha huma preżenti fil-pakkett:
- Salange K2 Projector
- Kejbil tal-Enerġija
- Kontroll mill-bogħod
- Manwal għall-Utent (dan id-dokument)
3. Prodott Aktarview
The Salange K2 is a compact and versatile portable projector designed for various entertainment and presentation needs. It features a unique rotatable design, allowing for flexible projection angles.
Figure 3.1: Salange K2 Portable Projector. This image shows the compact, white projector with its unique rotatable stand and integrated speaker base, featuring an ambient light ring at the bottom.
3.1. Portijiet u Kontrolli
Familiarize yourself with the various ports and controls on your Salange K2 projector:
Figure 3.2: Projector Ports and Controls. This diagram illustrates the various input/output ports and control buttons on the Salange K2 projector, including the camera sensor, IR receiver, DC power input, HDMI port, USB port, 3.5mm audio jack, power touch button, volume controls, and ambient light.
- Sensor tal-Kamera: Used for auto-focus and auto keystone correction.
- Riċevitur IR: Għal sinjali ta' kontroll mill-bogħod.
- Input ta' Enerġija DC: Qabbad l-adapter tal-enerġija hawn.
- Port HDMI: Connect external devices like laptops, game consoles, or TV sticks.
- Port USB: For connecting USB drives to play media or for firmware updates.
- Jack Awdjo 3.5mm: Qabbad headphones jew speakers esterni.
- Power Touch Button: Agħfas u żomm għal 3 sekondi biex tixgħel/itfi.
- Buttuni tal-Volum (+/-): Aġġusta l-volum tal-awdjo.
- Dawl ambjentali: Integrated LED light at the base.
3.2. Portability and Design
The K2 projector is designed for ultimate portability and flexible usage scenarios.
Figure 3.3: Portable Design and Dimensions. This image shows the compact size of the Salange K2 projector compared to a smartphone and how easily it fits into a bag, highlighting its portability.
Its compact dimensions (11 x 10.5 x 22 cm) and lightweight design (1.2 kg) make it easy to carry. The 270° rotatable stand allows you to project onto walls, ceilings, or any flat surface with ease.
4. Setup
4.1. L-Ewwel Tixgħil
- Connect the power cable to the DC input port on the projector and plug the other end into a power outlet.
- Press and hold the power touch button on the projector for approximately 3 seconds until the device powers on.
- Alternatively, use the power button on the remote control.
4.2. Image Adjustment (Auto Focus & Keystone)
The Salange K2 features intelligent screen adaptation technology for quick and easy setup.
Figure 4.1: Automatic Setup in 3 Seconds. This image demonstrates the projector's ability to automatically adjust focus and correct keystone distortion within 3 seconds, simplifying the setup process.
- Auto Focus: The projector will automatically adjust the image focus within 3 seconds to ensure a clear picture.
- Korrezzjoni Auto Keystone: The projector automatically corrects horizontal keystone distortion (up to ±40 degrees) to ensure a rectangular image, even if the projector is not perfectly aligned with the screen.
- For manual adjustments, navigate to the settings menu using the remote control.
5. Istruzzjonijiet Operattivi
5.1. Navigating the Android TV 11.0 Interface
The Salange K2 runs on Android TV 11.0, providing access to a wide range of streaming applications and features.
Figure 5.1: Android 11.0 Interface. This image displays the home screen of the Android TV 11.0 operating system, showing various streaming applications like Prime Video, YouTube, Disney+, and HBO Max, indicating access to over 8,000 apps.
- Use the Bluetooth remote control to navigate the interface. The remote offers 360° control for flexible operation.
- Connect to Wi-Fi (see Section 6.1) to access online content.
- Download and install applications from the integrated app store, such as Prime Video, YouTube, Disney+, HBO Max, and more.
5.2. Aġġustament tad-Daqs u d-Distanza tal-Projezzjoni
The projector can create a large screen experience, from 100 inches up to 300 inches, depending on the projection distance.
Figure 5.2: High-Definition Large Screen. This image illustrates different projection sizes (100", 200", 300") and corresponding projection distances (1.2m, 3m, 4m), demonstrating the immersive visual experience.
- For a 100-inch screen, the recommended distance is approximately 1.2 meters.
- For a 300-inch screen, the recommended distance is approximately 4 meters.
- The auto-focus feature will ensure clarity regardless of the size.
5.3. Using the Built-in Battery
The Salange K2 features a built-in 5200mAh battery, offering portability without the need for a constant power source.
Figure 5.3: Portable Playtime. This image highlights the projector's battery life, offering approximately 2 hours of continuous movie playback or 4 hours of music playback on a single charge, enabling use anywhere.
- A full charge provides approximately 2 hours of continuous video playback or 4 hours of music playback.
- The battery indicator on the screen will show the remaining charge.
- Charge the projector using the provided power cable.
6. Konnettività
6.1. Wi-Fi 6 Connection
The projector supports advanced Wi-Fi 6 (802.11ax) for faster and more stable wireless connections, compatible with both 2.4GHz and 5GHz networks.
Figure 6.1: Advanced WiFi 6. This image illustrates the benefits of WiFi 6, including more stable and faster data transfer speeds, smooth video streaming without lag, and compatibility with both 5G and 2.4G networks, supporting iOS and Android mirroring.
- Mur fuq Settings on the projector's home screen.
- Agħżel Netwerk u Internet.
- Ixgħel Wi-Fi u agħżel in-netwerk mixtieq tiegħek mil-lista.
- Daħħal il-password tal-Wi-Fi jekk tintalab.
6.2. Konnessjoni Bluetooth 5.2
Connect external Bluetooth devices such as speakers, headphones, or game controllers for an enhanced audio or gaming experience.
Figure 6.2: Bluetooth 5.2. This image shows the projector in an outdoor setting with people enjoying content, emphasizing the ability to connect mobile devices for audio playback via Bluetooth 5.2.
- Mur fuq Settings on the projector's home screen.
- Agħżel Apparati Konnessi or Bluetooth.
- Ixgħel Bluetooth u agħżel Par apparat ġdid.
- Agħżel l-apparat mixtieq tiegħek mil-lista biex tqabbadh.
6.3. Konnessjonijiet HDMI u USB
Use the HDMI and USB ports to connect various external devices:
- HDMI: Connect laptops, desktop computers, game consoles (PS4/PS5), TV boxes, or other HDMI-enabled devices. The projector supports up to 4K resolution input.
- USB: Plug in USB flash drives or external hard drives to play local media files (videos, photos, music).
7. Karatteristiċi Smart
7.1. Integrated 10W Speaker
The Salange K2 features a powerful 10W speaker system with dual 5W speakers and two bass reinforcements for immersive stereo sound.

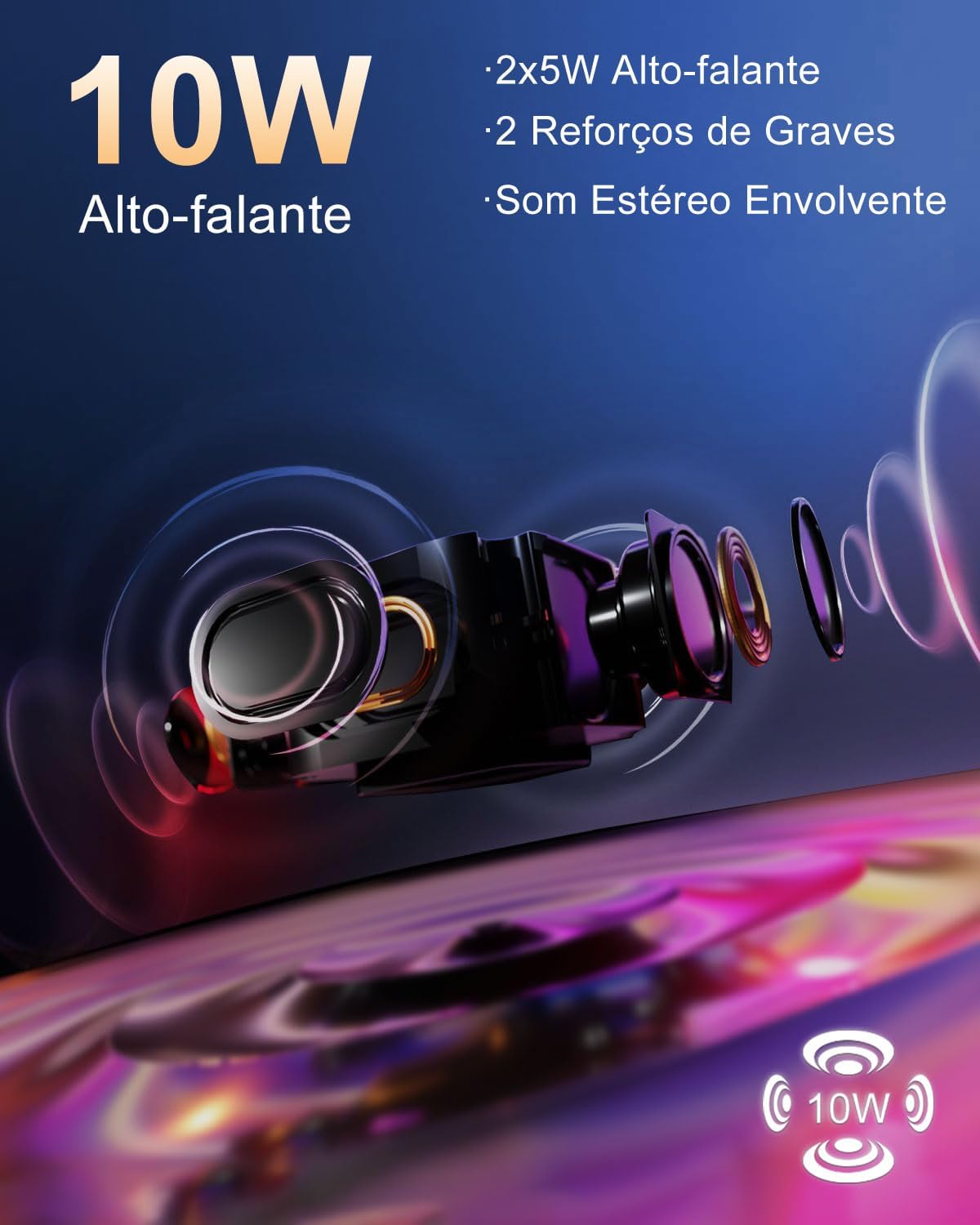

Figure 7.1: 10W Speaker. This image provides an exploded view of the projector's speaker components, highlighting the 2x5W speakers and two bass reinforcements that deliver immersive stereo sound.
7.2. Interfaċċja tal-Kontroll tal-Mess
The projector incorporates a responsive touch panel for intuitive control.
Figure 7.2: Touch Control Design. This image shows a finger interacting with the projector's touch-sensitive power button, emphasizing its quick response and ease of use.
- The thermal touch screen is highly sensitive and responsive.
- Use the touch controls for basic functions like power on/off and volume adjustment.
7.3. Ambient Light Feature
The base of the projector features a colorful ambient light, adding to the atmosphere of your viewing esperjenza.
8. Manutenzjoni
8.1. Tindif tal-Lenti
To maintain optimal image quality, regularly clean the projector lens.
- Uża drapp artab u mingħajr suf iddisinjat speċifikament għal lentijiet ottiċi.
- Imsaħ il-lenti bil-mod b'moviment ċirkolari.
- Do not use abrasive cleaners, solvents, or excessive pressure, as this can damage the lens coating.
8.2. Tindif tal-Korp tal-Proġettur
Imsaħ il-barra tal-proġettazzjoni b'ċarruta ratba u niexfa. Għal marki iebsa, neħħi ftit.amp Jista' jintuża drapp, segwit minn wieħed niexef.
8.3. Ventilazzjoni
Ensure the projector's ventilation openings are clear of dust and obstructions to prevent overheating. The projector has an integrated cooling system designed for efficient heat dissipation.
9 Issolvi l-problemi
If you encounter issues with your Salange K2 projector, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda immaġni jew immaġni mċajpra | Power issue, lens cap on, out of focus, keystone distortion, dirty lens. | Ensure power is connected. Remove lens cap. Allow auto-focus to adjust. Check for obstructions. Clean the lens. |
| L-ebda ħoss jew ħoss baxx | Volum baxx wisq, apparat awdjo estern mhux imqabbad, setting tal-ħruġ awdjo mhux korrett. | Increase projector volume. Check external speaker/headphone connection. Verify audio output settings in Android TV. |
| Kwistjonijiet ta 'konnessjoni Wi-Fi | Password mhux korretta, barra mill-firxa, problema bir-router. | Iċċekkja l-password tal-Wi-Fi darbtejn. Mexxi l-proġettazzjoni eqreb lejn ir-router. Erġa' ixgħel ir-router u l-proġettazzjoni. |
| L-apparat Bluetooth mhux se jingħaqad | Device not in pairing mode, too far, interference. | Ensure Bluetooth device is in pairing mode. Move devices closer. Try pairing again. |
| Spot or defect on projected image | Dust on lens or internal components, manufacturing defect. | Clean the lens thoroughly. If the issue persists, contact customer support for assistance. |
| Ħajja tal-batterija iqsar milli mistenni | High brightness setting, continuous heavy usage, battery degradation over time. | Reduce brightness setting. Ensure battery is fully charged before use. Battery performance may vary with usage and age. |
If the problem persists after trying these solutions, please contact Salange customer support.
10. Speċifikazzjonijiet
Key technical specifications for the Salange K2 Portable Projector:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Salange |
| Mudell | K2EU |
| Teknoloġija tal-Wiri | LCD |
| Luminożità | 12000 Lumens |
| Riżoluzzjoni Nattiva | 1280 x 720 Pixels |
| Riżoluzzjoni Appoġġjata | Sa 3840 x 2160 Pixel (4K) |
| Proporzjon ta' l-aspett | 16:9 |
| Riffriskar Rata | 60 Hz |
| Livell ta' Storbju | 20 dB |
| Sistema Operattiva | Android TV 11.0 |
| RAM | 1 GB |
| ROM | 8 GB |
| Wi-Fi | Wi-Fi 6 (2.4GHz/5GHz) |
| Bluetooth | Bluetooth 5.2 |
| Interfaces | HDMI, USB, Jack tal-Awdjo ta' 3.5mm |
| Karatteristiċi Speċjali | Automatic Screen Alignment, Auto Focus, Integrated Media Player, Integrated Cooling System, Built-in Wi-Fi |
| Speaker | 10W (2x5W with bass reinforcement) |
| Batterija | 5200 mAh (approx. 2 hours video playback) |
| Dimensjonijiet (L x W x H) | 11 x 10.5 x 22 ċm |
| Piż | 1.2 kg |
11. Garanzija u Appoġġ
Salange is committed to providing excellent customer service and product support for your K2 Portable Projector.
- 30-Day Worry-Free Quality Refund: If you experience any quality issues, Salange offers a full refund within 30 days of purchase.
- 60-Day Unconditional Returns: For any quality problem, unconditional returns are accepted within 60 days.
- Sostituzzjoni bla ħlas ta' 90 jum: A free replacement is provided within 90 days for quality-related issues.
- 360-Day Free Warranty: Enjoy a free warranty for 360 days from the purchase date.
- 720-Day Free Accessory Support: Free support for accessories is available for 720 days.
- 2-Year Maintenance: The product includes 2 years of maintenance support.
- Appoġġ Tekniku tul il-ħajja: Salange provides lifetime technical support for the product.
For any questions, concerns, or technical assistance, please do not hesitate to contact Salange customer support through the platform where you purchased the product or via the official Salange websit.
