1. Introduzzjoni
This manual provides essential information for setting up, operating, and maintaining your Vibox VI-162 Gaming PC. This entry-level gaming PC is designed for casual gamers, featuring integrated graphics capable of running less demanding titles and indie games efficiently. It is an ideal system for beginners or those seeking an affordable computer with potential for future upgrades.
Image 1.1: The complete Vibox VI-162 gaming PC bundle, including the tower, 22-inch monitor, keyboard, mouse, and headset.
2. X'hemm fil-Kaxxa
Jekk jogħġbok kun żgur li l-oġġetti kollha li ġejjin huma preżenti fil-pakkett tiegħek:
- Vibox VI-162 Gaming PC Tower
- Monitor 22-il pulzier
- Tastiera
- Ġurdien
- Kejbil(i) tal-Enerġija
- Display Cable (HDMI/DisplayPort)
- RGB Lighting Accessories (if applicable)
3. Istruzzjonijiet ta' Setup
3.1 Disimballaġġ
- Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ tagħhom.
- Place the PC tower on a stable, flat surface with adequate ventilation.
- Remove any protective films or internal packaging materials from the PC tower.
3.2 Konnessjoni tal-Periferali
- Monitor: Connect the monitor to the PC's graphics output port (HDMI or DisplayPort) using the provided cable. Ensure the monitor's power cable is also connected to a power outlet.
- Tastiera u maws: Connect the keyboard and mouse to the available USB ports on the rear or front of the PC tower.
- Qawwa: Connect the PC's power cable to the power supply unit (PSU) at the rear of the PC, then plug it into a wall outlet.
- Netwerk: For wired internet, connect an Ethernet cable to the LAN port on the rear of the PC. For wireless internet, ensure the Wi-Fi antenna (if provided) is securely attached.
- Awdjo: Connect your headset or speakers to the appropriate audio jacks (headphone/microphone) on the front or rear panel.

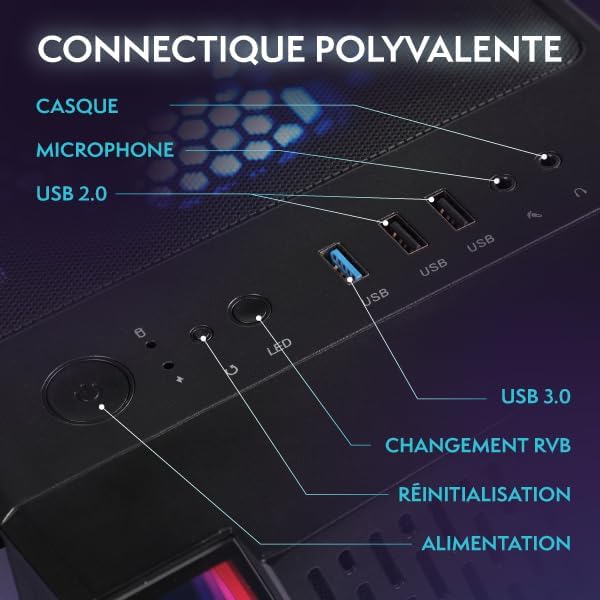

Image 3.1: Front panel connectivity of the Vibox VI-162 PC, showing ports for headphones, microphone, USB 2.0, USB 3.0, RGB control, reset, and power buttons.
3.3 L-Ewwel Boot
- Press the power button on the front of the PC tower.
- Ixgħel il-monitor tiegħek.
- The system will boot into the pre-installed Linux Mint operating system. Follow the on-screen prompts for initial setup, such as language selection, time zone, and user account creation.
- Once the setup is complete, your PC is ready for use.
4. Istruzzjonijiet Operattivi
4.1 Sistema Operattiva
Your Vibox VI-162 PC comes with Linux Mint pre-installed. Linux Mint is a user-friendly and efficient operating system, ideal for maximizing system resources during gaming and general use. It offers a robust platform with strong community support and regular updates.
Image 4.1: Key features of the Linux Mint operating system, including its lightweight design, user-friendly interface, and support for gaming platforms like Steam, Lutris, and Proton.
You have the flexibility to install your preferred operating system if desired. Refer to the specific installation guide for your chosen OS.
4.2 Logħob u Prestazzjoni
The PC is equipped with an AMD Ryzen 3 3200G processor and integrated Radeon Vega 8 graphics, suitable for less demanding games and indie titles. For optimal performance, ensure your graphics drivers are up to date.
Immaġni 4.2: Interna view of the Vibox VI-162 PC tower, showcasing the motherboard and CPU cooler.
4.3 Kontroll tad-Dawl RGB
The PC tower features customizable RGB lighting. Use the dedicated RGB change button on the front panel (refer to Image 3.1) to cycle through different colors and lighting modes. For more advanced control, consult the motherboard or case manufacturer's software documentation if available.
5. Manutenzjoni
5.1 Tindif
- Barra: Use a soft, dry, anti-static cloth to clean the exterior surfaces of the PC tower and monitor. Avoid abrasive cleaners.
- Trab: Periodically use compressed air to clear dust from ventilation grilles and internal components. Ensure the PC is powered off and unplugged before cleaning.
5.2 Ventilazzjoni
Ensure the PC has adequate airflow. Do not block the ventilation openings on the front, rear, top, or sides of the tower. Proper ventilation helps prevent overheating and maintains system stability.
6 Issolvi l-problemi
This section addresses common issues you might encounter with your Vibox VI-162 PC.
6.1 Ebda Qawwa
- Iċċekkja jekk il-kejbil tal-enerġija huwiex imqabbad sew kemm mal-PC kif ukoll mas-sokit tal-ħajt.
- Ensure the power switch on the PSU (located at the rear of the PC) is in the 'ON' position.
- Ittestja s-sokit tal-ħajt b'apparat ieħor biex tikkonferma li jaħdem.
6.2 L-ebda Wiri fuq il-Monitor
- Verify that the monitor is powered on and its power cable is connected.
- Ensure the display cable (HDMI/DisplayPort) is securely connected to both the PC and the monitor.
- Confirm the monitor's input source is set correctly (e.g., HDMI 1, DisplayPort).
6.3 Peripherals Not Responding
- Try connecting the keyboard or mouse to a different USB port.
- Ibda mill-ġdid il-PC.
- Ensure drivers for specific peripherals are installed and up to date (if required by the peripheral).
6.4 Tnaqqis jew Iffriżar tas-Sistema
- Agħlaq l-applikazzjonijiet bla bżonn li jkunu qed jaħdmu fl-isfond.
- Iċċekkja jekk hemmx biżżejjed spazju għall-ħażna ħieles fuq l-SSD tiegħek.
- Ensure the PC has proper ventilation to prevent thermal throttling.
- Update your operating system and drivers.
7. Speċifikazzjonijiet
Detailed technical specifications for the Vibox VI-162 Gaming PC:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Vibox |
| Manifattur | Vibox |
| Serje | VTX-2 |
| Dimensjonijiet tal-Prodott | 37 x 20 x 46 ċm |
| Numru tal-Mudell tal-Prodott | VI-162 |
| Kulur | VTX-2 Black Bundle |
| Fattur tal-Formola | Torri |
| Screen Size (Monitor) | 22 Pulzier |
| Screen Resolution (Monitor) | 1920 x 1080 Pixels |
| Riżoluzzjoni Massima | 1920 x 1080 Pixels |
| Manifattur tal-proċessur | AMD |
| Tip ta' proċessur | Ryzen 3 3200G |
| Veloċità tal-Proċessur | 3.6 GHz (Max 4.0 GHz) |
| Socket tal-Proċessur | Sokit AM4 |
| Numru ta' Proċessuri | 4 |
| Kapaċità RAM | 16 GB |
| Teknoloġija tal-Memorja | DDR4 |
| Tip ta' Memorja tal-Kompjuter | DDR4 SDRAM |
| Maximum Supported Memory | 128 GB |
| Veloċità tal-Arloġġ tal-Memorja | 3200 MHz |
| Hard Drive Description | SSD |
| Hard Drive Interface | Stat solidu |
| Kapaċità tal-Ħżin | 1 TB |
| Koproċessur tal-Grafika | AMD Radeon Vega 8 |
| Marka tal-Karta Grafika | AMD |
| Deskrizzjoni tal-Kard Grafika | Integrata |
| Graphics Memory Type | Maqsuma |
| Graphics RAM Capacity | 2 GB |
| Interface tal-Kard Grafika | Integrata |
| Tip ta 'Konnettività | Wi-Fi |
| Tip ta 'Konnessjoni Wireless | 802.11n |
| Numru ta 'USB 2.0 Ports | 3 |
| Numru ta 'USB 3.0 Ports | 3 |
| Tip ta' Drive ottiku | Xejn |
| Sors tal-Enerġija | DC |
| Pjattaforma tal-Ħardwer | PC |
| Sistema Operattiva | Linux |
| Piż tal-Prodott | 15.6 kg |
| Użi Speċifiċi tal-Prodott | Image Editing, Video Editing, Video Games |
| Tip ta' Disinn ta' Kompjuter Personali | Torri tal-Kompjuter |
Image 7.1: Dimensions of the Vibox VI-162 PC tower: 46cm height, 38cm depth, and 20cm width.
8. Garanzija u Appoġġ
8.1 Informazzjoni dwar Garanzija
Your Vibox VI-162 PC is covered by a manufacturer's warranty. For specific details regarding warranty duration, terms, and conditions, please refer to the documentation included with your purchase or visit the official Vibox websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
8.2 Appoġġ Tekniku
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Vibox customer support. You can typically find contact information on the official Vibox websit jew permezz tal-bejjiegħ bl-imnut tiegħek.
Vibox Official Websit: www.vibox.co.uk (Jekk jogħġbok innota: URL may vary by region. Check your local Vibox website for the most accurate support information.)
