Introduzzjoni
This manual provides essential instructions for the safe and efficient use of your LiteOn PA-1200-3SA1 AC Adapter. Please read this manual thoroughly before using the product and retain it for future reference.

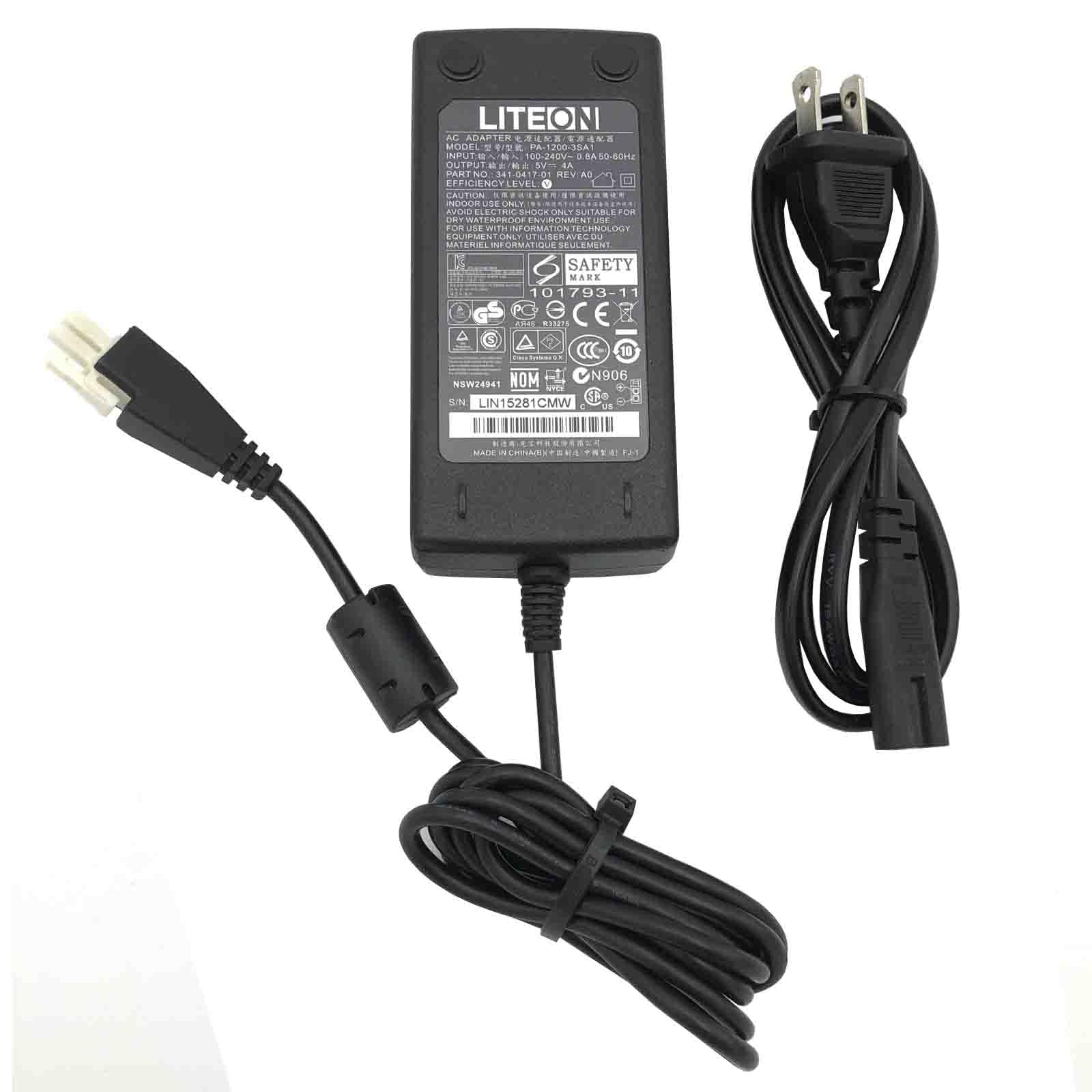

Image: The LiteOn PA-1200-3SA1 AC Adapter with its power cord, showcasing the complete unit.
Informazzjoni Importanti dwar is-Sigurtà
To prevent electric shock, fire, or damage to the adapter or connected devices, observe the following safety precautions:
- Użu fuq ġewwa biss: This adapter is designed for indoor use in dry environments. Do not expose it to rain, moisture, or extreme temperatures.
- Evita Xokk Elettriku: Do not open the adapter casing. Ġewwa m'hemm l-ebda partijiet li jistgħu jiġu rranġati mill-utent. Irreferi għal kull manutenzjoni f'idejn persunal kwalifikat.
- Ambjent Niexef: This product is not suitable for use in wet or waterproof environments. Ensure the adapter and its connections remain dry.
- Vol korretttage and Polarity: Always verify that the voltage, amperage, and connector tip size of this adapter match the requirements of your device. Incorrect specifications can cause damage.
- Protezzjoni ta' tagħbija żejda: Do not overload the adapter. Ensure the connected device's power requirements do not exceed the adapter's output capacity (5V 4A, 20W).
- Ventilazzjoni: Ensure adequate ventilation around the adapter during use. Do not cover it or place it in an enclosed space that could lead to overheating.
- Kura tal-Cable: Do not place heavy objects on the power cord or allow it to be pinched. Avoid bending or twisting the cord excessively.
Immaġni: Close-up view of the adapter's label, displaying safety certifications, input/output specifications, and usage warnings.
Setup Istruzzjonijiet
- Ħoll l-Adapter: Carefully remove the LiteOn PA-1200-3SA1 AC Adapter and its power cord from the packaging.
- Spezzjona għal Ħsara: Before use, visually inspect the adapter and power cord for any signs of damage. Do not use if damaged.
- Qabbad il-Kard tal-Enerġija: Insert the AC power cord into the adapter's input port. Ensure it is firmly seated.
Image: The LiteOn AC adapter showing the input port where the AC power cord connects.
- Qabbad mal-Apparat: Plug the 2-pin output connector of the adapter into the corresponding power input port of your compatible device (e.g., router). Ensure the connector is inserted correctly and securely.
Immaġni: Dettaljata view of the 2-pin output connector, highlighting its shape and pin configuration.
Image: An alternative perspective of the 2-pin output connector, showing its design from a different angle.
- Qabbad mal-Power Outlet: Plug the AC power cord into a standard wall outlet (100-240V AC).
- Ivverifika l-Operazzjoni: Once connected, your device should power on or indicate that it is receiving power.
Istruzzjonijiet Operattivi
The LiteOn PA-1200-3SA1 AC Adapter is designed for continuous operation within its specified parameters. Once properly connected, it will supply stable 5V 4A power to your compatible device.
- Kun żgur li l-adapter jitqiegħed f'żona ventilata sew biex tevita li jisħon iżżejjed.
- Avoid disconnecting the adapter from the power source or your device abruptly during critical operations, if applicable to your device.
- The adapter features built-in safeguards against incorrect voltage, short circuits, and internal overheating for reliable performance.
Manutenzjoni
Manutenzjoni xierqa tiżgura l-lonġevità u t-tħaddim sikur tal-adapter tal-AC tiegħek.
- Tindif: Skonnettja l-adapter mis-sorsi kollha tal-enerġija qabel ma tnaddaf. Uża drapp artab u niexef biex timsaħ il-barra. Tużax prodotti tat-tindif likwidi jew solventi.
- Ħażna: When not in use for extended periods, store the adapter in a cool, dry place, away from direct sunlight and moisture. Coil the power cord loosely to prevent damage.
- Spezzjoni: Spezzjona l-adapter c perjodikamentasing and power cords for any signs of wear, cuts, or damage. Replace the adapter if any damage is observed.
Issolvi l-problemi
If you encounter issues with your LiteOn PA-1200-3SA1 AC Adapter, refer to the following common solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Apparat mhux mixgħul. |
|
|
| L-adapter iħoss jaħraq. |
|
|
| Qawwa intermittenti għall-apparat. |
|
|
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Lite-On |
| Numru tal-Mudell | PA-1200-3SA1 |
| Numru tal-Parti (P/N) | 341-0417-01 |
| Numru tas-serje (S/N) | LIN15281CMW |
| Input Voltage | 100-240V~0.8A, 50-60Hz |
| Ħruġ Voltage | 5V |
| Output Ampetà | 4A |
| Wattage | 20W |
| Tip ta' Konnettur | 2-Pin |
| Apparati Kompatibbli | Router (verify device specifications) |
| Karatteristiċi Speċjali | Short Circuit Protection, Incorrect Voltage Protection, Internal Overheating Protection |
| Komponenti Inklużi | 1 AC Adapter, 1 Power Cord |
| ASIN | B0D1RWBT48 |
| Data L-Ewwel Disponibbli | 15 ta’ April, 2024 |
Garanzija u Appoġġ
This LiteOn AC Adapter is manufactured with quality materials and includes multiple smart features for safe and efficient operation. While specific warranty details are not provided in this manual, the manufacturer aims to provide reliable products.
For technical support, troubleshooting beyond this guide, or warranty inquiries, please contact the retailer or manufacturer directly. Refer to your purchase documentation for contact information.
Meta tikkuntattja l-appoġġ, jekk jogħġbok żomm l-informazzjoni li ġejja lesta:
- Product Model: PA-1200-3SA1
- Numru tal-Parti: 341-0417-01
- Data tax-Xiri
- Deskrizzjoni tal-kwistjoni
