Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your PROFLO PFXC8027 Faywood 1.5 GPM Single Hole Pull Down Kitchen Faucet. Please read all instructions carefully before beginning installation to ensure proper function and longevity of your product. Keep this manual for future reference.

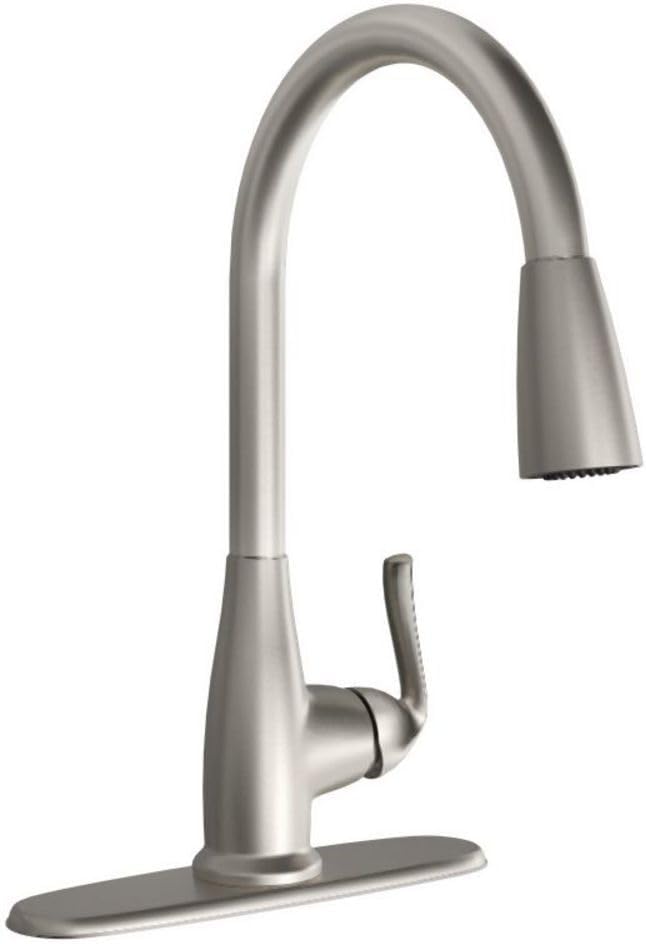

Image 1: PROFLO PFXC8027 Faywood Kitchen Faucet in Brushed Nickel finish, featuring a high-arc spout and a single lever handle. An optional escutcheon plate is shown at the base.
Karatteristiċi tal-Prodott
- Kostruzzjoni Durabbli: Faucet body constructed of metal for long-lasting performance.
- Faywood Design: Coordinates with other products from the PROFLO Faywood line.
- Immuntar b'Toqba Waħda: Designed for single-hole installation on a sink or countertop.
- Pull-Down Spray: Features a pull-down spray head with two spray functions: stream and spray.
- Quick-Mount System: Facilitates fast and easy installation.
- Manku b'lieva waħda: Jikkontrolla kemm il-fluss tal-ilma kif ukoll it-temperatura.
- Skartoċċ tad-Diska taċ-Ċeramika: Ensures reliable, drip-free operation.
- Optional Escutcheon Plate: Included to cover unused faucet holes on multi-hole sinks.
- Konformi mal-ADA: Designed to meet ADA standards for accessibility.
- Rata tal-fluss: 1.5 gallons-per-minute (GPM).
Komponenti Inklużi
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- PROFLO PFXC8027 Faywood Kitchen Faucet Assembly
- Ħardwer tal-Immuntar
- Hot and Cold Water Supply Lines
- Optional Escutcheon Plate (Deck Plate)
- Istruzzjonijiet għall-Installazzjoni (dan il-manwal)
Setup u Installazzjoni
Qabel Tibda
- Itfi l-provvista prinċipali tal-ilma fil-kċina tiegħek.
- Naddaf iż-żona taħt is-sink għal aċċess faċli.
- Ensure you have all necessary tools (e.g., adjustable wrench, screwdriver, plumber's putty/silicone sealant).
Passi ta 'installazzjoni
- Ipprepara l-Wiċċ tal-Immuntar: If using the optional escutcheon plate, apply a bead of plumber's putty or silicone sealant to the underside of the plate and position it on the sink or countertop, aligning the holes.
- Installa l-Faucet: Insert the faucet body through the hole(s) in the sink or countertop (and escutcheon plate, if used). Ensure the faucet is properly oriented.
- Secure with Quick-Mount System: From underneath the sink, slide the quick-mount system components onto the faucet shank.
Image 2: Diagram illustrating the PROFLO Quick-Mount System. Steps show pushing the mounting nut onto the faucet shank, twisting to tighten, and securing it in seconds for tool-free installation.
- Push the mounting nut onto the threaded shank.
- Twist the mounting nut clockwise by hand to tighten it securely against the underside of the sink or countertop.
- The quick-mount system is designed for tool-free installation, securing the faucet in seconds.
- Qabbad il-Linji tal-Provvista tal-Ilma: Attach the hot and cold water supply lines to the corresponding connections on the faucet and to your home's water supply valves. Hand-tighten, then use a wrench for a final quarter-turn. Do not overtighten.
- Connect Spray Hose: Connect the pull-down spray hose to the quick-connect fitting on the faucet's main body. Ensure a secure connection.
- Piż tal-Installazzjoni: Attach the counterweight to the pull-down spray hose at the indicated position (usually 6-8 inches below the quick-connect fitting) to ensure smooth retraction of the spray head.
- Test għal Tnixxijiet: Turn on the main water supply slowly and check all connections for leaks. Operate the faucet to ensure proper function of both hot and cold water, and the spray functions.
Istruzzjonijiet Operattivi
- Fluss u Temperatura tal-Ilma: Il-manku b'lieva waħda jikkontrolla kemm il-fluss tal-ilma kif ukoll it-temperatura.
- Erfa' l-manku biex iżżid il-fluss tal-ilma.
- Mexxi l-manku lejn ix-xellug għall-ilma sħun u lejn il-lemin għall-ilma kiesaħ.
- Pull-Down Spray Head:
- Pull the spray head down from the spout to extend the hose.
- Press the button on the spray head to switch between stream and spray functions.
- Release the spray head, and the counterweight will retract it back into the spout.
Manutenzjoni
- Tindif: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Manutenzjoni tal-Aeratur: Periodically unscrew the aerator from the spray head and clean any mineral deposits or debris that may restrict water flow. Rinse thoroughly and reattach.
- Prevenzjoni tat-tnixxija: If you notice any drips or leaks, check the connections and ensure they are tight. If the issue persists, the ceramic disc cartridge may need inspection or replacement.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Flow Ilma Baxx | Aeratur imblukkat; valvijiet tal-għeluq parzjalment magħluqa; debris fil-linji tal-provvista. | Naddaf l-aeratur; iftaħ il-valvijiet tal-għeluq għalkollox; laħlaħ il-linji tal-provvista. |
| Faucet Leaks | Loose connections; worn O-rings; damaged ceramic disc cartridge. | Tighten connections; replace O-rings; replace ceramic disc cartridge. |
| Ir-Ras tal-Isprej Ma Tirtirax Għalkollox | Kontrapiż imqiegħed ħażin jew nieqes; ostruzzjoni taħt is-sink. | Adjust or install counterweight correctly; clear obstructions. |
| Kwistjonijiet tat-Temperatura tal-Ilma | Konnessjoni ħażina tal-linja tal-provvista; problemi bil-water heater. | Verify hot/cold lines are connected correctly; check water heater settings. |
Speċifikazzjonijiet
- Mudell: PFXC8027 Faywood
- Temm: Brushed Nickel (as per product variant)
- Materjal: Metall
- Tip ta 'Immuntar: Single Hole, Deck Mounted
- Numru ta 'Mankijiet: 1 (Lieva Unika)
- Rata tal-fluss: 1.5 Galluni Kull Minuta (GPM)
- Għoli tal-Vit: 15-5/8" (deck to top of faucet)
- Għoli tal-bekka: 7-13/16" (deck to spout outlet)
- Reach tal-bokka: 9-3/16" (center of faucet body to center of spout outlet)
- Max Deck Thickness: 2-3/8" (from deck bottom to top of deck)
- Escutcheon Width: 10-1/16" (left to right)
- Tip ta 'Skartoċċ: Diska taċ-ċeramika
- Karatteristika Speċjali: Pull Down Sprayer with 2 functions
- Konformi mal-ADA: Iva
Informazzjoni dwar Garanzija
The PROFLO PFXC8027 Faywood Kitchen Faucet is covered under PROFLO's limited warranty for residential use and a 5-year limited commercial warranty. For specific terms, conditions, and duration of your warranty, please refer to the official PROFLO warranty documentation or contact PROFLO customer support. Keep your proof of purchase for warranty claims.
Appoġġ għall-Klijent
If you have any questions, require assistance with installation, or need to troubleshoot an issue not covered in this manual, please contact PROFLO customer support. Visit the official PROFLO websit għal informazzjoni ta' kuntatt u riżorsi addizzjonali.
Uffiċjal tal-PROFLO Websit: Ħanut PROFLO fuq Amazon (for product information and brand details)
