Manwal tal-Utent tat-Tecno CAMON 30 5G

Introduzzjoni

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Tecno CAMON 30 5G smartphone. Please read this manual carefully to ensure proper use and to maximize the device's capabilities.

1. Setup

1.1 Tneħħija tal-kaxxa u Spezzjoni Inizjali

Upon opening the package, verify that all components are present and undamaged. The standard package contents include:

• Tecno CAMON 30 5G Smartphone
• 70W Flash Charger
• Cable USB
• SIM Trej Ejector
• Kaxxa Protettiva (tista' tvarja skont ir-reġjun)
• Gwida Quick Start
• Karta ta' Garanzija

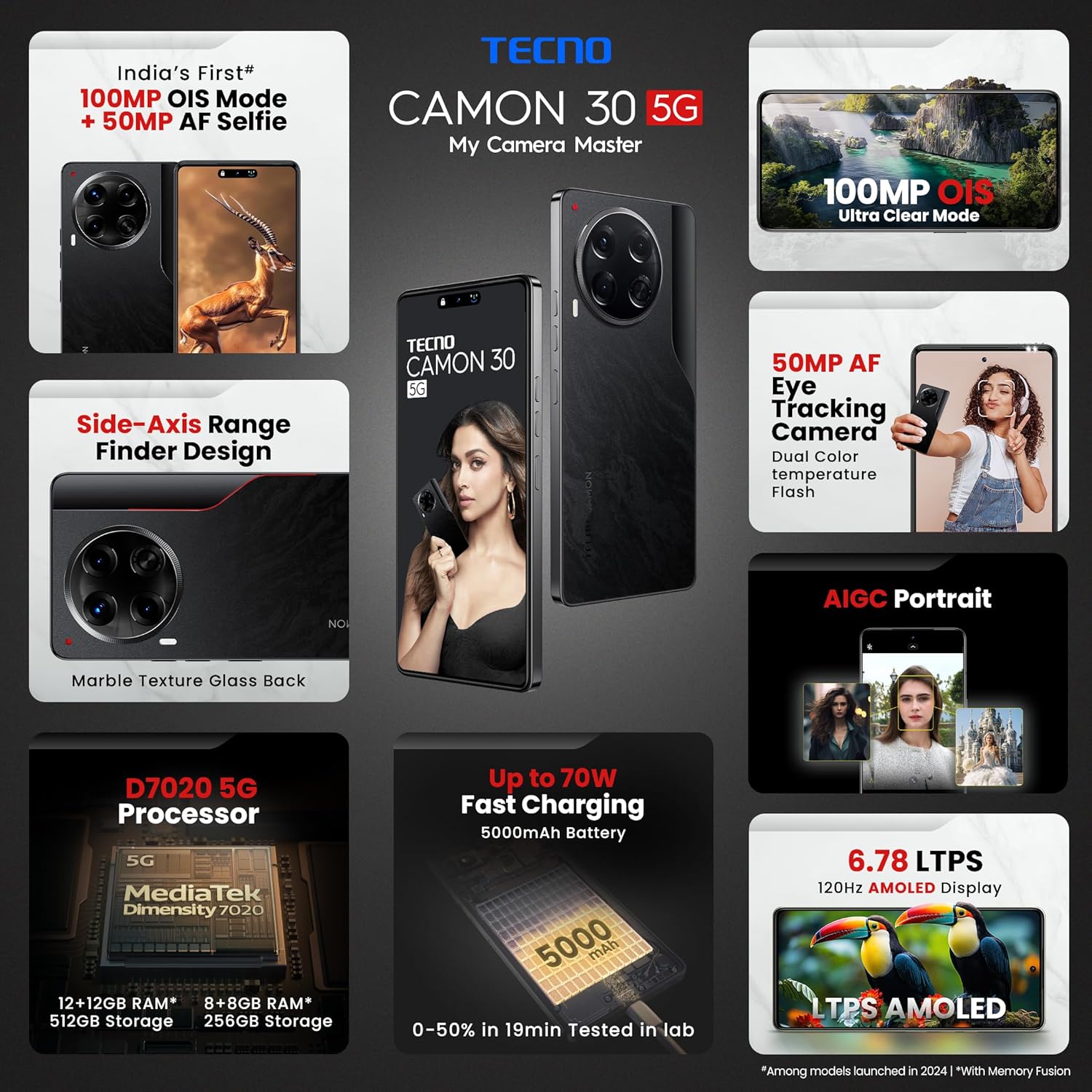

Figure 1.1: Tecno CAMON 30 5G smartphone, showcasing its front display and rear camera module.

1.2 Id-Daħħal tas-SIM Card

To ensure network connectivity, insert your Nano-SIM card(s) into the device. The Tecno CAMON 30 5G supports dual SIM functionality.

1. Sib it-trej tal-kard SIM fuq il-ġenb tal-apparat.
2. Daħħal l-għodda tal-ejecter tat-trej tas-SIM provduta fit-toqba żgħira ħdejn it-trej u agħfas bil-mod sakemm it-trej joħroġ 'il barra.
3. Iġbed it-trej tas-SIM 'il barra bir-reqqa.
4. Place your Nano-SIM card(s) into the designated slots on the tray, ensuring the gold contacts face downwards and the cut corner aligns correctly.
5. Imbotta bil-mod it-trej tas-SIM lura fl-apparat sakemm tikklikkja f'postu.

Figure 1.2: The SIM tray ejector tool, used for accessing the SIM card slot.

1.3 Iċċarġjar tal-Apparat

Before first use, it is recommended to fully charge your device. The Tecno CAMON 30 5G supports 70W Flash Charging.

1. Connect the USB cable to the 70W Flash Charger.
2. Ipplaggja l-ċarġer fi żbokk tad-dawl.
3. Connect the other end of the USB cable to the USB-C port at the bottom of your phone.
4. The charging indicator will appear on the screen. A full charge from 0-50% can be achieved in approximately 19 minutes.

Figure 1.3: The bottom of the Tecno CAMON 30 5G, featuring the USB-C port for charging and data transfer.

1.4 Ixgħel u Setup Inizjali

Press and hold the Power button (located on the right side of the device) until the Tecno logo appears. Follow the on-screen instructions to complete the initial setup, which includes selecting your language, connecting to Wi-Fi, and setting up your Google account.

2. It-tħaddim tal-Apparat

2.1 Navigazzjoni Bażika

The Tecno CAMON 30 5G operates on Android 14 with HiOS. Navigation is primarily touch-based:

• Tektek: Agħżel oġġett jew iftaħ applikazzjoni.
• Swipe: Skrollja minn skrins, listi, jew kontenut.
• Agħfas biex tiżżumja: Kabbar jew tnaqqas il-kontenut fuq l-iskrin.
• Agħfas fit-tul: Aċċessa l-menus kuntestwali jew iċċaqlaq l-ikoni.

Figure 2.1: The Tecno CAMON 30 5G's vibrant LTPS AMOLED display.

2.2 Karatteristiċi tal-Wiri

The device features a 6.78-inch FHD+ LTPS AMOLED Dot-in display with a resolution of 1080 x 2436 pixels. Key display features include:

• 1300 nits Peak Brightness: Ensures clear visibility even in bright outdoor conditions.
• 120Hz Adaptive Refresh Rate: Automatically adjusts between 120Hz, 90Hz, and 60Hz for smooth scrolling and power efficiency.
• 2160Hz High-Frequency PWM Dimming: Reduces screen flicker for improved eye comfort.
• TÜV Rheinland Low Blue Light Emission Certified: Protects your eyes from harmful blue light.
• Wet Hand Touch Technology: Allows for smooth navigation even with wet hands.

2.3 Sistema tal-Kamera

The Tecno CAMON 30 5G is equipped with an advanced camera system for high-quality photography and videography.

• Kamera ta' wara: 100MP OIS (Optical Image Stabilization) main sensor with a 2MP Depth Sensor. Features include Ultra Steady videos (OIS + EIS), 10X Zoom, Twinkle Portrait Filter, Super Night Photography Mode, Sky Shop, and Slow Motion Videos.
• Kamera ta' quddiem: 50MP Auto Focus Selfie camera with Dual Color Temperature Front Flash. Supports DSLR-level portrait system and Video HDR.
• AIGC Portrait (OTA): AI Generative Content for enhanced portrait photography.

Figure 2.2: The distinctive rear camera module of the Tecno CAMON 30 5G.

2.4 Prestazzjoni u Ħażna

Powered by the MediaTek Dimensity 7020 chipset with a 6nm processor, the device offers robust performance for gaming and multitasking.

• Proċessur: MediaTek Dimensity 7020 (6nm) for Ultra 5G Performance.
• RAM: Up to 24GB* (12GB physical + 12GB Memory Fusion) LPDDR4x RAM.
• Ħażna Interna: 512GB UFS 3.1 Storage.

2.5 Audio and Smart Features

• Dolby Atmos: Jipprovdi esperjenza awdjo immersiva.
• Ella with ChatGPT: Integrated AI assistant for various tasks.
• AI Eraser (OTA): Allows for intelligent object removal from photos.
• Kontroll mill-bogħod infra-aħmar: Supports control of up to 15 types of home appliances.
• Dynamic Pet AOD: Customizable Always-On Display with dynamic pet animations.

3. Manutenzjoni

3.1 Tindif tal-Apparat Tiegħek

Biex iżżomm id-dehra u l-funzjonalità tat-tagħmir tiegħek:

• Uża drapp artab u mingħajr suf biex timsaħ l-iskrin u l-qafas.
• Evita li tuża kimiċi ħarxa, prodotti tat-tindif li joborxu, jew arja kkompressata.
• Żomm il-portijiet ħielsa mit-trab u l-fdalijiet.

3.2 Aġġornamenti tas-Software

Iċċekkja u installa aġġornamenti tas-softwer regolarment biex tiżgura prestazzjoni ottimali, sigurtà, u aċċess għal karatteristiċi ġodda. Mur fuq Settings > Sistema > Aġġornament tas-sistema biex tiċċekkja għal aġġornamenti.

3.3 Kura tal-Batterija

The device is equipped with a 5000mAh battery. To prolong battery life:

• Evita temperaturi estremi.
• Use only the official Tecno charger and cable.
• Evita li l-batterija tixxotta kompletament ta' spiss.

3.4 Ġestjoni tal-Ħażna

Regularly manage your device's storage to ensure smooth operation. Delete unnecessary files, clear app caches, and uninstall unused applications. You can check storage usage in Settings > Ħażna.

4 Issolvi l-problemi

This section addresses common issues you might encounter with your Tecno CAMON 30 5G.

4.1 L-Apparat Mhux Qed Jinxtegħel

• Kun żgur li l-batterija hija ċċarġjata. Qabbad il-ċarġer u stenna ftit minuti qabel ma tipprova tixgħelha.
• Agħfas u żomm il-buttuna tal-Power għal mill-inqas 10-15-il sekonda biex terġa' tibda.

4.2 Kwistjonijiet ta' Iċċarġjar

• Verify that the charger and USB cable are securely connected to both the phone and the power outlet.
• Ipprova uża żbokk tad-dawl differenti.
• Spezzjona l-port tal-iċċarġjar għal xi debris jew ħsara.

4.3 Problemi ta' Konnettività tan-Netwerk

• Iċċekkja jekk il-Modalità Ajruplan hijiex attivata (skrolla 'l isfel minn fuq l-iskrin biex taċċessa s-Settings Rapidi).
• Kun żgur li l-karta SIM tiegħek hija mdaħħla sew.
• Ibda mill-ġdid l-apparat.
• Mur fuq Settings > Netwerk u internet > Netwerk mobbli u kun żgur li d-dejta mobbli hija attivata.

4.4 L-Applikazzjonijiet Jikkraxxjaw jew Jiffriżaw

• Agħlaq l-app problematika u erġa' iftaħha.
• Neħħi l-cache tal-app (Settings > Apps > [Isem tal-App] > Ħażna u cache > Neħħi l-cache).
• Kun żgur li l-app hija aġġornata għall-aħħar verżjoni tagħha.
• Jekk il-problema tippersisti, ikkunsidra li tneħħi u terġa' tinstalla l-app.

4.5 Irrisettja l-Fabbrika

Jekk tesperjenza problemi persistenti tas-softwer, reset tal-fabbrika jista' jsolvihom. Twissija: Dan se jħassar id-dejta kollha fuq it-telefon tiegħek. Agħmel backup tad-dejta importanti qabel ma tipproċedi.

1. Mur fuq Settings > Sistema > Għażliet ta' Reset.
2. Agħżel Ħassar id-dejta kollha (reset tal-fabbrika).
3. Ikkonferma d-deċiżjoni tiegħek u daħħal il-PIN/mudell/password tiegħek jekk tintalab.

5. Speċifikazzjonijiet

Below are the detailed technical specifications for the Tecno CAMON 30 5G (Model: CL7 512+12).

6. Garanzija u Appoġġ

6.1 Informazzjoni dwar Garanzija

Your Tecno CAMON 30 5G comes with a limited manufacturer's warranty. Please refer to the warranty card included in your product package for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

6.2 Appoġġ għall-Klijent

For technical assistance, service, or any inquiries regarding your device, please contact Tecno customer support:

• Numru bla ħlas: 18004190525
• Email: Service.india@carlcare.com
• Manifattur: G mobiles, Ismartu India Private Limited, D-197 and 198, Sector 63, Noida, Gautam Buddha Nagar, Uttar Pradesh 201301, India.

Tecno provides a robust after-sales service network with over 1300 service centers across more than 1000 towns in India.
