NEXTORCH E52C Rechargeable Flashlight User Manual

1. Prodott Aktarview

The NEXTORCH E52C is a high-performance rechargeable tactical flashlight, offering up to 3000 lumens of output with a beam distance of up to 210 meters. Its compact and rugged design makes it suitable for a wide range of activities, including outdoor hiking, daily maintenance, camping, and emergency defense.

Figure 1: The NEXTORCH E52C Rechargeable Flashlight, showcasing its sleek black aluminum alloy body and textured grip.

Karatteristiċi ewlenin:

• Produzzjoni Għolja: Up to 3000 lumens with a 210-meter beam distance.
• Disinn multifunzjonali: Patented U-shape tail switch for easy mode switching.
• Kostruzzjoni Durabbli: IPX8 waterproof (2 meters submersible) and 2-meter impact resistant, made from aircraft-grade aluminum alloy with hard anodized surface treatment.
• Rikarikabbli: Type-C direct charging with an LED battery indicator.
• Portabbli: Compact size (6.02 inches long) and lightweight (4.58 oz without battery) with a removable clip.

Figura 2: Aktar minnview of the E52C's key features, highlighting its 3000lm high output, 21700 battery, Type-C direct charge, and battery indicator.

2. Setup

2.1 Disimballaġġ

Carefully remove all components from the packaging. The standard package includes:

• NEXTORCH E52C Flashlight
• 21700 Lithium-Ion Battery (pre-installed or separate)
• Kejbil tal-Iċċarġjar tat-Tip C
• Ċinga tal-Idejn
• Clip li jitneħħa
• Sealing Ring (x2)
• Manwal għall-Utent

Figure 3: Contents of the NEXTORCH E52C package, including the flashlight, charging cable, lanyard, and spare sealing rings.

2.2 Installazzjoni tal-Batterija u l-Iċċarġjar Inizjali

The E52C uses one 21700 Lithium-Ion battery. Ensure the battery is inserted with the positive (+) end facing towards the head of the flashlight.

Before first use, fully charge the flashlight. To charge:

1. Rotate the head of the flashlight to reveal the Type-C charging port.
2. Insert the Type-C cable into the port and connect the other end to a USB power source (e.g., wall adapter, computer USB port).
3. The LED indicator will show a dawl aħmar waqt l-iċċarġjar.
4. Ladarba jkun iċċarġjat kompletament, l-indikatur LED jixgħel blu.

Figure 4: Illustration of the Type-C direct charging process for the E52C flashlight, showing the charging port and indicator lights.

3. Istruzzjonijiet Operattivi

The E52C features a patented U-shape metal tail switch for intuitive control of its lighting modes.

3.1 Power On/Off and Constant-On Mode

• From the OFF state, heavy press the tail switch to enter the constant-on mode (High light).
• Biex titfi, heavy press the tail switch again.

3.2 Qlib tal-Modalità

The E52C offers four lighting modes: High (3000 lumens), Medium (550 lumens), Low (30 lumens), and Strobe.

• Preview Modes (OFF state): Lightly press the tail switch to cycle through High-Medium-Low modes. Release to turn off.
• Lock Current Mode (OFF state): Heavy press the tail switch while previewing a mode to lock it as the default constant-on mode.
• Switch Modes (ON state): While the flashlight is ON, press the tail switch hard continuously within 2 seconds to cycle through High-Medium-Low modes.

Figure 5: Visual representation of the E52C's multiple lighting modes and their typical applications, such as duty maintenance, outdoor lighting, and self-defense.

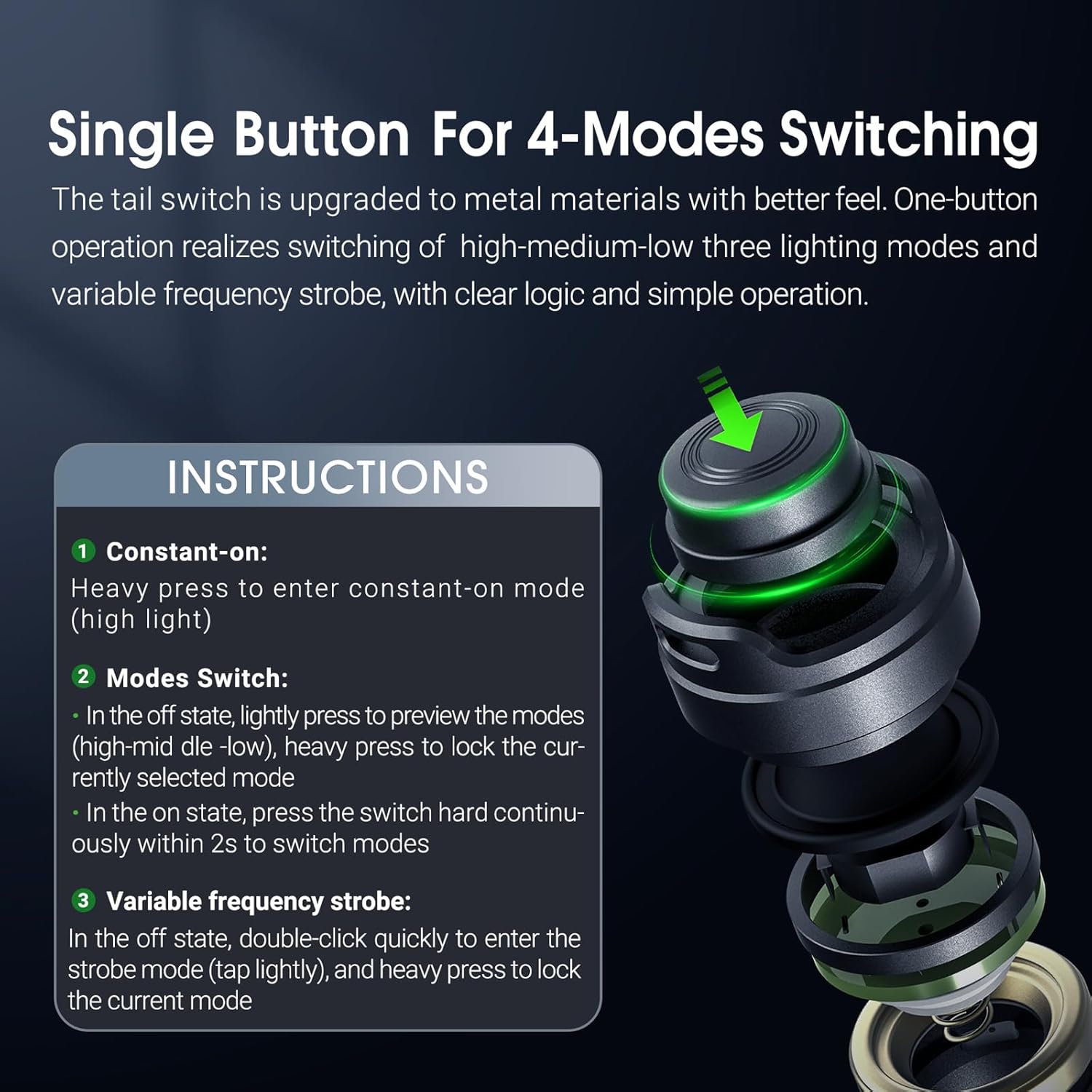

Figure 6: Detailed instructions for operating the single tail switch to control constant-on, mode switching, and variable frequency strobe.

3.3 Variable Frequency Strobe

• From the OFF state, double-click quickly (tap lightly twice) to enter the strobe mode.
• To lock the strobe mode, heavy press the tail switch while in strobe mode.

3.4 Indikatur tal-Batterija

The LED indicator on the flashlight provides real-time battery status:

• Dawl blu: 75% ~ 100% battery remaining.
• Leħħa blu: 50% ~ 75% battery remaining.
• Dawl aħmar: 25% ~ 50% battery remaining.
• fwawar aħmar: 0% ~ 25% battery remaining (recharge immediately).

Figure 7: Visual guide to the E52C's battery indicator, showing different light colors and patterns corresponding to battery levels.

4. Manutenzjoni

4.1 Tindif

• Wipe the flashlight body with a clean, soft cloth.
• Għal-lenti, uża drapp u soluzzjoni għat-tindif tal-lentijiet biex tevita l-grif.
• Tużax tindif jew solventi li joborxu.

4.2 Kura tal-Batterija

• Recharge the battery regularly, especially if not used for extended periods, to maintain battery health.
• Evita li l-batterija tinżel għalkollox qabel ma terġa' tiċċarġjaha.
• Store the flashlight and battery in a cool, dry place.

4.3 Water and Impact Resistance

The E52C is designed with IPX8 waterproof rating (submersible up to 2 meters) and 2-meter impact resistance. While durable, avoid unnecessary exposure to extreme conditions or impacts to prolong its lifespan.

Figure 8: The E52C flashlight demonstrating its waterproof capabilities, highlighting its IPX8 rating and 2-meter impact resistance.

5 Issolvi l-problemi

If you encounter issues with your NEXTORCH E52C, refer to the following common problems and solutions:

6. Speċifikazzjonijiet

Figure 9: A comprehensive table detailing the E52C's performance specifications, including light output, run time, beam distance, and durability ratings.

7. Garanzija u Appoġġ

7.1 Informazzjoni dwar Garanzija

NEXTORCH offers a garanzija ta' ħames snin on all flashlights. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.

7.2 Appoġġ għall-Klijent

For any questions, technical assistance, or warranty claims, please contact NEXTORCH customer service. Refer to the official NEXTORCH webis-sit jew l-imballaġġ tal-prodott għall-aktar informazzjoni ta' kuntatt aġġornata.
