1. Introduzzjoni
The Mastech MS5908A Circuit Analyzer is a professional-grade instrument designed for comprehensive electrical circuit testing. It provides accurate measurements for AC voltage, impedance, frequency, and performs critical RCD and GFCI tests, ensuring electrical safety and proper circuit functionality. This manual provides detailed instructions for the safe and effective use of your MS5908A.
Figura 1: Quddiem view of the Mastech MS5908A Circuit Analyzer, showing the LCD display and control buttons.
2. Informazzjoni dwar is-Sigurtà
WARNING: Always read and understand all safety warnings and instructions before using this instrument. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the device is suitable for the voltage and current levels of the circuit being tested. The MS5908A is designed for 110V US plug systems.
- Tużax l-apparat jekk jidher li għandu ħsara jew qed jaħdem b'mod mhux normali.
- Always wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, when working with electrical circuits.
- Tħaddimx l-apparat f'kundizzjonijiet imxarrbin jew f'atmosferi splussivi.
- Verify the correct connection of the device before initiating any test.
- Keep hands and fingers away from live terminals.
- Only qualified personnel should perform electrical testing.
3. X'hemm fil-Kaxxa
Malli tiftaħ il-pakkett, jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma preżenti u f'kundizzjoni tajba:
- 1 x Mastech MS5908A Circuit Analyzer
- 2 x LR44 batteries (included)
- 1 x Power Cord / Carry Bag (as indicated in packaging information)
- 1 x Ċertifikat ta 'kalibrazzjoni
- 1 x Gwida Quick Start

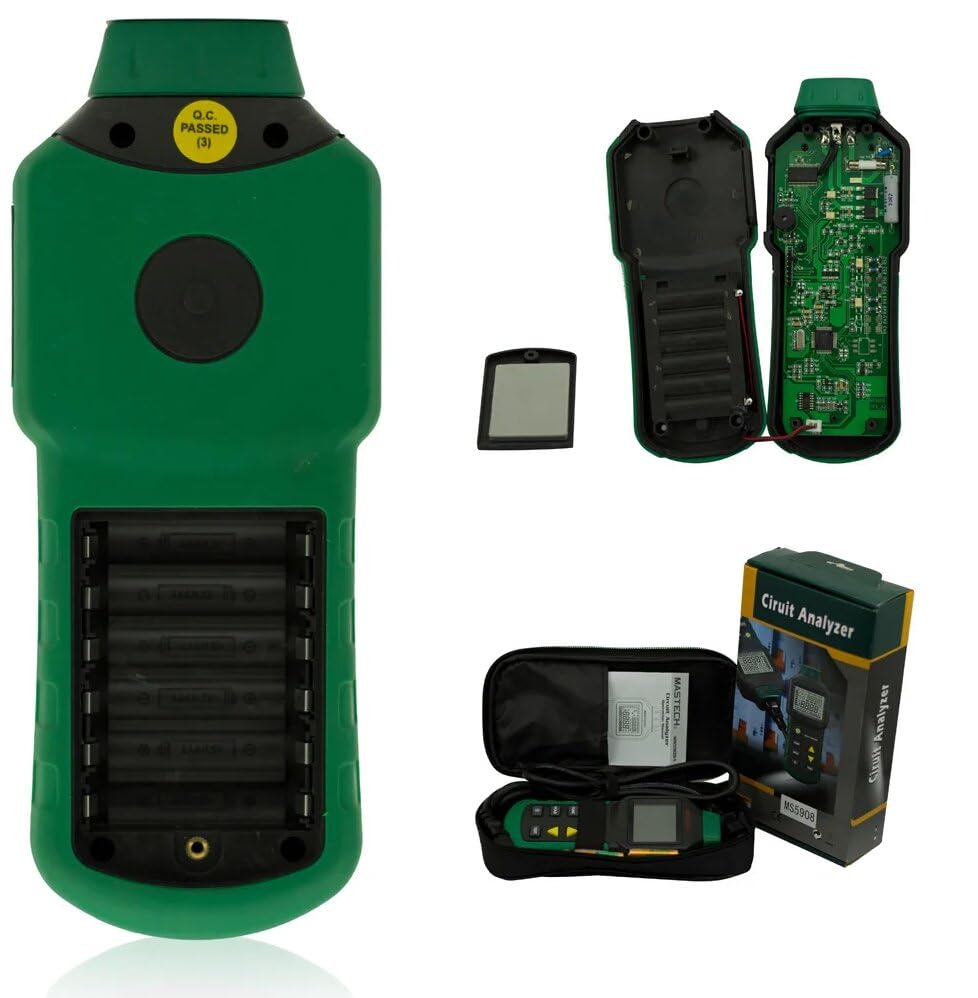

Figure 2: Contents of the Mastech MS5908A package, including the device, battery compartment, and carry case.
Figure 3: Diagram illustrating the packaging and included accessories for the MS5908A.
4. Setup
4.1 Installazzjoni tal-batterija
- Locate the battery compartment on the back of the MS5908A unit.
- Iftaħ l-għatu tal-kompartiment tal-batterija.
- Insert the 2 LR44 batteries, ensuring correct polarity (+ and -).
- Agħlaq l-għatu tal-kompartiment tal-batterija sew.
4.2 Qawwa Inizjali
Press the power button (usually marked with a circle and vertical line) to turn on the device. The LCD display should illuminate.
5. Istruzzjonijiet Operattivi
The MS5908A offers various testing functions accessible via its control buttons. Familiarize yourself with the display and button layout.
5.1 Operazzjoni Ġenerali
- Buttuna tal-Qawwa: Jixgħel/Jitfi l-apparat.
- Buttuna FUNC: Cycles through different measurement modes (e.g., Voltage, Frequency, Impedance).
- Buttuna ŻOMM: Jiffriża l-qari attwali fuq id-displej. Agħfas mill-ġdid biex tirrilaxxa.
- Buttuna Backlight: Toggles the display backlight ON/OFF for better visibility in low light conditions.
- Buttuna TEST: Initiates specific tests like RCD or GFCI.
- Buttuni tal-Vleġġa ('l Fuq/'l Isfel): Used for navigation or adjusting parameters in certain modes.
5.2 Kejl AC Voltage (TRMS)
- Plug the MS5908A into the standard US wall socket (110V).
- Ensure the device is in AC Voltage measurement mode (use FUNC button if necessary).
- The display will show the True RMS AC Voltagqari.
5.3 Artificial Load Testing (Wire Drop Measurement)
The MS5908A (US plug version) supports artificial load testing at 12A, 15A, and 20A to measure wire drop.
- Plug the device into the circuit to be tested.
- Select the artificial load test mode using the FUNC button.
- Use the arrow buttons to select the desired load (12A, 15A, or 20A).
- Press the TEST button to initiate the load and measure the voltagqatra e.
5.4 Measuring Phase Voltage, Neutral Wire, Voltage to Earth, and Frequency
The device can analyze various aspects of the electrical supply:
- Plug the MS5908A into the socket.
- Cycle through the FUNC button to display readings for:
- Fażi Voltage (Live to Neutral)
- Neutral Wire Voltage (Neutral to Earth)
- Voltage to Earth (Live to Earth)
- Frekwenza (Hz)
5.5 Measuring Phase (Live Wire), Neutral Wire, Earth Wire Conductor Impedance
- Plug the MS5908A into the socket.
- Select the impedance measurement mode using the FUNC button.
- The display will show the impedance values for Live, Neutral, and Earth conductors.
5.6 RCD (Residual Current Device) and GFCI (Ground Fault Circuit Interrupter) Testing
IMPORTANT: RCD/GFCI testing will trip the circuit breaker. Ensure all connected equipment is safely shut down or disconnected before performing this test.
- Plug the MS5908A into the RCD/GFCI protected socket.
- Select the RCD or GFCI test mode using the FUNC button.
- Press the TEST button. The device will simulate a fault condition.
- Observe if the RCD/GFCI trips within the specified time (e.g., 1ms~6.5S for RCD/GFCI Trip Time).
- The device will indicate if the test passed or failed.
Figure 4: The MS5908A Circuit Analyzer in use within a typical electrical testing environment.
6. Manutenzjoni
- Tindif: Imsaħ l-apparat b'ċarruta niexfa u ratba. Tużax prodotti tat-tindif jew solventi li joborxu.
- Ħażna: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.
- Sostituzzjoni tal-batterija: Ibdel il-batteriji meta jidher l-indikatur ta' batterija baxxa fuq id-displej.
- Kalibrazzjoni: Regular calibration by qualified service personnel is recommended to ensure continued accuracy.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jixgħelx. | Batteriji mejta jew installati ħażin. | Iċċekkja l-polarità tal-batterija jew ibdel il-batteriji. |
| Qari mhux preċiż. | Poor connection, incorrect mode, or device needs calibration. | Ensure secure connection. Verify correct measurement mode. Consider professional calibration. |
| Id-displej huwa mċajpar jew qed jitteptep. | Batterija baxxa. | Ibdel il-batteriji. |
| RCD/GFCI test does not trip the circuit. | Faulty RCD/GFCI, or incorrect test procedure. | Ensure the circuit is indeed RCD/GFCI protected. Re-read operating instructions for RCD/GFCI test. If issue persists, the RCD/GFCI itself may be faulty and require professional inspection. |
8. Speċifikazzjonijiet
The following table details the technical specifications for the Mastech MS5908A Circuit Analyzer:
Figure 5: Detailed specifications for the MS5908A, including ranges, resolutions, and accuracies.
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | GL-MS5908A |
| Sors tal-Enerġija | Battery Powered (2 LR44 batteries included) |
| Dimensjonijiet tal-Prodott | 6.3 x 3.54 x 1.97 pulzieri (160 x 90 x 50 mm) |
| Piż tal-oġġett | 1.1 Lira (0.5 Kilogrammi) |
| Kulur | Aħdar |
| Linja Voltage (MS5908A) | 85 ~ 135V |
| Peak Line Voltage (MS5908A) | 120 ~ 190V |
| Frekwenza tal-Linja | 45 ~ 65Hz |
| Impedance (Live-Neutral & Earth) | 0.00~3.00Ω (Resolution 0.01Ω, Accuracy ±(2.5%+2)) |
| Newtrali-Art Voltage | 0.0~10.0V (Resolution 0.1V, Accuracy ±(2.5%+2)) |
| Kurrenti tal-Vjaġġ RCD | 30mA~37mA (Resolution 0.1mA, Accuracy ±(1.0%+2)) |
| Ħin tal-Vjaġġ RCD | 1ms~6.5S (Resolution 1mS, Accuracy ±(1.0%+2)) |
| Kurrent tal-Vjaġġ tal-GFCI | 6mA~9mA (Resolution 0.1mA, Accuracy ±(1.0%+2)) |
| Ħin tal-Vjaġġ tal-GFCI | 1ms~6.5S (Resolution 1mS, Accuracy ±(1.0%+2)) |
| Voltage Drop Load Current | 12/15/20A |
| Auto Power Mitfi | Iva |
| Żamma tad-Data | Iva |
| Wirja Baxxa tal-Batterija | Iva |
Figure 6: Comparison of Mastech circuit analyzer models, including MS5908A and MS5908C.
9. Garanzija u Appoġġ
Mastech products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided in the Quick Start Guide included with your product or visit the official Mastech websit.
Għal mistoqsijiet ġenerali, tista' żżur ukoll il- Ħanut Mastech fuq Amazon.
