SmallRig V Mount Battery VB212 Instruction Manual

1. Introduzzjoni

The SmallRig VB212 V Mount Battery is a high-capacity power solution designed for professional video and photography equipment. Featuring a 212Wh / 14400mAh capacity, it offers versatile power output options including dual 140W bi-directional USB-C ports, D-TAP, USB-A, and DC ports. Its smart digital display provides real-time monitoring of power status, ensuring reliable performance for cameras, camcorders, video lights, monitors, and other devices.

Figura 1: Quddiem view of the SmallRig VB212 V Mount Battery.

2. Setup

2.1 Unboxing

Upon opening the package, you will find the SmallRig VB212 V Mount Battery and a 240W USB-C charging cable. Please inspect all components for any signs of damage.

2.2 Żejjed Fiżikuview

The VB212 features a robust aluminum alloy body with silicone coating for durability. Key interfaces are located on the top and sides, protected by a cover buckle. The front panel includes a smart digital display.

Figura 2: Dettaljat view of the multiple input/output interfaces on the SmallRig VB212, including USB-C, D-TAP, USB-A, DC 8V, DC 12V, and BP ports.

2.3 Iċċarġjar inizjali

Before first use, fully charge the battery. Connect a PD protocol charger to the USB-C1 port for optimal charging. The battery can be fully replenished in approximately 2 hours with a 140W charger (not included).

Figure 3: The SmallRig VB212 V Mount Battery being charged via its USB-C port, highlighting its fast charging capability.

3. Istruzzjonijiet Operattivi

3.1 Apparat li jgħaqqad

The VB212 offers various ports for powering different devices:

• USB-C Ports (C1/C2): Deliver up to 140W bi-directional power. Ideal for laptops, cameras, and fast charging the battery itself.
• D-TAP Ports (DT1/DT2): Provide 14.76V output, with DT1 supporting up to 10A and DT2 up to 6A. Suitable for video lights, monitors, and other camera accessories.
• Port USB-A: Għall-iċċarġjar ta' smartphones, tablets, u apparati oħra li jaħdmu bil-USB.
• DC Ports (8V/12V): For specific devices requiring 8V or 12V DC power.
• Port tal-BP: Standard V-mount connection for camera rigs and V-mount plates.

Figure 4: The SmallRig VB212 V Mount Battery connected to and powering multiple devices, demonstrating its parallel circuit capability.

3.2 Low-Current Mode

To safely charge low-power devices such as earphones, Bluetooth speakers, or certain low-voltage monitors, activate Low-Current Mode by pressing the power button 4 times. The USB-A and D-TAP 1 & 2 ports on the battery screen will turn green. To exit this mode, press the power button 4 times again to prevent battery drain.

Figure 5: The SmallRig VB212 V Mount Battery in Low-Current Mode, charging small electronic devices like earbuds.

3.3 Real-Time Power Monitoring

The bright smart digital display provides instant visibility into:

• Port status (input/output)
• Voltage and power output for each port
• Remaining battery life (percentage and estimated time)

Press the check button once to activate the display. Double-press the button to toggle between wattage u voltage display for active ports. To put the display to sleep, press the button once.

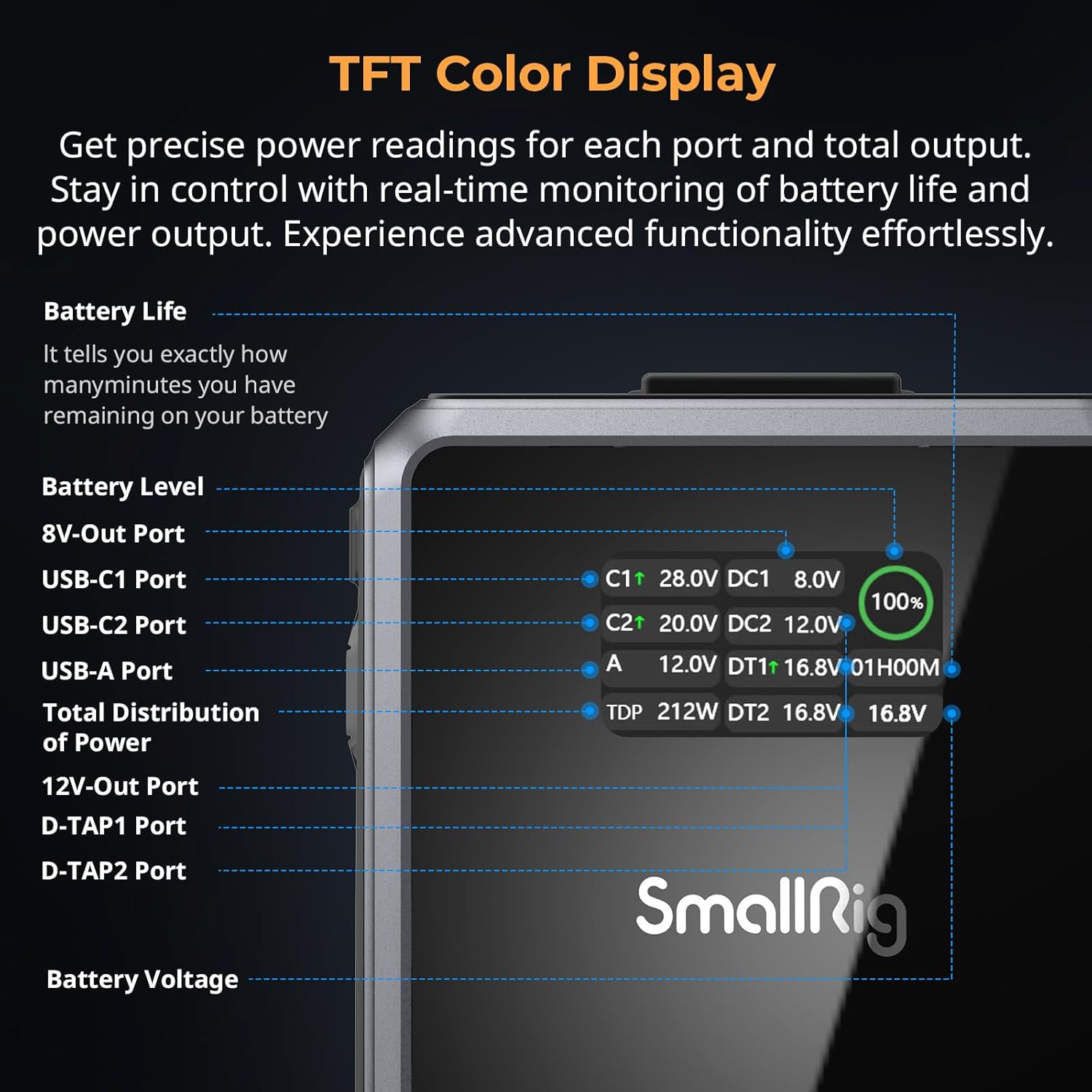

Figure 6: Close-up of the TFT color display on the SmallRig VB212, showing detailed information about battery life, port status, and power distribution.

4. Manutenzjoni

4.1 Kura Ġenerali

The VB212 is constructed with an aluminum alloy body, silicone coating, TPU, and PC V0 materials, making it drop-resistant, heat-resistant, and fire-retardant. The scratch-resistant PC and acrylic cover protect the digital display. Keep the cover buckle closed when ports are not in use to protect them from dust and debris.

Figura 7: Sploda view illustrating the robust construction of the SmallRig VB212, including its aluminum frame, silicone coating, and fire-retardant backplate.

4.2 Sigurtà tal-Batterija

The battery is equipped with an Intelligent Battery Management System (BMS) that protects against short circuits, over-temperature, over-voltage, over-current, over-charge, and over-discharge. It is certified by FCC, MSDS, UN38.3, IEC 62133, UL2054, and UL62368.

Figure 8: Diagram illustrating the Intelligent BMS (Battery Management System) within the SmallRig VB212, highlighting its various protection features.

5 Issolvi l-problemi

5.1 Power Leakage / Self-Discharge

If the battery experiences significant power loss when not in use, ensure that Low-Current Mode is properly exited. If the issue persists, try resetting the battery by repeatedly pressing the power button (more than 10 times quickly) or holding it for approximately 20 seconds. If the problem continues, contact customer support.

5.2 Iċċarġjar bil-mod

For optimal charging speed, use a PD protocol charger and connect it to the USB-C1 port. Ensure the charger provides sufficient wattage (e.g., 140W) to achieve the advertised 2-hour full charge time. When charging via D-TAP, ensure voltage does not exceed 16.8V and current stays below 8A to protect the battery.

6. Speċifikazzjonijiet

Figure 9: Visual representation of the product list and key specifications for the SmallRig VB212 V Mount Battery.

7. Garanzija u Appoġġ

The SmallRig V Mount Battery VB212 is backed by a 24-month worry-free warranty. SmallRig's policy is to replace, not repair, ensuring you receive a functional product quickly. For any support inquiries or warranty claims, please refer to the official SmallRig webis-sit jew ikkuntattja lis-servizz tal-klijenti tagħhom direttament.

Figure 10: Image highlighting the 2-Year Service and warranty provided for the SmallRig VB212 V Mount Battery.
