1. Prodott Aktarview
The Reality Leuchten Talent R27769131 is a versatile LED wall light designed for both indoor and outdoor use. It features a durable matt white metal housing, battery operation for flexible placement, and a magnetic wall mount for easy installation. Equipped with a motion detector and a twilight sensor, it offers automatic illumination. The light provides effective and pleasant up and down lighting, enhancing the ambiance of any space. Its modern LED technology ensures high light quality and energy efficiency.

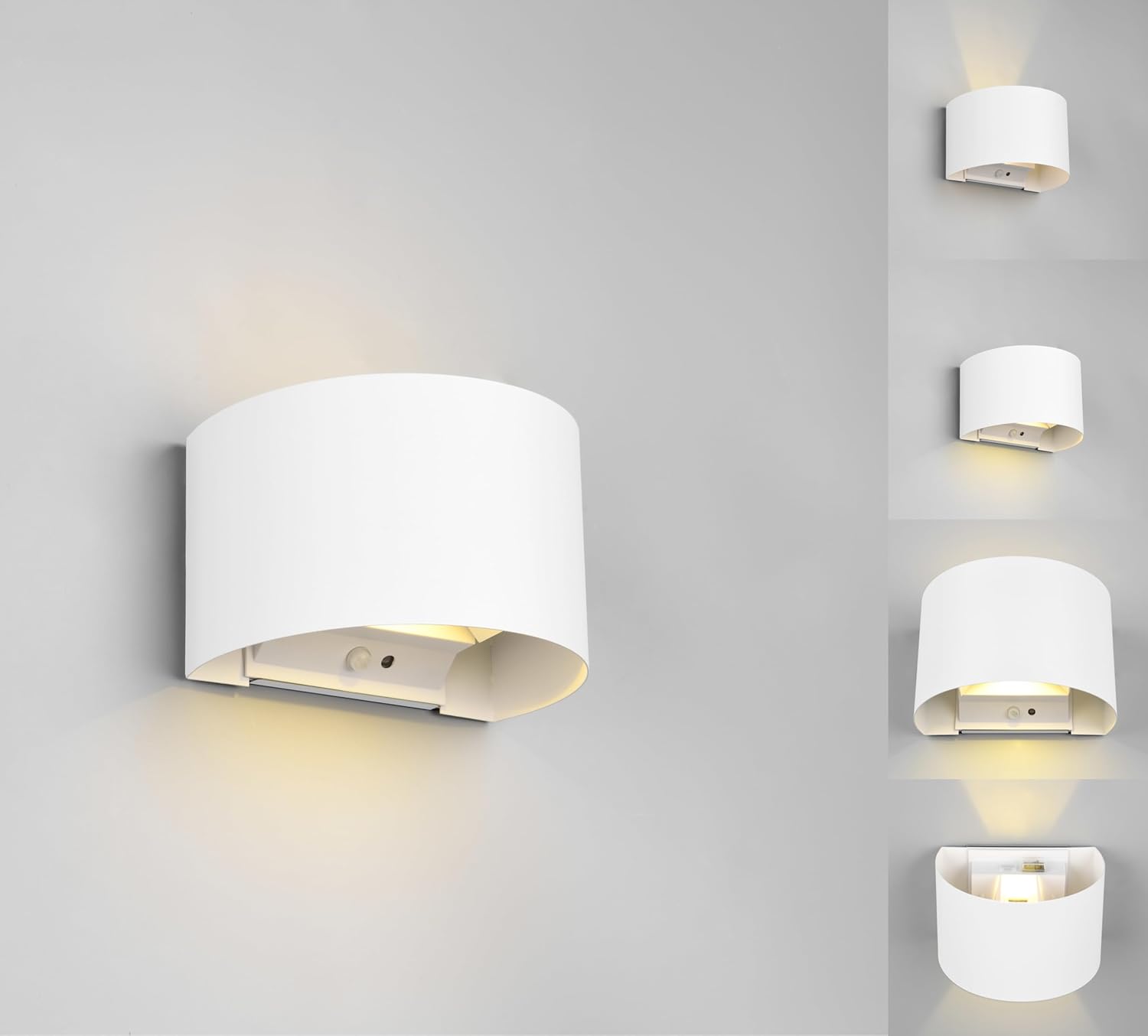

Figura 1: Quddiem view of the Reality Leuchten Talent R27769131 LED Wall Light.
2. Kontenut tal-Pakkett
Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:
- 1 x Reality Leuchten Talent R27769131 LED Wall Light
- 1 x Magnetic Wall Mount
- 1 x Cable tal-Iċċarġjar USB-C
- 1 x Manwal ta 'Istruzzjoni
3. Speċifikazzjonijiet
Figure 2: Product dimensions (Length x Width x Height: 11.5 x 16 x 10 cm).
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | RL LIVE YOUR LIGHT |
| Numru tal-Mudell | R27769131 |
| Dimensjonijiet (L x W x H) | 11.5 x 16 x 10 ċm |
| Piż | 710 g |
| Materjal | Metall |
| Kulur | White White |
| Sors tad-Dawl | 2 x 0.5 W LED |
| Fluss Luminuż | 100 lm |
| Temperatura tal-Kulur | 3000 Kelvin |
| Medja tal-Ħajja | 25,000 sigħat |
| Tip ta 'batterija | 1 x Jonju tal-litju (inkluż) |
| Port tal-Iċċarġjar | USB-C |
| Ħin tal-Iċċarġjar | Appross. 5 sigħat |
| Ħin ta' Tħaddim (Ċarġ Sħiħ) | Appross. 6 sigħat |
| Karatteristiċi Speċjali | Motion Detector, Twilight Sensor, Energy Efficient, Magnetic Wall Mount, Up/Down Lighting |
| Klassifikazzjoni tal-IP | IP44 (Weather-resistant, suitable for outdoor and damp kmamar) |
| Tip ta' Installazzjoni | Mount Wall |
4. Setup u Installazzjoni
The Talent wall light is designed for easy installation using its magnetic wall mount. No complex wiring is required due to its battery operation.
- Agħżel Post: Select a suitable location on a wall, ensuring it is clean and dry. The IP44 rating makes it suitable for outdoor and damp żoni.
- Mount the Plate: Secure the magnetic wall mount plate to the desired surface using appropriate screws (not included). Ensure the plate is level and firmly attached.
Figure 3: The magnetic wall mount plate, ready for installation.
- Waħħal id-Dawl: Once the mounting plate is secure, simply align the back of the Talent wall light with the magnetic plate. The light will snap into place securely.
Figure 4: The Talent wall light magnetically attached to the wall mount.
5. Operazzjoni
The Talent wall light offers two operational modes, selectable via a switch located inside the light unit. It also features adjustable up and down lighting.
5.1 Għażla tal-Modalità
To access the mode switch, gently detach the light from its magnetic mount. The switch has three positions:
- Position I (Motion Detector Mode): In this mode, the light will automatically turn on when motion is detected within its sensor range. It will turn off after a period of no motion.
- Position II (Twilight Sensor Mode): In this mode, the light will automatically turn on when the ambient light level drops (i.e., when it gets dark) and turn off when it becomes light again.
- Position O (Off): The light is turned off and will not activate.
Figura 5: Intern view of the light showing the USB-C charging port and the mode selection switch.
Figura 6: Close-up view of the motion and twilight sensors located at the bottom of the light unit.
5.2 Adjustable Up/Down Lighting
The light features an adjustable design that allows you to direct the light output either upwards, downwards, or both. This is achieved by adjusting the internal reflectors or the angle of the light unit itself within its housing. Experiment with the positioning to achieve your desired lighting effect.
Figure 7: The Talent wall light demonstrating both up and down lighting.
6. Iċċarġjar tal-batterija
The Talent wall light is powered by an integrated Lithium-ion battery. When the battery level is low, the light output may diminish or cease. Recharge the battery using the provided USB-C cable.
- Sib il-Port tal-Iċċarġjar: Gently detach the light from its magnetic wall mount. The USB-C charging port is located inside the light unit, near the mode switch (refer to Figure 5).
- Qabbad Kejbil: Insert the USB-C end of the charging cable into the light's port. Connect the other end (USB-A) to a standard USB power adapter (not included) or a powered USB port.
Figure 8: The included USB-C charging cable.
- Indikatur tal-Iċċarġjar: (Note: Specific charging indicator behavior is not detailed in product information. Typically, a light will indicate charging status, e.g., red for charging, green for full.)
- Ħin tal-Iċċarġjar: Ċarġ sħiħ jieħu madwar 5 sigħat.
- Ħin tat-Tħaddim: Once fully charged, the light provides approximately 6 hours of illumination.
7. Manutenzjoni
Proper maintenance ensures the longevity and optimal performance of your Talent wall light.
7.1 Tindif
To clean the light, ensure it is turned off and detached from its mount. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components. For more detailed information on cleaning light fixtures, please refer to general guidelines for lighting maintenance.
7.2 Ir-riċiklaġġ
This product contains a Lithium-ion battery and LED components. At the end of its lifespan, it should be disposed of responsibly according to local regulations for electronic waste and batteries. Do not dispose of with general household waste. For information on recycling light bulbs and electronic devices, consult your local recycling facilities or environmental agencies.
8 Issolvi l-problemi
If you encounter issues with your Talent wall light, please refer to the following common solutions:
- Id-dawl ma jixgħelx:
- Iċċekkja jekk il-batterija hijiex iċċarġjata. Erġa' ċċarġjaha jekk meħtieġ.
- Ensure the mode switch is not in the 'O' (Off) position.
- In Motion Detector mode, ensure there is actual motion within range.
- In Twilight Sensor mode, ensure it is dark enough for the sensor to activate.
- Light turns on unexpectedly:
- In Motion Detector mode, check for environmental factors causing false triggers (e.g., moving branches, pets).
- In Twilight Sensor mode, ensure the sensor is not obstructed or in a consistently dark area during daylight hours.
- Ħin ta' tħaddim qasir:
- Ensure the battery is fully charged (approx. 5 hours charging time).
- Battery performance may decrease over time with repeated charge cycles.
Jekk il-problema tippersisti wara li tipprova dawn il-passi, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
9. Informazzjoni dwar is-Sigurtà
Please read and follow these safety instructions carefully to prevent injury or damage:
- Do not attempt to disassemble or modify the light beyond what is described in this manual.
- Keep the light away from extreme temperatures, direct sunlight, and open flames.
- Do not immerse the light in water. While it has an IP44 rating for weather resistance, it is not designed for submersion.
- Uża biss il-kejbil USB-C provdut għall-iċċarġjar.
- Ensure the magnetic wall mount is securely fastened to a stable surface to prevent the light from falling.
- This product contains a light source that is not replaceable. When the light source reaches its end of life, the entire luminaire should be replaced.
- Żomm fejn ma jintlaħaqx mit-tfal.
10. Garanzija u Appoġġ
This product comes with a manufacturer's instruction manual. For warranty information and customer support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Please retain your proof of purchase for any warranty claims.
