Manwal tal-Utent tar-Radju TIDRADIO TD-H8 GMRS

Introduzzjoni

This manual provides detailed instructions for the operation and maintenance of your TIDRADIO TD-H8 GMRS Radio. The TD-H8 is a 2nd generation GMRS handheld transceiver featuring 199 channels, wireless programming capabilities, a 5-watt power output, and NOAA weather reception. A GMRS license is required for operation.

Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

2 x TIDRADIO TD-H8 GMRS Radio
2 x Batterija 2500mAh
2 x Antenna Standard
2 x GMRS Antenna
2 x Short Antenna
2 x Charger and USB-C Charging Cable
2 x Earpiece
1 x CH430 USB Programming Cable
2 x Strap tal-polz
2 x Clip taċ-ċinturin
2 x Manwal għall-Utent

Kontenut tal-pakkett tar-Radju TIDRADIO TD-H8 GMRS

Image: All components included in the TIDRADIO TD-H8 GMRS Radio package.

Prodott Overview

The TD-H8 GMRS radio features a 1.77-inch color LCD display for clear readability and intuitive navigation. Key controls include a VFO/MR button, A/B channel switch, MENU, EXIT, and a numeric keypad for direct input and function access.

TIDRADIO TD-H8 GMRS Radio display showing frequency, channel name, and channel number

Image: Close-up of the TD-H8 display, highlighting frequency, channel name, and channel number.

Karatteristiċi ewlenin:

GMRS Channels: 30 channels, including 22 GMRS two-way channels (CH 1-22) and 8 GMRS Repeater Channels (CH 23-30).
Private Codes: 155 private codes (50 CTCSS/105 DCS) for enhanced privacy.
Kanali tat-Temp NOAA: 11 NOAA Weather Radio & Scan Channels (CH 189-199) for receiving weather alerts.
Radju FM: Funzjoni tar-radju FM integrata.
Flashlight: Integrated flashlight for convenience in low-light conditions.
Output tal-Enerġija: 5 Watts maximum power.
Dual-band Receiver: UHF/VHF dual-band receiver and scanner.
Operazzjoni mingħajr idejn: VOX function for hands-free communication.
Funzjoni tal-Iskennjar: Channel scanning capability.
Funzjoni Squelch: Adjustable squelch to filter out weak signals.

TIDRADIO TD-H8 GMRS Radio highlighting various features like GMRS channels, NOAA, flashlight, 5W power, hands-free, private codes, DTMF, scan, SOS, and squelch.

Image: Visual representation of the TD-H8's key features.

Setup

1. Installazzjoni tal-batterija

Align the 2500mAh Lithium Polymer battery with the battery compartment on the back of the radio. Slide the battery into place until it clicks securely. Ensure the battery latch is engaged.

2. Iċċarġjar tal-batterija

The TD-H8 radio features a USB-C charging port for convenient recharging. You can charge the battery using the included USB-C cable and charger, a power bank, a car charger, or a laptop.

TIDRADIO TD-H8 GMRS Radio showing various USB-C charging methods: wall, power bank, car, and laptop.

Image: Illustration of multiple USB-C charging options for the TD-H8 radio.

3. Twaħħil tal-Antenna

Screw the desired antenna (standard, GMRS, or short) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

TIDRADIO TD-H8 GMRS Radio with a long antenna, illustrating improved range.

Image: The TD-H8 radio with a long antenna, demonstrating its flexible design and potential for extended range.

Istruzzjonijiet Operattivi

Power On/Off u Volum

Rotate the power/volume knob clockwise to turn on the radio and adjust the volume. Rotate counter-clockwise until a click is heard to turn off the radio.

Għażla tal-Kanal

The TD-H8 has 199 channels. Use the up/down arrow keys or the numeric keypad to select channels. Channels 1-22 are GMRS two-way channels, 23-30 are GMRS Repeater Channels, 31-54 are programmable scanner channels (RX & TX), 55-188 are RX-only channels, and 189-199 are NOAA Weather Radio & Scan Channels (RX-only).

Radju tat-Temp NOAA

Access channels 189-199 to receive NOAA weather broadcasts and alerts. This feature provides critical weather information for safety.

TIDRADIO TD-H8 GMRS Radio displaying NOAA Weather Radio function amidst various weather scenarios.

Image: The TD-H8 radio highlighting its NOAA Weather Radio capability, useful in diverse environmental conditions.

Funzjoni VOX

The Voice Operated Exchange (VOX) function allows for hands-free transmission. When enabled, the radio will transmit automatically when it detects your voice. Adjust VOX sensitivity in the menu.

Flashlight

The built-in flashlight can be activated for illumination in dark environments.

Image: The TD-H8 radio's built-in flashlight providing light in a dark outdoor setting.

Programmazzjoni

The TD-H8 GMRS radio offers multiple programming methods for flexibility and customization.

1. Wireless Programming (Odmaster App)

The Odmaster app allows for wireless programming of your radio via Bluetooth. This method provides easy customization, offline programming, and the ability to import local repeater lists with a single click.

Download the 'Odmaster' app from the Google Play Store or Apple App Store.
Connect your radio to your smartphone via Bluetooth.
Use the app interface to customize channels, frequencies, and other settings.
The app supports saving, caching, and sharing programming profiles.

TIDRADIO TD-H8 GMRS Radio being programmed wirelessly via the Odmaster phone app.

Image: The TD-H8 radio being programmed wirelessly using the Odmaster mobile application.

Wireless programming feature of TIDRADIO TD-H8 GMRS Radio, eliminating the need for programming software and drivers.

Image: Wireless programming capability of the TD-H8, simplifying the setup process.

TIDRADIO TD-H8 GMRS Radio showing repeater list search and import function via phone app.

Image: The Odmaster app's repeater list feature, allowing users to search and import nearby repeaters.

TIDRADIO TD-H8 GMRS Radio demonstrating offline programming capability.

Image: Offline programming feature, enabling configuration saving in advance without cellular data.

2. CHIRP Software Programming

The TD-H8 is compatible with CHIRP software for computer-based programming. Use the included CH430 USB programming cable to connect the radio to your computer.

Connect the CH430 USB programming cable to your radio and computer.
Open CHIRP software and select "TIDRADIO → TD-H8-GMRS" from the radio menu.
Follow the software instructions to read from and write to the radio.

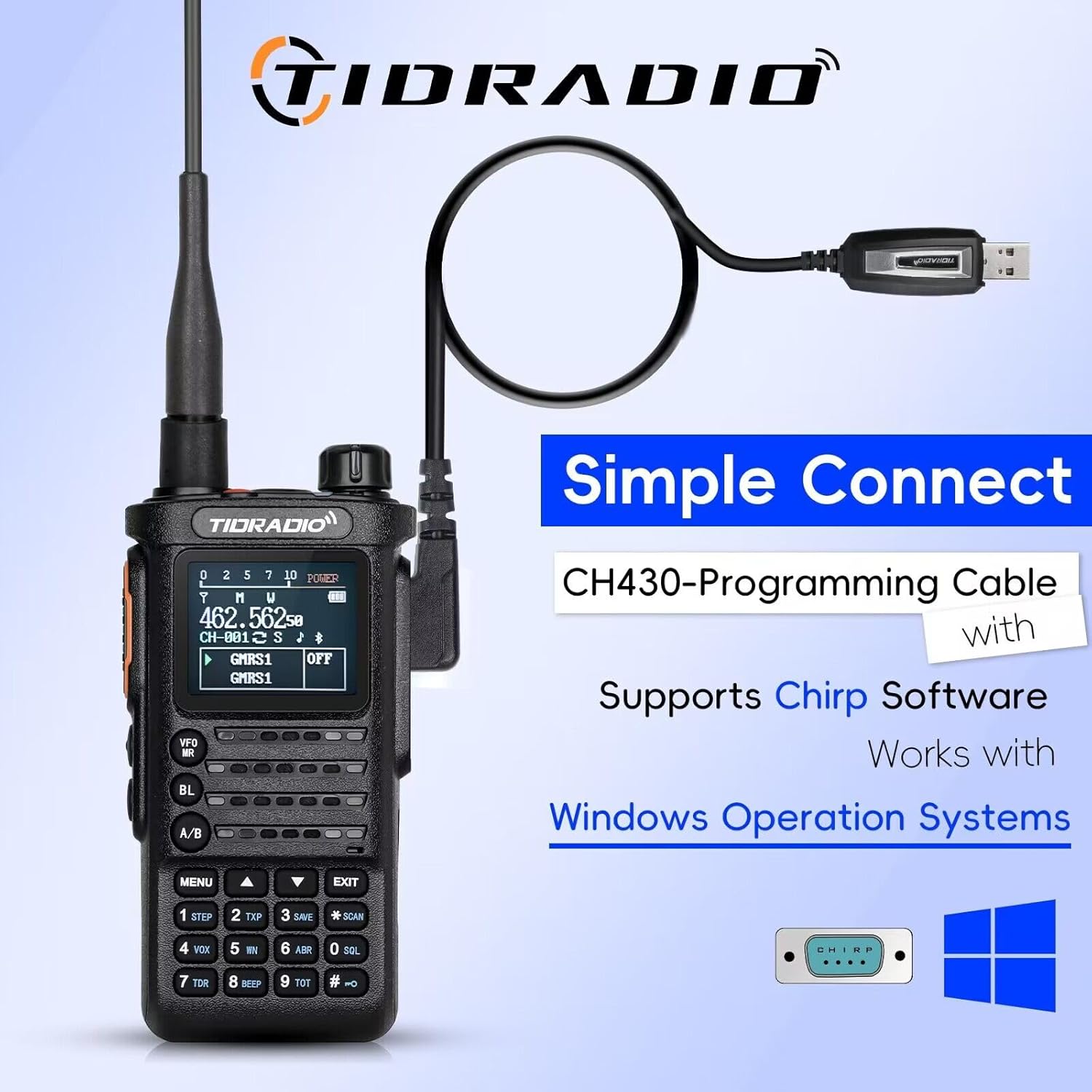

TIDRADIO TD-H8 GMRS Radio connected to a computer via CH430 USB programming cable, compatible with Windows.

Image: The TD-H8 radio connected via the CH430 USB programming cable, indicating compatibility with Windows operating systems for CHIRP software.

3. Manufacturer Software

For firmware upgrades and specific manufacturer programming, visit walkietalkiesoftware.com.

TIDRADIO TD-H8 GMRS Radio showing multiple programming methods: CPS software, CHIRP, and Odmaster app.

Immaġni: Fuqview of the multiple programming methods available for the TD-H8 radio.

Manutenzjoni

To ensure the longevity and optimal performance of your TIDRADIO TD-H8 GMRS Radio, follow these maintenance guidelines:

Tindif: Uża artab, damp drapp biex tnaddaf il-barra tar-radju. Evita kimiċi ħarxa jew prodotti tat-tindif li joborxu.
Kura tal-batterija: Fully charge the battery before initial use. Avoid overcharging or completely draining the battery for extended periods. Store the radio and battery in a cool, dry place.
Kura tal-antenna: Ensure the antenna is securely attached. Avoid bending or stressing the antenna, as this can damage the connector or affect performance.
Ħażna: When not in use for long periods, remove the battery and store the radio in a protective case to prevent dust and damage.

Issolvi l-problemi

If you encounter issues with your TD-H8 radio, refer to the following common problems and solutions:

Ir-radju mhux qed jixgħel: Ensure the battery is fully charged and correctly installed. Check the power/volume knob position.
No transmission/reception: Verify the antenna is securely attached. Check the selected channel and ensure it is a GMRS two-way channel (1-22) or repeater channel (23-30) for transmission. Confirm that the volume is adjusted appropriately.
Kwalità fqira tal-awdjo: Adjust the squelch level. Ensure you are within range of the other radio or repeater. Check for obstructions.
Programming issues: For wireless programming, ensure Bluetooth is enabled on your device and the radio. For wired programming, verify the CH430 cable is properly connected and drivers are installed if necessary. Ensure the correct radio model is selected in CHIRP or Odmaster.

For further technical assistance, please contact TIDRADIO customer support.

Speċifikazzjonijiet

Karatteristika	Speċifikazzjoni
Numru tal-Mudell	TD-H8 GMRS Radio
Brand	TIDRADJU
Numru ta 'Kanali	199
Medda ta' Frekwenzi	GMRS 462.5500 ~ 467.7250 MHz (Rx & Tx) / UHF & VHF (Scanning & Receiver)
Talking Range Massimu	10 Kilometer (approx. 6.2 miles)
Tip ta 'batterija	Polimeru tal-litju
Kapaċità tal-batterija	2500mAh
Voltage	7.4 Volts
Piż tal-oġġett	2.61 pounds (per radio with battery)
Livell ta 'Reżistenza għall-Ilma	Mhux Reżistenti għall-Ilma
Karatteristiċi Speċjali	Dual Band Receiver & Scan, Long Range GMRS Two-way Radio, One-click to Import Local Repeater, Support CHIRP, CPS and Odmaster (APP & Web programmabbli)

Back of TIDRADIO TD-H8 GMRS Radio showing model number, voltage, FCC ID, and serial number.

Immaġni: Wara view of the TD-H8 radio, displaying regulatory information including FCC ID: 2AWL3-TDH8GMRS and Serial Number: 2207UV00007.

For more detailed frequency information, refer to the GMRS frequency chart:

GMRS Frequency Chart for TIDRADIO TD-H8 GMRS Radio

Image: GMRS Frequency Chart detailing channel numbers, frequencies, and names.

Garanzija u Appoġġ

The TIDRADIO TD-H8 GMRS Radio comes with a 30-day warranty from the date of purchase.

For any technical issues or support inquiries, please contact our dedicated technical team. We are committed to providing professional support and resolving any problems you may encounter.

Contact information can typically be found on the TIDRADIO official webis-sit jew permezz tal-pjattaforma tax-xiri tiegħek.
