KEF Kube 10 MIE Powered Subwoofer Instruction Manual

Introduzzjoni

This manual provides detailed instructions for the setup, operation, and maintenance of your KEF Kube 10 MIE 10 Inch 300 Watt Powered Subwoofer. Please read this manual thoroughly before using the product to ensure proper function and longevity.

The Kube 10 MIE is designed to deliver remarkable bass extension and control, featuring a sealed cabinet, a 10-inch bass driver, and 300 Watts of power. It incorporates KEF's Music Integrity Engine® (MIE) for dynamically enhanced bass depth and dynamics.

Kontenut tal-Pakkett

Malli tiftaħ il-pakkett, ivverifika li l-komponenti kollha huma preżenti:

• 1 KEF Kube 10 MIE Subwoofer
• Korda tal-Enerġija
• Manwal għall-Utent (dan id-dokument)

Quddiem view of the KEF Kube 10 MIE Subwoofer, showcasing id-disinn iswed kompatt tiegħu.

Setup u Installazzjoni

1. Konsiderazzjonijiet dwar il-Kollokazzjoni

The placement of your subwoofer significantly impacts its performance. The Kube 10 MIE offers three room position EQ options to optimize sound based on its location.

• In-room: For placement away from walls or corners.
• Wall / Cabinet: For placement near a wall or inside a cabinet.
• Rokna: Għat-tqegħid f'kantuniera tal-kamra.

Detail of the room position EQ switch, allowing selection between In-room, Wall/Cabinet, and Corner settings.

Select the appropriate setting on the subwoofer's rear panel to match your chosen placement for optimal bass response.

2. Konnessjonijiet

The Kube 10 MIE provides versatile connection options to integrate with various audio systems.

• KEF SmartConnect: Automatically detects whether a mono (LFE) or stereo (Line Level) input is connected and adjusts the subwoofer's gain accordingly.
• Inputs tal-Livell tal-Kelliem: Allows connection directly from your ampoutputs tal-kelliem tal-lifier.
• RCA Line Level Inputs (LFE/L/R): Standard RCA inputs for connecting to an AV receiver or pre-ampaktar ħaj.

Rear panel of the Kube 10 MIE, displaying the various input options including RCA and speaker level terminals.

Dettaljati view of the SmartConnect and Line Input (LFE, L, R) ports on the subwoofer's rear panel.

Ensure the subwoofer is powered off before making any connections. Connect the power cord to the subwoofer and then to a suitable wall outlet.

Operazzjoni

1. Ġestjoni tal-Enerġija

The Kube 10 MIE features an auto wake-up function for convenient power management.

• Dejjem Mixgħul: Is-subwoofer jibqa' mixgħul kontinwament.
• Wake Up Awtomatiku: The subwoofer will automatically power on when an audio signal is detected and enter standby mode after a period of inactivity.
• Trigger 12V: For integration with home automation systems, allowing the subwoofer to be turned on/off via a 12V trigger signal.

Detail of the Auto Wake Up switch, offering "Always on", "Auto wake up", and "12V" options.

2. L-aġġustament tas-Settings

The Kube 10 MIE includes controls for fine-tuning its performance to your listening environment and preferences.

• Kontroll tal-Volum: Jaġġusta l-livell ġenerali tal-ħruġ tas-subwoofer.
• Frekwenza Crossover: Sets the upper frequency limit for the subwoofer, determining where it blends with your main speakers.
• Kontroll tal-Fażi: Allows adjustment of the subwoofer's phase (0° or 180°) to ensure it integrates seamlessly with your main speakers.
• iBX Intelligent Bass Extension: KEF's proprietary DSP algorithms ensure that every component of the subwoofer works in perfect harmony, providing deeper and more precise bass at any listening level.

The KEF Kube 10 MIE Subwoofer integrated into a home audio setup, demonstrating its compact size and aesthetic.

Manutenzjoni

To ensure the longevity and optimal performance of your KEF Kube 10 MIE Subwoofer, follow these maintenance guidelines:

• Tindif: Use a soft, dry cloth to wipe the exterior surfaces. Avoid abrasive cleaners, solvents, or waxes.
• Ventilazzjoni: Ensure adequate airflow around the subwoofer. Do not block the ventilation ports.
• Ambjent: Żomm is-subwoofer 'il bogħod mix-xemx diretta, sorsi ta' sħana, umdità eċċessiva, u trab.
• Itfi: Disconnect the power cord from the wall outlet if the subwoofer will not be used for an extended period.

Issolvi l-problemi

If you encounter issues with your KEF Kube 10 MIE Subwoofer, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact KEF customer support or your authorized dealer for further assistance.

Speċifikazzjonijiet

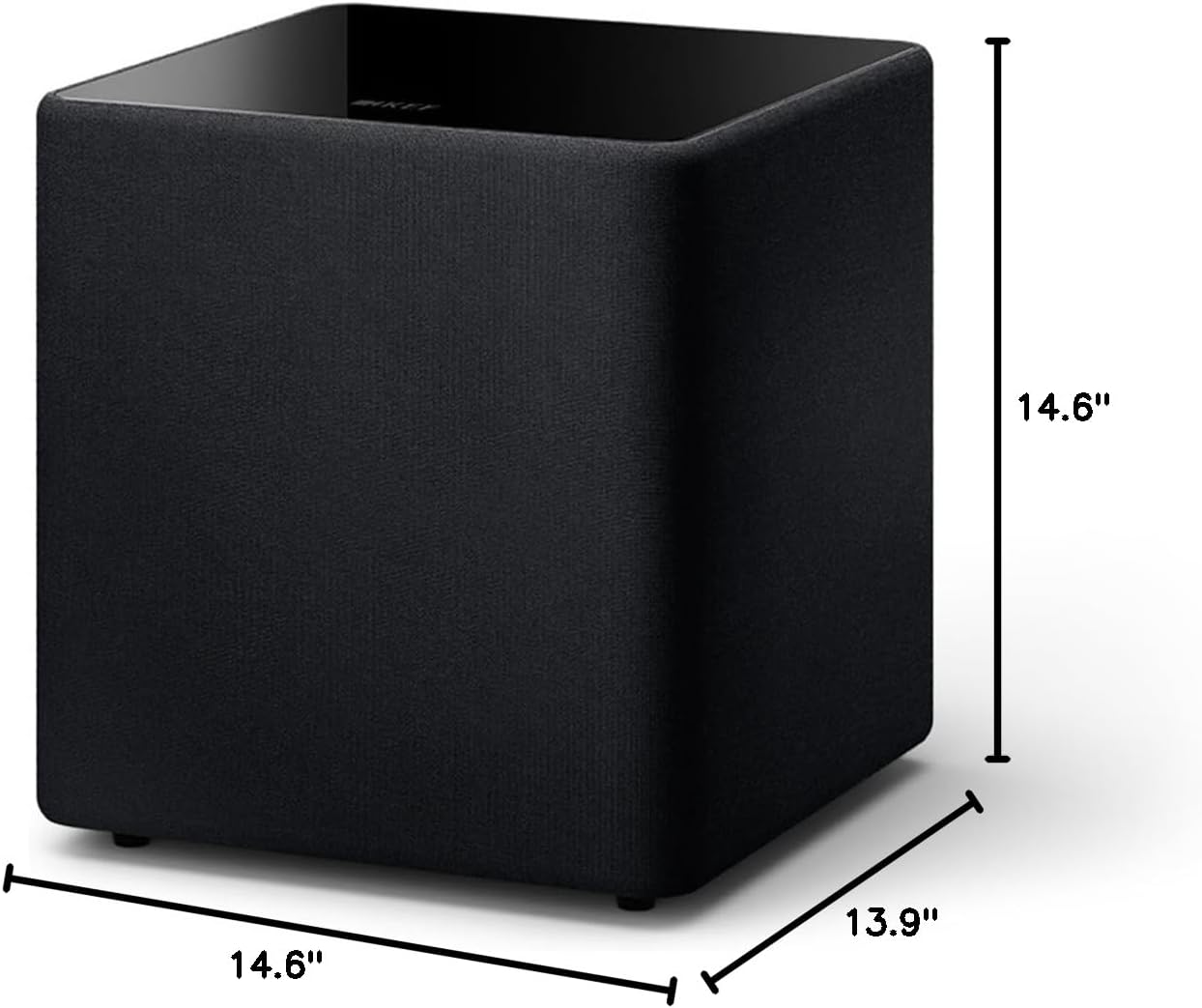

Diagram showing the dimensions of the KEF Kube 10 MIE Subwoofer: 14.6 inches deep, 13.9 inches wide, and 14.6 inches high.

Garanzija u Appoġġ

The KEF Kube 10 MIE Subwoofer comes with a Garanzija Limitata. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your product or visit the official KEF websit.

For technical support, service, or further inquiries, please contact KEF customer support or your authorized KEF dealer. You can find more information and support resources by visiting the official KEF store online:
