Manwal tal-Utent tal-Forn tal-Konvezzjoni tal-Gass WILPREP

1. Prodott Aktarview

The WILPREP Double Deck Commercial Gas Convection Oven is designed for high-volume commercial kitchen environments, offering efficient and precise cooking capabilities. This appliance features two independent oven chambers, each with its own controls, allowing for simultaneous preparation of different food items at varying temperatures.

Figura 1.1: Quddiem view of the WILPREP Double Deck Commercial Gas Convection Oven. This image displays the two stacked oven units, each with dual glass doors and control panels on the right side.

Each chamber provides a spacious 7 cu. ft. capacity, equipped with multiple rack positions to accommodate a wide range of baking and roasting needs. The oven operates on Liquid Propane Gas (LPG) and requires a 120V electrical connection for its control systems and convection fans.

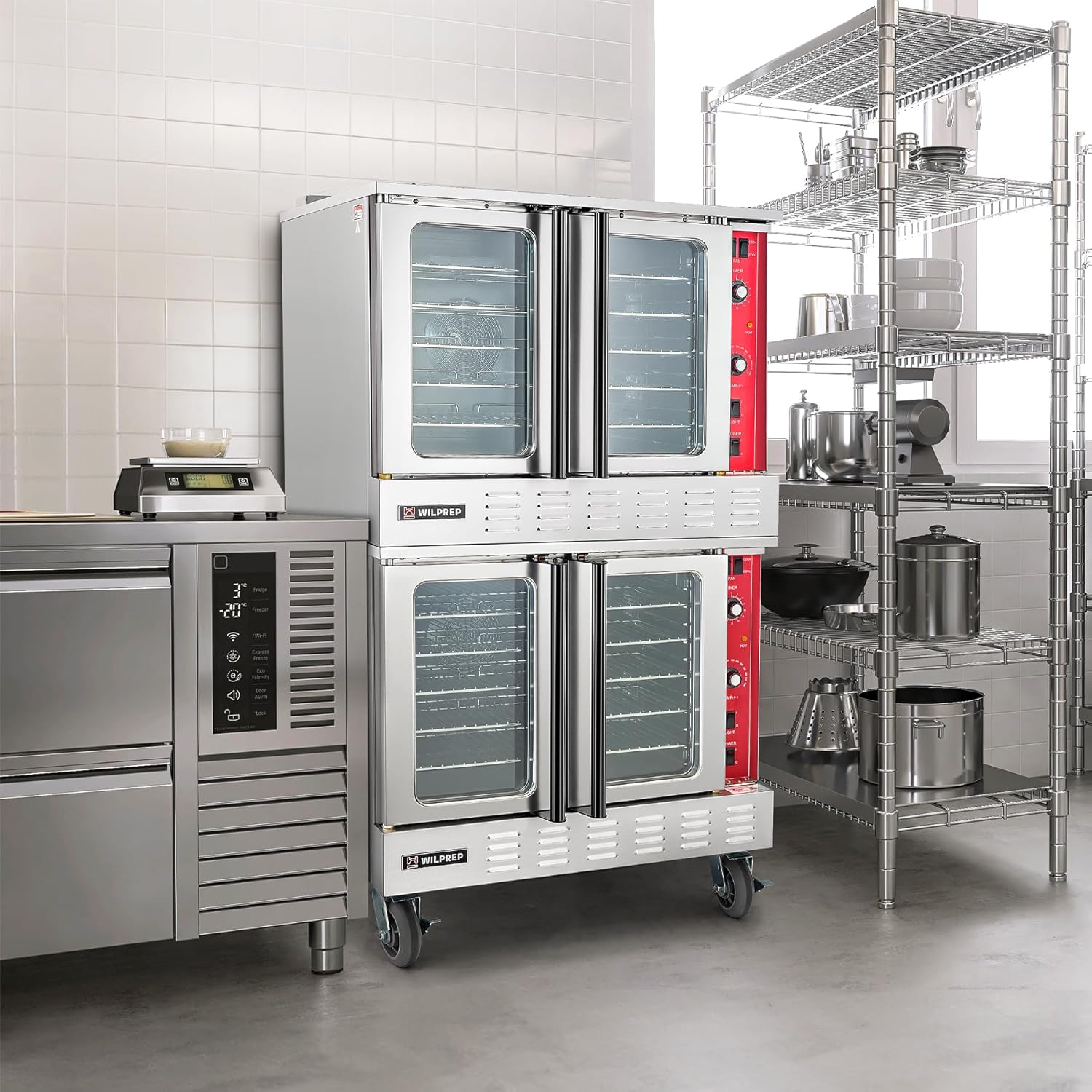

Figure 1.2: The WILPREP Gas Convection Oven integrated into a commercial kitchen environment, demonstrating its size and placement alongside other kitchen equipment.

Key features include powerful 54,000 BTU heating per chamber, automatic thermostats for temperature control from 150°F to 500°F, and user-friendly controls for fan speed and mode selection. The oven is constructed with durable stainless steel exteriors and easy-to-clean enamel interiors.

Figura 1.3: Intern view of one of the oven chambers, highlighting its 7 cu. ft. capacity and adjustable rack brackets. The image shows various baked goods, such as breads, pastries, pizzas, and chicken, illustrating the oven's versatility.

2. Istruzzjonijiet tas-Sigurtà

Always adhere to local codes and regulations for gas appliance installation and operation. Failure to do so may result in property damage, injury, or death.

• Kun żgur li jkun hemm ventilazzjoni xierqa fiż-żona tal-kċina.
• Taħżinx jew tużax gażolina jew fwar u likwidi oħra li jaqbdu fil-viċinanza ta' dan jew kwalunkwe apparat ieħor.
• Keep the area around the appliance clear and free from combustible materials.
• Only qualified personnel should install, service, or repair this appliance.
• Disconnect power and gas supply before performing any maintenance or cleaning.
• Wear appropriate personal protective equipment (PPE) when operating or servicing the oven, especially when handling hot items.

Figura 2.1: Ġenb view of the oven showing overall dimensions and the cCSAus safety certification logo, indicating compliance with North American safety standards.

3. Installazzjoni u Setup

3.1 Disimballaġġ

Carefully remove the oven from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and supplier. Retain all packaging materials for inspection.

3.2 Rekwiżiti tal-Post

• Install the oven on a level, non-combustible surface.
• Ensure adequate clearance from walls and other equipment for ventilation and service access. Refer to local fire codes for specific clearance requirements.
• The oven must be installed under an appropriate commercial ventilation hood system.

3.3 Konnessjoni tal-Gass

• This oven is configured for Liquid Propane Gas (LPG). Field conversion to natural gas is possible by a qualified technician using a manufacturer-approved conversion kit.
• The gas supply line must be sized to provide sufficient gas pressure and volume for the oven's BTU rating (54,000 BTU per chamber, 108,000 BTU total).
• Install a manual shut-off valve in the gas supply line in an accessible location.
• Perform a leak test on all gas connections using a non-corrosive leak detection solution.

3.4 Konnessjoni Elettrika

• The oven requires a 120V electrical supply.
• Ensure the electrical circuit is properly grounded and protected by a circuit breaker of appropriate amperage.
• Tużax kurduni ta' estensjoni.

4. Istruzzjonijiet Operattivi

4.1 Control Panel Overview

Each oven chamber has an independent control panel located on the right side. Controls typically include:

• Dial tat-temperatura: Adjusts oven temperature from 150°F to 500°F.
• Timer: A 60-minute timer for setting cooking durations. This timer provides an audible alert but does not shut off the oven.
• Fan Speed Switch: Selects high or low fan speed for convection.
• Swiċċ tal-Modalità: Selects between "Cook" and "Cool" modes. "Cool" mode activates the fan without heat to cool down the oven chamber.
• Swiċċ tad-Dawl: Activates the interior LED lights.
• Swiċċ tal-Enerġija: Turns the oven chamber on/off.

Figure 4.1: Close-up of the oven interior illustrating the 54,000 BTU heating capacity and the temperature range of 150°F to 500°F, with arrows indicating airflow for fast heating.

4.2 L-Istartjar Inizjali

1. Ensure gas and electrical connections are secure and active.
2. Turn the Power Switch to "ON" for the desired oven chamber.
3. Set the Temperature Dial to the desired cooking temperature. The automatic ignition system will attempt to light the burner.
4. Ħalli l-forn jissaħħan minn qabel għat-temperatura stabbilita.

4.3 Cooking with Convection

The convection fan circulates hot air for even cooking and faster baking times.

Figura 4.2: Dettaljat view of the built-in convection fan, highlighting its two-speed options and dual modes for efficient and even convection. The image also mentions the automatic ignition system.

• Select "High" or "Low" fan speed based on the food item. High speed is suitable for most baking, while low speed is better for delicate items.
• Use the "Cook" mode for standard operation.
• Monitor cooking progress through the glass doors using the interior LED lights.

Figure 4.3: The oven interior illuminated by LED lights, demonstrating how the clear glass doors allow for effortless food monitoring without opening the oven.

5. Manutenzjoni u Tindif

Regular maintenance and cleaning will extend the life of your oven and ensure optimal performance. Always disconnect power and gas supply before cleaning.

5.1 Tindif ta 'Kuljum

• Imsaħ il-barra tal-istainless steel b'reklamaramp drapp u deterġent ħafif. Evita cleaners li joborxu.
• Clean the enamel interior with a non-abrasive oven cleaner or a solution of warm water and mild detergent. Rinse thoroughly.
• Remove and clean oven racks and rack guides.
• Wipe down glass doors with a glass cleaner.

5.2 Weekly/Monthly Cleaning

• Inspect and clean the convection fan blades if accessible.
• Check for any grease buildup in the oven cavity and clean as necessary.

5.3 Manutenzjoni Professjonali

It is recommended to have a qualified service technician inspect the oven annually. This includes checking gas connections, burner operation, electrical components, and fan motor.

Figure 5.1: A composite image detailing the oven's construction materials, including the stainless steel body for corrosion resistance, the non-porous enamel interior for easy cleaning, double-layer glass doors for insulation and safety, and powder-coated handles for durability and comfort.

6 Issolvi l-problemi

Qabel ma ċċempel għas-servizz, review il-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet potenzjali tagħhom:

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, ikkuntattja tekniku tas-servizz kwalifikat.

7. Speċifikazzjonijiet

Figura 7.1: Ġenb view of the oven illustrating key dimensions: 38 inches width, 44.5 inches depth (including casters), and 61.8 inches height.

8. Garanzija u Appoġġ

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Wilprep website. Ensure you have your model number (WCO-C0G2-LP) and purchase date available when contacting support.

Għal aktar riżorsi u informazzjoni dwar il-prodott, tista' żżur Wilprep Store on Amazon.
