1. Introduzzjoni
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your MAXHUB Interactive Flat Panel 75". Please read this manual thoroughly before using the product to ensure proper functionality and safety.
Figura 1.1: Quddiem view of the MAXHUB Interactive Flat Panel 75". This image shows the large display screen with a digital clock and icons for folders, settings, notes, and more, indicating its interactive capabilities.
2. Informazzjoni dwar is-Sigurtà
Always adhere to the following safety guidelines to prevent damage to the product or injury to yourself and others:
- Do not expose the panel to water or excessive humidity.
- Ensure proper ventilation around the panel.
- Uża biss l-adapter tal-enerġija fornut mal-apparat.
- Avoid placing heavy objects on the panel.
- Skonnettja l-enerġija qabel ma tnaddaf jew tagħmel manutenzjoni.
3. Komponenti u Karatteristiċi tal-Prodott
The MAXHUB Interactive Flat Panel 75" is designed with several key features for enhanced usability and durability.

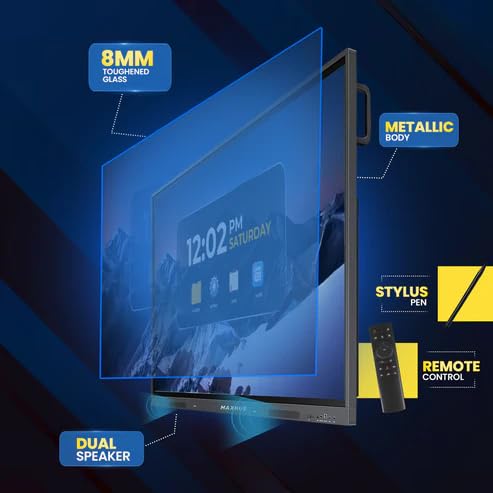

Figura 3.1: Sploda view diagram highlighting key components. This image illustrates the 8mm toughened glass, metallic body, dual speakers, stylus pen, and remote control that come with the interactive flat panel.
- 8mm Toughened Glass: Provides durability and protection for the display.
- Metallic Body: Ensures structural integrity and a premium finish.
- Kelliema Doppji: Jagħti output awdjo ċar.
- Stylus Pen: For precise interaction and writing on the screen.
- Kontroll mill-bogħod: Għal tħaddim konvenjenti mill-bogħod.
Figura 3.2: Ġenb view detailing connectivity options. This image shows the power supply input, VGA connection, OPS slot, connecting port, and front connectors for easy access.
- Slott tal-OPS: For integrating an optional OPS (Open Pluggable Specification) module.
- Konnessjoni VGA: For traditional video input.
- Provvista tal-Enerġija: Main power input.
- Front Connectors: Easily accessible ports for peripherals.
4. Setup u Installazzjoni
Follow these steps for proper installation of your MAXHUB Interactive Flat Panel:
- Spakkjar: Carefully remove the panel from its packaging. Retain all packaging materials for future transport or storage.
- Immuntar: Securely mount the panel using a compatible VESA wall mount or floor stand (sold separately). Ensure the mounting surface can support the weight of the panel.
- Qawwa tal-Konnessjoni: Connect the power cable to the panel's power input and then to a grounded electrical outlet.
- Konnessjoni Periferali: Connect any necessary peripherals such as computers, cameras, or external storage devices to the appropriate ports (HDMI, USB, USB Type-C). The versatile USB Type-C integrates 65-watt power charge, video, audio, touch, and internet access features into one interface.
- Qawwa Inizjali Mixgħula: Press the power button on the panel or remote control to turn on the device.
5. Istruzzjonijiet Operattivi
The MAXHUB Interactive Flat Panel offers a user-friendly interface and advanced features for various applications.
5.1 Operazzjoni Bażika
- Power On/Off: Use the power button on the panel or remote.
- Għażla tas-Sors: Navigate through input sources (HDMI, VGA, OPS) using the input button on the remote or on-screen menu.
- Interazzjoni tal-Mess: Use your finger or the provided stylus for direct interaction with the screen. The panel features less than 40ms writing latency for a natural writing experience.
5.2 Karatteristiċi Avvanzati

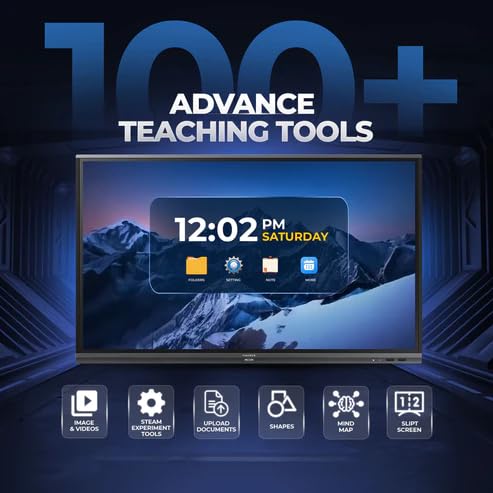

Figure 5.1: Display showing a variety of advanced teaching tools. This image highlights features like image and video integration, STEAM experiment tools, document upload, shapes, mind mapping, and split screen functionality.

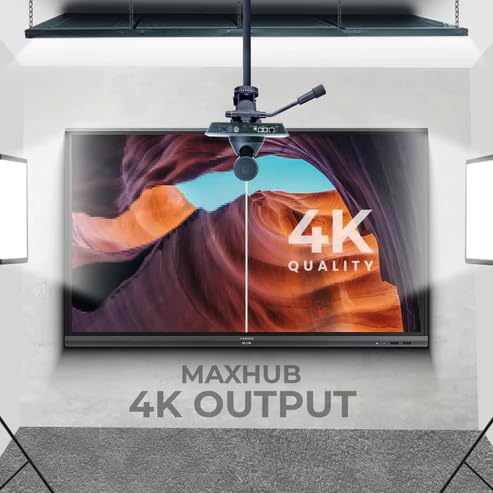

- Professional 4K Display: Experience high color accuracy (AE≤2) and NTSC 72% wide color gamut for vivid visuals.
- Pre-installed Course Delivery Apps: Utilize built-in applications and widgets for productive teaching and presentations.
- Teknoloġija tal-Kura tal-Għajnejn: Features TUV Low Blue light and TUV Flicker-free with an ambient light sensor and anti-glare glass to reduce eye strain.
- Responsive Hardware: Equipped with a powerful built-in 2.0Ghz quad-core CPU and 4GB RAM, along with a high-speed 1000Base-T network adapter for smooth performance.
- Disinn Iġjeniku: Incorporates SGS-certified antibacterial components for a cleaner environment.

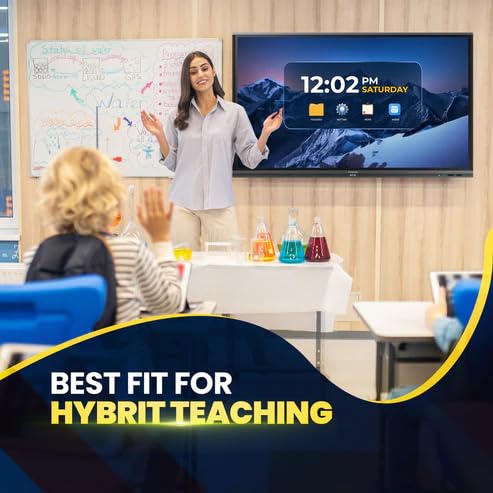

Figure 5.2: The interactive flat panel being used in a hybrid teaching environment. This image demonstrates its suitability for both in-person and online educational settings.
6. Manutenzjoni u Kura
Regular maintenance ensures the longevity and optimal performance of your interactive flat panel.
- Tindif tal-Iskrin: Uża drapp ratba u mingħajr ħelu ftit dampened with a non-abrasive, screen-safe cleaner. Do not spray cleaner directly onto the screen.
- Tindif tal-ġisem: Wipe the exterior with a dry, soft cloth. Avoid harsh chemicals.
- Ventilazzjoni: Ensure ventilation slots are clear of dust and debris to prevent overheating.
- Aġġornamenti tas-Software: Periodically check for and install software updates to ensure optimal performance and security.
7 Issolvi l-problemi
This section addresses common issues you might encounter with your MAXHUB Interactive Flat Panel.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda Qawwa | Kejbil tal-enerġija skonnettjat; Problema fil-bokka tal-enerġija. | Iċċekkja l-konnessjoni tal-kejbil tal-enerġija; Ipprova sokit differenti. |
| Ebda Display | Incorrect input source selected; Cable connection issue. | Verify input source; Check HDMI/VGA/USB-C cable connections. |
| Touchscreen ma jirrispondix | Calibration needed; Software glitch. | Recalibrate touchscreen via settings; Restart the panel. |
| Kwalità Fqira tal-Immaġni | Resolution mismatch; Dirty screen. | Adjust display resolution on connected device; Clean the screen. |
8. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | MAXHUB |
| Numru tal-Mudell | MaxHub Interactive Flat Panel 75" | OPS |
| Daqs tal-Wiri | 75 Pulzier |
| Teknoloġija tal-Wiri | LCD |
| Riżoluzzjoni tal-Wiri | 3840 x 2160 (4K UHD) |
| Ħin ta' Rispons | 40 Millisekondi |
| CPU | 2.0Ghz Quad-core |
| RAM | 4GB |
| Konnettività | Wi-Fi, USB Type-C, HDMI, USB 3.0 |
| Karatteristiċi Speċjali | Ultrawide Screen, TUV Low Blue Light, TUV Flicker-free, Anti-glare glass, SGS-certified antibacterial components |
| Dimensjonijiet tal-Pakkett | 180 x 114 x 20 ċm |
9. Informazzjoni dwar Garanzija
The MAXHUB Interactive Flat Panel 75" comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and limitations.
An extended warranty option may be available. For details, please contact your retailer or visit the official MAXHUB websit.
10. Appoġġ għall-Klijent
For technical assistance, service, or further inquiries, please contact MAXHUB customer support through the following channels:
- Websit: Visit the official MAXHUB websit għal FAQs, sewwieqa, u riżorsi ta' appoġġ.
- Email: Refer to your product documentation for the support email address.
- Telefon: Contact the customer service hotline provided in your product's packaging.
When contacting support, please have your product model number (MaxHub Interactive Flat Panel 75" | OPS) and serial number ready.
