Redkey P9 Cordless Vacuum Cleaner Manwal ta 'Istruzzjoni

1. Introduzzjoni

Thank you for choosing the Redkey P9 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The Redkey P9 is designed for powerful and convenient cleaning, featuring a high-speed 400W brushless motor, up to 30 kPa suction power, and a multi-layer filtration system to ensure a clean home environment.

2. Istruzzjonijiet tas-Sigurtà

Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża apparat elettriku.

• Dan l-apparat huwa għall-użu domestiku biss. Tużax barra jew fuq uċuħ imxarrbin.
• Tħallix lit-tfal iħaddmu l-vacuum cleaner. Superviżjoni mill-qrib hija meħtieġa meta jintuża ħdejn it-tfal.
• Uża biss kif deskritt f'dan il-manwal. Uża biss l-aċċessorji rakkomandati mill-manifattur.
• M'għandekx timmaniġġja l-ċarġer jew l-apparat b'idejn imxarrbin.
• Do not vacuum liquids, burning or smoking materials (e.g., hot ashes, cigarettes), or sharp objects.
• Żomm ix-xagħar, il-ħwejjeġ laxki, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod minn fetħiet u partijiet li jiċċaqilqu.
• Itfi l-kontrolli kollha qabel ma splaggja.
• Uża biss iċ-ċarġer fornut mill-manifattur biex terġa 'tiċċarġja.
• Tużax b'korda jew plagg bil-ħsara. Jekk l-apparat ma jkunx qed jaħdem kif suppost, ikun waqa’, saritlu ħsara, tħalla barra, jew waqa’ fl-ilma, erġa’ lura f’ċentru ta’ servizz.
• Timmodifikax jew tippruvax issewwi l-apparat jew il-pakkett tal-batteriji.

3. Prodott Aktarview

Familiarize yourself with the components of your Redkey P9 Cordless Vacuum Cleaner.

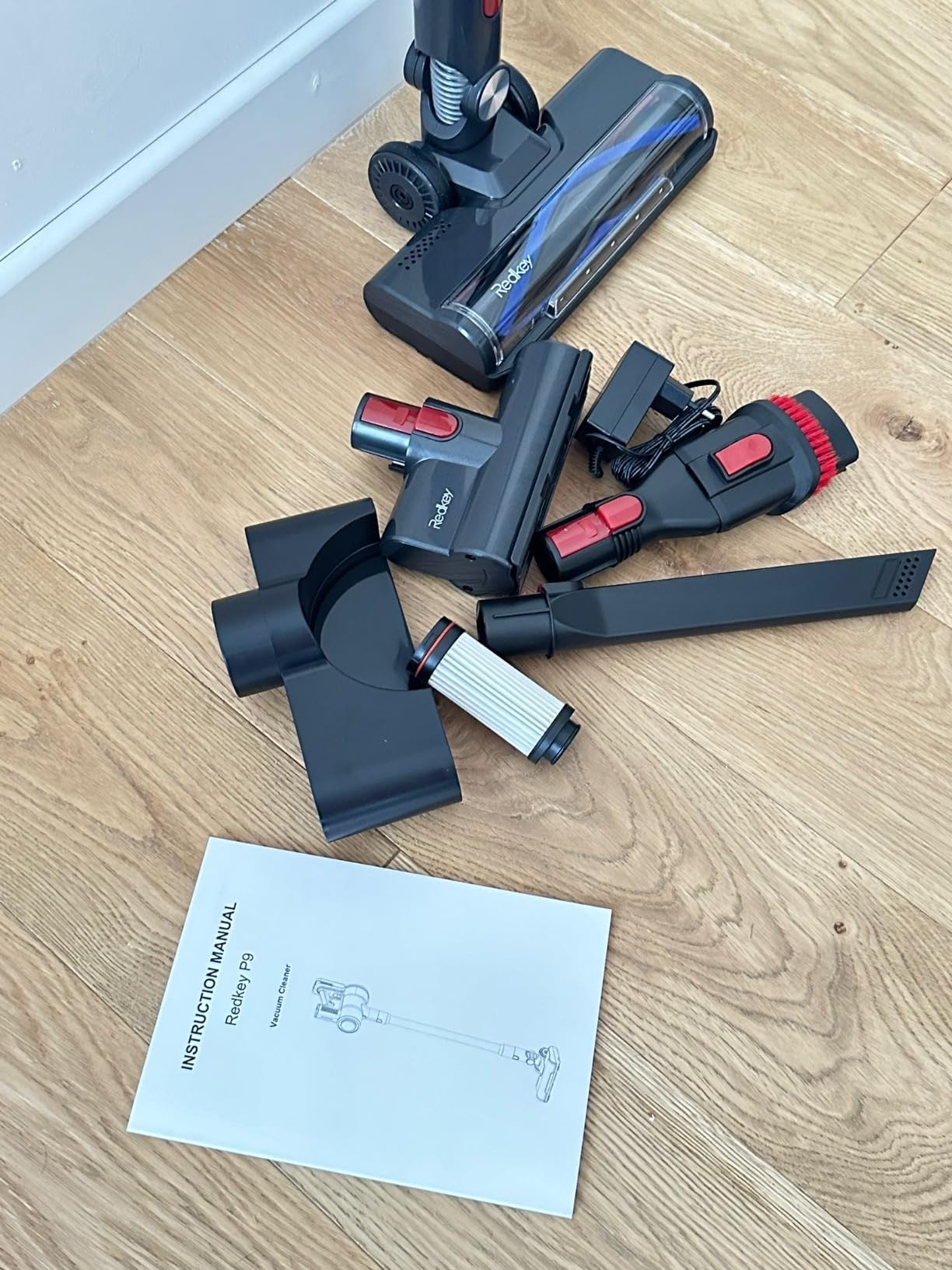

Figura 3.1: Main unit of the Redkey P9 Cordless Vacuum Cleaner with various attachments. This image shows the handheld vacuum, extension wand, floor brush, and other cleaning tools.

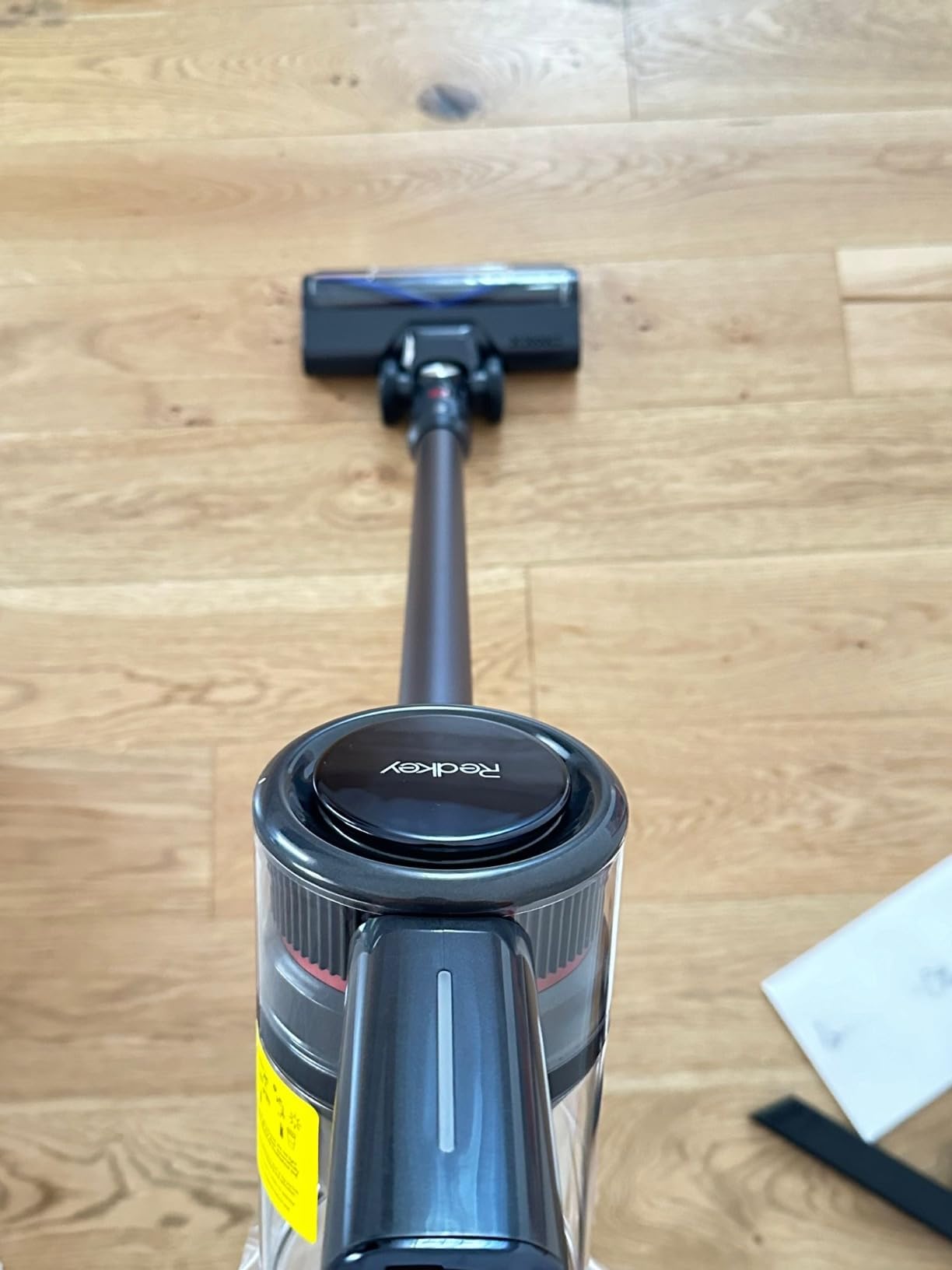

Figura 3.2: The Redkey P9 Cordless Vacuum Cleaner in operation, highlighting the flexible LED floor brush. The LED lights illuminate dark areas for thorough cleaning.

Figura 3.3: Close-up view of the Redkey P9 Cordless Vacuum Cleaner, illustrating the removable battery and charging port. The battery can be charged independently or while attached to the vacuum.

3.1. Komponenti ewlenin

• Unità Prinċipali: Contains the motor, dustbin, and control panel.
• Batterija li tista 'titneħħa: 2600 mAh Lithium-polymer battery.
• Bastun ta 'Estensjoni: Connects the main unit to the floor brush or other attachments.
• LED Floor Brush: Motorized brush with LED lights for effective cleaning on various floor types.
• Għodda tal-qsim: Għal lakuni u kantunieri dojoq.
• Pinzell 2 f'1: Għal tapizzerija u uċuħ delikati.
• Muntaġġ tal-ħajt: Għal ħażna u ċċarġjar konvenjenti.
• Ċarġer: Power adapter for charging the battery.

4. Setup

4.1. Assemblea

1. Waħħal il-Bastun ta' Estensjoni: Insert the top end of the extension wand into the main unit until it clicks securely.
2. Waħħal il-Pinzell tal-Art: Insert the bottom end of the extension wand into the LED floor brush until it clicks securely.
3. Install Other Attachments: For handheld use, attach the desired nozzle (crevice tool, 2-in-1 brush) directly to the main unit or the extension wand.

4.2. Iċċarġjar tal-batterija

Before first use, fully charge the battery. The battery can be charged while attached to the main unit or separately.

1. Connect the charger to a power outlet (220V).
2. Connect the charger plug to the charging port on the battery.
3. The battery indicator lights will show the charging status. Once all lights are solid, the battery is fully charged.
4. Ċarġ sħiħ tipikament jieħu madwar 4-5 sigħat.

5. Operazzjoni

5.1. Power On/Off

• Press the power button once to turn on the vacuum cleaner. It will start in the default suction mode.
• Agħfas il-buttuna tal-qawwa mill-ġdid biex itfi l-vacuum cleaner.

5.2. Suction Modes

The Redkey P9 offers three suction levels to suit different cleaning needs:

• Low (15,000 Pa): Ideal for light dust and debris. Provides approximately 60 minutes of runtime.
• Medium (20,000 Pa): Suitable for everyday cleaning and moderate dirt. Provides approximately 25 minutes of runtime.
• High (30,000 Pa): For deep cleaning, pet hair, and stubborn dirt. Provides approximately 15 minutes of runtime.

Press the mode button (usually indicated by a fan icon or 'M') to cycle through the suction levels.

5.3. L-Użu ta' Annessi

• LED Floor Brush: Use for general floor cleaning. The integrated LED lights help illuminate dust in dark areas. The brush head can swivel 180 degrees horizontally and 90 degrees vertically for easy maneuverability under furniture.
• Għodda tal-qsim: Attach directly to the main unit or extension wand for cleaning tight spaces, corners, and edges.
• Pinzell 2 f'1: Use the brush mode for delicate surfaces like keyboards or curtains, and the nozzle mode for upholstery or car interiors.

6. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-vacuum cleaner tiegħek.

6.1. Tbattil tal-landa taż-żibel

1. Kun żgur li l-vacuum cleaner huwa mitfi.
2. Locate the dustbin release button (usually near the dustbin).
3. Agħfas il-buttuna biex tiftaħ il-flap tal-landa taż-żibel u vojta l-kontenut ġo landa taż-żibel.
4. Agħlaq il-flap tal-kontenitur tat-trab sew sakemm tikklikkja.

6.2. Tindif tal-Filtri

The Redkey P9 features a 5-layer precision filter system, including a washable HEPA filter. Clean filters regularly to maintain suction power.

1. Turn off the vacuum cleaner and remove the dustbin.
2. Twist and pull out the filter components (metal filter, sponge filter, HEPA filter).
3. Tap off loose dust from all filter components.
4. Rinse the washable filters (sponge and HEPA) under cold running water until the water runs clear. Do not use detergent.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not expose to direct sunlight or heat.
6. Reassemble the filters in reverse order and reattach the dustbin to the main unit.

6.3. Tindif tar-Romblu tal-Pinzell

Iċċekkja r-romblu tal-pinzell perjodikament għal xagħar imħabbel jew debris.

1. Itfi l-vacuum cleaner u aqla’ l-pinzell tal-art.
2. Locate the brush roll release mechanism (usually a latch or screw on the side of the brush head).
3. Neħħi r-roll tal-pinzell.
4. Uża imqass jew għodda tat-tindif biex taqta’ u tneħħi kwalunkwe xagħar jew fibri mħabbla.
5. Wipe the brush roll and its housing with a dry cloth.
6. Erġa' daħħal ir-romblu tal-pinzell u waħħal il-mekkaniżmu tar-rilaxx.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin.

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The Redkey P9 Cordless Vacuum Cleaner comes with a garanzija ta' sentejn mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura u ħsarat fil-materjal taħt użu normali.

For any issues, questions, or assistance, please do not hesitate to contact our customer support team. We aim to respond to your inquiries within 24 hours.

Email tas-Servizz tal-Klijent: redkeyservice@163.com
