1. Introduzzjoni
This manual provides essential instructions for the safe and efficient use of your Sportstech sTread Lite Professional Treadmill. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper function and user safety. Keep this manual for future reference.
Stampa 1: The Sportstech sTread Lite Treadmill, showcasing its sleek design with integrated blue LED lighting and a tablet holder on the console.
Stampa 2: The sTread Lite Treadmill positioned in a modern living space, emphasizing its maximum speed capability of 20 km/h and a robust maximum user weight capacity of 150 kg.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-linji gwida tas-sigurtà li ġejjin biex tevita korrimenti jew ħsara lit-tagħmir:
- Kun żgur li t-treadmill jitqiegħed fuq wiċċ ċatt u stabbli b'distanza adegwata madwaru.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod mit-treadmill waqt it-tħaddim.
- Ilbes żraben u ħwejjeġ atletiċi xierqa.
- Tħaddimx it-treadmill jekk ikun bil-ħsara jew ma jaħdimx sew.
- Ikkonsulta tabib qabel tibda xi programm ġdid ta' eżerċizzju.
- Uża l-klipp taċ-ċavetta tas-sigurtà f'kull ħin waqt l-operazzjoni.
- Il-kapaċità massima tal-piż tal-utent hija ta' 150 kg. Teċċedix dan il-limitu.
3. Kontenut tal-Pakkett
Meta tiftaħ il-pakkett, ivverifika li l-komponenti kollha huma preżenti:
- Sportstech sTread Lite Treadmill main unit
- Kit tal-ħardwer tal-assemblaġġ
- Korda tal-enerġija
- Manwal għall-utent (dan id-dokument)
- Lubricant for running belt
4. Setup u Assemblea
Assembly is required for the Sportstech sTread Lite Treadmill. It is recommended to have two people for assembly due to the unit's weight (approximately 82.9 kg). Follow the detailed instructions provided in the separate assembly guide or video (if available) for a smooth setup process.
- Iftaħ il-komponenti kollha mill-pakkett u poġġihom fuq wiċċ ċatt u ċar.
- Attach the uprights and console to the main frame using the provided hardware.
- Qabbad il-kejbils kollha meħtieġa kif indikat fil-gwida tal-assemblaġġ.
- Kun żgur li l-boltijiet u l-viti kollha huma ssikkati sew qabel l-użu.
Stampa 3: The sTread Lite Treadmill demonstrating its compact, folded state (L 104 cm, B 88 cm, H 147 cm) next to its unfolded operational state (L 163 cm, B 88 cm, H 147 cm), highlighting its space-saving design and transport wheels for easy movement.
5. Istruzzjonijiet Operattivi
5.1. Power On/Off
- Qabbad il-korda tad-dawl ma' żbokk ertjat.
- Flip the main power switch located near the front of the treadmill.
- Insert the safety key into its designated slot on the console.
- Agħfas il-buttuna START biex tibda topera.
5.2. Aġġustament tal-Veloċità u l-Inklinazzjoni
The sTread Lite offers a maximum speed of 20 km/h and an incline of up to 17% (15 levels).
- Aġġustament tal-veloċità: Use the speed control buttons or the intuitive scroll wheel on the console to increase or decrease the running speed.
- Aġġustament tal-Inklinazzjoni: Use the incline control buttons or the scroll wheel to adjust the incline level.
Stampa 4: A user exercising on the sTread Lite Treadmill, illustrating the incline function with 15 levels for varied running conditions. A detailed view of the intuitive scroll wheel for speed and incline adjustments is also shown.
5.3. Console Features
- Wiri LED: Shows time, distance, speed, calories, and pulse.
- 360° Tablet Holder: Securely holds your tablet or smartphone, allowing for entertainment or app integration during workouts. The holder can rotate for optimal viewangoli.
- Dawl LED: The treadmill features 7 LED colors that can adapt based on speed or pulse zone, providing visual feedback and an enhanced training experience.
Stampa 5: A user engaging in a workout near the sTread Lite Treadmill, demonstrating the versatility of the 360-degree rotatable tablet and phone holder for integrated fitness routines.

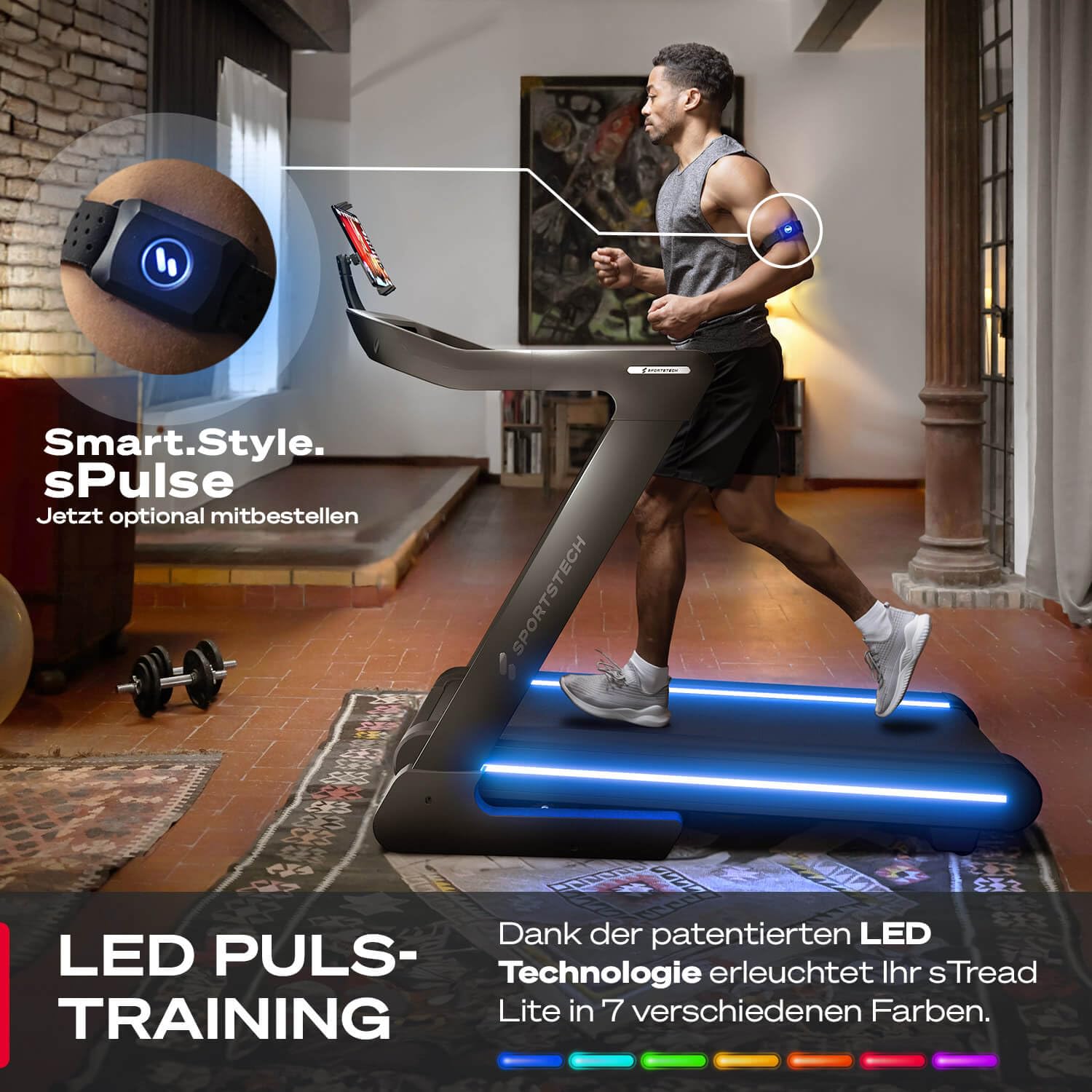

Stampa 6: A user running on the sTread Lite Treadmill, illustrating the LED pulse training feature where the treadmill's lights change color based on pulse or speed zones. An optional sPulse sensor is shown on the user's arm.
5.4. Sportstech Live App Integration
Connect your sTread Lite to the Sportstech Live app for interactive workouts and varied training programs. The app provides access to professional trainers and a wider range of fitness content.
- Download the Sportstech Live app from the App Store or Google Play.
- Segwi l-istruzzjonijiet fl-app biex tqabbad it-treadmill tiegħek permezz tal-Bluetooth.
- Utilize the app for guided workouts, progress tracking, and virtual routes.
Stampa 7: The Sportstech Live app interface shown on a tablet mounted on the treadmill, demonstrating interactive fitness workouts with professional trainers and real-time data display.
6. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tat-treadmill tiegħek.
6.1. Running Belt Lubrication
The sTread Lite features a self-lubrication function. However, periodic manual lubrication may still be required based on usage. Refer to the specific instructions in the assembly guide for how to apply lubricant to the running belt.
Stampa 8: A collage highlighting key features of the sTread Lite Treadmill, including its 150 kg maximum user weight, 130x50 cm running surface, self-lubrication system, and 20 km/h maximum speed.
6.2. Tindif
- Imsaħ il-console u l-uċuħ esterni b'reklamaramp drapp wara kull użu.
- Evita li tuża tindif jew solventi li joborxu.
6.3. Belt Tension and Alignment
Periodically check the running belt for proper tension and alignment. Adjust as needed according to the instructions in the assembly guide to prevent slipping or excessive wear.
7 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bit-treadmill tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
- It-treadmill ma jixgħelx: Check power cord connection, main power switch, and ensure the safety key is properly inserted.
- Żlieq taċ-ċinturin tal-ġiri: Adjust belt tension as per maintenance instructions. Ensure the belt is properly lubricated.
- Ħsejjes mhux tas-soltu: Inspect for loose parts. If noise persists, discontinue use and contact customer support.
- Qari mhux preċiż: Ensure sensors are clean and unobstructed. Recalibrate if necessary (refer to advanced settings in the full manual).
For issues not covered here, please contact Sportstech customer support.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Sportstech |
| Isem tal-Mudell | sTread Lite |
| Veloċità Massima | 20 Kilometru fis-Siegħa |
| Inklinazzjoni Massima | 17% (15 levels) |
| Piż Massimu tal-Utent | 150 Kilogrammi |
| Dimensjonijiet tal-Prodott (Miftuħ) | 163D x 83.5W x 147H Ċentimetri |
| Piż tal-oġġett | 82.9 Kilogrammi |
| Qawwa tal-Mutur | 7 Horsepower (Peak), 3.0 PS (Constant Power) |
| Wiċċ tal-Ġiri | 130 x 50 cm (5-layer running belt) |
| Materjal | Azzar Liga |
| Kulur | Iswed |
| Karatteristiċi Speċjali | LED lighting, 360° Tablet Holder, Sportstech Live App connectivity, Folding function, Transport wheels, Self-lubrication |
Stampa 9: Intern view of the sTread Lite Treadmill, highlighting its powerful 3.0 PS DC motor and the durable 5-layer running surface, designed for quality and power.
9. Garanzija u Appoġġ
Sportstech products are designed for durability and performance. For warranty information, technical support, or service inquiries, please refer to the official Sportstech webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
Għal aktar għajnuna, żur: Uffiċjali tal-Isportstech Websit
