Manwal tal-Utent tal-Kontrollur tal-Iċċarġjar Solari ATEM POWER 10A MPPT

Prodott Overview

The ATEM POWER 10A MPPT Solar Charge Controller is a compact and intelligent device designed to efficiently charge various battery types using solar panels. It features high conversion efficiency and automatic voltage recognition for 12V or 24V systems. This controller is essential for protecting your battery from overcharging and ensuring optimal performance in solar power setups.

Figure 1: ATEM POWER 10A MPPT Solar Charge Controller with Anderson Style plugs.

Informazzjoni dwar is-Sigurtà

Please read all warnings and safety instructions carefully before installation and operation to prevent personal injury or product damage.

• Prekawzjonijiet Ġenerali tas-Sigurtà:
  • Dan il-prodott mhuwiex maħsub għall-użu minn persuni b'kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew b'nuqqas ta' esperjenza jew għarfien. It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux mal-prodott.
  • QATT tħaddem il-prodott f'ambjent imxarrab, jew f'siti fejn jistgħu jseħħu splużjonijiet ta' gass jew trab.
  • QATT tmiss truf tal-kejbil mhux iżolati, u uża BISS għodod iżolati.
  • L-installatur għandu jipprovdi mezz għall-ħelsien tat-tensjoni tal-kejbil biex jipprevjeni t-trażmissjoni tal-istress għall-konnessjonijiet.
  • Il-kontrollur MPPT huwa ddisinjat BISS biex jirregola l-pannelli solari.
  • Tbiddelx il-polarità tal-konnessjoni tal-batterija mal-kontrollur MPPT. Huwa probabbli ħafna li l-kontrollur jinħaraq jekk ikun imqabbad mal-pannell solari b'konnessjoni tal-batterija b'lura.
  • Jekk jogħġbok issettja t-tip ta 'batterija korrett l-ewwel darba li tuża.
  • Il-batteriji kollha taċ-ċomb-aċidu jipproduċu gassijiet splussivi ta' ħsara. Il-batterija għandha tkun immuntata f'żona b'ventilazzjoni tajba, kemm jista 'jkun minn kwalunkwe sors ta' tqabbid. Tpejjipx jew ikollok fjamma mikxufa fil-viċinanza tal-batterija taħt ħlas.
  • Keep the battery away from any metal objects which may cause a short circuit of the terminals.
  • Ventilation is highly recommended when mounting the controller in an enclosed enclosure with flooded batteries. Battery gases from flooded batteries can cause corrosion and destroy the controller circuits.
  • Loose power connections and corroded wires may result in high heat that can melt or burn surrounding materials, or even cause fire. Ensure tight connections and use cable ties to secure cables and prevent them from unnecessary movement.
• Sigurtà tal-batterija:
  • Jekk jogħġbok innota li dan il-kontrollur huwa BISS kompatibbli ma 'batteriji taċ-ċomb-aċidu, AGM, GEL, kalċju jew LiFePO4.
  • Be cautious when working with lead acid batteries. Immediately rinse the affected area with water and seek medical assistance if lead acid comes into contact with your eyes or skin.
  • Tqabbadx xi inverters jew ċarġer tal-batterija fit-terminal tat-tagħbija tal-kontrollur.
  • NEVER connect battery terminals to the controller BEFORE connecting the solar panel to the controller.
  • QATT qabbad pannelli solari mal-kontrollur sakemm il-batterija tkun konnessa.
  • TUŻAX il-kontrollur biex tiċċarġja batteriji mhux rikarikabbli. Jekk tagħmel hekk tista 'tirriżulta fi ħsara lill-utent u/jew tagħmel ħsara lill-pannell solari, il-batterija u l-kontrollur.
  • Refer to the specifications provided by the manufacturer of the battery to ensure that the battery is suitable for use with this product. The battery manufacturer's safety instructions should always be observed.
  • Il-kontrollur jikseb prestazzjoni ottimali meta manutenzjoni xierqa tal-batterija titwettaq regolarment.

Setup u Installazzjoni

The ATEM POWER 10A MPPT Solar Charge Controller is designed for effortless DIY setup. Follow these steps for proper connection:

1. Qabbad il-batterija tal-litju mal-kontrollur taċ-ċarġ.
2. Qabbad il-pannell solari mal-kontrollur, u kkonfigura t-tip tal-batterija.
3. Meta fil-modalità tal-batterija tal-litju, il-kontrollur taċ-ċarġ awtomatikament jippermetti l-funzjoni ta 'attivazzjoni u provvisti voltage biex jattiva l-batterija.
4. Jekk il-voltage tonqos milli tiżdied, jista 'jindika li l-batterija tiegħek hija difettuża. Jekk jogħġbok ikkuntattja liċ-ċentru tas-servizz tal-konsumatur tagħna għal assistenza professjonali.

Figure 2: Connection diagram showing solar panel to controller and controller to battery.

The controller comes with integrated Anderson Style plugs for easy and secure connections. A polarity reversed adapter is included for convenience.

Figure 3: The compact design and Anderson Style plugs make installation simple.

Operazzjoni

Exterior Interface and Indicators

The controller features LED indicators to show charging status and battery type. While charging, the indicator will flash, and a full charge is indicated when all three indicators are lit. If there is an abnormal battery voltage, all three indicators will flash simultaneously.

Figure 4: The controller's LED indicators provide visual feedback on charging status and battery type.

Għażla tat-Tip ta 'Batterija

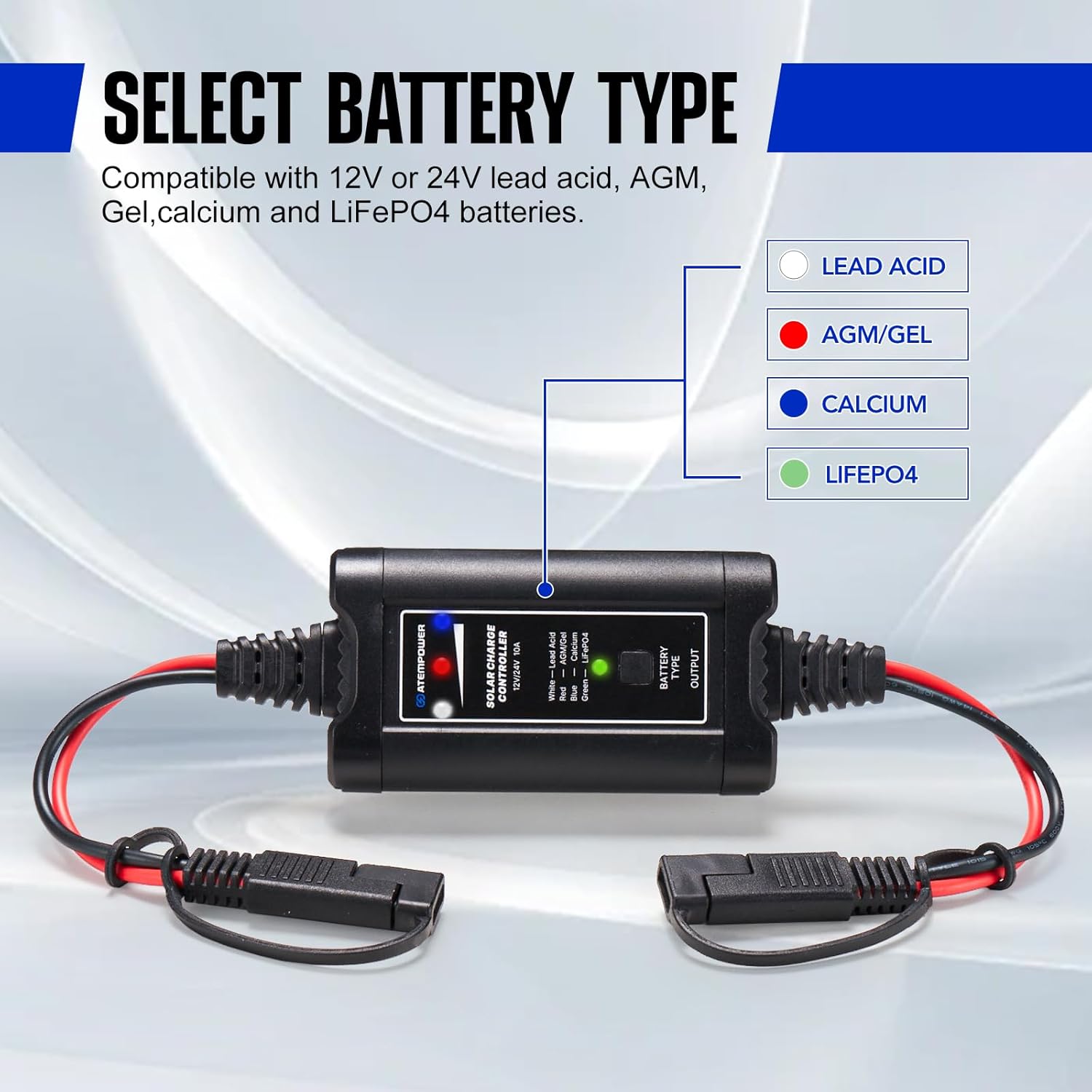

To select the battery type, long press the 'BATTERY TYPE' button for 3 seconds to enter the battery type selection mode. The LED indicator will then flash, indicating the current battery type. To switch between different battery types, simply press the 'BATTERY TYPE' button once. Once you have selected the desired battery type, exit the mode by holding the button for 3 seconds. This operation comes with power-off memory, eliminating the need to reselect the battery type after the charger restarts.

Figure 5: The controller supports Lead Acid, AGM/Gel, Calcium, and LiFePO4 battery types.

Efficiency and Protection

The MPPT technology ensures up to 95% conversion efficiency and 99.99% tracking efficiency, maximizing power harvest from your solar panels. The controller also includes comprehensive protection features:

• Protezzjoni b'lura tal-Polarità
• Taħt il-voltage Protezzjoni
• Protezzjoni ta 'kurrent żejjed
• Protezzjoni kontra t-temperatura żejda
• Protezzjoni ta 'ċirkwit qasir

Figure 6: Built-in protection systems ensure safe and reliable operation.

Manutenzjoni u Tindif

To maintain the controller's performance, it is recommended that the following maintenance be carried out:

• Kun żgur li l-kontrollur huwa installat sew f'ambjent nadif u niexef.
• Kun żgur li m'hemm l-ebda blokk fuq il-fluss ta 'l-arja madwar il-kontrollur.
• Ensure the controller is clean and periodically check the terminals to ensure they're clean before plugging in.
• Iċċekkja għal wiring espost bejn il-pannell solari u l-batterija. Isewwi jew ibdel xi wajers jekk meħtieġ.
• Ensure that all the system components are ground connected tightly and correctly.

Issolvi l-problemi

If you encounter issues with your ATEM POWER Solar Charge Controller, refer to the common problems and solutions below:

Q: Il-batteriji tiegħi mhumiex iċċarġjati.

A: Possible causes can be:

• Kejbils tal-batterija sfużi jew neqsin.
• Konnessjonijiet tal-kejbil maħlula, jew terminali tal-kejbil irbattuti ħażin.
• Kejbils tal-batterija neqsin jew bil-fili ħażin.
• Settings mhux korretti.
• Polaritajiet mhux korretti.
• Il-batterija hija mimlija.

Q: Il-batteriji tiegħi huma ċċarġjati biżżejjed.

A: Possible causes can be:

• Wisq tagħbija DC.
• Ċarġ tal-batterija voltages huma baxxi wisq.
• Il-batterija hija kważi mimlija.
• Solari insuffiċjenti.

Q: Il-kontrollur tiegħi ma jistax jilħaq l-output nominali sħiħ tiegħu.

A: Possible causes can be:

• Array PV żgħir wisq.
• Temperature above 45°C or below -10°C.

Jekk jogħġbok kun żgur li tgħarrafna jekk għadekx tesperjenza xi kwistjonijiet min-naħa tiegħek billi tikkuntattja ċ-ċentru tal-klijenti tagħna.

Speċifikazzjonijiet

Batterija Voltage Parametri

Garanzija u Appoġġ

ATEM POWER (Manufacturer) warrants to the original purchaser ("User") that its MPPT solar charge controller, if purchased from Manufacturer or an authorized distributor or dealer, will be free of defects in material and/or workmanship under normal application, installation, use and service conditions from the date sold and for the duration (the "Warranty Period") of 1 YEAR. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will replace or repair the MPPT solar charge controller. If the components in question are determined to be defective in material or workmanship, if the Manufacturer deems the MPPT solar charge controller to be not repairable, a new, similar controller will be offered, or a refund will be issued. This Limited Warranty is to the original purchaser of the MPPT solar charge controller and is not transferable to any other person or entity.

Esklużjonijiet:

This warranty does not cover defects that are caused by normal wear and tear, inadequate maintenance, transportation, storage or faulty repair, misuse, neglect, accident or failure to observe installation, improper installation. It is recommended that the installation should be performed by qualified personnel or the warranty will be voided. For further clarity, this warranty is also void if the MPPT solar charge controller:

• jintuża għal applikazzjonijiet li mhumiex iddisinjati u maħsuba għalihom.
• mhix installata sew skont il-manwal tal-utent.
• is disassembled, altered, or repaired by someone other than an authorized Manufacturer's agent.
• has been subject to misuse, abuse or physical damage, or has been modified, altered.
• ġiet imħassra minn force majeure (eż. overvoltage, maltempata, nar).
• magħżula mill-utent ma tkunx tad-daqs u d-disinn korretti għall-applikazzjoni maħsuba.

Talbiet:

Request return authorization. No returns will be credited without an authorization. If an ATEM POWER product is suspected of being defective, you'll need to provide proof of purchase (e.g. a screenshot of the order) and a picture of the damaged goods in their entirety to service@atempower.com jew il-bejjiegħ li xtrajt mingħandu għall-evalwazzjoni. Fl-ebda każ il-Manifattur m'għandu jkun responsabbli għal kwalunkwe telf jew ħsarat ta 'kull tip ieħor, kemm jekk dirett, inċidentali, konsegwenzjali inkluż profitti mitlufa, eżemplari, speċjali jew mod ieħor, inkluż kwalunkwe telf ta' profitti jew spejjeż ta 'tneħħija, tbaħħir jew installazzjoni.

Għal aktar informazzjoni, jekk jogħġbok żur: www.atempower.com
