1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your EVERSTEIN Thermostatic Shower System SFS-1064BK16. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Retain this manual for future reference.
2. Prodott Aktarview u Karatteristiċi
The EVERSTEIN Thermostatic Shower System is designed to provide a luxurious and safe showering experience. It features a matte black finish and a wall-mount design, integrating multiple water outlets for versatile use.
Karatteristiċi ewlenin:
- 16-inch Stainless Steel Rainfall Shower Head: Provides a wide coverage area for a rainfall-like shower.
- 6-inch Shower Head: Offers an additional overhead spray option.
- 6 Body Jets: Adjustable body jets for a targeted massage experience.
- 15 Spray Patterns: Easily switch between various water flow options for a customized shower.
- Anti-Scald Thermostatic Valve: Features a brass valve cartridge to prevent sudden temperature changes, maintaining a preset shower temperature. Includes a safety lock at 38°C (100°F).
- Flexible Hand Shower: Equipped with an extra-long 59-inch stretchable metal hose for targeted cleaning, bathing children or pets, and cleaning the shower area.
- Silicone Nozzles: Easy-to-clean silicone nozzles on shower heads and hand shower allow for simple mineral deposit removal.
- Built-in Check Valve: Prevents backflow and eliminates water hammer.

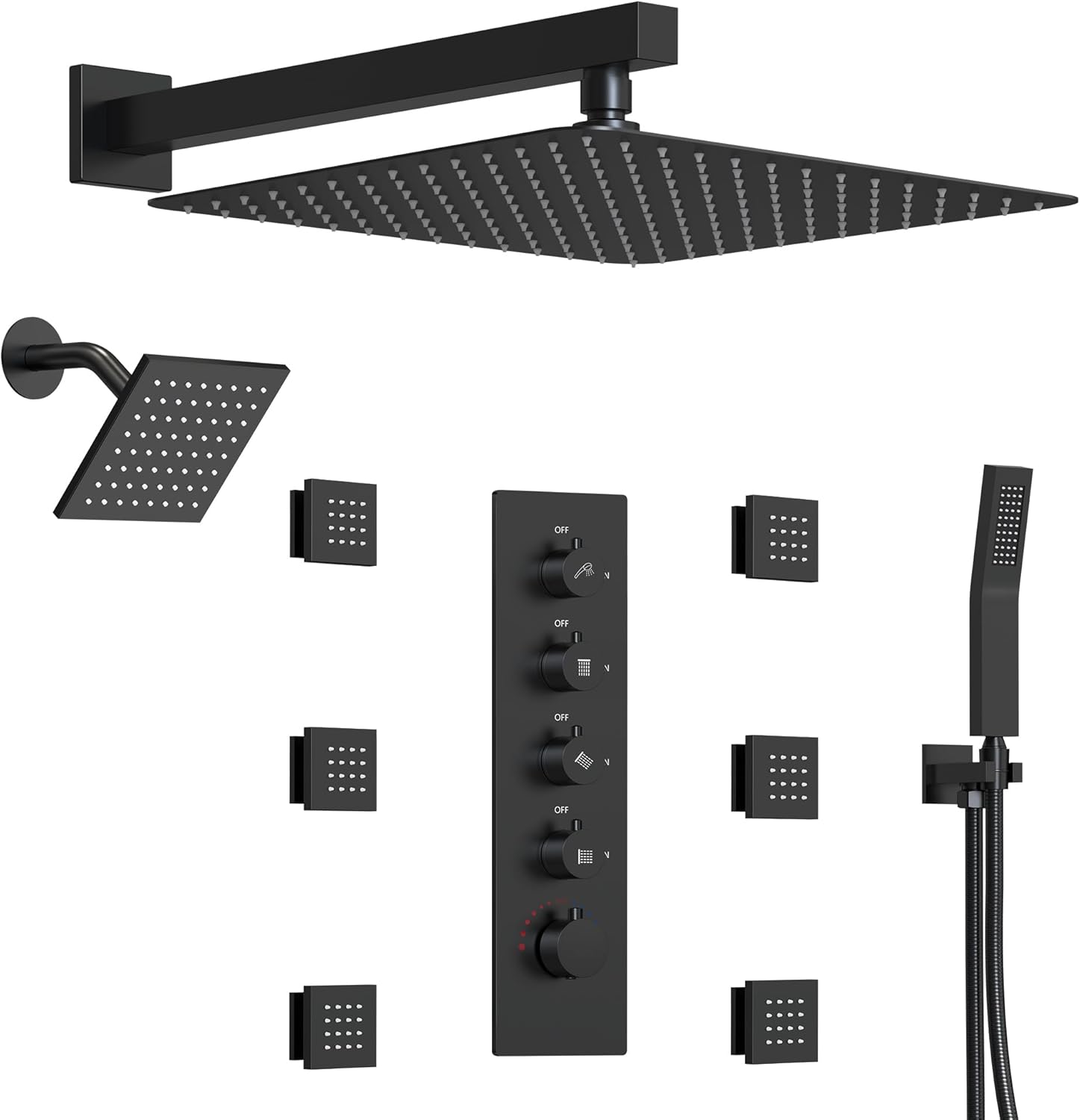

Figure 1: Complete EVERSTEIN Thermostatic Shower System components.
Figura 2: Aktarview of the 4-in-1 shower system features including knob control, thermostatic valve, high pressure, 59-inch metal hose, brass swivel ball joint, flexible handheld shower, lifetime limited warranty, and no water hammer noise.
3. Informazzjoni dwar is-Sigurtà
Important Purchase Note: This system is intended for new and remodeled bathrooms only. Installation requires the removal of existing tiles and fixtures, and repiping. Please consult a qualified plumber before purchasing and commencing installation.
The thermostatic valve is designed to prevent scalding by maintaining a consistent water temperature. The temperature can be locked at 38°C (100°F) for safety, especially for children and the elderly. Always test the water temperature before entering the shower.
4. Istruzzjonijiet ta 'installazzjoni
Professional installation is highly recommended due to the complexity of this shower system, which involves significant plumbing work and wall modifications. Ensure all local plumbing codes are followed.
4.1 Lista ta' Kontroll ta' Qabel l-Installazzjoni:
- Confirm all components are present and undamaged.
- Ensure water supply lines are shut off.
- Verify wall structure can support the system and allow for necessary repiping.
- Have appropriate tools available (e.g., pipe wrenches, level, measuring tape, sealant).
4.2 Rough-in Valve Installation:
The rough-in valve is the core of the system. It features a brass main body, thermostatic valve core, and built-in check valves. Inlets and outlets are 1/2" NPT.
Figure 3: Diagram of the rough-in valve, showing brass main body, thermostatic valve core, built-in check valve, and 1/2" NPT inlets and outlets.
Figure 4: Illustration of the Vernet thermostatic cartridge, which ensures consistent water temperature.
4.3 Pipe Connection and Component Placement:
Refer to the pipe connection diagram and dimension specifications for accurate placement and plumbing. Ensure all connections are secure and leak-free.
Figure 5: Detailed pipe connection diagram illustrating the layout for the rainfall shower head, secondary shower head, body jets, and hand shower.
Figure 6: Dimensional drawing of the shower system components, including the 16-inch rainfall shower head, 6-inch secondary shower head, control panel, body jets, and 59-inch hand shower hose.
Note: Installation requires removal of existing fixtures and repiping.
5. Istruzzjonijiet Operattivi
5.1 Kontroll tat-temperatura:
The bottom knob on the control panel adjusts the water temperature. To change the temperature above the safety lock (38°C/100°F), press the safety button on the knob and rotate it to your desired temperature. For temperatures below 38°C, simply rotate the knob without pressing the button.
5.2 Water Outlet Selection:
The control panel features multiple knobs to select and control the various water outlets:
- Il-Pum ta' Fuq: Controls the 16-inch rainfall shower head.
- Second Knob: Controls the 6-inch secondary shower head.
- Third Knob: Controls the hand shower.
- Fourth Knob: Controls the body jets.
Rotate the respective knob to turn on/off and adjust the flow for each outlet. Multiple outlets can be operated simultaneously.

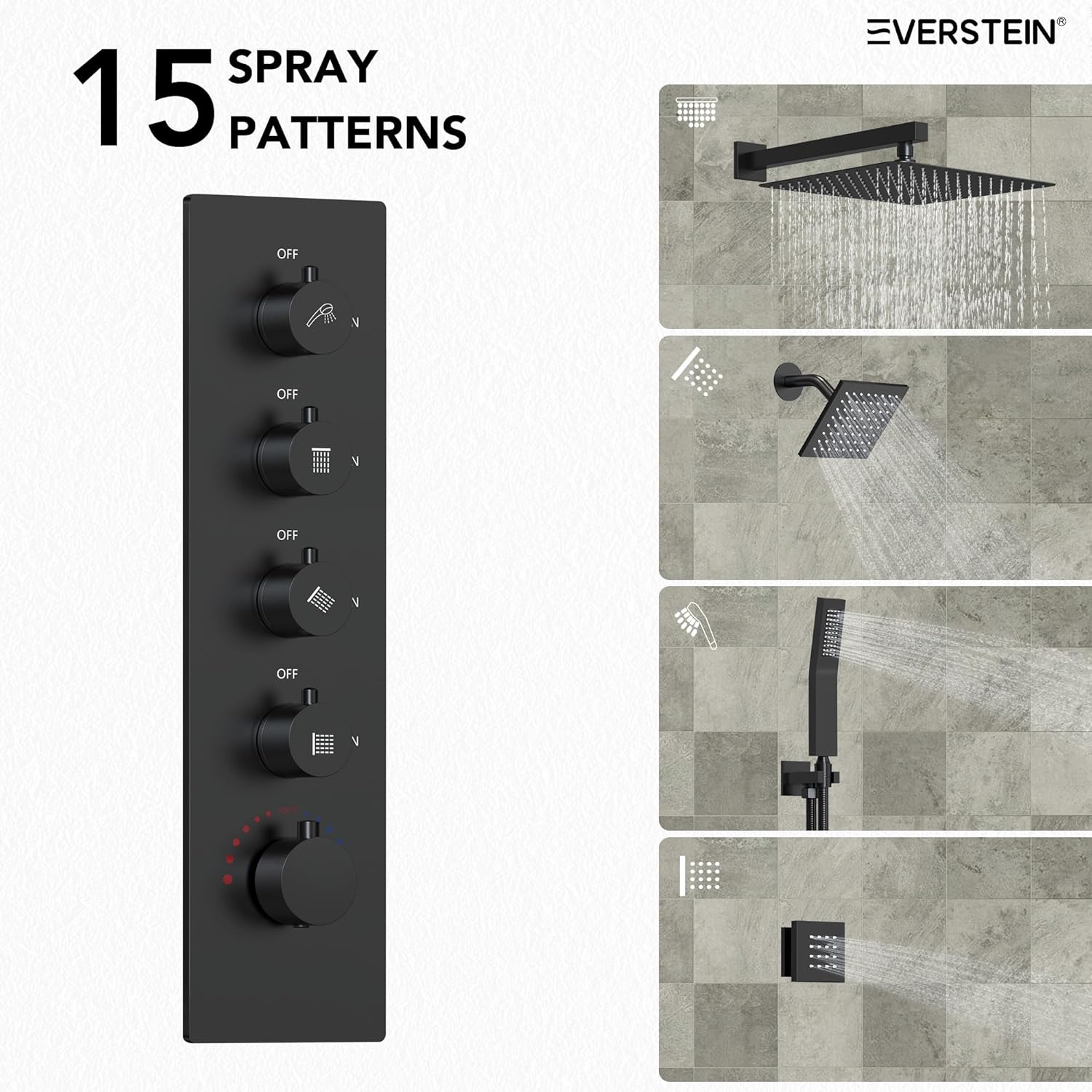

Figure 7: Control panel illustrating the 15 spray patterns and individual controls for each shower function.
Figure 8: The system allows for dual operation, where the main rainfall shower and secondary shower head can function together or separately. Both shower heads offer a 15-degree tilt adjustment.
Figure 9: The six body jets provide a massage function and feature touch-clean nozzles with a 15-degree tilt.
6. Manutenzjoni
6.1 Cleaning the Shower Heads and Hand Shower:
The shower heads and hand shower are equipped with silicone nozzles. To remove mineral deposits (limescale), simply wipe the nozzles with your finger or a soft cloth. This should be done regularly to maintain optimal spray performance.
6.2 Cleaning the Finish:
To clean the matte black finish, use a soft, damp cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish. Rinse thoroughly and dry with a soft cloth to prevent water spots.
7 Issolvi l-problemi
If you encounter issues with your shower system, please refer to the following common problems and solutions:
- Pressjoni Baxxa tal-Ilma: Check if the water supply valves are fully open. Ensure shower head nozzles are clear of mineral buildup (refer to Maintenance section). If the issue persists, consult a plumber to check household water pressure or internal plumbing.
- Temperatura tal-Ilma Inkonsistenti: Verify that the thermostatic valve is set correctly. If the temperature fluctuates significantly, there might be an issue with the hot or cold water supply pressure. Ensure the safety lock is disengaged if you intend to set a temperature above 38°C.
- Tnixxijiet: Check all visible connections for tightness. If leaks occur from within the wall or from components, immediately shut off the main water supply and contact a qualified plumber.
- No Water from a Specific Outlet: Ensure the corresponding control knob is fully open. Check for any obstructions in the water path to that specific outlet.
For complex issues or if troubleshooting steps do not resolve the problem, it is recommended to contact a professional plumber or EVERSTEIN customer support.
8. Speċifikazzjonijiet
| Attribut | Speċifikazzjoni |
|---|---|
| Brand | EVERSTEIN |
| Numru tal-Mudell | SFS-1064BK16 |
| Kulur | Iswed Matte |
| Materjal | Ram, Stainless Steel |
| Tip Finish | Iswed Matte |
| Tip ta 'Immuntar | Mount Wall |
| Numru ta 'Mankijiet | 5 (1 temperature, 4 function) |
| Head Size (Rainfall) | 16 pulzieri |
| Head Size (Secondary) | 6 pulzieri |
| Hand Shower Hose Length | 59 pulzieri |
| Dimensjonijiet tal-Prodott | 21.3 x 18.8 x 8.1 pulzieri (pakkett ġenerali) |
| Piż tal-oġġett | 25.2 liri |
| UPC | 810142555005 |
9. Garanzija u Appoġġ
9.1 Informazzjoni dwar il-Garanzija:
EVERSTEIN provides a lifetime limited warranty for this product. This warranty covers repairs and replacements as long as the product is used properly. It does not cover repairs or replacements resulting from improper use or incorrect installation. Please retain your proof of purchase for warranty claims.
9.2 Appoġġ lill-Klijent:
If you have any questions, require assistance, or encounter issues with your EVERSTEIN Thermostatic Shower System, please contact EVERSTEIN customer support. Our goal is to ensure every customer enjoys high-quality products and exceptional after-sales service.
For support, please visit the official EVERSTEIN webis-sit jew irreferi għall-informazzjoni ta' kuntatt ipprovduta mad-dokumentazzjoni tax-xiri tiegħek.
