Manwal tal-Utent tal-Mini Barcode Scanner SHREYANS M_SRS710UB

1. Introduzzjoni

This manual provides instructions for the SHREYANS Mini Barcode Scanner, model M_SRS710UB. This device is designed for efficient scanning of both 1D and 2D barcodes, offering versatile connectivity options including 2.4G wireless, Bluetooth, and USB wired connections. It is compatible with a wide range of operating systems and devices, making it suitable for various applications.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• SHREYANS Mini Barcode Scanner
• 2.4G Wireless USB Dongle
• Cable tal-Iċċarġjar tal-USB-C
• Adapter USB-A
• polz Lanyard
• Manwal għall-Utent (dan id-dokument)

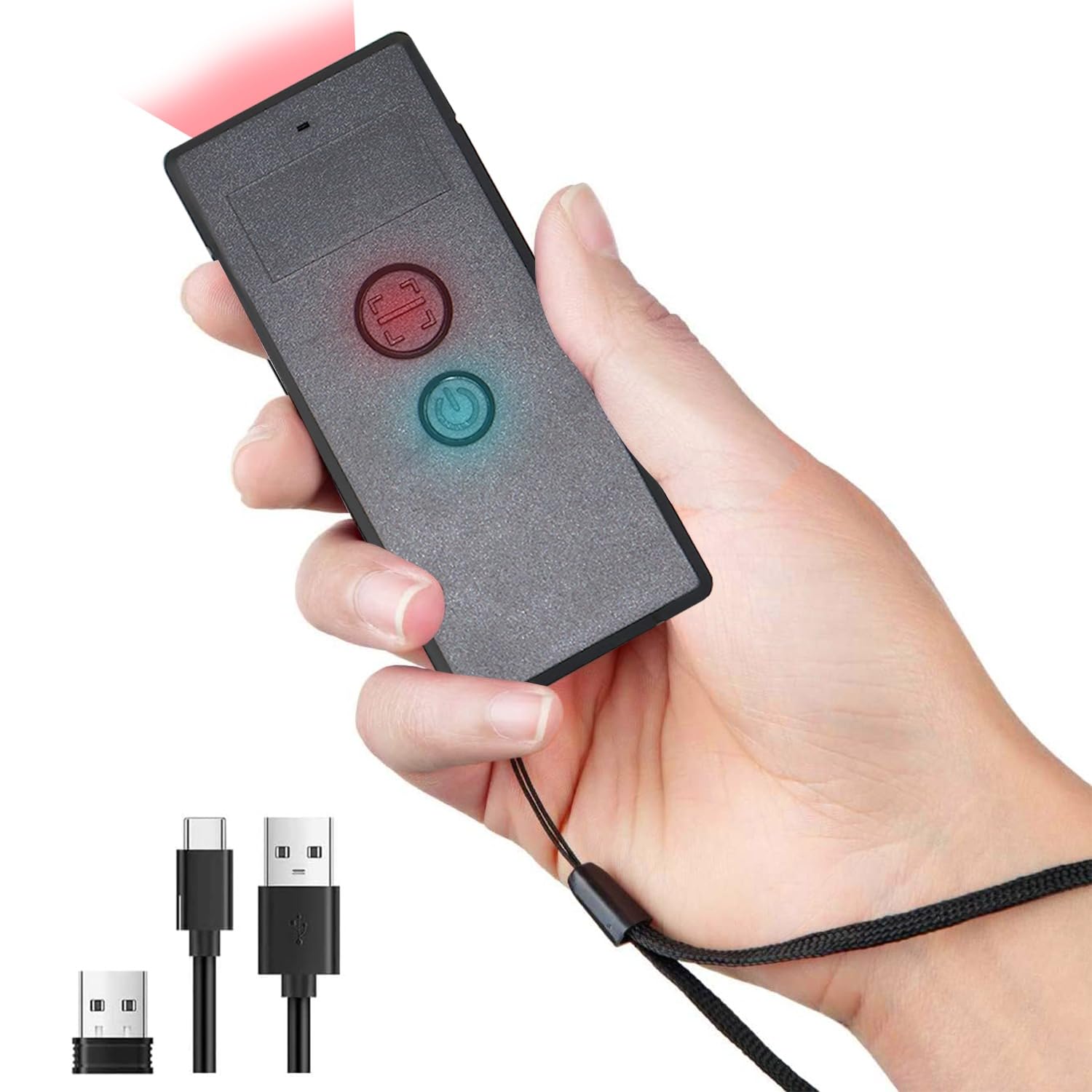

Image: The SHREYANS Mini Barcode Scanner held in a hand, alongside its 2.4G wireless USB dongle, USB-C charging cable, and USB-A adapter.

3. Prodott Aktarview

The SHREYANS Mini Barcode Scanner features a compact design with intuitive controls.

• Buttuna tal-iskannjar: Jibda l-iskannjar tal-barcode.
• Buttuna tal-Qawwa: Turns the device on/off and controls Bluetooth pairing.
• Indikatur LED: Provides status feedback (e.g., power, connection, scan success).
• Port tal-Iċċarġjar: USB-C port for charging the internal battery.

Image: A close-up of the SHREYANS Mini Barcode Scanner held in a hand, highlighting its small, portable design.

4. Setup and Connection Modes

The scanner supports three connection modes: 2.4G Wireless, Bluetooth, and USB Wired.

4.1. Konnessjoni bla fili 2.4G

1. Insert the 2.4G wireless USB dongle into an available USB port on your computer (Desktop, Laptop).
2. Power on the barcode scanner by pressing and holding the Power button until the LED indicator lights up.
3. The scanner will automatically connect to the dongle. A successful connection is indicated by a specific LED pattern (refer to the LED indicator section for details).

Image: An illustration showing the three available connection modes: Bluetooth, 2.4G Wireless via USB dongle, and direct USB Wired connection.

4.2. Konnessjoni Bluetooth

1. Kun żgur li l-iskaner huwa mixgħul.
2. Activate Bluetooth pairing mode on the scanner (usually by holding the Power button for an extended period or scanning a specific configuration barcode). Refer to the quick start guide for the exact barcode.
3. On your device (Android, iOS, Windows, macOS, Linux), go to Bluetooth settings and search for available devices.
4. Select "SHREYANS Scanner" or a similar name from the list to pair.
5. Once paired, the LED indicator will confirm the successful connection.

4.3. Konnessjoni bil-Wajer tal-USB

1. Connect the USB-C end of the charging cable to the scanner's charging port.
2. Connect the USB-A end of the cable (or use the USB-A adapter if needed) to an available USB port on your computer.
3. The scanner will function as a wired device and also charge its internal battery. No additional drivers are typically required.

5. Istruzzjonijiet Operattivi

5.1. Scanning Barcodes

1. Ensure the scanner is connected to your device via one of the methods described above.
2. Open a text editor, spreadsheet, or any application where you want the scanned data to appear.
3. Point the scanner's laser at the barcode you wish to scan.
4. Press the Scan button. A successful scan will be indicated by an audible beep and/or a change in the LED indicator.
5. The scanned data will appear in the active input field on your connected device.

Image: A visual representation of the scanning process, where the scanner reads a barcode from a package and the data is synchronously uploaded to a laptop.

5.2. Tipi ta' Barcode Appoġġjati

The SHREYANS Mini Barcode Scanner supports a variety of 1D and 2D barcode symbologies, including:

• Kodiċijiet tal-Barrijiet 1D: UPC/EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 DataBar, etc.
• Kodiċijiet tal-Barrijiet 2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro PDF417, etc.

Image: Various 1D and 2D barcode types such as QR Code, Data Matrix, PDF417, Aztec Code, and Micro PDF417, demonstrating the scanner's comprehensive readability.

6. Kompatibilità

The scanner is designed for broad compatibility with various devices and operating systems:

• Sistemi Operattivi: Windows (7/8/10/XP), Android, iOS/macOS, Linux.
• Apparati: PC, POS systems, Laptops, Tablets, iPads, Smartphones.

Image: A graphic illustrating the scanner's high compatibility with Windows, Android, iOS/macOS, Linux, and Mac OS, connecting to PCs, laptops, tablets, and smartphones.

7. Manutenzjoni

To ensure optimal performance and longevity of your SHREYANS Mini Barcode Scanner, follow these maintenance guidelines:

• Tindif: Use a soft, dry, lint-free cloth to clean the scanner's exterior. For the scanning window, use a lens cleaning cloth and a mild cleaning solution if necessary. Avoid abrasive materials or harsh chemicals.
• Ħażna: Aħżen l-iskaner f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Batterija: For prolonged storage, ensure the battery is charged to approximately 50%. Recharge the battery periodically if not in use for extended periods to prevent deep discharge.
• Immaniġġjar: Evita li twaqqa' l-iskaner jew li tissottomettih għal impatti qawwija.

8 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bl-iskaner tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

9. Speċifikazzjonijiet

• Mudell: M_SRS710UB
• Dimensjonijiet: 3 x 8 x 5 ċm (madwar 3.07 x 1.50 x 0.47 pulzieri)
• Piż: 50 g (madwar 1.23 oz)
• Konnettività: 2.4G Wireless, Bluetooth 4.1, USB Wired
• Barcodes appoġġjati: 1D (UPC/EAN, Code 128, Code 39, etc.), 2D (QR Code, Data Matrix, PDF417, Aztec Code, etc.)
• Kompatibilità: Windows, Android, iOS/macOS, Linux (PC, POS, Laptop, Tablet, Smartphone)
• Manifattur: Shreyans

10. Garanzija u Appoġġ

For warranty information and technical support, please contact SHREYANS customer service. Details can typically be found on the product packaging or the official SHREYANS websit.

Kuntatt tal-Manifattur: 9324776246

Għal aktar għajnuna, żur il- SHREYANS Store on Amazon.
