Candy Smart Pro Inverter Washing Machine User Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Please read this manual carefully before installing and using your washing machine. Keep this manual for future reference.

• Sigurtà Elettrika: Ensure the washing machine is connected to a properly grounded electrical outlet. Do not use extension cords or adapters.
• Konnessjoni tal-Ilma: Qabbad il-pajp tad-dħul tal-ilma ma' vit tal-ilma kiesaħ. Kun żgur li l-konnessjonijiet kollha huma ssikkati biex tevita t-tnixxijiet.
• Installazzjoni: The appliance must be installed on a firm, level floor. Remove all transit bolts before use to prevent damage and excessive vibration.
• Tfal u Pets: Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-apparat waqt it-tħaddim.
• Manutenzjoni: Skonnettja l-apparat mill-provvista tal-enerġija qabel ma tagħmel xi tindif jew manutenzjoni.

2. Prodott Aktarview

The Candy Smart Pro Inverter washing machine is designed for efficient and convenient laundry care. It features an innovative Speed-Drive Motor and Quick&Clean system for fast and effective washing.

This image shows the front of the Candy Smart Pro Inverter washing machine, highlighting its sleek black design and central loading door. The control panel is visible at the top, featuring various program selections and a digital display.

Komponenti Ewlenin:

• Panel tal-Kontroll: Used to select wash programs, adjust settings, and start/pause cycles.
• Kexxun tad-Deterġenti: For adding detergent, fabric softener, and pre-wash agents.
• Tanbur: Stainless steel drum for washing clothes.
• Bieb: Front-loading door with a secure latch.
• Aċċess għall-Filtru: Located at the bottom front for easy access to the drain pump filter.

3. Setup

Spakkjar u Pożizzjonament:

• Neħħi bir-reqqa l-materjali kollha tal-ippakkjar.
• Position the washing machine on a flat, stable surface. Ensure there is adequate space around the appliance for ventilation and access.

It-tneħħija tal-boltijiet tat-transitu:

Before first use, it is crucial to remove the transit bolts located at the rear of the machine. These bolts secure the drum during transport and must be removed to prevent damage during operation.

• Locate the transit bolts on the back panel.
• Uża wrench biex tħoll u tneħħi kull bolt.
• Insert the plastic caps (supplied with the machine) into the holes.

Water and Electrical Connection:

• Connect the water inlet hose to a cold water tap. Hand-tighten the connection, then use a wrench to tighten it further, ensuring no leaks.
• Poġġi l-pajp tad-drenaġġ f'pajp tad-drenaġġ jew sink adattat, filwaqt li tiżgura li jkun imwaħħal sew biex jipprevjeni li jiġi spostat waqt id-drenaġġ.
• Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.

4. Istruzzjonijiet Operattivi

Tagħbija tal-Londri:

This image displays the Candy Smart Pro Inverter washing machine with its door open, revealing the spacious drum ready for laundry. This view is useful for understanding how to load clothes.

• Iftaħ il-bieba tal-magna tal-ħasil.
• Load laundry into the drum, ensuring not to overload. Leave enough space for clothes to tumble freely.
• Agħlaq il-bieb sew sakemm tikklikkja.

Żieda ta' Deterġenti:

This close-up image shows the detergent drawer pulled out, indicating the compartments for pre-wash, main wash detergent, and fabric softener. This helps users identify where to add their laundry products.

• Iġbed il-kexxun tad-deterġent.
• Żid l-ammont xieraq ta' deterġent fil-kompartiment prinċipali tal-ħasil.
• If desired, add fabric softener to the designated compartment.
• Imbotta l-kexxun tad-deterġent lura kompletament.

Għażla ta' Programm tal-Ħasil:

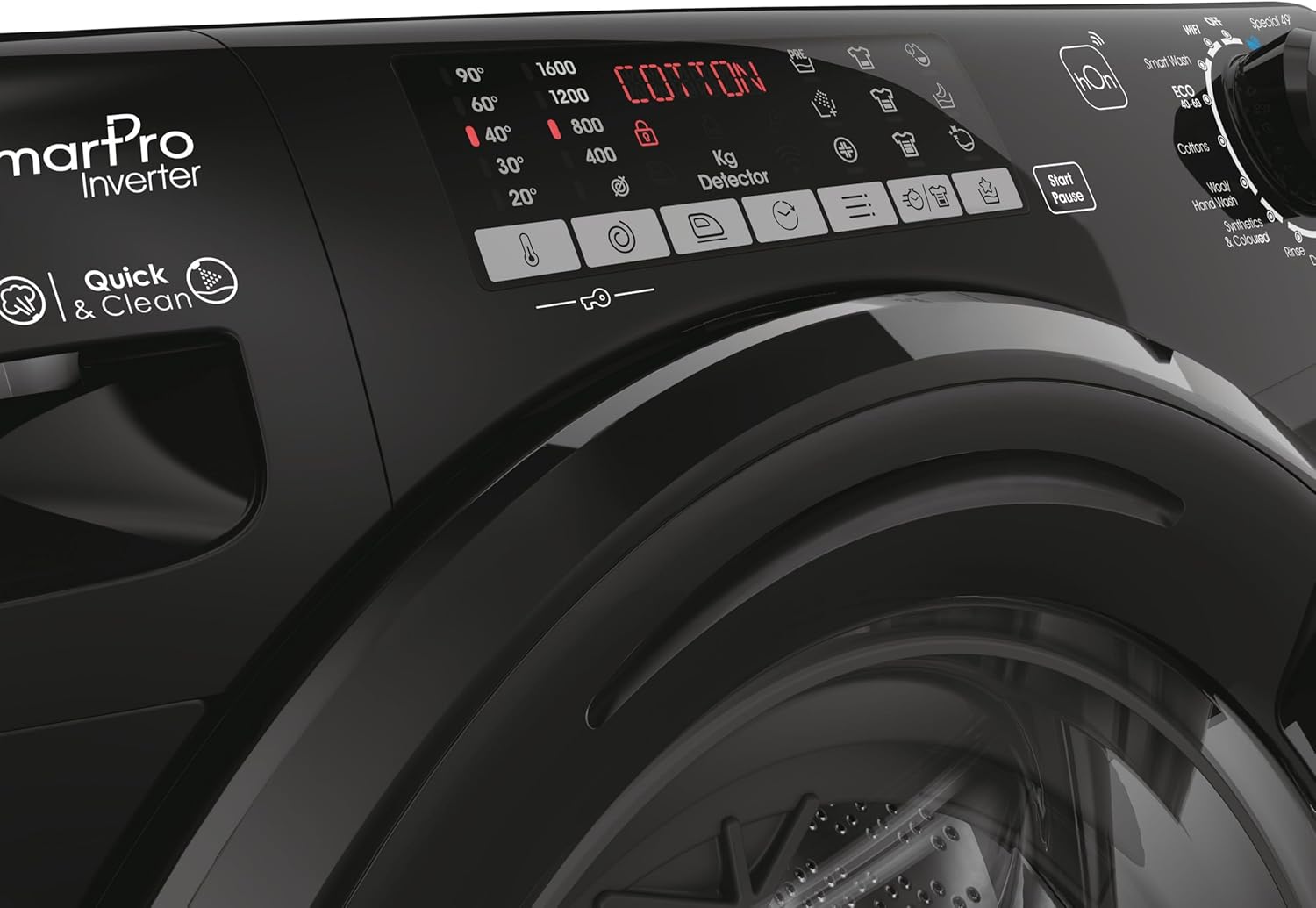

Din l-immaġni tipprovdi deskrizzjoni dettaljata view of the washing machine's control panel, focusing on the program selection dial and digital display. It shows various wash options like 'Smart Wash', 'Cottons', 'Wool', 'Synthetics', 'Quick Wash', and 'Easy Iron Plus 39''.

• Turn the program selector dial to choose the desired wash program (e.g., Cotton, Synthetics, Quick Wash).
• Adjust additional settings such as temperature and spin speed using the corresponding buttons on the control panel, if available for the selected program.

Bidu ta' Ċiklu tal-Ħasil:

• Agħfas il-buttuna 'Start/Pause' biex tibda ċ-ċiklu tal-ħasil.
• Il-magna awtomatikament tipproċedi bil-programm magħżul.

Ending a Wash Cycle:

• Once the program is complete, the machine will signal its finish.
• Iftaħ il-bieb u oħroġ il-ħwejjeġ tal-ħasil tiegħek.
• Ħalli l-bieba miftuħa ftit biex it-tanbur jinxef bl-arja u tevita rwejjaħ ħżiena.

5. Manutenzjoni

Tindif tal-Kexxun tad-Deterġent:

• Regularly clean the detergent drawer to prevent residue buildup.
• Pull out the drawer completely and rinse it under running water.
• Use a brush to remove any stubborn residue.
• Wipe the drawer housing clean before reinserting the drawer.

Tindif tal-Filtru tal-Pompa tad-Drenaġġ:

• Periodically clean the drain pump filter to ensure proper drainage.
• Open the filter cover at the bottom front of the machine.
• Poġġi kontenitur baxx taħtu biex taqbad kwalunkwe ilma residwu.
• Slowly unscrew the filter and remove any lint, coins, or foreign objects.
• Clean the filter under running water and screw it back in firmly. Close the cover.

Tindif ta' barra:

• Imsaħ l-uċuħ ta 'barra b'artab, damp drapp.
• Tużax tindif jew solventi li joborxu.

6 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-magna tal-ħasil tiegħek, irreferi għat-tabella t'hawn taħt għal problemi u soluzzjonijiet komuni.

7. Speċifikazzjonijiet

Detailed technical specifications for the Candy Smart Pro Inverter Washing Machine.

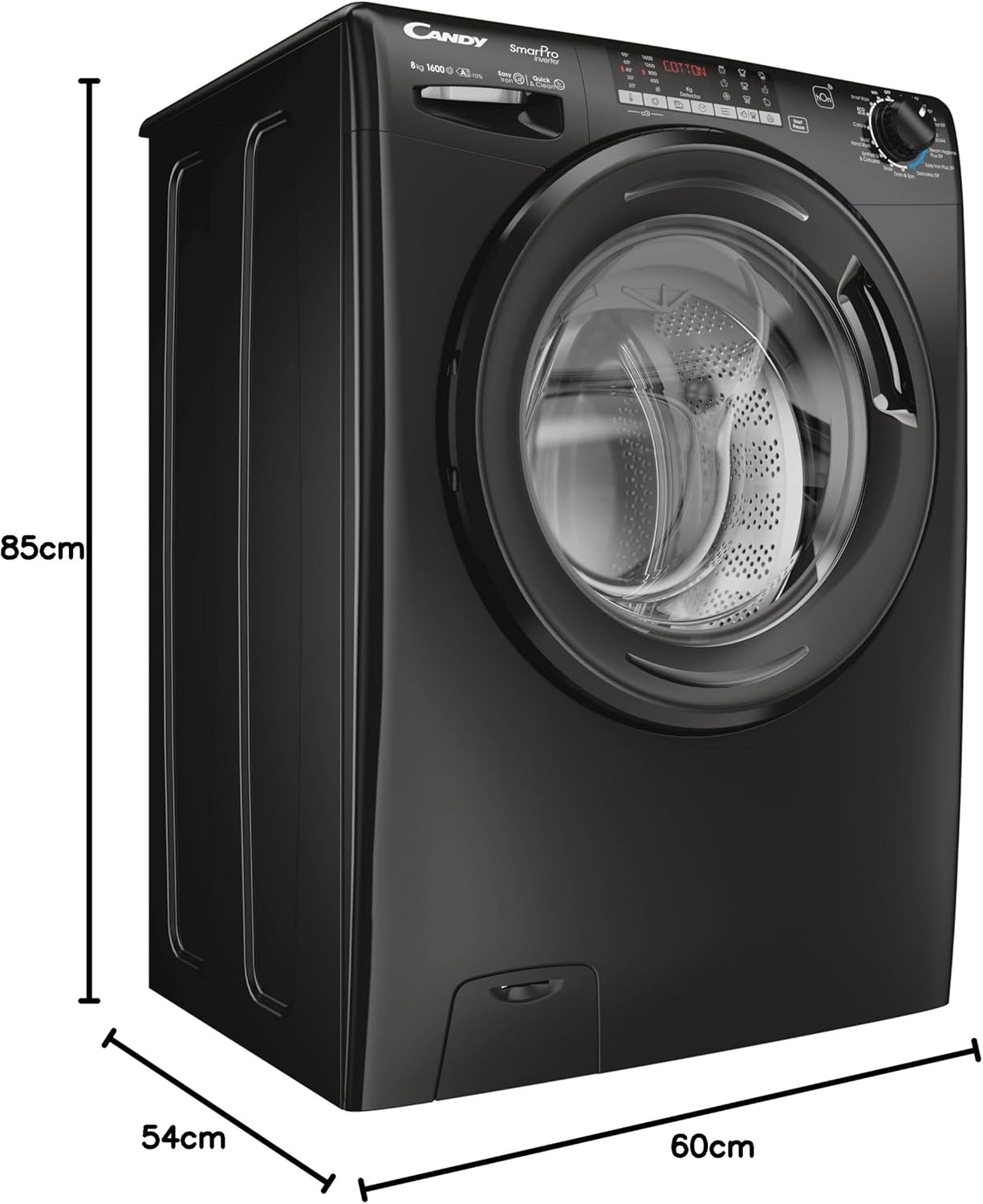

This image illustrates the physical dimensions of the washing machine, showing its height (85cm), depth (54cm), and width (60cm). This is crucial for installation planning.

8. Garanzija u Appoġġ

For detailed warranty information and customer support, please refer to the warranty card or the full user manual included with your appliance. You may also visit the official CANDY webis-sit għal aktar assistenza u dettalji ta’ kuntatt.

The manufacturer is Haier.
