Maclean MCE385 PIR Motion Detector User Manual

1. Introduzzjoni

Thank you for choosing the Maclean MCE385 PIR Motion Detector. This device is designed for outdoor use, providing reliable motion detection with advanced features like pet immunity. Please read this manual carefully before installation and operation to ensure proper use and safety.

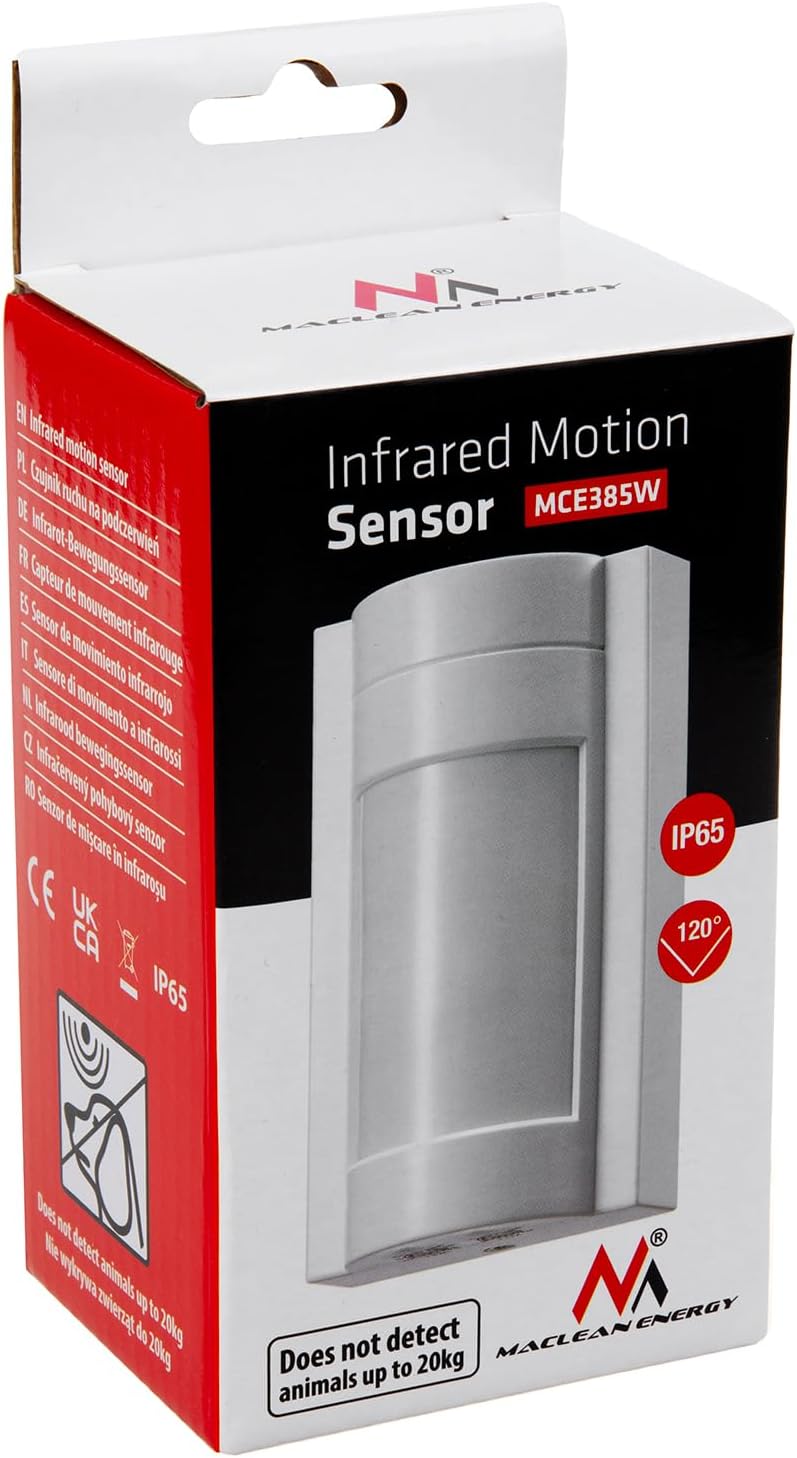

Figure 1: Maclean MCE385 PIR Motion Detector packaging.

2. Istruzzjonijiet tas-Sigurtà

• Sigurtà Elettrika: Installation must be performed by a qualified electrician. Disconnect power before installation or maintenance.
• Voltage: Ensure the power supply matches the device's requirements (220-240V/AC, 50/60Hz).
• Użu fuq barra: The device has an IP65 rating, making it suitable for outdoor environments. However, avoid direct water jets or submersion.
• Immuntar: Mount the device securely to prevent it from falling.
• Temperatura: Operate within the specified temperature range of -20°C to +40°C.

3. Prodott Aktarview

Karatteristiċi ewlenin:

• Sejbien tal-Moviment PIR: Passive Infrared sensor detects movement by sensing changes in infrared radiation.
• Firxa Wiesgħa ta' Sejbien: Up to 12 meters with a 120-degree detection angle.
• Immunità għall-Annimali Domestiċi: Designed not to detect animals weighing less than 20 kg, reducing false alarms.
• Settings aġġustabbli: Time delay and ambient light (LUX) sensitivity are adjustable.
• reżistenti għat-temp: IP65 rating for outdoor installation.

Komponenti:

• Motion Detector Unit
• Viti u Ankri tal-Immuntar

Figura 2: Quddiem view tad-ditekter tal-moviment.

Figura 3: Qiegħ view with adjustment knobs for TIME and LUX.

4. Speċifikazzjonijiet

5. Setup u Installazzjoni

5.1 Choosing a Location:

• Mount the sensor at a height of 1.8m to 2.2m for optimal detection.
• Avoid mounting near heat sources (e.g., air vents, direct sunlight) or objects that may cause rapid temperature changes, as this can lead to false triggers.
• Kun żgur li ż-żona ta' skoperta hija ħielsa minn ostakli.

Figure 4: Recommended mounting height and detection area.

Figure 5: Detection range and angle.

5.2 Immuntar tal-Apparat:

1. Turn off the main power supply before starting installation.
2. Iftaħ is-sensor casing.
3. Immarka l-pożizzjoni tal-immuntar mixtieqa fuq il-ħajt.
4. Ħaffer toqob u daħħal l-ankri tal-ħajt provduti.
5. Waħħal il-bażi tas-sensor mal-ħajt billi tuża l-viti pprovduti.

Figure 6: Mounting accessories.

5.3 Konnessjonijiet tal-Wiring:

Connect the power supply and load wires according to the wiring diagram. Ensure all connections are secure and insulated.

• L: Wajer ħaj (Input)
• N: Neutral wire (Input)
• L': Live wire (Output to load)

Figure 7: Wiring diagram. Connect Live (L), Neutral (N), and Load (L') wires as shown.

After wiring, close the sensor casing u rrestawra l-enerġija.

6. Istruzzjonijiet Operattivi

The Maclean MCE385 motion detector features two adjustable knobs on its underside: TIME and LUX.

Figure 8: TIME and LUX adjustment knobs.

6.1 TIME Adjustment:

The TIME knob controls how long the connected light or device remains on after motion is detected and the detection area is clear. Rotate the knob to set the desired delay:

• Minimum setting: Approximately 10 seconds (fully counter-clockwise).
• Maximum setting: Approximately 15 minutes (fully clockwise).

Figure 9: TIME adjustment knob.

6.2 LUX Adjustment:

The LUX knob determines the ambient light level at which the sensor will activate the connected device. Rotate the knob to set the desired light sensitivity:

• Sun symbol (fully clockwise): The sensor will operate both day and night (high LUX sensitivity).
• Moon symbol (fully counter-clockwise): The sensor will only operate in low light conditions (e.g., dusk or night, low LUX sensitivity).

Figure 10: LUX adjustment knob.

6.3 Walk Test:

After installation and initial settings, perform a walk test to verify the detection area and functionality:

1. Set the TIME knob to minimum (10s) and the LUX knob to maximum (sun symbol) for daytime testing.
2. Walk through the desired detection area. The connected light should turn on.
3. Step out of the detection area. The light should turn off after the set time delay.
4. Adjust the sensor's angle or location if the detection area is not satisfactory.
5. Once satisfied, set the TIME and LUX knobs to your preferred operational settings.

7. Manutenzjoni

• Tindif: Regularly clean the sensor lens with a soft, dry cloth to ensure optimal performance. Do not use abrasive cleaners or solvents.
• Spezzjoni: Periodically check the wiring connections and mounting for any signs of wear or damage.
• Qawwa: Disconnect power before performing any cleaning or maintenance.

8 Issolvi l-problemi

9. Garanzija u Appoġġ

Information regarding warranty and specific support contacts is not available in this manual. Please refer to your purchase documentation or contact your retailer for warranty details and technical assistance.
