ARIEL Hamlet 42 Inch Single Sink Bathroom Vanity Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your ARIEL Hamlet 42 Inch Single Sink Bathroom Vanity. Please read all instructions carefully before beginning installation and retain this manual for future reference. This vanity features solid hardwood construction, a Carrara Quartz top, soft-closing doors and drawers, and a toe kick design.

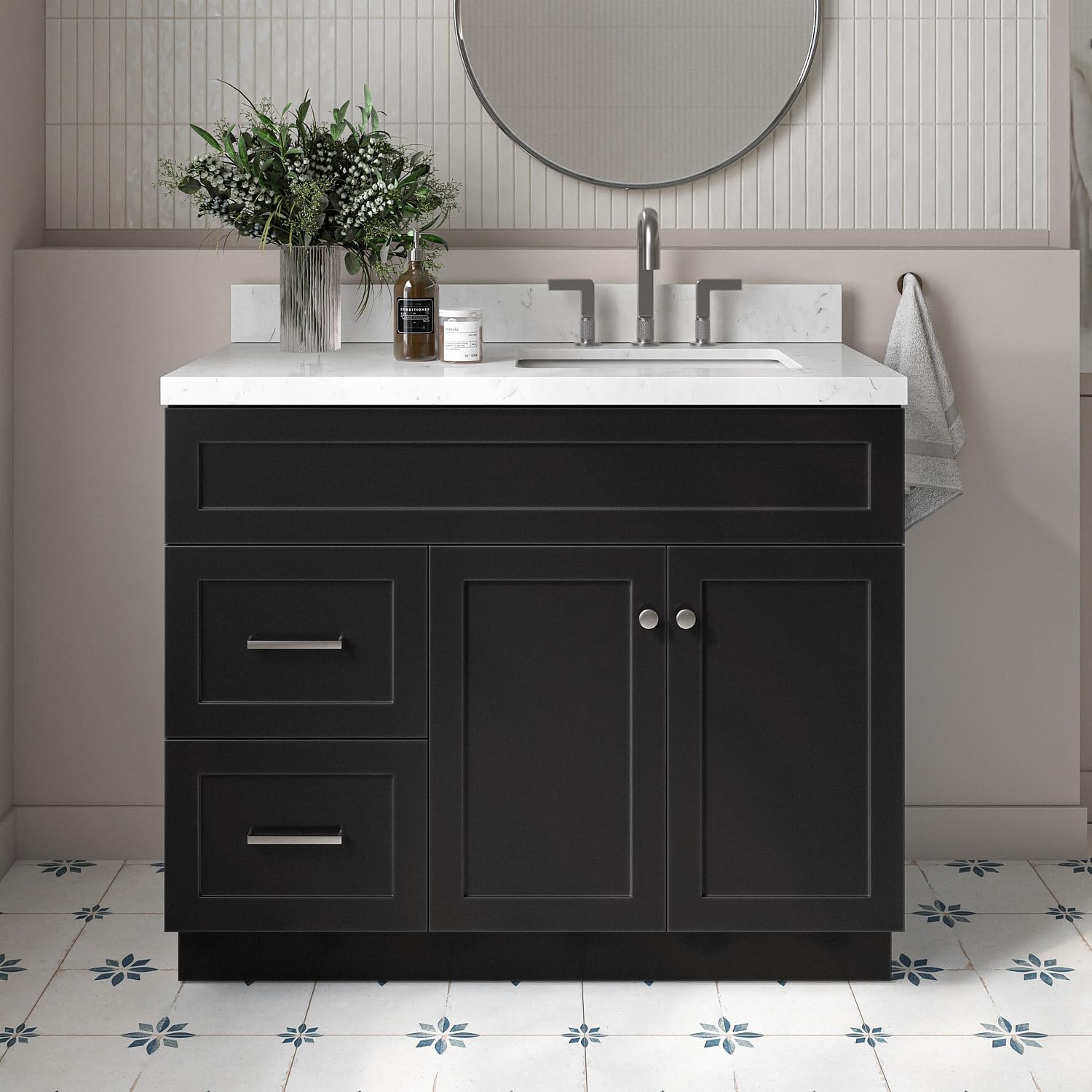

Stampa 1.1: Quddiem view of the ARIEL Hamlet 42 Inch Single Sink Bathroom Vanity in Black.

2. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok osserva l-prekawzjonijiet ta' sigurtà li ġejjin waqt l-installazzjoni u l-użu:

• This product is heavy. Two or more people are recommended for lifting and installation to prevent injury.
• Kun żgur li l-pajpijiet kollha tal-provvista tal-ilma huma magħluqa qabel tibda kwalunkwe xogħol tal-plumbing.
• Verify that all connections are secure and leak-free after installation.
• Do not overtighten fasteners, as this may damage the vanity components.
• Żomm partijiet żgħar 'il bogħod mit-tfal biex tevita perikli ta' fgar.
• TWISSIJA: Dan il-prodott jista’ jesponik għal kimiċi inkluż trab tal-injam, li huwa magħruf mill-Istat ta’ Kalifornja li jikkawża l-kanċer. Għal aktar informazzjoni mur fuq www.P65Warnings.ca.gov.

3. Kontenut tal-Pakkett

Carefully unpack all components and verify that all items listed below are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• Vanity Base Cabinet (fully assembled)
• Carrara Quartz Countertop (1.5" edge)
• Ceramic Rectangular Under-mount Sink (UPC certified)
• Hardware (Brushed nickel pulls)
• Backsplash

Nota: Faucet and mirror are not included with this product.

4. Speċifikazzjonijiet

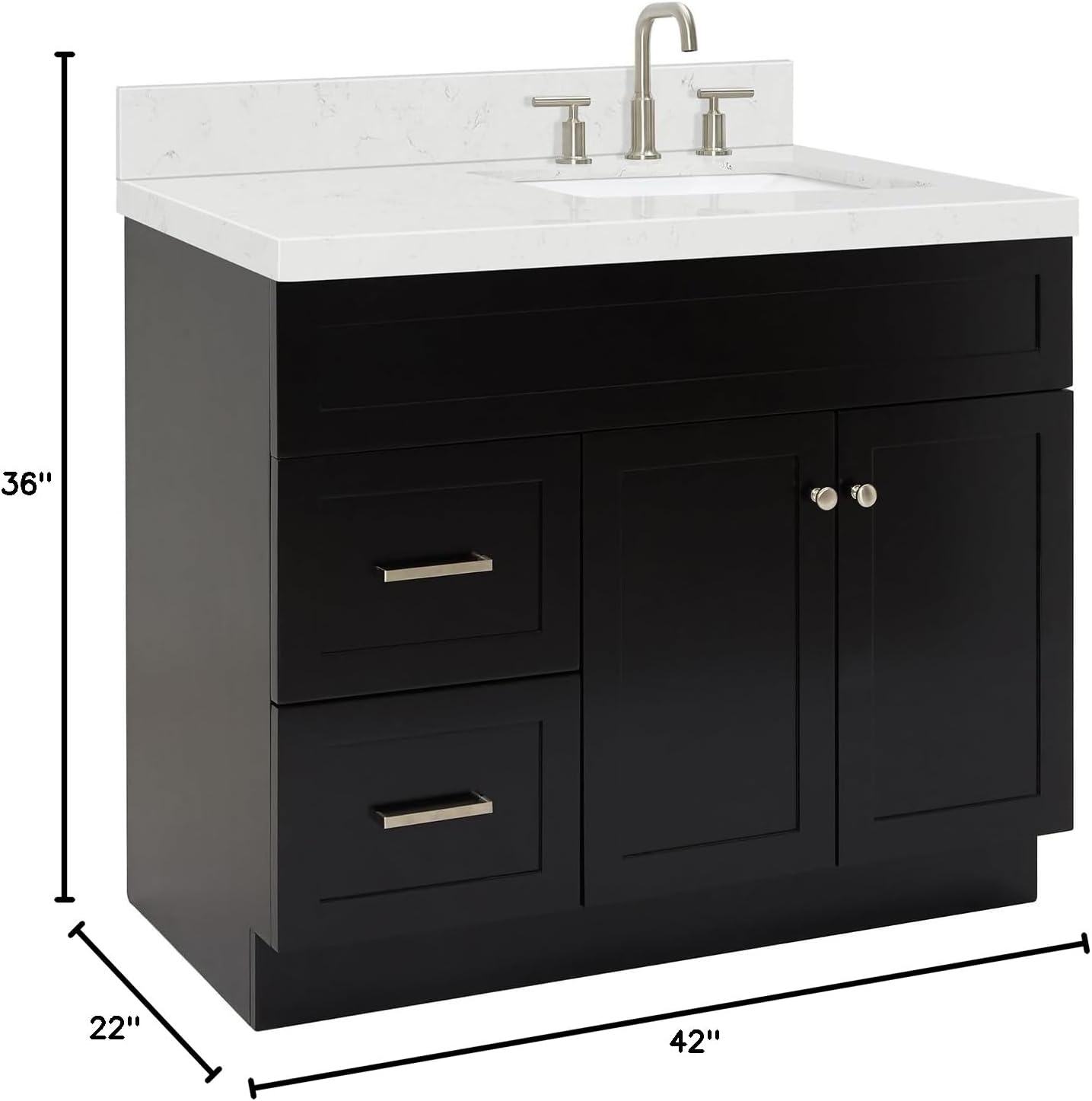

Image 4.1: Dimensional drawing of the vanity, showing 42" width, 22" depth, and 36" height.

5. Installazzjoni

The vanity cabinet arrives fully assembled. The countertop is not attached to the vanity and requires separate installation. Professional installation is recommended, but DIY installation is an option.

5.1 Passi ta' Qabel l-Installazzjoni

1. Kun żgur li ż-żona tal-installazzjoni hija nadifa, livellata, u li għandha l-pajpijiet mhux maħduma xierqa.
2. Itfi l-provvista prinċipali tal-ilma għall-kamra tal-banju.
3. Carefully position the vanity base cabinet in its desired location. The open back design facilitates easier plumbing connections.

5.2 Attaching the Sink to the Countertop

The ceramic under-mount sink needs to be attached to the underside of the Carrara Quartz countertop. Use a silicone sealant specifically designed for kitchen and bath applications to create a watertight seal. Follow the sealant manufacturer's instructions for application and curing time.

Image 5.1: Detail of the Carrara Quartz countertop with the rectangular under-mount sink.

5.3 Attaching the Countertop to the Vanity Cabinet

Once the sink is securely attached to the countertop and the sealant has cured, carefully place the countertop onto the vanity base cabinet. Apply a bead of silicone sealant along the top edges of the vanity cabinet before placing the countertop to secure it in place and prevent moisture intrusion. Ensure the countertop is level.

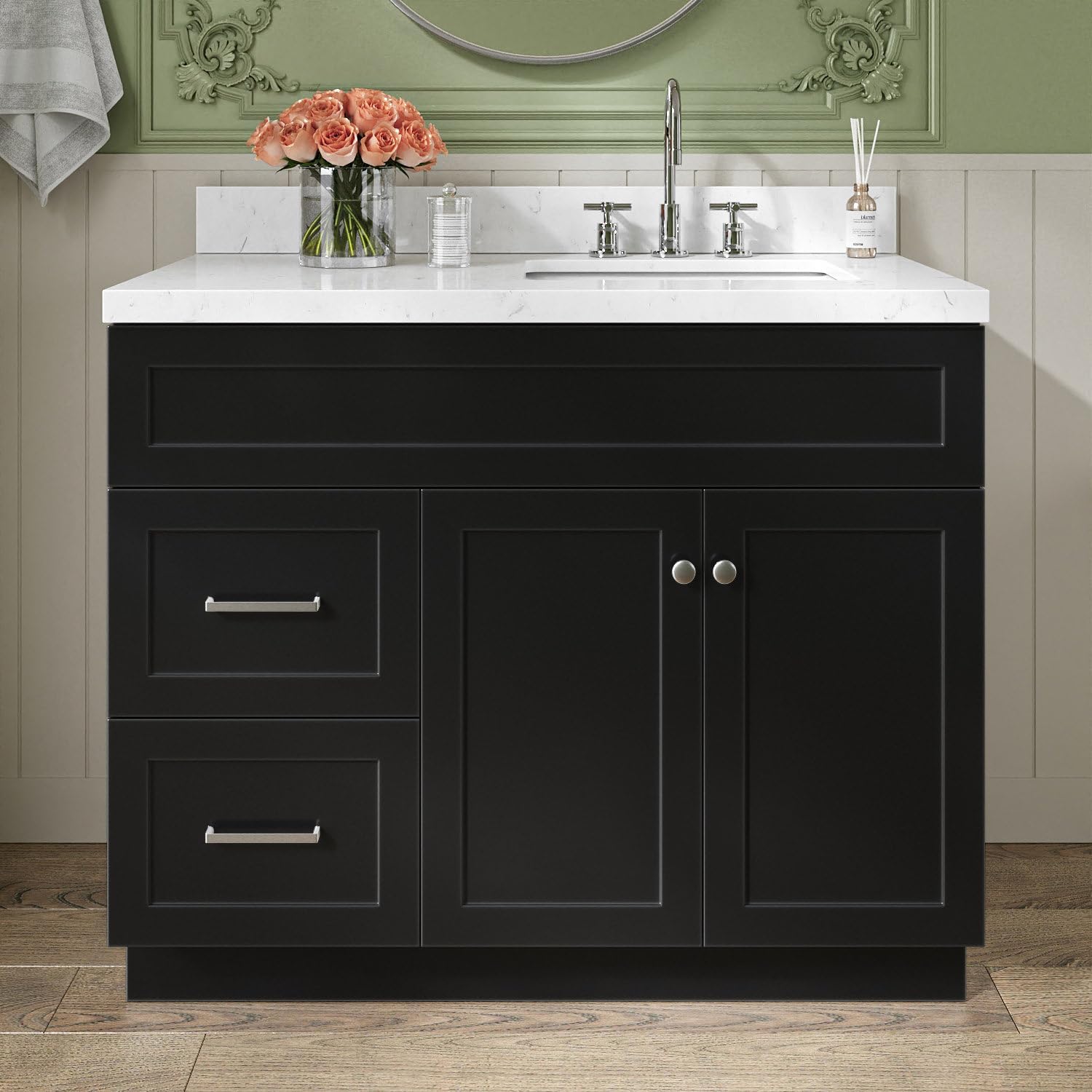

Stampa 5.2: Quddiem view of the vanity with the countertop and sink installed.

5.4 Faucet and Plumbing Connections

The countertop is pre-drilled for an 8-inch widespread, 3-hole faucet. Install your chosen faucet according to its manufacturer's instructions. Connect the hot and cold water supply lines and the drain assembly. Turn on the water supply and check for any leaks.

5.5 Installazzjoni tal-Backsplash

Apply a silicone sealant to the back edge of the countertop and carefully place the backsplash against the wall. Ensure it is level and firmly pressed into place. Apply a small bead of sealant along the top edge of the backsplash where it meets the wall for a finished look and moisture protection.

6. Operazzjoni

Your ARIEL Hamlet vanity is designed for ease of use and durability.

6.1 Soft-Closing Doors and Drawers

The vanity features soft-closing hinges on the doors and full-extension soft-closing slides on the drawers. This mechanism allows for quiet and gentle closing, preventing slamming and extending the lifespan of the components. Simply push the door or drawer gently, and the soft-close mechanism will engage to close it smoothly.

Stampa 6.1: View of the vanity with its soft-closing doors and full-extension drawers open, showcasing storage space.

6.2 Dovetail Drawer Construction

The drawers are constructed with dovetail joints, a traditional woodworking technique known for its strength and durability. This construction method ensures the drawers remain sturdy and functional over time.

Immaġni 6.2: Mill-qrib view illustrating the robust dovetail joint construction of a drawer.

7. Manutenzjoni

Proper care and maintenance will preserve the beauty and functionality of your vanity.

7.1 Cabinet Care (Solid Hardwood)

• Naddaf l-uċuħ tal-kabinett b'drapp artab u damp drapp.
• Avoid using abrasive cleaners, harsh chemicals, or ammonia-based products, as these can damage the finish.
• Imsaħ it-tixrid immedjatament biex tevita ħsara mill-ilma jew tbajja’.
• Periodically polish with a non-silicone furniture polish to maintain luster.

7.2 Countertop Care (Carrara Quartz)

• Clean daily with a mild soap and water solution and a soft cloth.
• For stubborn stains, use a non-abrasive household cleaner. Avoid strong alkaline or acidic cleaners.
• Quartz is highly resistant to stains and scratches but is not impervious. Avoid direct contact with hot items (use trivets) and sharp objects.
• Do not use abrasive pads or steel wool, which can dull the surface.

7.3 Hardware Care (Brushed Nickel)

• Naddaf il-ħardwer b'drapp artab u damp drapp.
• Avoid abrasive cleaners or polishes that can scratch or remove the finish.

8 Issolvi l-problemi

Irreferi għal din it-taqsima għal soluzzjonijiet għal kwistjonijiet komuni.

8.1 Soft-Closing Mechanism Not Functioning

• Ħruġ: Door or drawer does not soft-close properly.
• Soluzzjoni: Check for any obstructions in the hinge or drawer slide mechanism. Ensure the door/drawer is properly aligned and not binding. Some soft-close mechanisms have adjustable tension; refer to the hinge/slide manufacturer's instructions if applicable.

8.2 Tnixxijiet tal-Ilma

• Ħruġ: Tnixxija ta' ilma mill-konnessjonijiet tal-plumbing.
• Soluzzjoni: Turn off the water supply immediately. Inspect all connections (faucet, supply lines, drain) for proper tightening and sealing. Ensure plumber's tape or sealant was used correctly. If leaks persist, consult a qualified plumber.

8.3 Drawer Alignment Issues

• Ħruġ: Drawers appear crooked or do not slide smoothly.
• Soluzzjoni: Check if the vanity itself is level. Most drawer slides have adjustment screws to fine-tune alignment. Refer to the drawer slide manufacturer's instructions for specific adjustment procedures.

9. Informazzjoni dwar Garanzija

For specific warranty details regarding your ARIEL Hamlet Bathroom Vanity, please refer to the warranty documentation included with your purchase or visit the official ARIEL websit. Il-kopertura tal-garanzija tipikament tinkludi difetti fil-materjali u x-xogħol taħt użu normali.

10. Informazzjoni ta' Appoġġ

If you require further assistance, have questions about installation, or need to report a missing or damaged part, please contact ARIEL customer support. Contact information can typically be found on the manufacturer's webis-sit jew fuq l-irċevuta tax-xiri tiegħek.

Għal aktar riżorsi u informazzjoni dwar il-prodott, tista' żżur Ħanut ARIEL fuq Amazon.
